Žirklinis automobilių keltuvas INVENTO SL S35 3,5T 230V

Trumpai apie prekę

Prekė: Žirklinis automobilių keltuvas INVENTO SL S35 3,5T 230V. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Invento
• Modelis: INVSLS35_230V

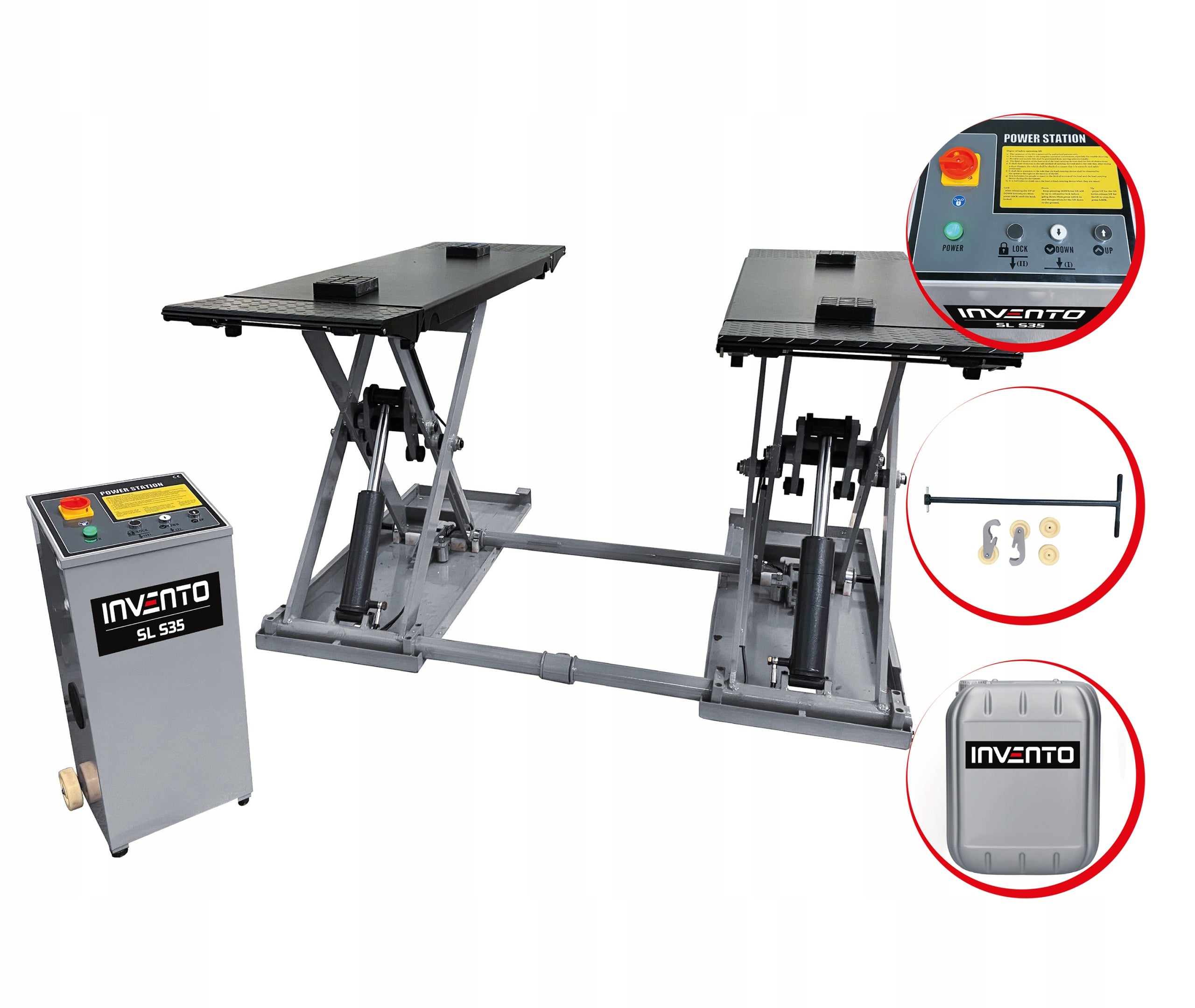

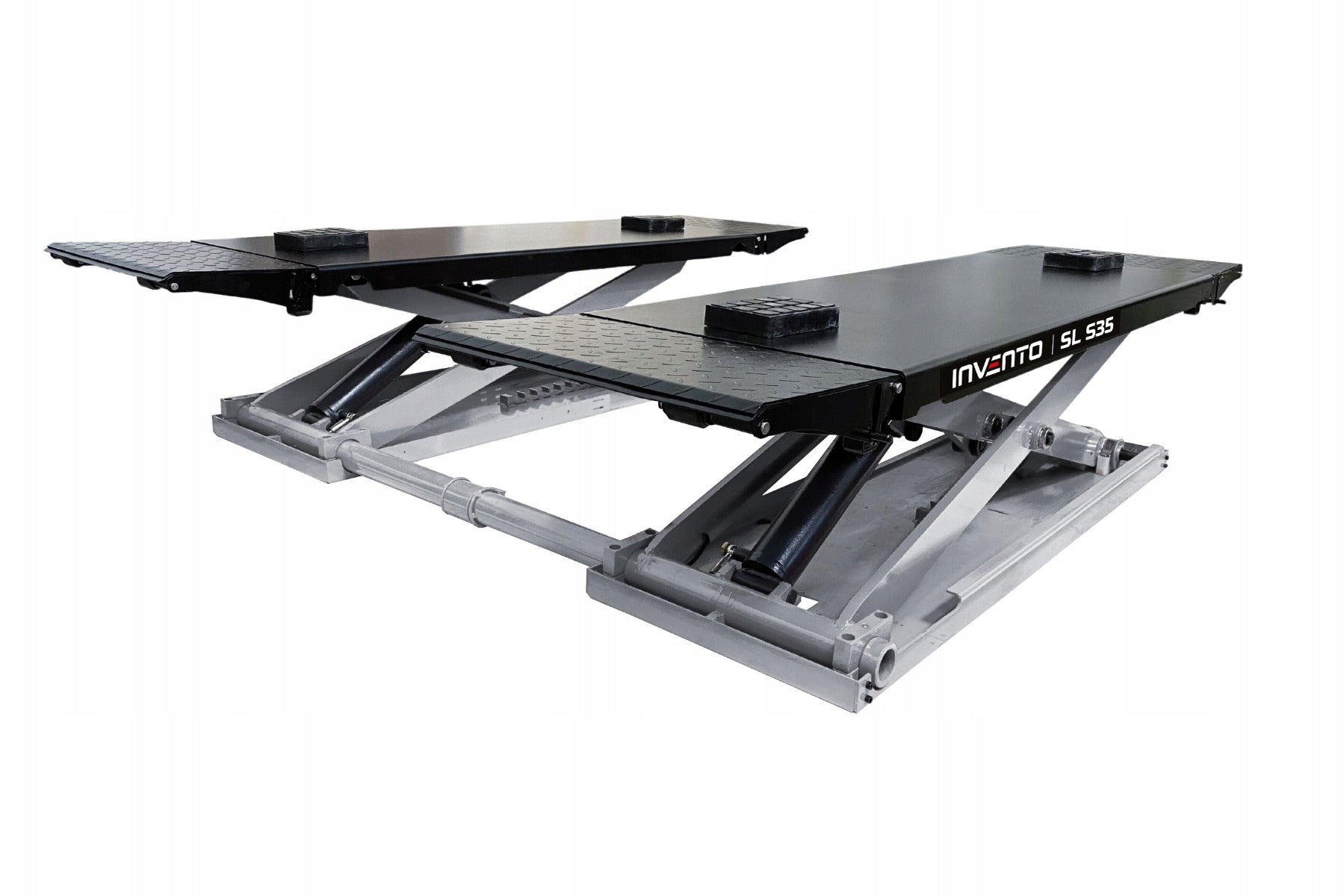

Invento SL S35 is a **floor-mounted** lift designed **for lifting vehicles by the sill** weighing **up to 3.5 tons to a height of 1 meter with 230V power!** It is ideal for tire and mechanical workshops, making it easier to replace brake pads and discs.

Key information about the lift:

• The lift's width of 1,860 mm makes it easy to work with wide vehicles!
• Electromagnetic safety lock with automatic unlocking
• 230V power supply
• Small device dimensions
• Synchronized platform movement
• Adjustable platform length 1,400 mm - 1,940 mm

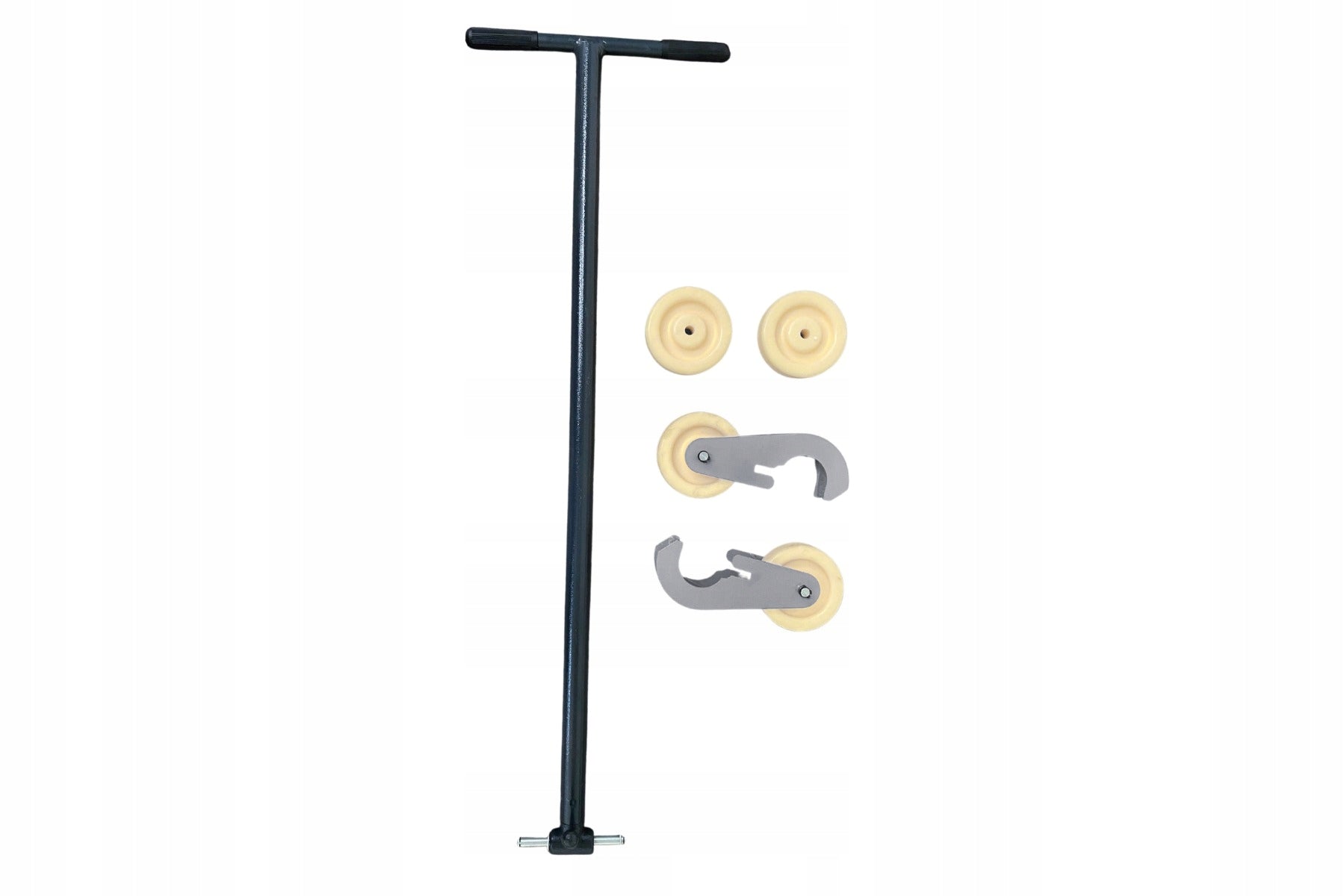

• Mobile kit for easy relocation of the lift
• Rubber pads included
• 10L of hydraulic oil included!

The Invento SL S35 is equipped with the necessary safety features required by the CE documentation. This guarantees a long and safe work in the workshop.

The lift is designed to be installed in indoor, enclosed rooms without obstacles. Operating temperature in the range from -10°C to 40°C.

The price does not include assembly.

Preparation of the substrate:

The lift must be placed on a sufficiently durable concrete surface. The surface must be suitable for maintaining maximum pressure, even under adverse operating conditions. The surface must also be perfectly leveled.

Technical data:

• Leverage: 3 500 kg
• Lifting height: 1 000 mm
• Minimum height: 110 mm
• Length of Platform: 1 410 mm – 2 010 mm
• Platform width: 535 mm
• Distance between shears: 790 mm
• Total width: 1 860 mm
• Lifting time: 60 s
• Electrical power supply: 230V/50 Hz
• Power: 2,2 kW
