Žirkliniai keltuvai ELPRO 3,5 t, 2050 mm, su alyva

Trumpai apie prekę

Prekė: Žirkliniai keltuvai ELPRO 3,5 t, 2050 mm, su alyva. Kategorija: Žirkliniai keltuvai.

• Gamintojas: Elpro
• Modelis: ELPRO_PN35WPF

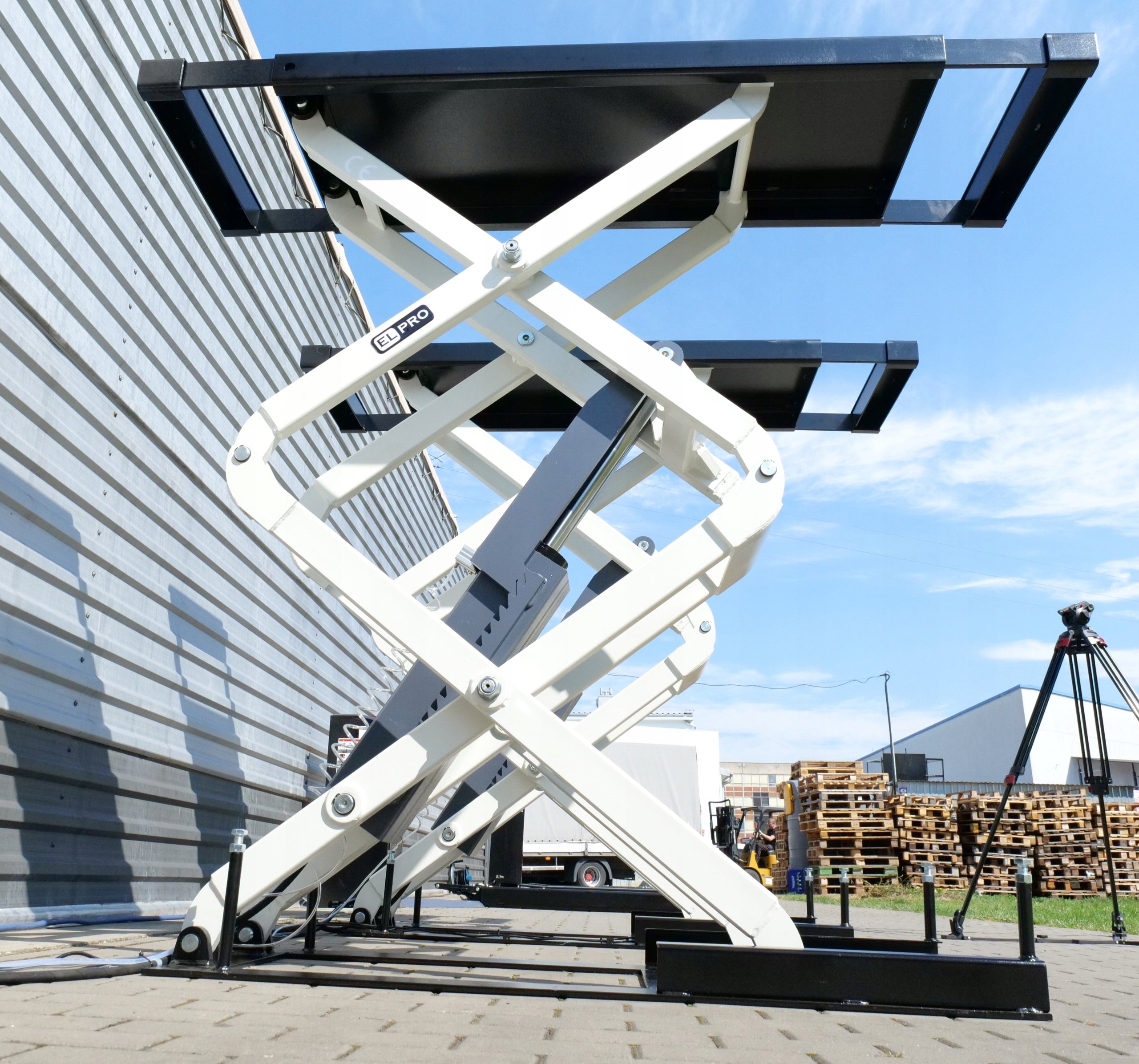

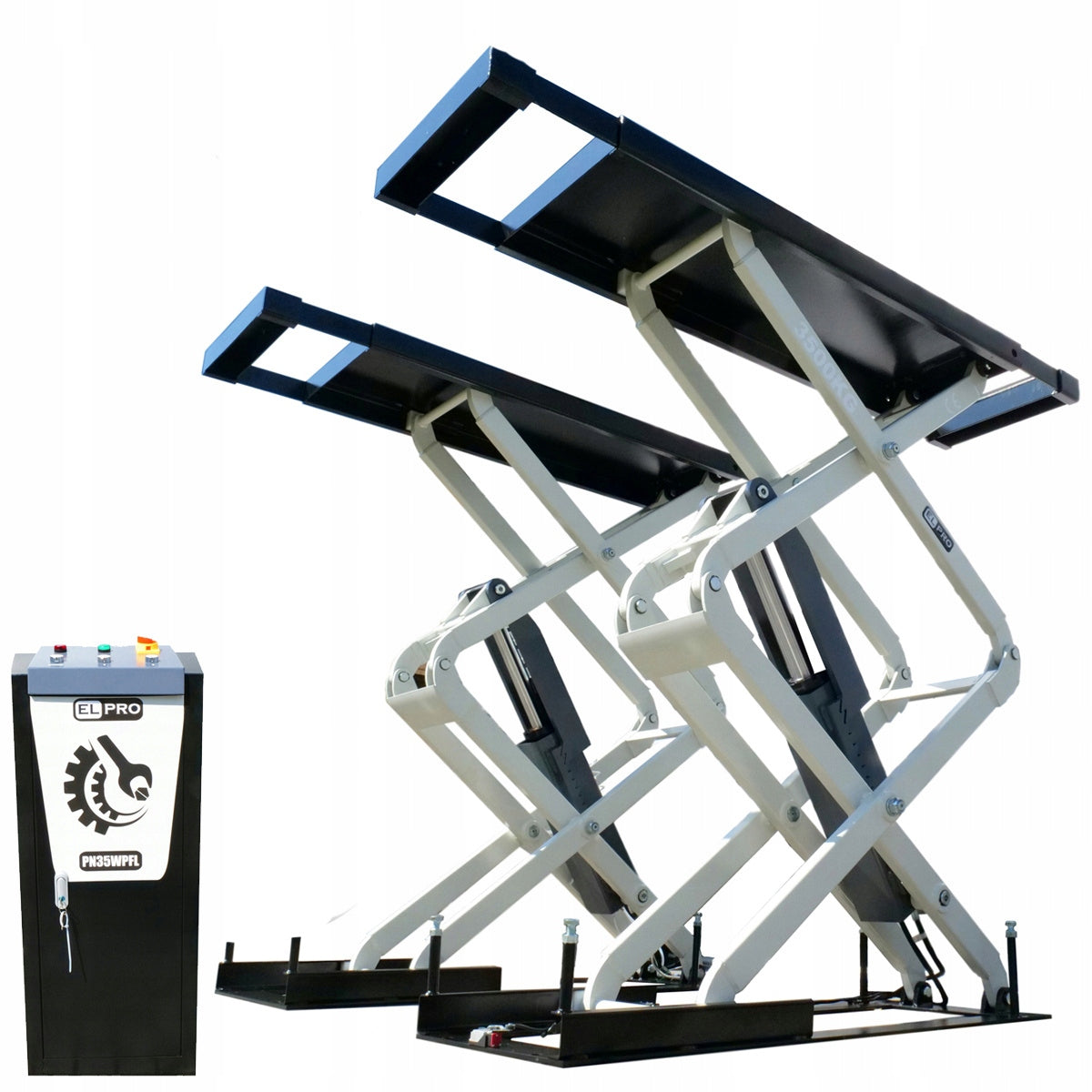

➡ HIGH LIFT SCISSOR LIFT

ELPRO 3,5 T MODEL PN35WPFL LONG

• Electrohydraulic lift designed for installation in the moat
• Mechanical height lock pneumatically released
• Joints on maintenance-free self-lubricating sleeves
• Sound signal in the final lowering phase
• 24V safe voltage lift control
• Safety devices according to EN1493:2010.

➡ Technical data:

• Drive: electric - hydraulic
• Lifting capacity: 3500 kg
• Power supply: 380V/50Hz
• Air pressure: 8 bar max.
• Engine power: 2,2 kW
• Lifting height: 2050 mm
• Platforms: 550 x 1450-2050 mm
• Noise level: < 70 dB
• Weight: 748 kg

➡ lifting capacity 3500 kg

The robust construction of the lift is suitable for lifting heavy cars with a total weight of up to 3,5 T, while guaranteeing high stability of the lifted vehicle.

➡ Pneumatically controlled protection

The Elpro lift uses a double protection system - both shears are equipped with pneumatic locks that automatically deactivate the protection when you press the lower button on the control panel. Thanks to this solution, the operation of the lift is faster, more convenient and above all guarantees 100% safe operation

➡ Extendable raids

The lift is additionally equipped with sliding ramps, increasing the lifting area by 600 mm, which allows you to easily lift both passenger cars and buses.

➡ Limit switch

The lift also has an additional protection in the form of a tip, thanks to which it will automatically stop when the maximum height is reached.

➡ Lubricants

Lubricants (i.e. popularly kalamitki) in the scissor lift play a very important role in maintaining the efficiency of the mechanism. Here’s how they work and how they help:

• Reduce friction – the grease layer separates metal surfaces.
• Protects against wear – grease reduces abrasion and extends the life of pins, bushings and bearings.
• They protect against corrosion – fresh grease pushes out moisture and dirt.
• Improve the smoothness of work – the lift rises and lowers without jams.
• They facilitate service – instead of disassembling the mechanism, it is enough to feed the grease through the calamite.

Regular lubrication by calamites is the key to safe and long-term operation of the lift

➡ Easy control

comfortable and easy-to-read console with a control panel located at the height of the belt, so that you can control the lift in an easy and safe way. The lift is controlled by a safe 24V voltage from the external control box.

The lift also has several additional functions so that you can feel safe and confident while working : there is an emergency switch on the desktop, allowing you to immediately stop the lift in a dangerous situation, the warning beacon starts when the vehicle is lowered. In addition, the limit switch stops the lift when it reaches its maximum height.

➡ Free passage

Po lowering the lift to the floor level does not have any protruding elements, which facilitates the movement of vehicles and pedestrians in the workshop. Safety – no thresholds, beams or poles reduces the risk of tripping and collisions. Saving space – the workshop remains fully functional even when the lift is not in use. Better ergonomics – free access to the vehicle from all sides, without structural obstacles. Aesthetics and professional appearance – clean, flat floor makes the workshop look modern and tidy. The ability to work with low-profile vehicles – the lack of ramps or raids facilitates the operation of cars with reduced suspension.

➡ Styrogum washers

The standard equipment includes four washers for safe vehicle support. They also increase the height of the lifted vehicle.

➡ Powder coated

The lift is powder coated which provides excellent protection against corrosion.

Thanks to contrasting universal colors - very light gray - very dark anthracite great fit into any workshop, and together with other devices BRAND ELPRO, which are in a uniform color range, your workshop will not only work great but also look MEGA PROFESSIONAL :)

➡ Documents to UDT

All lifts have valid CE certificate and meet the necessary requirements for registration with the Office of Technical Inspection. We have all standardized parts for our lifts, consumables, mechanical, hydraulic and electrical components.

➡ Preparation of the substrate

The lift should be mounted at a safe distance from the walls - at least 600 mm, while the room should be at least 4000 mm high. Detailed information on the preparation of the installation and the substrate for the installation of the lift can be found in the instruction manual attached to the auction.

When you buy ELPRO devices, you get access to a platform that includes:

• air conditioning database for trucks and agricultural machinery
• technical documentation
• service instructions for equipment
• instructional videos from which we will learn, among others, how to assemble, calibrate and operate the device

Unfortunately, we have limited space at the auction, inso we insert only one photo from the implementation

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Elpro
Parametry	Manufacturer code	ELPRO_PN35WPF
Parametry	EAN (GTIN)	5904578444776
Parametry	Power supply	380 V
Parametry	Engine power	2.2 kW
Parametry	Lifting capacity	3500 kg
Parametry	Maximum lifting height	2050 mm
