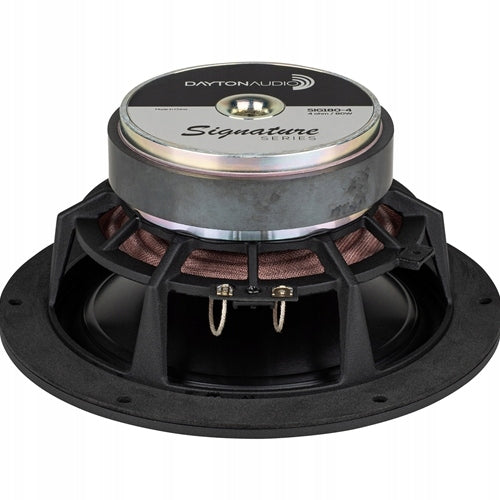

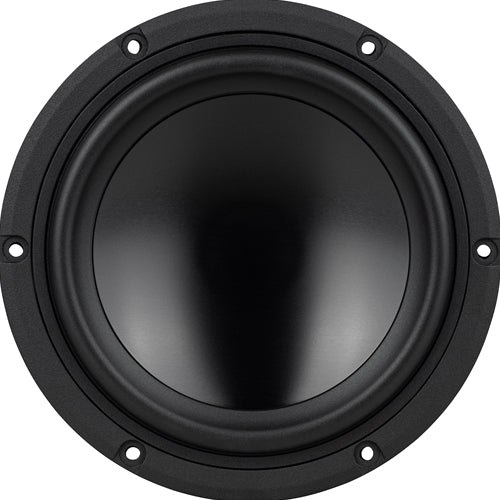

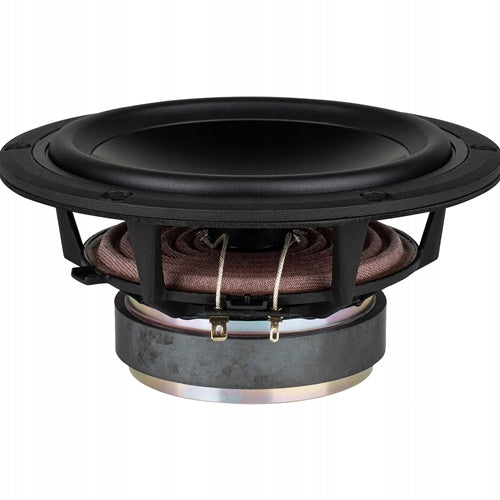

Žemų dažnių garsiakalbis Dayton Audio SIG180-4 180 mm 4 Ω 80 W RMS 91 dB

Trumpai apie prekę

Prekė: Žemų dažnių garsiakalbis Dayton Audio SIG180-4 180 mm 4 Ω 80 W RMS 91 dB. Kategorija: Žemųjų dažnių garsiakalbiai.

• Gamintojas: Dayton Audio
• Modelis: SIG180-4

Introducing the mid-woofer from the prestigious new Signature Series line from Dayton Audio. The SIG180-4 is the perfect choice for demanding Hi-Fi audio system builders and DIY enthusiasts. Thanks to the use of a black membrane made of anodized aluminum, this transducer offers not only a modern look, but above all uncompromising rigidity and clarity of sound.

Why choose Dayton Audio SIG180-4?

• Aluminum Shortening Ring: Minimizes harmonic distortion and ensures linear operation of the drive system.
• High power and performance: 80W RMS allows for dynamic audio playback even in demanding applications.
• Optimized ventilation: The opening in the pole guarantees effective cooling of the coil, which translates into stability of parameters when listening loudly.
• Excellent frequency response: Smooth bandwidth up to 4000 Hz facilitates integration into the tweeter in 2-way systems.
• Hi-End Parameters: Low Fs (40 Hz) allows for deep and precise bass in compact enclosures.

• Parameter: Value
• Producer: Dayton Audio
• Model: SIG180-4
• Power (RMS/MAX): 80 W/160 W
• Impedance: 4 Ohms
• Transmission bandwidth: 40 Hz – 4 000 Hz
• Efficiency (2.83V/1m): 91 dB
• Coil diameter: 31.8 mm
• Resonant frequency (Fs): 40 Hz
• Membrane material: Anodized aluminium

• Qts: 0.38
• Qes: 0.41
• Qms: 5.19
• Vas: 23.2 litres
• Xmax: 4.5 mm
• Re: 3.4 Ohms

Application:

The SIG180-4 is perfect for:

• High-end home speaker systems (monitors or free-standing speakers).
• Advanced Car Audio systems requiring precise mid-bass.
• Original DIY projects looking for Signature-grade sound.

The product comes from the official distribution of Audiowow – a guarantee of quality and originality.
