Trumpai apie prekę

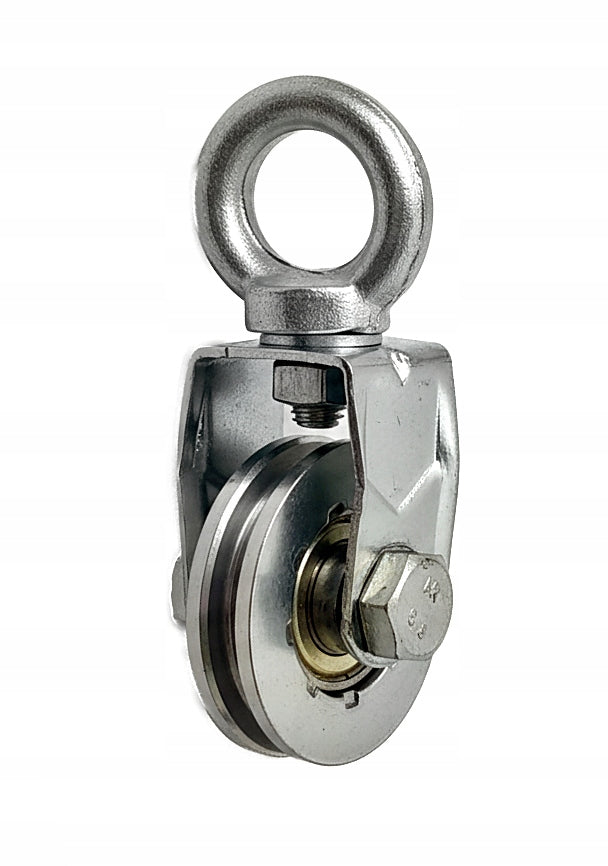

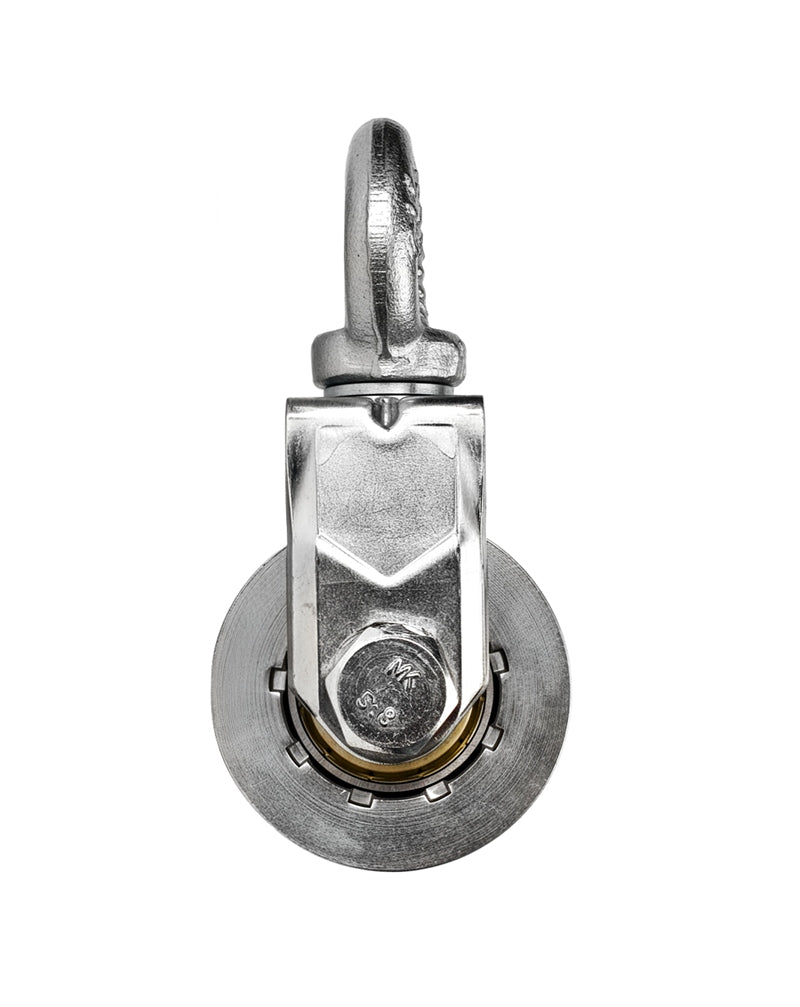

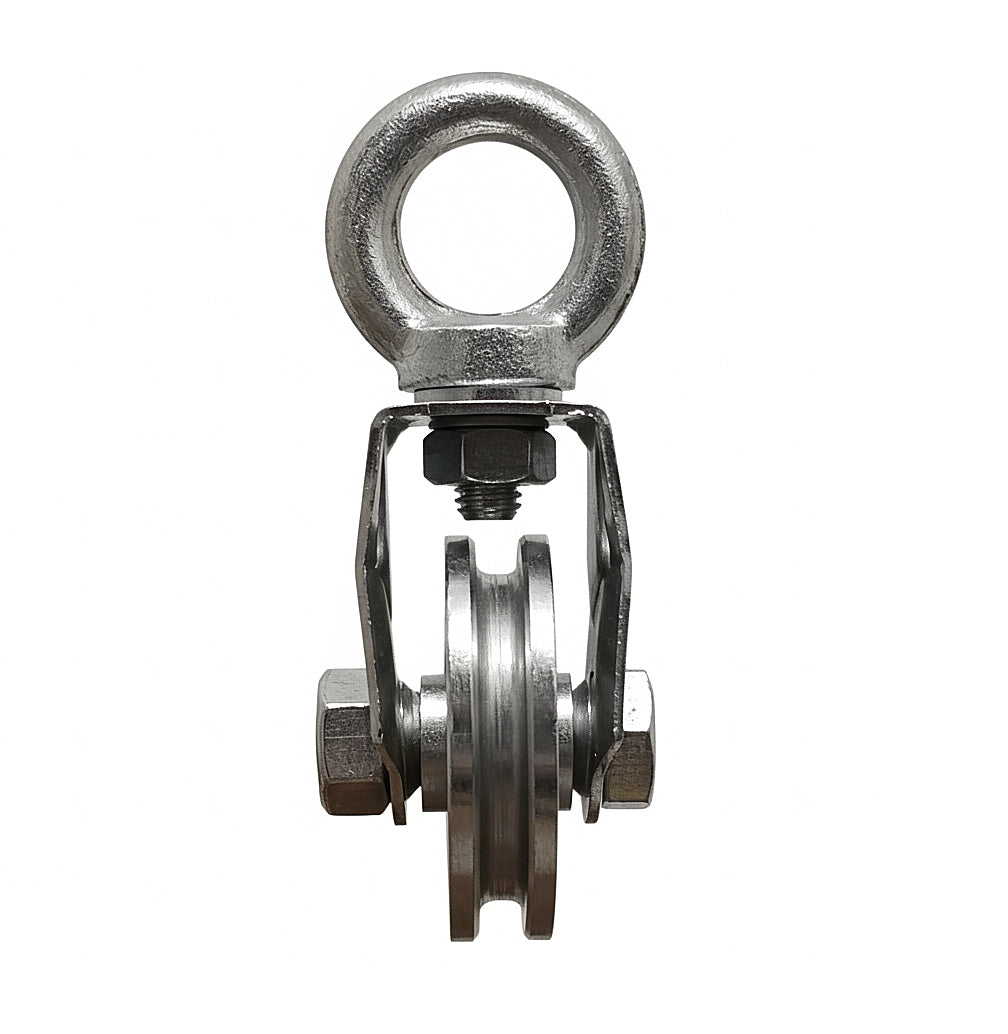

Prekė: Virvės skriemulys, tinka 6–10 mm virvei, apkrova iki 230 kg, 49 mm. Kategorija: Kabelių tempimo bokštai.
- Gamintojas: no brand
- Modelis: rolka 59 uchwyt
When purchasing, please provide links from 6mm, 8 mm 10 mm
The rope block is a modest element consisting of a housing and a disc mounted on a reinforced screw. Its main function is to change the direction of the rope tension. As many experienced people know, lifting weight on a rope pulling down is much easier than up
The auction is for steel roll fi 49 mm per cable from 6mm to 10 mm with handle Can be used for other purposes. These rollers are made by a Polish company on CNC machines.
Rolls are very durable and have high abrasion resistance. Used as a cable guide roller or as a road roller. Our offer also includes metal rollers profiled for pipe or angle. Metal rollers, due to their strength and construction, find many other applications.
High quality, solid rolls of Polish production entirely made in Poland.
Metal roller fi 49mm for cable from6 to 10mm mm with handle stacked
6202 rs bearing is used in the roller
ROLLER PARAMETERS:
- Diameter: 49 mm
- Roller width: 15 mm
- Hub width: 11 mm
- Hub hole diameter: 15 mm reduced to 12 mm
- Groove width: 6 mm,8mm,10mm
- Admissible load: 230 kg.
- Reinforced mounting bracket
- Hole in holder for fixing 10mm
Metal roller fi 49mm for 6 mm cable with tilt stacked
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | 59/6/12 |
| Parametry | Model | rolka 59 uchwyt |
| Parametry | Kind | not specified |
| Parametry | Installation method | for bench |
| Parametry | Maximum load | 130 kg |
| Parametry | Product weight with unit packaging | 0.01 kg |
| Parametry | EAN (GTIN) | 5907624099333 |
| Parametry | Customs tariff code | 95069190 |
