Vejos robotas NAC 1500m2 su kaiščiais ir laidu

Trumpai apie prekę

Prekė: Vejos robotas NAC 1500m2 su kaiščiais ir laidu. Kategorija: Vejos robotai.

• Gamintojas: NAC
• Modelis: RLM1500-NG

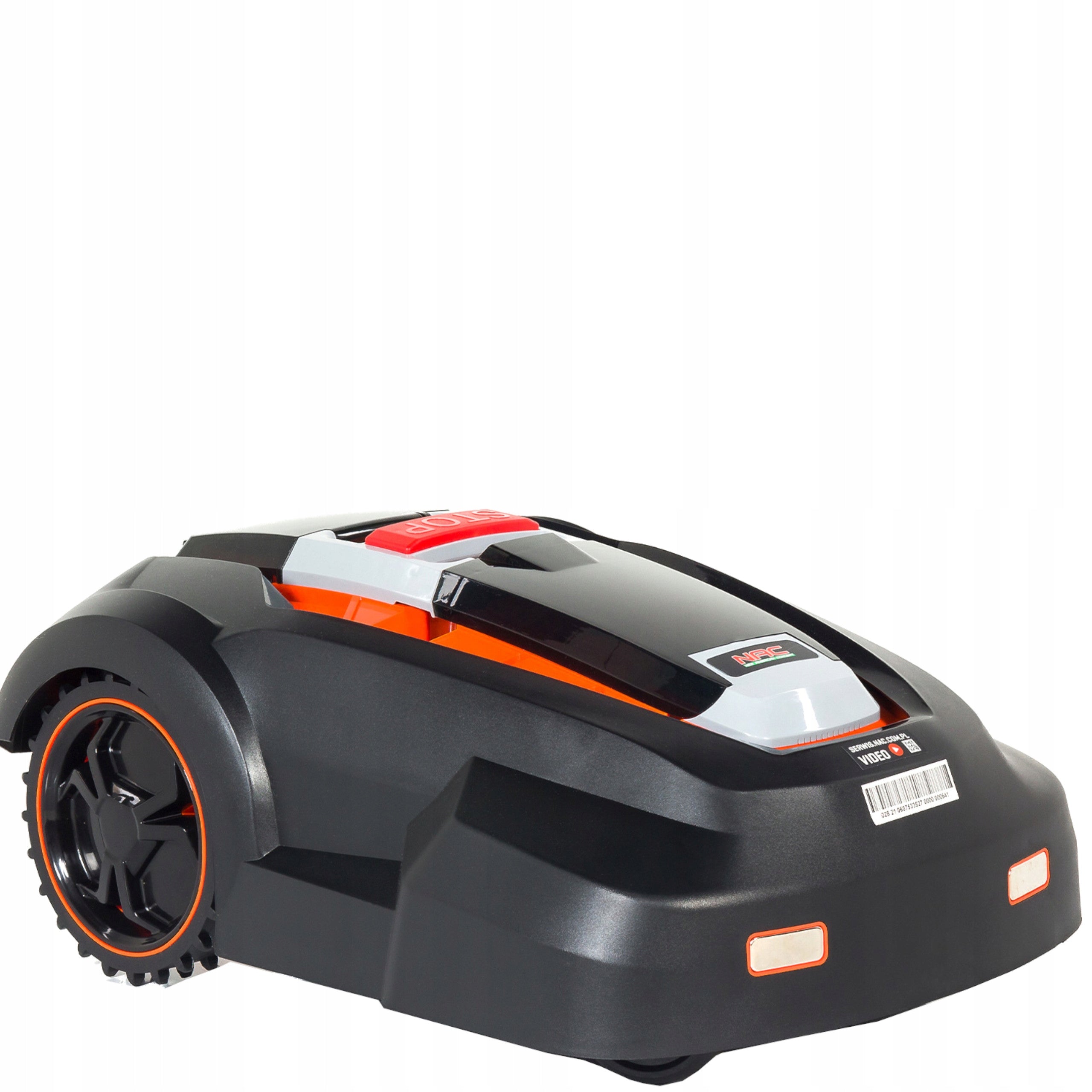

NAC RLM1500G2 robotic lawn mower

Robot mowing of the renowned brand NAC RLM1500G2-NG on the Polish market

The mower is designed for lawns with an area of up to 1500 m2.

PRODUCT COMES FROM THE OFFICIAL POLISH DISTRIBUTION❗

NAC RLM1500G2-NG mowing robot + complete installation kit

The NAC RLM1500G2-NG mowing robot is equipped with a brushless motor that ensures a long service life and quiet operation.

TECHNICAL DATA NAC RLM1500G2-NG

ENGINE

• Engine type: electric, induction
• Power supply: 28V
• Battery capacity: 4,0 Ah
• Battery type: Lithium-ion
• Number of batteries: 1

WORK SYSTEM

• Average working time (1 charge): 90 min
• Average charging time: 60 min
• Maximum working area: 1500 m2
• Mowing width: 24 cm
• Minimum cutting height: 25 mm
• Maximum cutting height: 65 mm
• Mowing modes: random
• Type of cutting blade: three separate cutters
• Number of mowing zones: 1
• Maximum slope: 20%

EQUIPMENT

• Docking station included: yes
• Method of returning to the docking station: via cable
• Signal cable included: yes, 100 mb
• Cable fixing pins included: yes, 150 pcs.
• Rain sensor: yes
• Tilt sensor: yes
• Obstacle detection sensor: yes
• Lifting sensor: yes
• BLUETOOTH module: no
• Mobile application: no
• GSM module: no
• Edge trimming function: no
• PIN code protection: yes
• Safety switch: yes

OVERALL DIMENSIONS

• Weight: 10,93 kg

Charger:

• Power supply voltage and frequency: 100-240 VAC, 50 Hz
• Charging voltage: 32 V
• Maximum charging current: 1,8
• Electrical protection class: II

AUTOMATIC ELECTRIC MOWER - MOWING ROBOT NAC RLM1500G2-NG

The kit includes everything needed to install the mower.

Modern mowing algorithm - grass is always cut from the other side. The result is a very nice lawn.

Easy to use. After installing the charging station and perimeter cable, simply set the mowing scheme for one day of the week (Monday to Sunday, once for each day) on the control panel.

Mowing can take place both during the day and at night.

Typical working time on a single charge is 90 minutes. During this time, the robot will mow about 180 m 2.

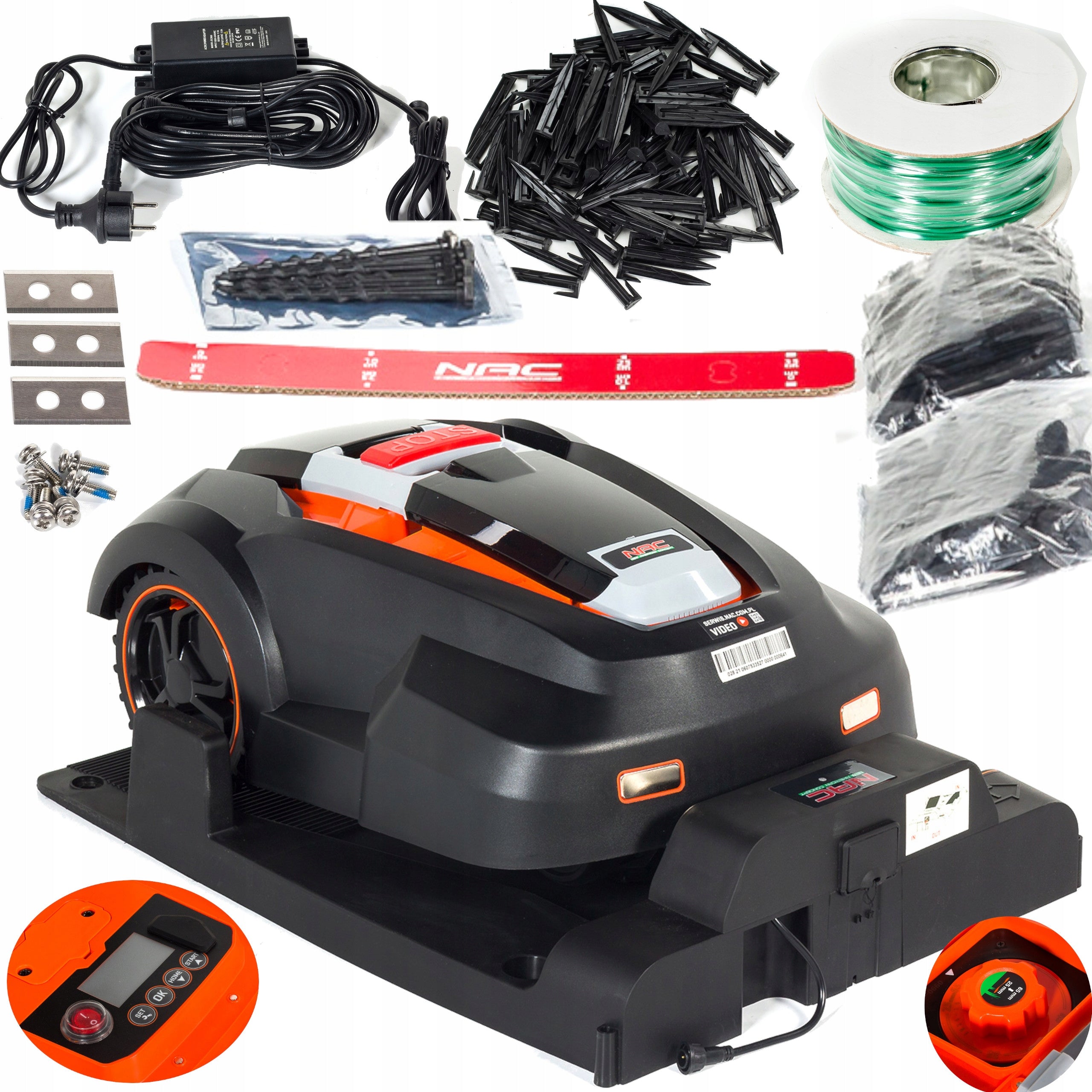

The RLM1500G2-NG robotic mower is equipped with:

• Corporate carton NAC,
• 3 sets of cutting blades: 1 set mounted in the robot and 2 spare sets,
• Docking station,
• Battery charger,
• 4 screws for fixing the docking station,
• strip (ruler) for distance measurement,
• 2 plug terminals,
• cable for marking the working area – 100 m,
• Stakes for fixing the cable – 150 pcs.,
• Link connections (4 pcs. ),
• A set of assembly tools.

GUARANTEE OF QUALITY AND ACCESS TO AUTHORIZED MANUFACTURER’S SERVICE

• Warranty card NAC,
• EC declaration of conformity,
• Instruction manual in Polish.

Innovative sensor system:

Lifting sensor - are placed between the upper and middle cover. If the mower is lifted from the ground, it will stop working within 1 seconds.

Tilt sensor - when the mower is tilted more than 30 degrees in any direction within 2 seconds it will stop working.

Collision sensor - both the front and two side parts of the mower have collision sensors that activate when the mower hits a hard standing object.

Rain sensor - rain sensors are located on the control panel at the top of the mower cover. The mower will automatically return to the charging station when it rains

By buying from us you can be sure that you will receive original equipment from the official distribution of the Polish brand NAC with complete equipment.

Zero engagement, maximum results

Guardian of your perfectly maintained lawn

For the most demanding people who value their time and convenience, we present an excellent machine that will introduce the user to a new level of lawn care experience - the robot mowing NAC RLM1500G2-NG. It is the result of the latest technological solutions, as well as the search for answers to the question of how to make work in large garden spaces not absorb your time, and at the same time bring a brilliant effect, pleasing the eyes every day.

The advantages of an autonomous mower, in addition to not having to remember to mow, can also include the lack of composting or exporting the swath.

The mowing robot mulches the grass, i.e. cuts off its small fragments that go back to the turf and create an additional dose of fertilizer. Frequent mowing also affects the fact that weeds do not have time to develop. In addition, the mowing robot is quiet - it will not interfere with rest, neither people staying in the garden nor neighbors. Bet on the right gardener in your garden from NAC.

How does it work?

Set the boundaries of your garden and enjoy a beautifully mowed lawn

The NAC RLM1500G2-NG is designed for fully maintenance-free mowing of your lawn. The boundary line placed in the grass delineates the mowing area, and also rewards any permanent obstacles located on the lawn. The cable creates a closed circuit – its beginning and end are placed in the charging station, which simultaneously powers the cable with a very low voltage and intensity – completely harmless to humans and animals, but detectable by robot sensors.

The unique mowing system will make your lawn more beautiful than ever – mowing can be done both day and night. Random cutting system for even greater mowing efficiency - robot automatically selects the mowing path depending on the height of the grass and load.

The mowed grass is sheared with almost surgical precision and then strongly shredded into small particles that are a natural fertilizer for the lawn.

The robot knows when it is falling from strength. At this point, it automatically heads towards the charging station to charge the batteries. It does not require any user intervention, because it moves intuitively, according to the area of work programmed for it.

Intelligent operation in all conditions

Random lawn cutting system

Based on its principle of operation “randomly”, the robot automatically mows the entire demarcated area of the lawn.

The robot at different angles reaches and bounces off the wire that marks the boundary of the lawn. In this way, after a sufficiently long working time, the entire lawn will be mowed, and you can admire the effects of the work that was done for you.

Childishly simple installation in your garden

Find out how easy it is

Installing the NAC mowing robot is a very easy process. It is enough to properly place the docking station, then surround the mowed area with a boundary wire, attaching it to the lawn with special pins. The last step is just to set the mowing surface and you are done.

All these steps are described in detail in the user manual and below in three easy steps. No special skills are required. If the annual verticulation of the lawn is performed in the garden, the installation can be recessed in the ground up to 5 cm - this protects the installation from accidental damage. Below is a way to install the robot in your garden - see how easy it is.

Installation of the robot in the garden

Before proceeding with laying the perimeter cable, it is necessary to inspect the entire lawn surface. Estimate any changes that need to be made to the grass surface or precautions that need to be taken when laying the circuit cable for better robot functioning:

1. Installation of a circuit cable.

2. Installation of charging station and power supply.

3. Work surface setting - choose from three settings: 500 m2, 1000 m2 or 1500 m2 and press the START button. The robot does not require setting a mowing schedule - alone, it automatically selects the working time.

Simple form. Failure-free operation.

Highest requirements – efficient brushless motors

The presented autonomous mower has been equipped with two modern, induction electric motors - one for each drive wheel.

Due to the lack of brushes, these motors are quieter and much less emergency than commutator motors. The use of brushless motors ensures a reduction in the current causing heat generation - the increase in temperature on the housing is reduced even during heavy applications in the garden. In addition, they are practically trouble-free, do not wear out mechanically, have a simpler structure and have high efficiency.

Brushless technology minimizes the need to service equipment and significantly extends its service life. In addition, thanks to it, the robot works quieter and its motors use less energy to work.

Small size, huge possibilities

Powerful Lithium - Ion Battery

The environmentally friendly NAC RLM1500G2-NG mowing robot is powered by a new generation battery with a capacity of up to 4,0 Ah. The obvious reason why NAC uses lithium-ion batteries is its significantly longer life compared to standard Ni-Cd and Ni-Mh counterparts.

The lithium-ion battery is smaller and lighter, and its discharge time is very long. In addition, these batteries are also able to optimally distribute energy towards traction and mowing functions.

Thanks to the use of lithium-ion cells characterized by exceptional service life and not spontaneous discharge – there is no capacity loss effect. When, after a long effort, your robot finally falls from strength, it will head towards the charging station itself. You don't have to do anything. NAC RLM1500G2-NG will charge the batteries and return to work.

The modern technology used ensures the best battery parameters and long-term service life. Bet on a device powered by batteries and be ECO!

Smart blades

Perfect mowing

Three separate cutting knives with a total cutting diameter of up to 24 cm, are made of high quality stainless steel. They are characterized by excellent durability and extreme cutting precision. Every day they mow a few millimeters of grass height so that it grows evenly and pleases your eyes every day.

The presented robot NAC RLM1500G2-NG, thanks to its efficient motors and intelligent blades, is ideal for working on a lawn with an area of up to 1500 m2.

Mulching keeps your lawn in good condition

Mowing with automatic mulching function for ecological lawn care

The question that everyone who hears about the mowing robot for the first time asks is: “What does the robot do with the mowed grass? Is he collecting it somewhere? ”. No, it does not collect, but mulches. The process of mulching grass consists in mowing grass very often so as to cut as short blades of grass as possible, with a length of at most a few millimeters. In addition, the cutting blades themselves are shaped so that the mowed blades are chopped into the smallest fragments. Cuts after mowing, before they decompose, form a very thin layer that limits the evaporation of water from the soil. In addition, mulching contributes to maintaining biological balance and feeds grass with nutrients. With the mowing robot, your lawn will always be fresh and green.

A wealth of impressive features

A set of smart sensors

NAC RLM1500G2-NG knows that mowing wet grass is not effective. Thanks to the installed sensors, senses rain in time and hides in front of it in the charging station. Wet grass is heavier, moreover, it is more susceptible to diseases. To increase efficiency during rain, the robot returns to the base station where it charges and returns to the mowing schedule after the precipitation has subsided. The manufacturer took care of high degree of safety using a lifting sensor, crash sensor and tilt sensor in the model - the robot will automatically turn off the cutting blade after lifting it, e.g. by children or hovering over an obstacle not determined by the border line. The crash sensor mounted in the robot will make it detect and bypass obstacles encountered in its path.

Technology for a work of art

Durable body and perfect stability

The robot has an impact and fade resistant housing that will always look like new, and the solid axle and wide tires guarantee excellent machine stability.

Adjust the appropriate length of the perimeter cable and the number of pins

The length of the perimeter wire provided in the kit and the number of fixing pins may be insufficient for complex lawn shapes. In the selection of the number of pins should be guided by the principle of one pin per one running meter of the cable - in the case of arches, they should be placed more densely. Additional limit cable and pins fixing it to the ground can be found in our offer

• Engine type: electric, induction
• Power supply: 28V
• Battery capacity: 4,0 Ah
• Battery type: Lithium-ion
• Number of batteries: 1
• Average working time (1 charge): 90 min
• Average charging time: 60 min
• Maximum working area: 1500 m2
• Mowing width: 24 cm
• Minimum cutting height: 25 mm
• Maximum cutting height: 65 mm
• Mowing modes: random
• Type of cutting blade: three separate cutters
• Number of mowing zones: 1
• Maximum slope: 20%
• Docking station included: yes
• Method of returning to the docking station: via cable
• Signal cable included: yes, 100 mb
• Cable fixing pins included: yes, 150 pcs.
• Rain sensor: yes
• Tilt sensor: yes
• Obstacle detection sensor: yes
• Lifting sensor: yes
• BLUETOOTH module: no
• Mobile application: no
• GSM module: no
• Edge trimming function: no
• PIN code protection: yes
• Safety switch: yes
• Weight: 10,93 kg

Specifications
