Vejapjovės diržas Dolmar Makita PM5101S3C

Trumpai apie prekę

Prekė: Vejapjovės diržas Dolmar Makita PM5101S3C. Kategorija: Įrankių rinkiniai.

• Gamintojas: Makita
• Modelis: DA00000968 / 671002032

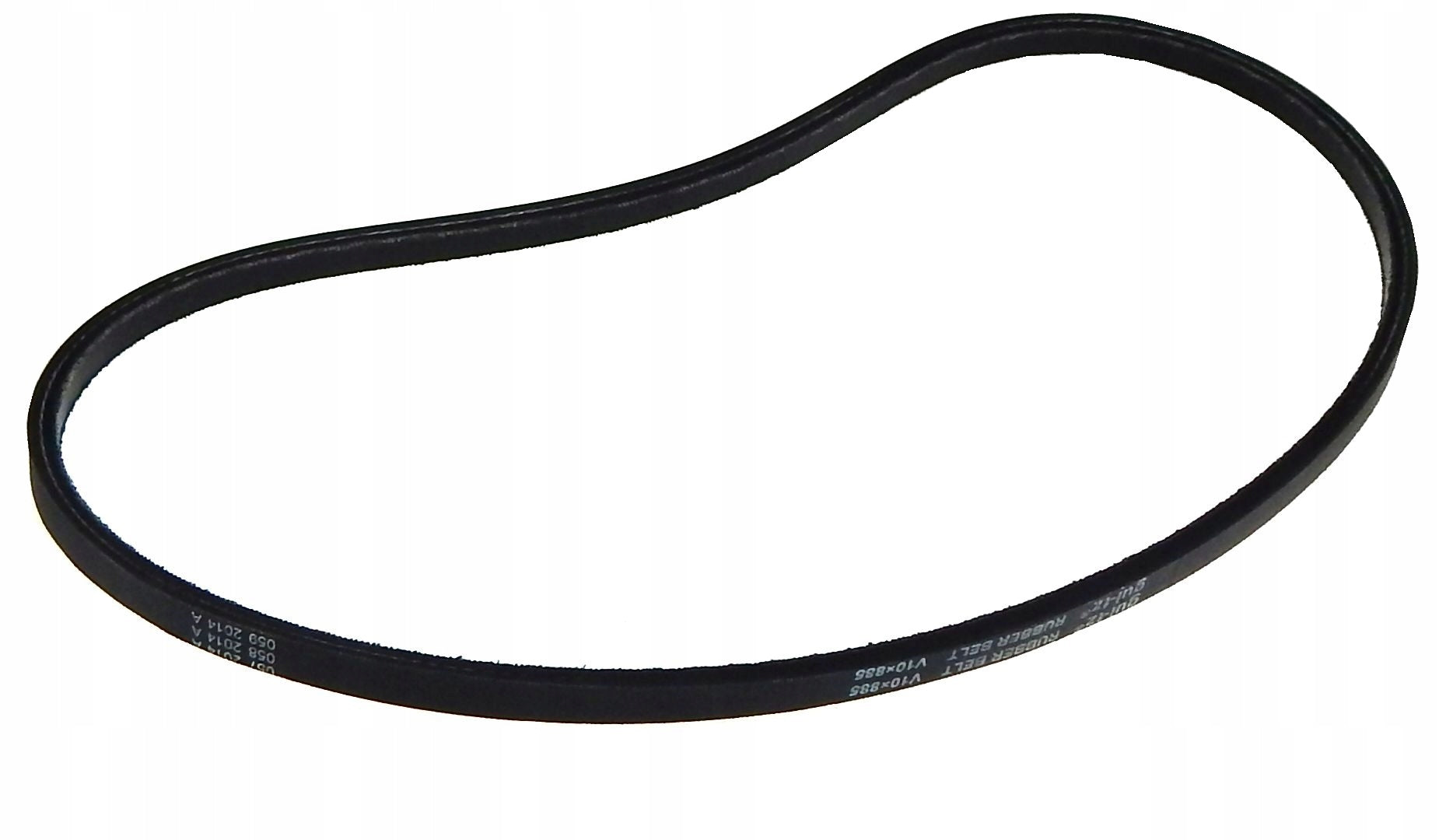

* Makita V-belt for PM5101S3C PM5101S3 PM5101S3R combustion mower

New - original

( V BELT 10MMX6MM L=885MM / PETROL LAWN MOWER / ENGINE GRASS TRIMMER / 3-speed 3in1 diesel mower)

• Manufacturer: Makita
• Manufacturer code: DA00000968 / 671002032
• Item in diagram: No. 008 - PM5101S3C

Application in mowers:

Dolmar : PM5101S3 , PM5101S3C , PM5101S3R

Makita : PLM5102 , PLM5113 , PLM5113N , PLM5113N2

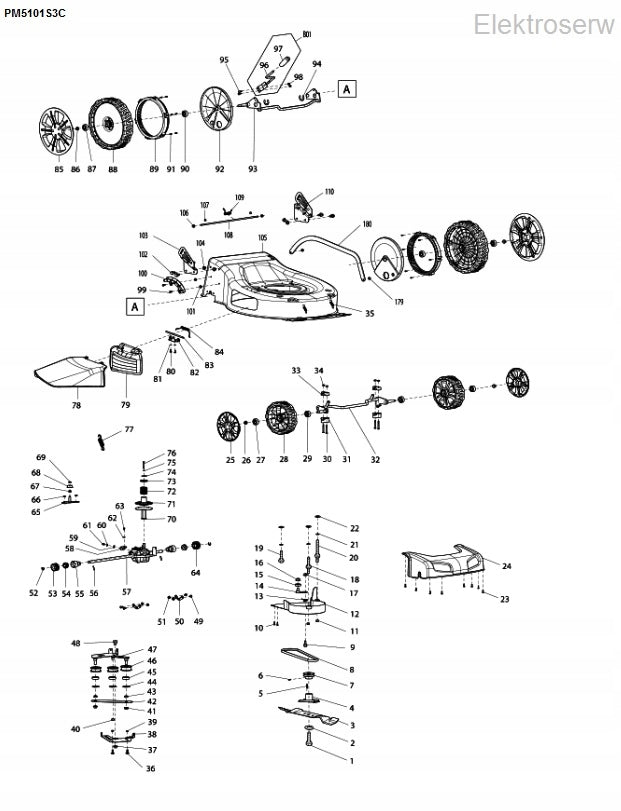

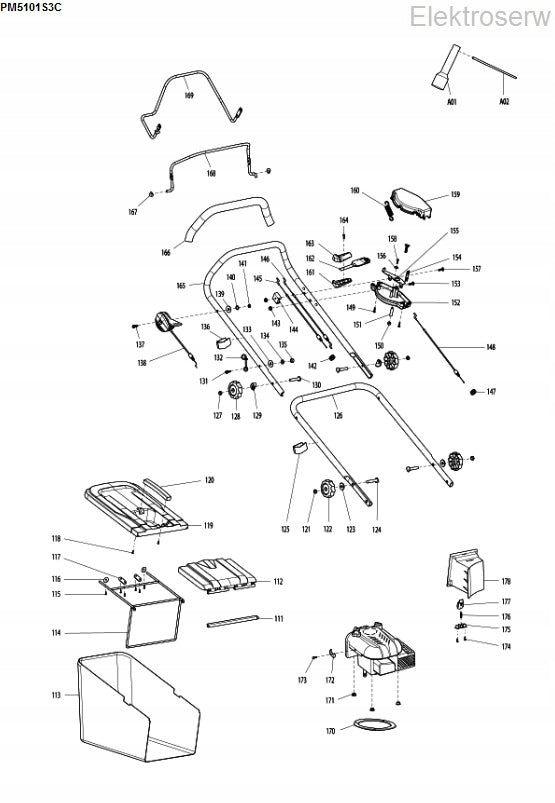

List of parts for PM5101S3C

item of the article, catalog number, product description, quantity:

001; 671006065 KNIFE PRESSURE SCREW FOR PLM4611; 1

002; 671010730 WASHER FOR PLM4110; 1

003; DA00000973 PALE 51; 1

004; 671015252 CUTTING KNIFE HOLDER FOR PLM5102; 1

005; DA00000535 HIGHT ADJUST SUPPORT SPRING; 1

006; DA00000598 H.S.SET SCREW(FLAT POINT)M6X8; 1

007; 671004013 KNIFE DRIVE PULLEY FOR PLM5102; 1

008; DA00000968 V BELT 10MMX6MM L=885MM; 1

009; 671006066 SCREW FOR PLM5102; 1

010; DA00000873 TAPPING SCREW ST4.2X15; 2

011; 671005008 NUT M8 TO ELM/PLM; 2

012; 671522001 V-BELT COVER FOR PLM5102; 1

013; 671011136 SPRING TO PLM5102; 1

014; DA00000974 IDLER BRACKET; 1

015; 671004015 BALL BEARING 6001RS to PLM5102; 1

016; DA00000537 HEX.FLANGE LOCK NUT M8; 1

017; DA00000543 HEX.FLANGE LOCK NUT M6; 1

018; DA00000617 SPECIAL HEX.BOLT M8X35/M8X17; 1

019; DA00000586 HEX. BOLT M8X35; 1

020; 671003024 M8x60x17 SCREW for ELM/PLM; 1

021; DA00000832 SPRING WASHER 8; 3

022; 671007007 WASHER fi8mm for ELM/PLM/EM/PM; 3

023; DA00000911 TAPPING SCREW ST4.2X10; 8

024; 671513001 BODY FRONT COVER FOR PLM5102; 1

025; DA00000536 WHEEL COVER 7 INCH; 2

026; DA00000537 HEX.FLANGE LOCK NUT M8; 2

027; DA00000538 BALL BEARING 6201ZZ; 2

028; 671020160 WHEEL 8" to PLM4110; 2

029; DA00000538 BALL BEARING 6201ZZ; 2

030; 671002028 M6x45 SCREW for ELM/PLM; 4

031; 671418001 FRONT WHEEL AXLE MOUNTING TO PLM5102; 2

032; 671001573 FRONT AXLE to PLM5102; 1

033; 671445001 BEARING TO ELM4110/4610/4611; 2

034; DA00000549 NYLON INSERT HEX.LOCK NUT M6; 4

035; 671011142 SPRING TO PLM5102; 2

036; 671002019 M6x12 SCREW for ELM/PLM; 2

037; DA00000537 HEX.FLANGE LOCK NUT M8; 1

038; DA00000971 BELT TENSIONER BASE; 1

039; DA00000549 NYLON INSERT HEX.LOCK NUT M6; 2

040; 671005008 NUT M8 TO ELM/PLM; 1

041; DA00000537 HEX.FLANGE LOCK NUT M8; 2

042; 671001533 PRESSURE PLATE FOR PLM4612; 1

043; DA00000563 HEXAGON NOTES M8; 2

044; 671009021 RING to PLM4612; 3

045; 671004015 BALL BEARING 6001RS TO PLM5102; 3

046; 671001056 DRIVE PULLEY FOR PLM4612; 3

047; 671001455 DRIVE ROLLER HOLDER FOR PLM4612/5102; 1

048; 671003042 FIXING SCREW FOR ELM/PLM; 1

049; 671002019 M6x12 SCREW for ELM/PLM; 4

050; DA00000542 AXLE RETAINER; 2

051; DA00000543 HEX.FLANGE LOCK NUT M6; 4

052; DA00000604 STOP RING E-12; 2

053; DA00000607 SPUR GEAR 14 RIGHT; 1

054; 671004017 (order 671004023 TI.DOLMAR 2012-33) BEARING for ELM46; 2

055; 671002024 (order 671002035 TI.DOLMAR 2012-33) BEARING SOCKET; 2

056; DA00000597 COLUMN PIN 5X21.5; 2

057; 671501031 (order 671502017 TI.DOLMAR 2012-32) TRANSMISSION SET; 1

058; DA00000915 GEAR BOX MOUNT ANGLE; 1

059; 671007007 WASHER fi8mm for ELM/PLM/EM/PM; 1

060; DA00000832 SPRING WASHER 8; 1

061; DA00000562 HEX.FLANGE BOLT M8X16; 1

062; DA00000864 SPRING WASHER 6; 1

063; 671002019 M6x12 SCREW for ELM/PLM; 1

064; DA00000605 SPUR GEAR 14 LEFT; 1

065; 671001717 GEAR FIXING PLATE; 1

066; 671005011 NUT M5 TO ELM/PLM; 2

067; 671011156 SPRING; 1

068; 671002038 ROLLER SLEEVE; 1

069; DA00000543 HEX.FLANGE LOCK NUT M6; 1

070; 671001082 VARIABLE SPEED PULLEY LOWER; 1

071; 671010540 PULLEY TOP DISC FOR PLM4612; 1

072; 671011122 DRIVE PRESSURE SPRING FOR PLM5102; 1

073; 671001457 PRESSURE PLATE FOR PLM4612; 1

074; 671009020 RING 19mm to PLM5102; 1

075; 671080040 SPRING WASHER 5; 1

075-1; DA00000198 SPRING WASHER 5; 1

076; 671006123 M5x55 SCREW for ELM/PLM; 1

077; 671011021 SPRING TO PLM4612; 1

078; DA00000969 SIDE DISCHARGE OUTLET; 1

079; 671514001 SIDE OUTLET COVER FOR PLM5102; 1

080; 671201501 SCREW FOR PLM5102; 2

081; 671080040 SPRING WASHER 5; 2

081-1; DA00000198 SPRING WASHER 5; 2

082; 671001571 MOUNTING PLATE FOR PLM5102; 1

083; 671001019 AXIS FOR PLM5102; 1

084; 671111300 SPRING FOR PLM4617/18 PLM5600; 1

085; 671001322 WHEEL CAP for PLM5102; 2

086; DA00000537 HEX.FLANGE LOCK NUT M8; 2

087; DA00000538 BALL BEARING 6201ZZ; 2

088; 671002021 REAR WHEEL FOR PLM5102; 2

089; 671200010 DRIVE GEAR 11" TO PLM5121; 2

090; DA00000538 BALL BEARING 6201ZZ; 2

091; DA00000603 TAPPING SCREW ST4X16; 12

092; 671251800 INNER CAP FOR PLM5600/5130; 2

093; 671001574 REAR AXLE for PLM5102; 1

094; DA00000612 STOP RING E-19; 2

095; 671002030 LEVER SCREW SETTING CUTTING HEIGHT TO PLM; 2

096; 671001570 (valid. 671001031) SCYTHE HEIGHT ADJUSTMENT LEVER; 1

097; 671001031 CUTTING HEIGHT LEVER UP TO PLM5102; 1

097-1; DA00001058 HEIGHT ADJUSTMENT KNOB; 1

098; DA00000549 NYLON INSERT HEX.LOCK NUT M6; 2

099; 671002019 M6x12 SCREW for ELM/PLM; 2

100; DA00000788 HEIGHT ADJUSTMENT PLATE; 1

101; DA00000543 HEX.FLANGE LOCK NUT M6; 2

102; DA00000562 HEX.FLANGE BOLT M8X16; 4

103; 671001356 HANDLE BRACKET RIGHT TO PM-5100S3; 1

104; DA00000537 HEX.FLANGE LOCK NUT M8; 4

105; DA00000960 DECK(DOLMAR ORANGE); 1

106; DA00000543 HEX.FLANGE LOCK NUT M6; 2

107; 671009017 RING for ELM/PLM; 2

108; 671001518 AXIS REAR COVER FOR PLM5102; 1

109; 671011101 GRASS EJECTION COVER SPRING FOR ELM4110/4610/461; 1

110; 671001355 HANDLE BRACKET LEFT TO PM-5100S3; 1

111; 671001353 PRESSURE PLATE FOR ELM4610/4611; 1

112; 671468001 TOP COVER FOR GRASS BASKET TO PLM4610/11/12/5102; 1

113; DA00000967 GRASS CATCHER(DOLMAR LOGO); 1

114; 671001443 GRASS BASKET FRAME for PLM4610/11/12; 1

115; DA00000888 TAPPING SCREW ST5X12; 6

116; 671001436 WASHER FOR ELM/PLM; 2

116-1; DA00000025 WASHER 5; 2

117; 671001203 PRESSURE PLATE FOR ELM4110/4610/4611; 2

117-1; DA00000335 RETAINER PLATE; 2

118; 671105502 TAPPING SCREW ST5X16; 2

118-1; DA00000326 TAPPING SCREW ST5X16; 2

119; 671521001 TOP COVER OF GRASS BASKET FOR PLM5102/5113; 1

120; 671454001 BASKET HANDLE FOR PLM4110/4610/4611/4612/5113; 1

121; DA00000563 HEXAGON NOTES M8; 2

122; DA00000564 KNOB; 2

123; 671007007 WASHER fi8mm for ELM/PLM/EM/PM; 2

124; DA00000880 SADDLE HEAD BOLT M8X35; 2

125; 671611001 BOWDEN LINK LATCH FOR PM-46, PLM4617/18; 1

126; 671001606 LOWER HANDLE BAR; 1

127; DA00000563 HEXAGON NOTES M8; 2

128; DA00000564 KNOB; 2

129; DA00000565 PLASTIC SADDLE WASHER 8; 2

130; DA00000569 SADDLE HEAD BOLT M8X58; 2

131; DA00000577 HEX.FLANGE BOLT M6X35; 1

132; DA00000579 STARTER GRIP HOOK; 1

133; DA00000574 FLAT WASHER 6; 1

134; DA00000864 SPRING WASHER 6; 1

135; DA00000575 HEX.CAP NOTES M6; 1

136; 671611001 BOWDEN LINK LATCH FOR PM-46, PLM4617/18; 1

137; 671006082 HEX. FLANGE BOLT M6X50; 1

138; 671001150 MOTOR SPEED CONTROL HANDLE WITH CABLE TO; 1

139; DA00000574 FLAT WASHER 6; 1

140; DA00000864 SPRING WASHER 6; 1

141; DA00000575 HEX.CAP NOTES M6; 1

142; 671800104 GROMMET to PM-46 N, PLM4617; 1

143; DA00000543 HEX.FLANGE LOCK NUT M6; 2

144; DA00000573 OUTER WIRE STOPPER; 1

145; DA00000977 SELF DRIVE CONTROL WIRE ASSY; 1

146; 671001151 MOTOR CONTROL CABLE (HANULEC) TO PLM5102; 1

147; 671800104 GROMMET to PM-46 N, PLM4617; 1

148; 671001191 DRIVE SPEED ADJUST WIRE ASSY; 1

149; 671010630 TAPPING SCREW ST4.2X25; 2

150; DA00000543 HEX.FLANGE LOCK NUT M6; 1

151; 671001513 BUSHING fi9x32 to PLM4612; 1

152; 671470001 LEFT SWITCH HOUSING FOR PLM4612/5102; 1

153; DA00000577 HEX.FLANGE BOLT M6X35; 1

154; 671001511 M6x60 SCREW for ELM/PLM; 1

155; 671001514 CONNECTING PLATE FOR PLM5102; 1

156; 671002075 WASHER 12/4,5x1,0 for ELM4610/4611, PLM4611/4612; 1

157; 671006063 M6x40 ALLEN SCREW for ELM/PLM; 2

158; DA00000603 TAPPING SCREW ST4X16; 1

159; 671470002 RIGHT SWITCH HOUSING FOR PLM4612/5102; 1

160; 671011123 DRIVE ADJUSTMENT SPRING FOR PLM4612; 1

161; DA00000870 DRIVE SPEED ADJUST GRIP LOWER; 1

162; DA00000972 DRIVE SPEED ADJUST LEVER; 1

163; DA00000869 DRIVE SPEED ADJUST GRIP UPPER; 1

164; DA00000873 TAPPING SCREW ST4.2X15; 1

165; DA00000963 UPPER HANDLE BAR; 1

166; 671001029 HANDLE SHEATH; 1

167; 671001524 LEVER MOUNT FOR PLM5102; 2

168; DA00000961 ENGINE CLUTCH LEVER; 1

169; DA00000964 SELF DRIVE CONTROL LEVER; 1

170; 671144701 RUBBER MOTOR SHOCK ABSORBER for PLM5102; 1

171; DA00000537 HEX.FLANGE LOCK NUT M8; 3

172; 671010830 OUTER WIRE STOPPER; 1

173; 671003012 HEX. BOLT M5X14; 1

174; DA00000603 TAPPING SCREW ST4X16; 2

175; 671317001 PRESSURE PLATE FOR ELM4610/4611; 1

176; 671011005 SPRING FOR ELM/PLM; 1

177; 671316004 LOCKING BUTTON FOR ELM4610/4611; 1

178; 671509001 MULCHLER to PLM5102; 1

179; DA00000549 NYLON INSERT HEX.LOCK NUT M6; 2

180; 671001575 CUTTING HEIGHT ADJUSTMENT ARM TO; 1

A01; 671001078 SOCKET WRENCH 21mm for PLM4612/5102; 1

A02; DA00000584 WRENCH HANDLE; 1

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Makita
Parametry	Manufacturer code	DA00000968 / 671002032
Parametry	EAN (GTIN)	5056223849686
Parametry	Number of items in the set	1
