Vartų vežimėlis stumdomiems vartams 80x80, 6 ratukai + 6-asis nemokamai

Trumpai apie prekę

Prekė: Vartų vežimėlis stumdomiems vartams 80x80, 6 ratukai + 6-asis nemokamai. Kategorija: Vežimėliai ir ritinėliai.

• Gamintojas: Gp-System
• Modelis: ZL.WBR.6BE.80x5.S

Vertical rollers of the trolley and their bearings are responsible for transferring the weight of the gate vertically, due to the characteristics of the construction of bearings are much less resistant to pressure " on the side - not the top " on the side of the gate " to horizontal e.g. wind pressure .

Horizontal rollers 2 pcs eliminate pressure on vertical rollers - carrying the weight of the gate " on the side "

The wear of bearings in the horizontal rollers of the trolley after years occurs faster due to the pressure "on the side" as from the weight from the "top". This is due to the construction and load-carrying capacity - ball bearing.

More tight bearings - 2RS which gives longer operation of the trolley - bearings without dirt between the bearing balls.

• RS. - BUTYL bearing side gasket (black) not tin ZZ (silver) - less tight plate in the ZZ type.
• butyl synthetic elastomer (the same material as in Simering seals) characterized by high gas and water tightness, good chemical resistance and flexibility in a wide temperature range, has a better contact or tightness with both bearing rings

RS and ZZ bearing images

Only with us 3 sizes of guide rollers are with bearing and not sliding roller without bearing size:

-33mm for 40/40/3 catheter

-35mm for 40/40/2 catheter

-43mm to 50/50/3 catheter which ensures much better rotation of the roller as in a roll without bearing.

Only with us each roll as standard with angle

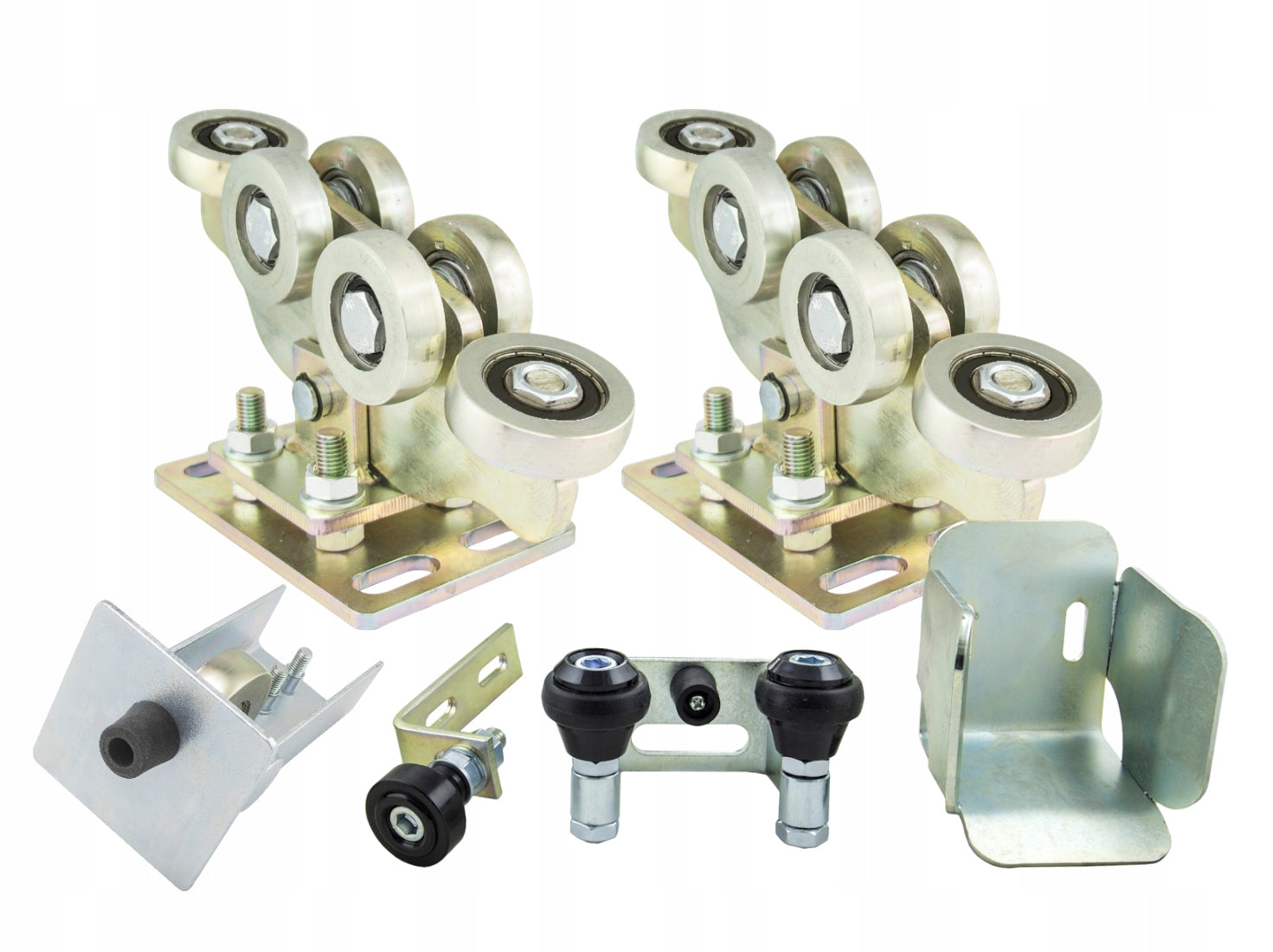

FULL set - absolutely everything you need for the gate :

1) 2x 80x80x5 rail trolleys, self-aligning with adjustment.

2) gate overrun roller with cap - 1 pc

3) overrun socket to relieve trolleys in the state - closed gate - 1 pc

4) free guide roller for your choice - 1 pc

All rollers always with angle for convenient installation:

• 25 mm with angle (for catheter 30x30x2)
• 33 mm bearing with angle (for catheter 40x40x3)
• 35 mm bearing with angle(for catheter 40x40x2)
• 43 mm bearing with angle (for catheter 50x50x3)

Please indicate in the notes to order the selected roll. In the absence of information, we send a 33 mm roll to the 40x40x3 catheter

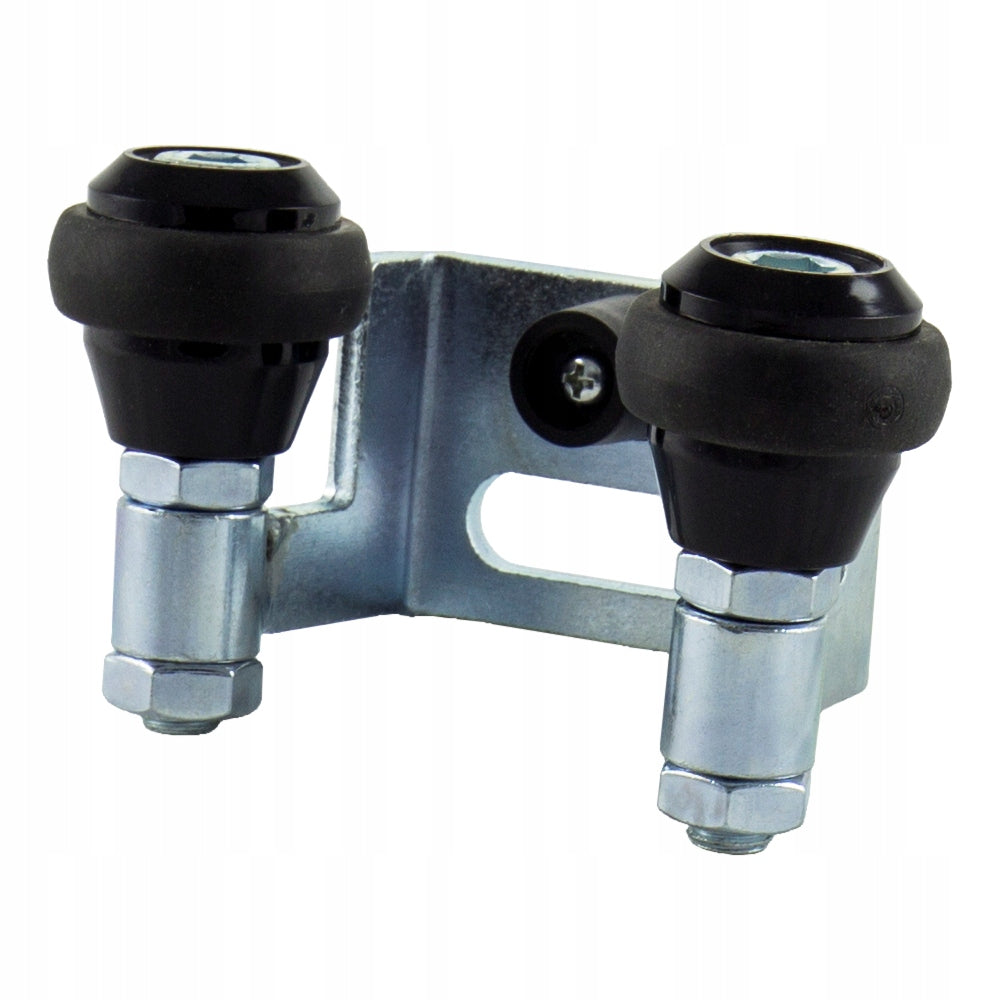

5 ) top gripper Free 40 or 60 mm - 1 pc

6) instructions for installing the gate with the trolley spacing table in relation to the length and weight of the gate - we send by e-mail.

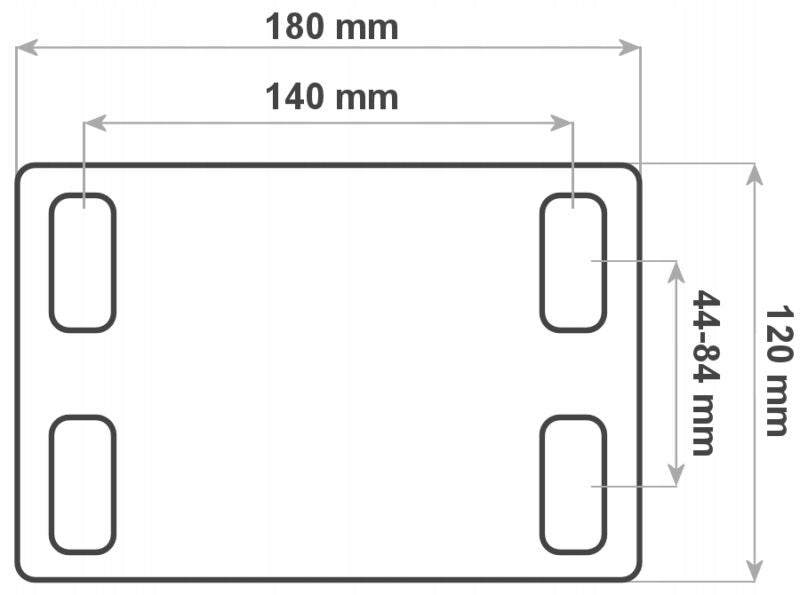

We use wider version of the upper sheet of the bottom of the trolley - 120 mm (upper horizontal sheet of the trolley)

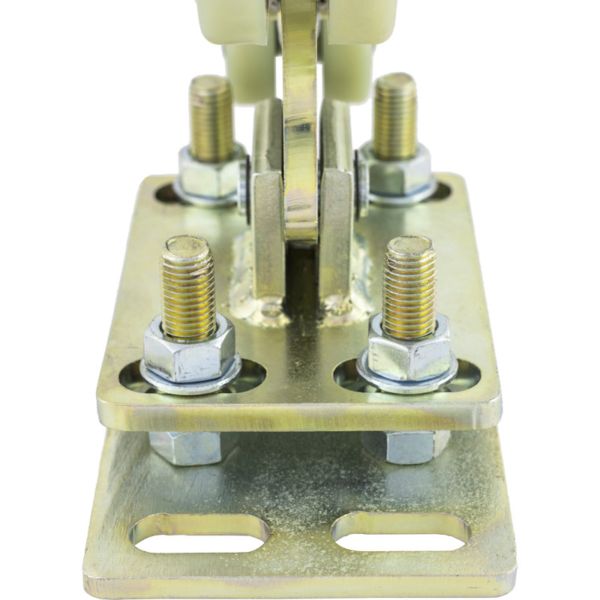

• 'large beans' for adjustment, both in the bottom platform and the top plate of the trolley, which gives the largest adjustment range during assembly.
• width 120 mm not 100 mm .

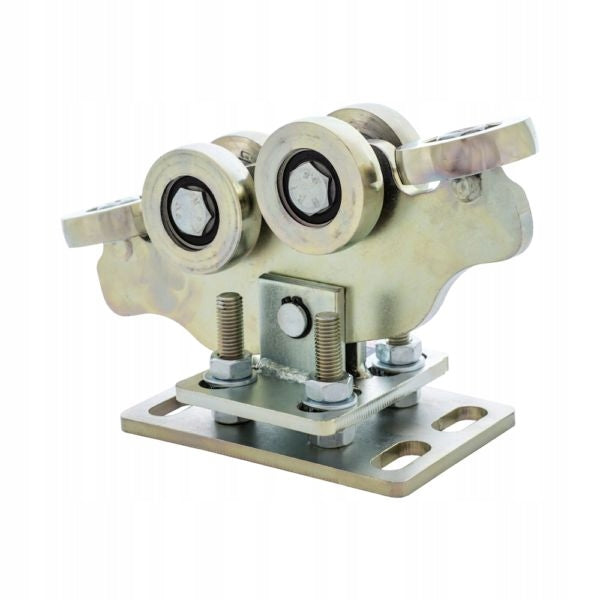

DESCRIPTION OF THE ELEMENTS:

- you have a gate with dense filling - wide profiles or wood, 6 is a good choice. Additional horizontal roller stabilizes the gate operation.

• Rollers: Ø68,5 mm × 19 mm, steel, rolled by us from grade steel C45 on CNC machine tools, precisely adjacent to the profile
• quiet bearings 6204 with a high load capacity of tight type 2RS

  Rolls mounted on bolts-nuts allow us to embed them more precisely as on welded pins.

  Nut screwed with technical glue to eliminate the possibility of unscrewing. The rolls have never started in 15 years of our production of trolleys.

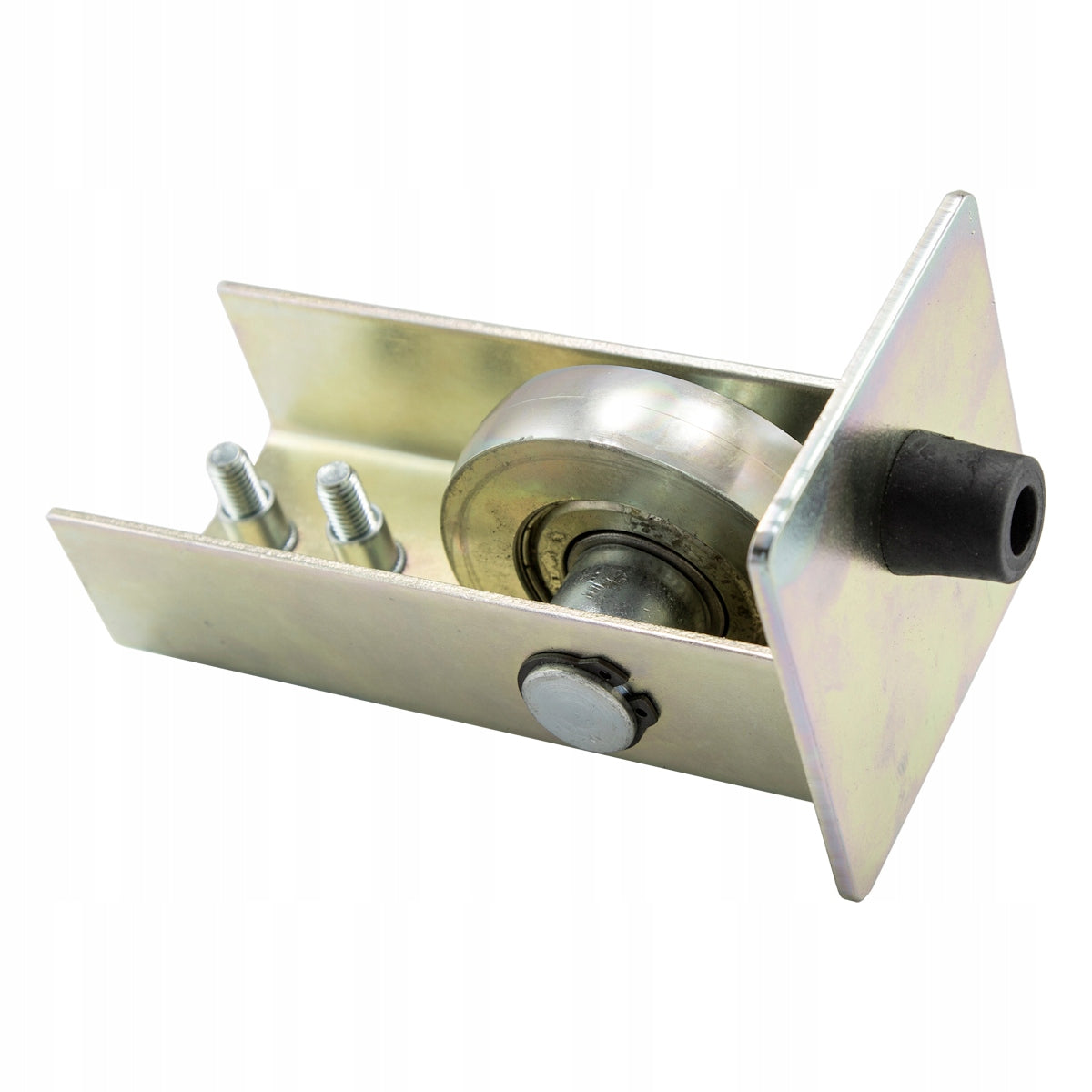

Overrun roller with cap and fender, mounted in the running rail.

Remember! Assembly the socket and roller so that the roller clearly enters the socket (slightly lifting the gate). It is designed to support the weight of the gate in the "gate closed" state.

Thanks to the fender, the gate stops without additional noise, and the force of "impact" is reduced.

This is our production inrun roller, in which the roller is mounted on a pin fastened with a Seger ring (not crimped, without protection, as in most rollers on the market). This eliminates the risk of the pin breaking. This gives you the ability to disassemble and replace the roll itself in case of problems.

Mounting screws "enter" into a rivet nut with a long thread (10 mm, not like the competition thread only in a 3-4 mm plate), which ensures the stability of the mounting connection.

Strong weld of the end cap protects against its detachment.

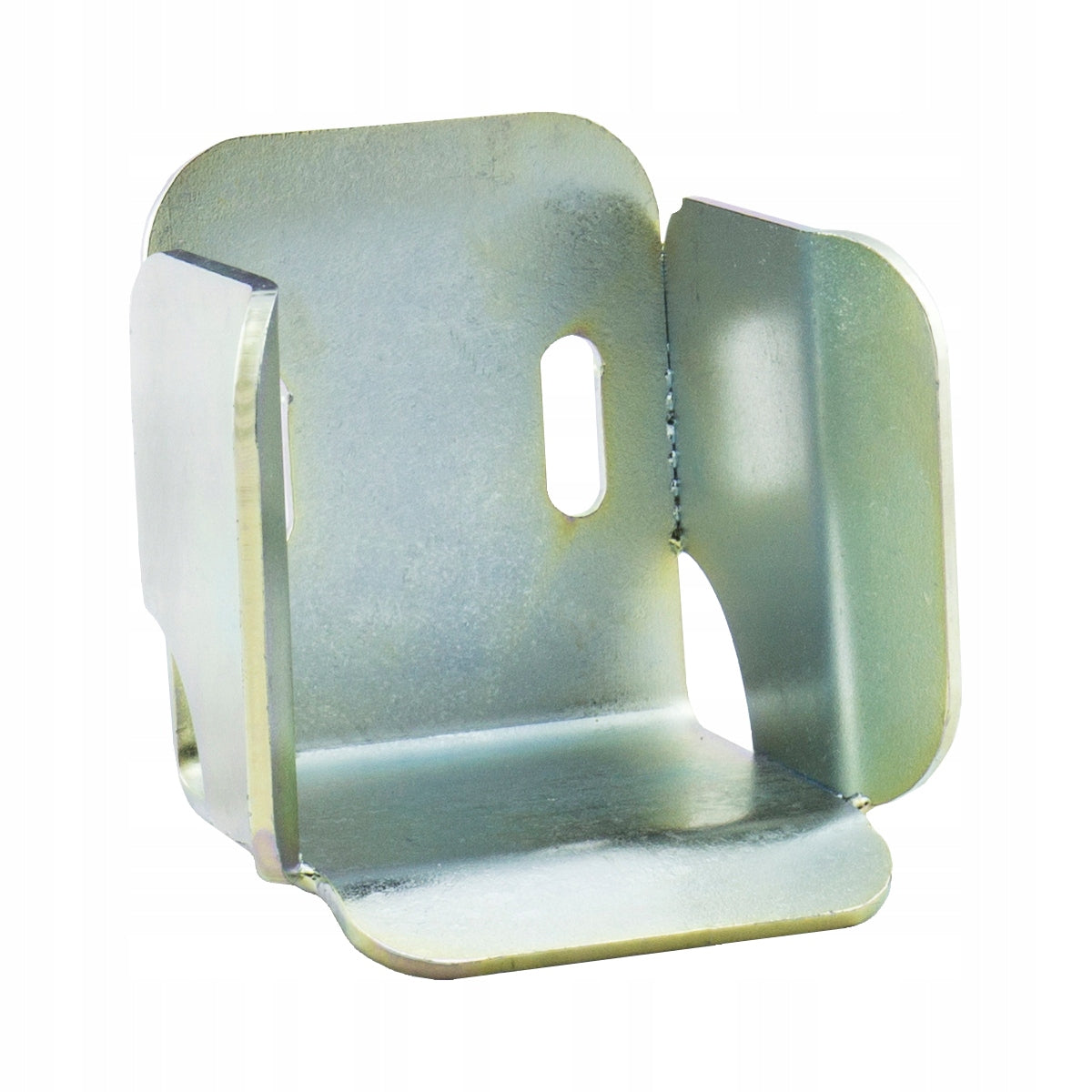

Inrun socket.

Remember! Assembly the socket and roller so that the roller clearly enters the socket (slightly lifting the gate). It is designed to support the weight of the gate in the "gate closed" state.

This relieves the trolleys when the gate is closed.

We know from practice that the gates are closed 99% of the time, at 99% of customers. By relieving the trolleys, you extend their service life!

The socket has water drainage holes

Rolls with thick rigid angle

All rollers are always with an angle for convenient installation:

• 25 mm with angle (for catheter 30x30x2)
• 33 mm bearing with angle (for catheter 40x40x3)
• 35 mm bearing with angle(for catheter 40x40x2)
• 43 mm bearing with angle (for catheter 50x50x3)

Please indicate in the notes to order the selected roll. In the absence of information, we send a 33 mm roll to the 40x40x3 catheter

PRODUCED PRODUCT in Poland

- from scratch, from the level of the bar and sheet

- by buying from us you support poland productions .
