Vartų bei garažo nuotolinio valdymo antena, 433 MHz, universali

Trumpai apie prekę

Prekė: Vartų bei garažo nuotolinio valdymo antena, 433 MHz, universali. Kategorija: Imtuvai.

• Gamintojas: A-M
• Modelis: 433 433,92 434 MHz / mix11el.

Complete set ready for installation on vertical and horizontal surfaces

• range up to several hundred meters in open space!

• compatible with all systems with an external antenna connector, e.g.: BFT, Beninca, Came, ELMES, Elektrobim, FLOR, Faac, Genius, Hato, Hormann, KINGGATES, Key, NICE, Proxima, RCBE, SMILO, Somfy, U4HS, Wiśniowski, dtm and many others

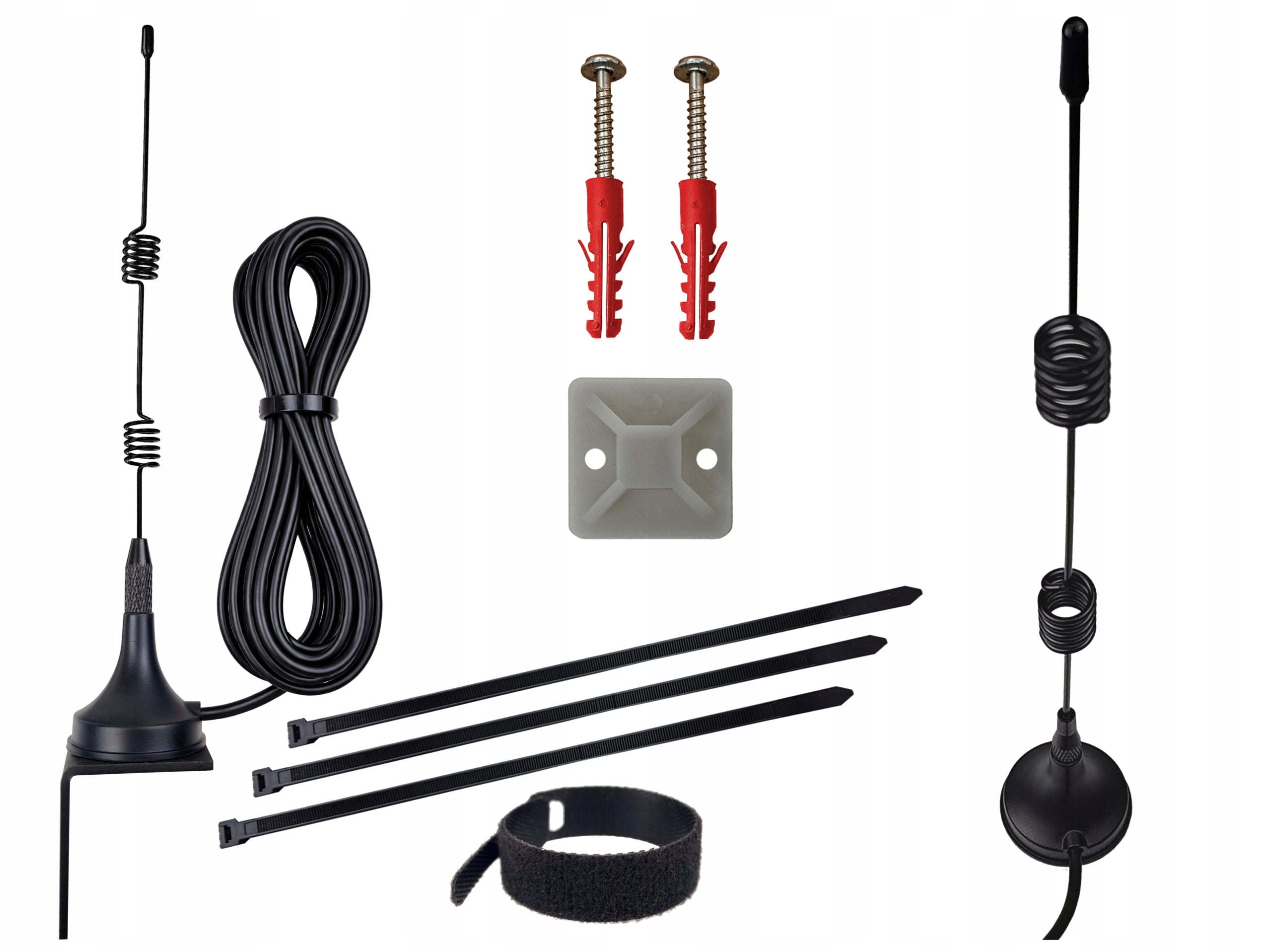

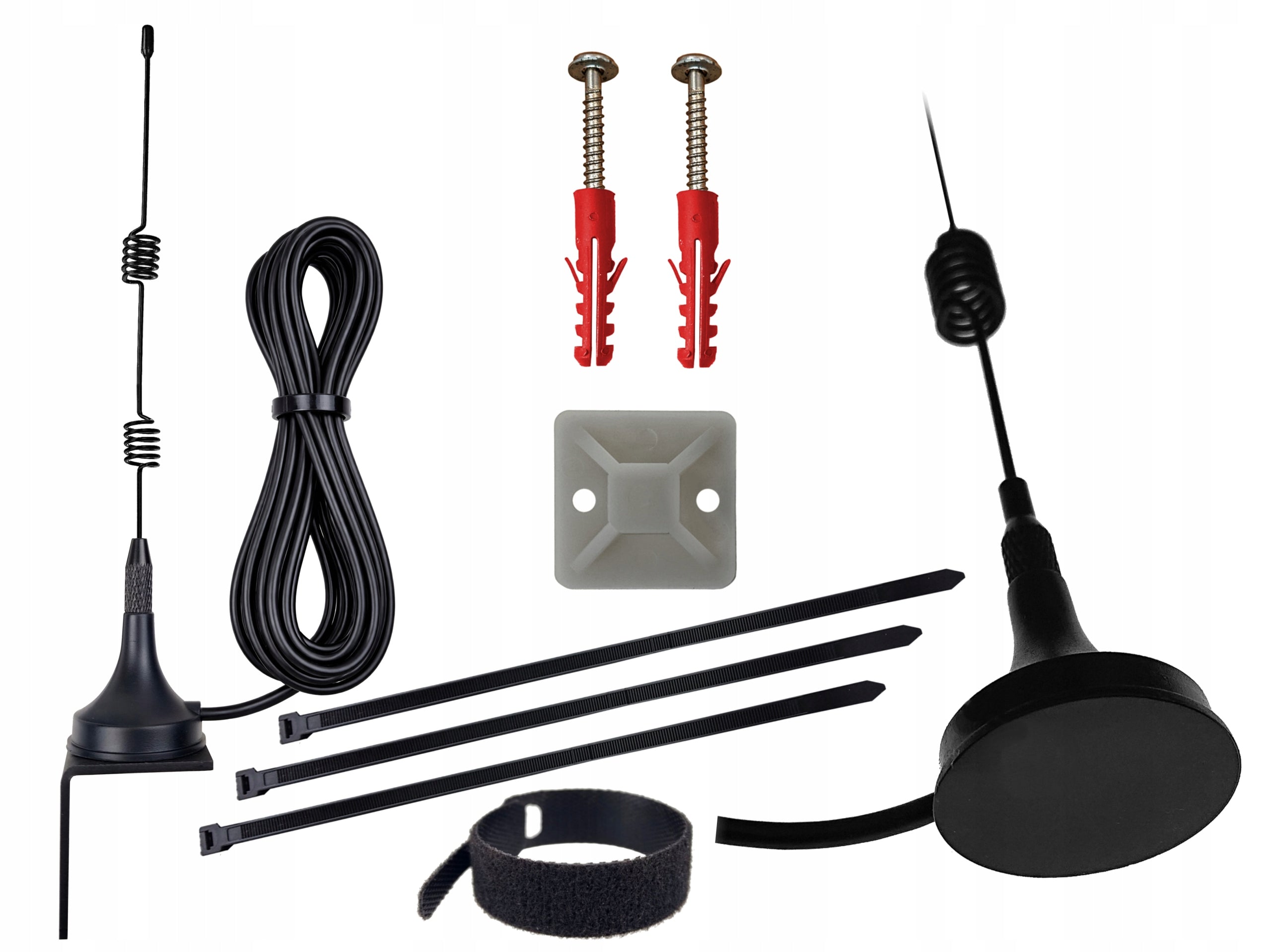

You get the whole set:

✅ Antenna with magnetic base + angle bracket for wall mounting or on the side of posts and any vertical surfaces

✅ Expansion pins with screws

✅ Textile band for easy wire bundling

✅ Adhesive holder with screw-on capability for easy installation and placement of the cable on the way to the antenna

✅ Cable ties for attaching the cable to the handle or fence elements.

With this kit, you don't have to purchase additional components to complete the assembly.

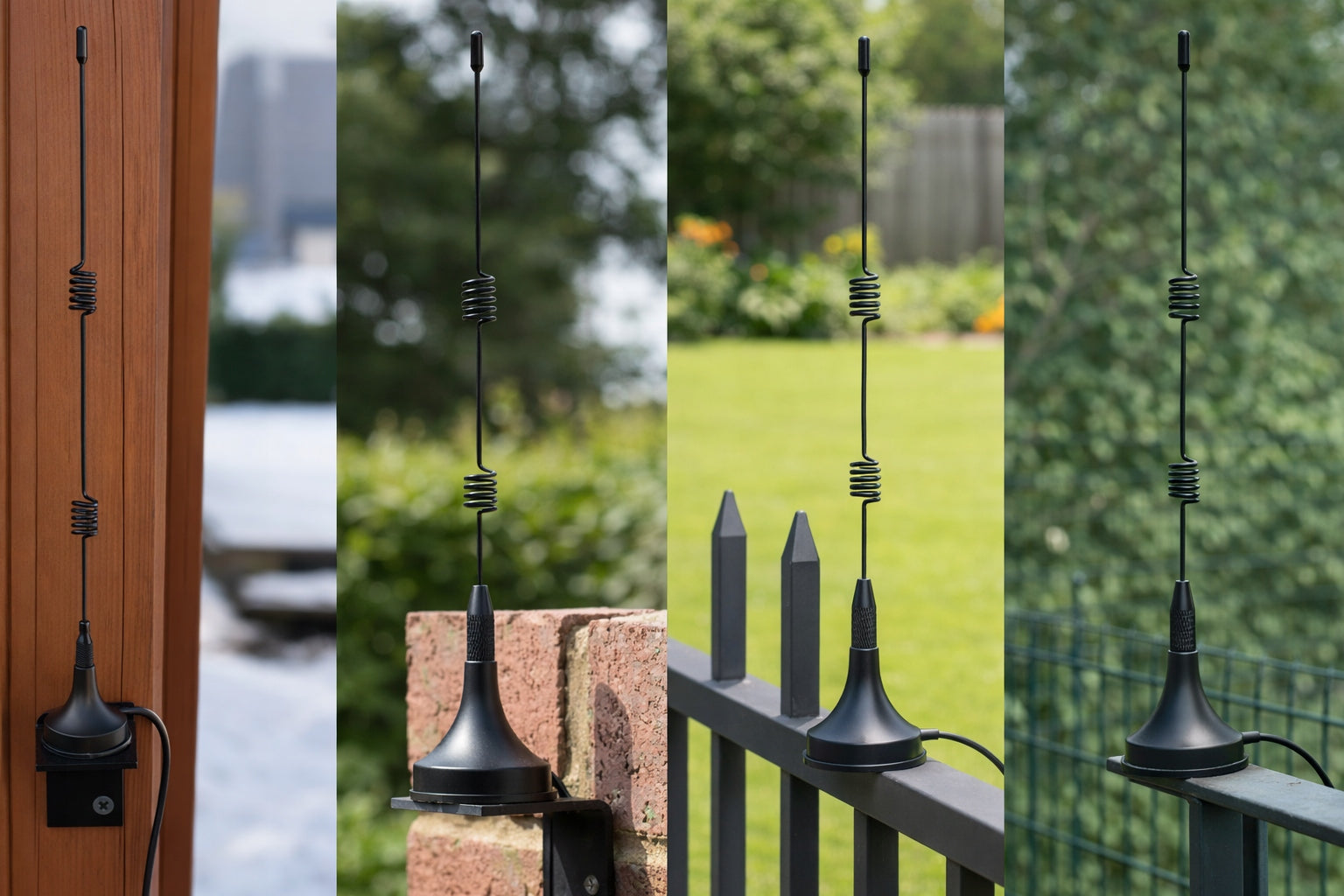

FULL VERSATILITY OF INSTALLATION:

✅ can be mounted with an angle bracket e.g. on the sides of the posts, as well as on wooden elements, wall, clinker tiles, concrete screens, etc.

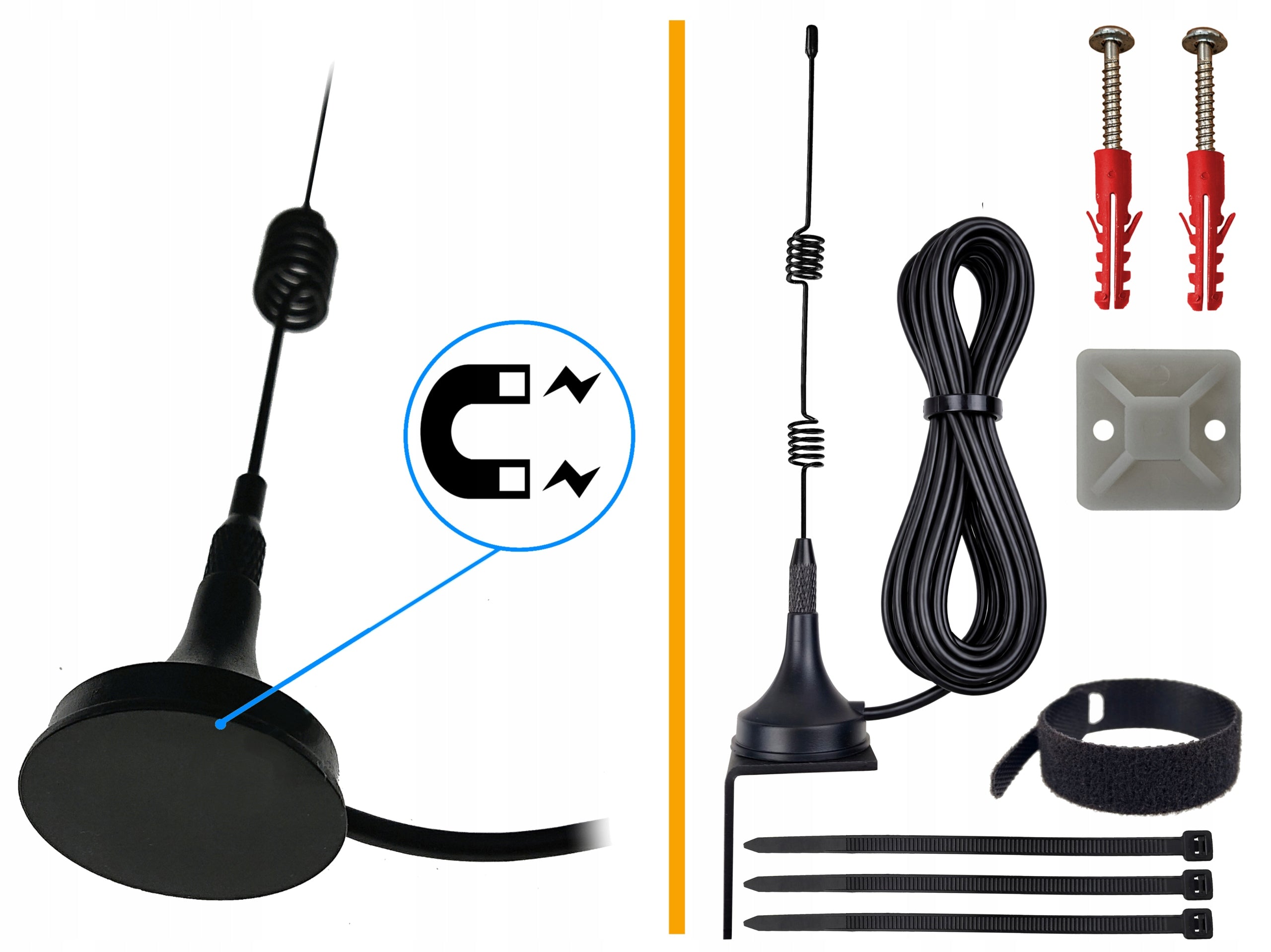

✅ can be mounted with a magnetic base, e.g. on top of a steel fence post or on a canopy or mailbox, etc.

Many possibilities of application:

• garage doors
• Entry gates
• Remote Control Transmitters / Receivers
• sensors, weather stations
• radio and alarm sensors
• radiolines
• arduino models
• smart home system

And any devices requiring antennas with a frequency of 433MHz

The antenna is terminated with the most popular SMA connector

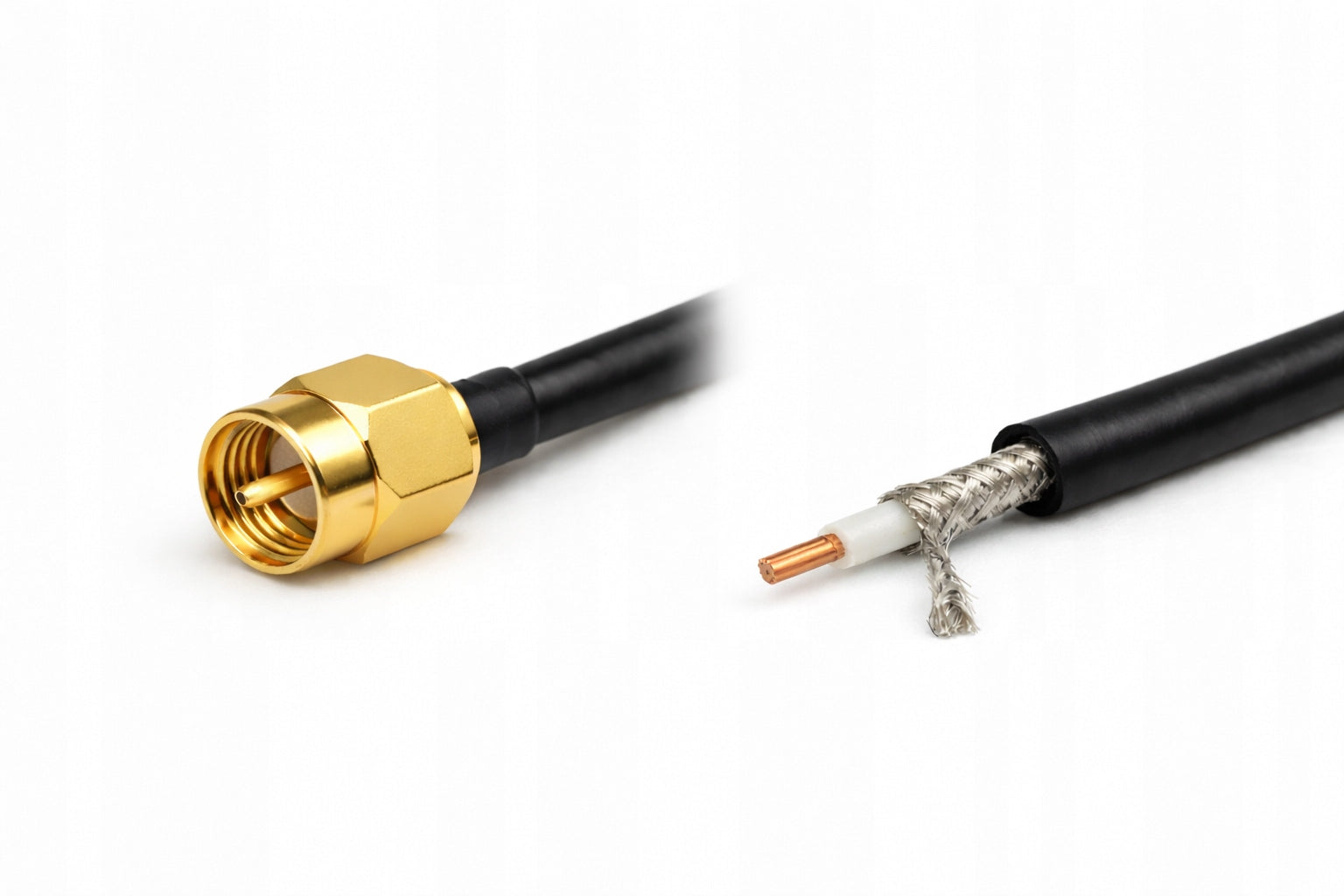

✅ Antenna with cable terminated with SMA plug / with the possibility of cutting off and connecting the RG-58 cable directly to the terminals

If your drive or device to which you want to apply the antenna does not have a SMA connector, only a place for direct overclocking of the coaxial cable - you can successfully cut the connector and screw the cable directly under the terminals or solder to the plate

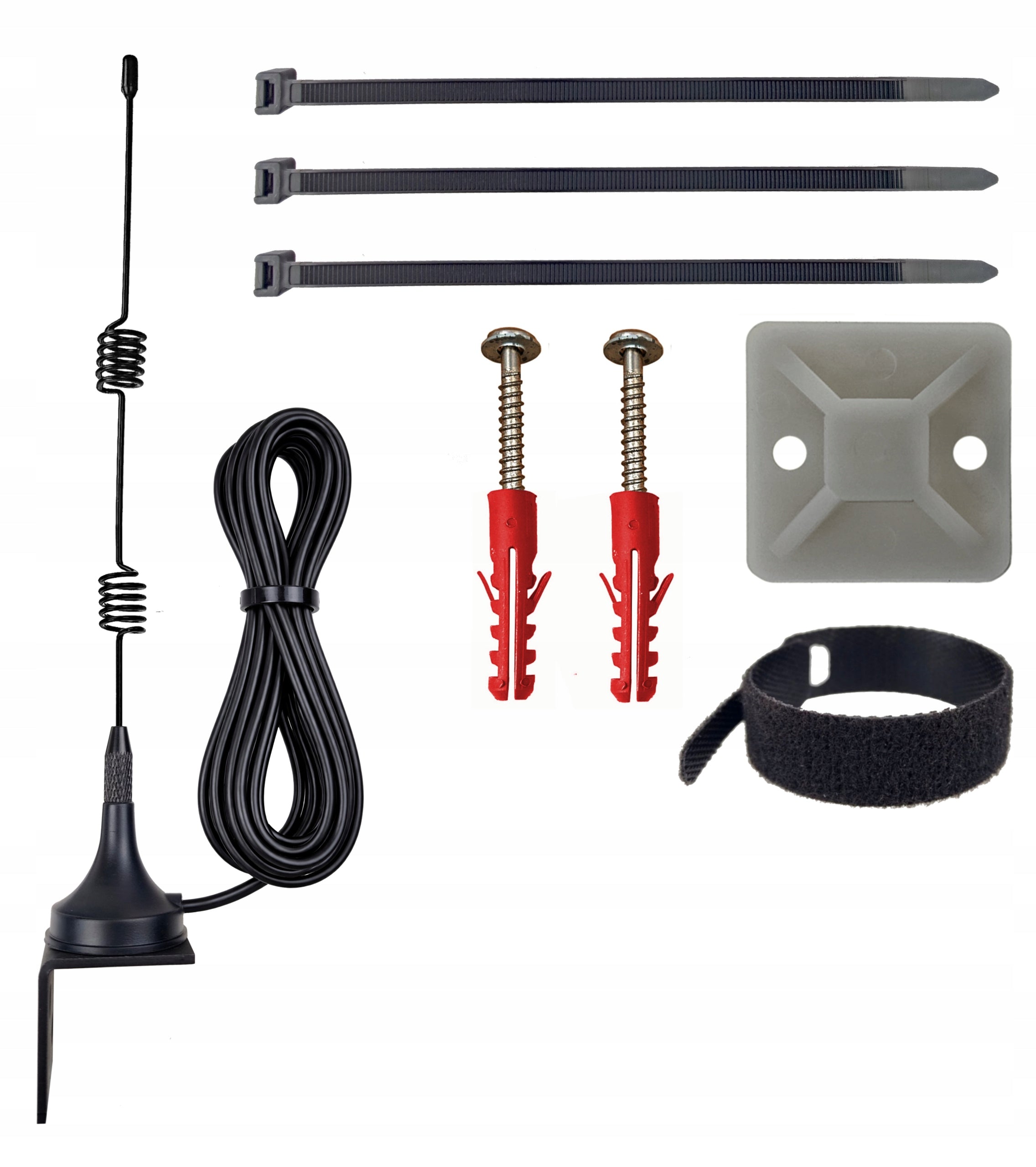

You get the whole set for the most demanding assembly, thanks to which you can mount the antenna regardless of the place.

• Antenna with cable terminated with SMA plug
• Angle support for wall mounting or on the side of posts and any vertical surfaces
• Expansion pins with screws
• Textile band for easy wire bundling
• Adhesive holder with screw-on capability for easy installation and placement of the cable on the way to the antenna
• Cable bands that allow you to attach the cable to the handle or fence elements.

Characteristics:

• Antenna length: 24cm
• Bandwidth: 433/ 433,92/ 434 Mhz
• Gain: 3 dB
• Impedance: 50 OM
• Operating Temperature: -25 - +70 degrees
• Magnet Base Diameter: 25mm
• number of helical (spiral) coils on the antenna base: 2
• Connector: SMA (male)
• Omnidirectional antenna - collects signal from all directions, it does not need to be "aimed" at a given transmitter.
• Connector: SMA (male)
• Omnidirectional antenna - collects signal from all directions, it does not need to be "aimed" at a given transmitter.

Terminated with the most standard SMA connector, but you can successfully remove the connector (cut it), strip the wire and screw it under the terminals. This solution makes the antenna universal both for SMA connector drivers and for direct connection of an insulated wire.

Cutting off the connector does not limit your right to return - even if you cut off the connector end and decide that the antenna did not work in your drive, you can easily return it without the end.

Applications m.in :

• garage doors
• entrance gates
• remote control transmitters / receivers
• sensors, weather stations
• radio and alarm sensors
• radio lines
• Arduino models
• smart home system

Thanks to its small dimensions, the antenna will work anywhere and will not cause any problems with installation or attract attention .

Is this antenna for me?

The antenna will work for people whose signal between the receiver / transmitter is too weak, the most popular application is gate drives, where to open the gate you need to get very close to it.

The use of the antenna will significantly extend the range of the remote control, thanks to which you will open the gate from a greater distance.

What gates and devices does the antenna fit into?

The antenna is fully universal and fits all gate drives and devices requiring antennas with a frequency of 433MHz, examples of drives are:

• Elektrobim
• Faac
• Nice
• Beninca
• Came
• Hato
• BFT
• Beninca
• Hormann

and other
