Varikliai BetaFPV 0702 27000KV, 4 vnt.

Trumpai apie prekę

Prekė: Varikliai BetaFPV 0702 27000KV, 4 vnt.. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: 0702 27000KV

⭐ Engines BetaFPV 0702 27000KV - 4pcs ⭐

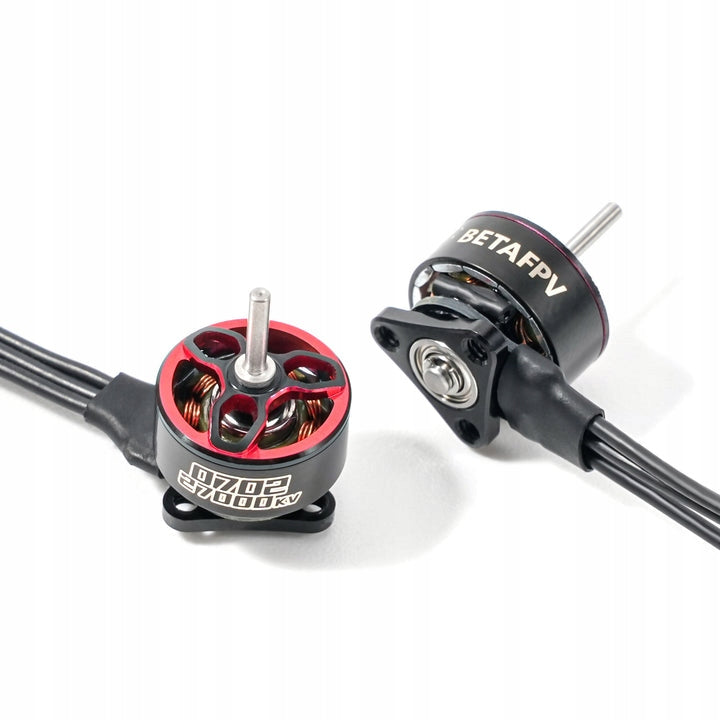

BetaFPV 0702 27000KV motors - 4 pieces

Lightweight 65mm whoop drones are becoming increasingly popular among racing enthusiasts. As the lightest motors available on the market, our 0702 and 0702SE models weigh just 1.52g and 1.42g. Combined with Gemfan 1210 2-blade or 1208 3-blade propellers and PEEK propellers, they enable a further weight reduction to less than 18g using these lightweight components, ensuring excellent flight performance. Perfect for 65mm whoop drones, they are a great choice for pilots looking to take their whoop racing to the next level and stand out from the competition.

Key features

• These motors are designed for ultralight 65mm racing drones, offering unparalleled performance for extreme racing flights.

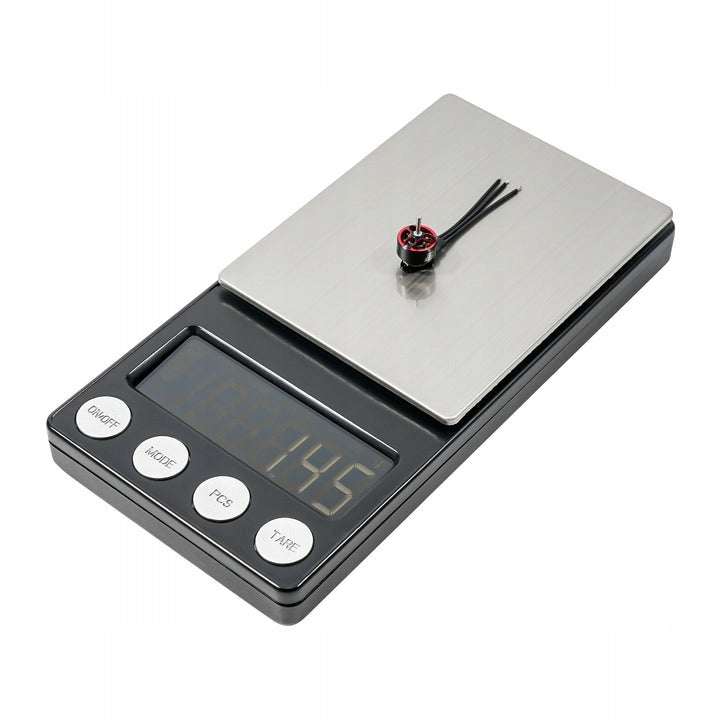

• The 0702 motor has double ball bearings and weighs just 1.52g or 1.45g without the connector. For those looking for higher speeds, a 30000KV option is available, providing more throttle power. These motors are ideal for indoor FPV racing and enable dynamic flights.
• The 0702SE features brass bushings, making it lightweight (1.42g or 1.35g without connector) and highly efficient. It is a more affordable and durable choice for ultra-light installations.
• Although for every speed of 0702 motors there are equivalents in size 603 or 802 that offer the same thrust with greater efficiency, active FPV pilots choose 0702 due to the ability to reduce weight near the drone's center of gravity. The 0702SE motor with brass bushings is a reliable and economical choice for these pilots.
• The combination with PEEK screws weighing only 0.10 g/12 pieces saves up to 0.46 g on construction. With greater resistance to heat, friction, shock and fatigue, PEEK screws are reliable and durable.
• Paired with the ultra-light Gemfan 1210 2-blade or 1208 3-blade propeller, they deliver solid power output and unparalleled response, perfect for racing and freestyle flying. They meet the diverse needs of ultralight whoop drone installations.

Specification

0702 Brushless Motors 0702SE Brushless Motors Bearings Double Ball Bearings Brass Bushings KV 27000KV, 30000KV 23000KV, 25000KV, 27000KV Weight 1.52g±0.03g 1.42g±0.03g Weight without connector 1.45g 1.35g Color Black Ice Blue Shaft Diameter 1mm Shaft Length 4.2mm Hole Distance 6.6mm Motor Mounting Holes M1.4 Input Voltage 1S Wires 35mm with connector, 30AWG wires Dimensions 12.75*φ9mm

Below is a diagram of the 0702 engine.

Below is a diagram of the 0702SE engine.

Engines 0702 and 0702SE

Choosing the right bearing for your whoop drone is crucial for optimal performance and durability. Brass bushings, being lightweight, are a cost-effective and durable solution in situations where falls are more likely. Dual ball bearings provide smoother operation, better high-speed performance and longer motor life. By using double ball bearings, you can ensure that your engine remains in excellent condition for a longer period of time, maintaining its high performance.

PEEK screws

PEEK screws are the best solution for lightweight whoop drones, saving extra grams of weight. PEEK screws weigh only 0.10 grams (12 pieces), saving up to 0.46 grams compared to designs using metal screws, while remaining stronger and more durable than nylon screws. With greater resistance to heat, friction, shock and material fatigue, PEEK screws are both reliable and durable. They are ideal for building 65mm/75mm drones, including the lightweight Meteor series drones.

Note: When tightening the screw, pay attention to the tightening force to prevent the nut from cracking.

Propellers

For racing drones requiring agility and fast flight performance, the 1208 31mm 3-blade propeller, paired with a 0702 motor rated at 27000KV or 30000KV, is a suitable choice. Alternatively, for freestyle drones that emphasize acrobatic maneuvers, a 1210 31mm 2-blade propeller, compatible with a 0702 motor rated at 25000KV or 27000KV, is better suited. Choosing the right propellers and motors is crucial to optimizing the flight performance of a racing drone and can significantly improve the overall experience for pilots.

Recommended parts

• Propellers: GF 1210 2B Props, GF 1208 3B Props, HQ 31mm 3B Props, GF 1219S 3B Props
• Frame: Meteor65 frame, Meteor65 Pro frame
• FC: F4 1S 5A AIO Brushless Flight Controller
• Battery: BT2.0 300mAh 1S 30C Battery (8PCS)
• Screws: Meteor Series Motor Fixing Screws Pack

The load capacity of the 0702 engine is shown below.

The load performance of the 0702SE engine is shown below.

Package contents

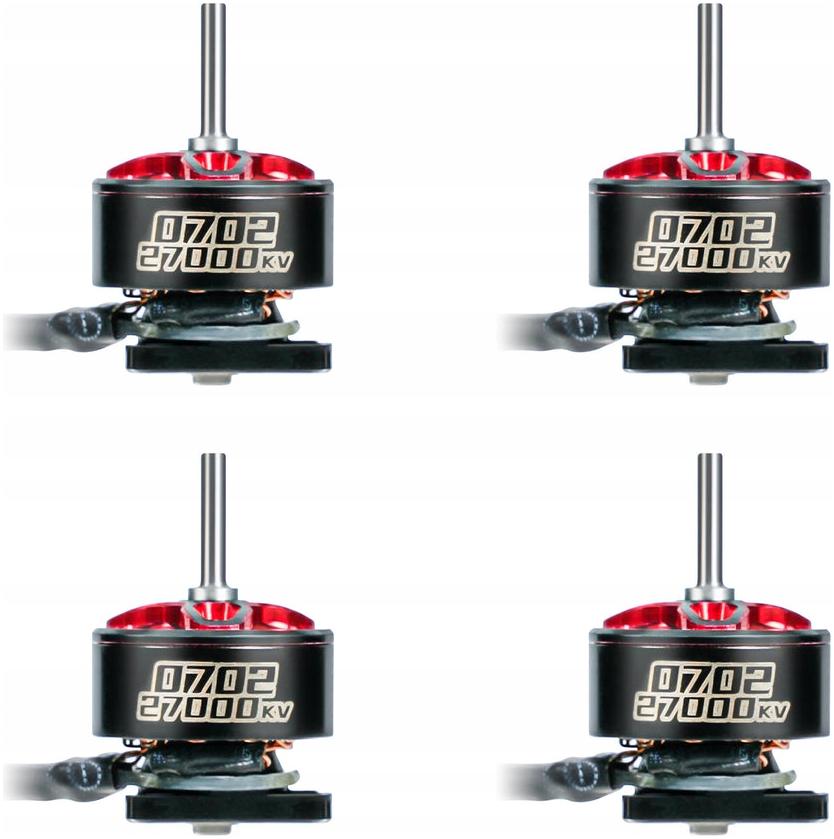

• 4 * 0702/0702SE brushless motors
• 15 * M1.4*3 PEEK screws
• 12 * M1.4*3 metal screws

• KV: 27000

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	BetaFPV
Parametry	Model	0702 27000KV
Parametry	EAN (GTIN)	735133997087
Parametry	Manufacturer code	0702 27000KV
