Vandens UV sterilizatorius TMA D14 (7,20 m3/h) bakteriocidinė lempa

Trumpai apie prekę

Prekė: Vandens UV sterilizatorius TMA D14 (7,20 m3/h) bakteriocidinė lempa. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: TMA
• Modelis: TMA D14
• Ilgis: 96 cm
• Talpa: 7200 l

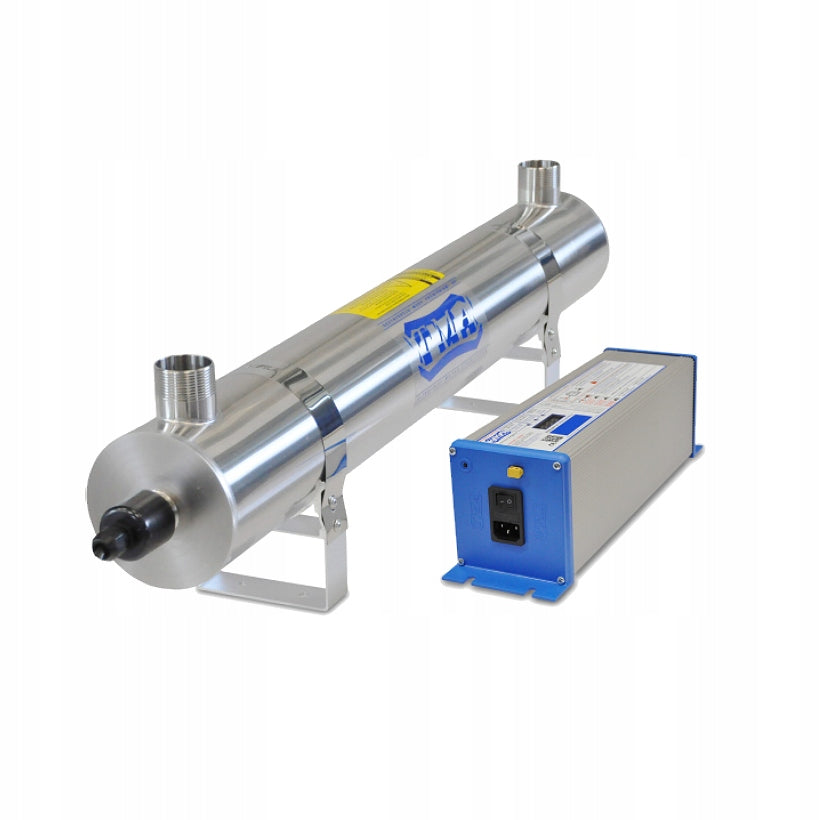

UV sterilizer TMA D14 - bactericidal lamp for water with a capacity of 7,2 m³/h

TMA D14 is a high-performance UV sterilizer designed for effective disinfection of drinking water. Thanks to the use of ultraviolet radiation, the device eliminates up to 99,9% of bacteria, viruses and other microorganisms without changing the taste, smell or chemical composition of water.

The D14 is designed for demanding water installations. It is perfect for large single-family houses, multi-family buildings, hotels, guesthouses, restaurants, farms, tourist facilities and wherever it is necessary to provide the highest quality microbiological water.

The most important advantages of the TMA D14 sterilizer

• Effective disinfection of water using UV radiation without the use of chemicals.
• Nominal capacity up to 7,2 m³/h, suitable for extended water installations.
• The body is made of high-quality acid-resistant steel, ensuring long-term durability and resistance to corrosion.
• Pure quartz casing pipe ensures maximum UV radiation permeability and high sterilization efficiency.
• The optical operating indicator allows you to quickly control the condition of the radiator.

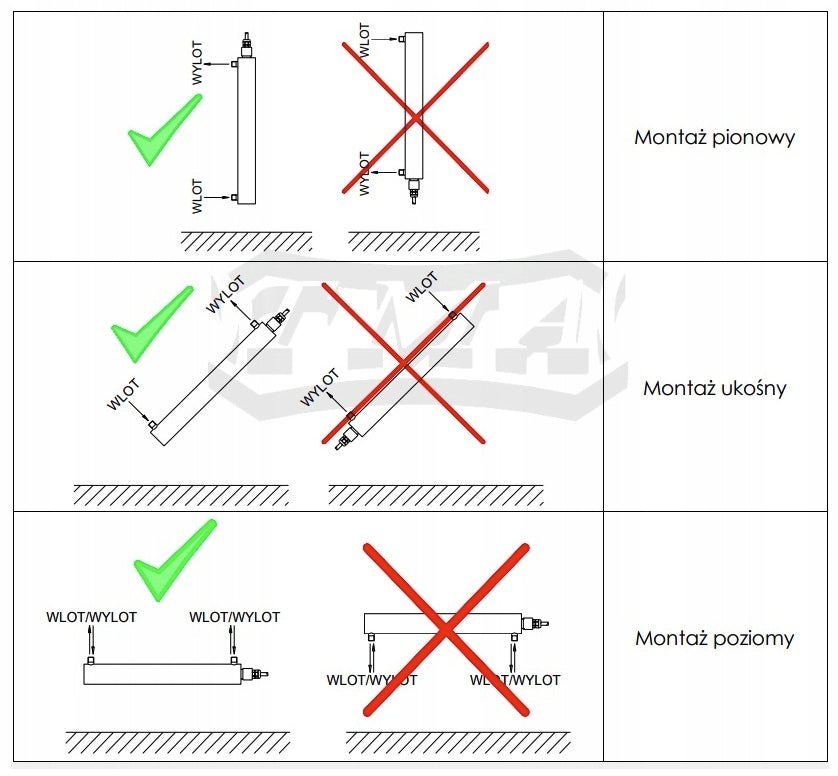

• Possibility of mounting in a vertical, horizontal or diagonal position (while directing the connections upwards).
• Work also in the absence of water flow.
• Maximum working pressure up to 10 bar (1,0 MPa).
• Quick, tool-free replacement of the radiator without the need to unseal the installation.
• Tight insulation of radiator power supply in protection class IP66.
• All elements in contact with water have certificates allowing them to come into contact with drinking water.
• The product has a PZH certificate, confirming the safety of use.

Advanced control system

The TMA D14 sterilizer is equipped with a modern control module that provides full control over the operation of the device:

• total working time counter,
• counter of the remaining life of the UV radiator,
• ongoing monitoring of the lamp operation,
• counter of the number of start-ups of the device,
• optical and audible alarm informing about the failure of the radiator,
• output for controlling the solenoid valve,
• output of an alarm signal to external systems.

Set equipment

The set includes:

• sterilizer body made of acid-resistant steel,
• electronic power supply and control system,
• Philips 90 W UV radiator,
• quartz casing pipe,
• glowing muff acting as an optical indicator of work and damage to the radiator.

Technical parameters

UV Sterilizer

• Nominal capacity: 7,20 m³/h
• UV dose: 400 J/m²
• UV transmission: T10 = 95%
• Connection: DN40 (R 1½")
• Number of Radiators: 1
• Radiator power: 90 W
• Radiator life: 16 000 h (about 22 months continuous operation)
• Body Material: Acid-Resistant Steel
• Surface finish: satin (Ra < 0,8 μm)
• Length: 960 mm
• Diameter: 130 mm
• Weight with control system: 10,2 kg

Control system

• Power supply: 220 – 240 V, 50/60 Hz
• Connection power: 93 W
• Protection Class: IP40
• Housing Material: Aluminum / ABS
• Dimensions: 400 × 109 × 115 mm
• Optical and audible alarm: yes
• Working time counter: yes
• Number of starts: yes
• Optical operating indicator: yes
• Optical Radiator Failure Indicator: Yes
• Output to solenoid valve: yes
• Alarm signal output: yes
• Remote on/off: no

Application

The TMA D14 UV sterilizer is designed for water disinfection in domestic, commercial and industrial installations. The device effectively protects water against secondary microbiological contamination, ensuring constant access to safe and clean usable water.
