Vandens sterilizatorius su UV lempa TMA D6, 2,3 m³/h

Trumpai apie prekę

Prekė: Vandens sterilizatorius su UV lempa TMA D6, 2,3 m³/h. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: TMA
• Modelis: D6
• Talpa: 2300 l

⭐ UV STERILIZER FOR WATER TMA D6 – CAPACITY 2,30 m³/h

✅ The UV TMA D6 sterilizer is a powerful device designed for disinfection of water in medium-sized installations. It will work well in single-family houses equipped with up to two bathrooms, holiday homes, apartments, offices and small commercial facilities.

✅ The device uses UV radiation with a wavelength of 254 nm, which neutralizes bacteria, viruses and other microorganisms found in flowing water. The process takes place without the addition of chemicals, so it does not affect the taste, smell or basic physicochemical properties of water.

⭐ The most important advantages of the sterilizer

✅ Disinfection without chemicals – UV radiation neutralizes microorganisms without the need to dispense chlorine or other preparations.

✅ Nominal flow rate 2,30 m³/h – the device is suitable for medium-sized domestic and utility installations.

✅ Original Philips 27 W radiator – ensures the right dose of radiation while maintaining specific flow parameters and water quality.

✅ Durability up to 16 000 hours – corresponds to about 666 days, or about 22 months of continuous work.

✅ An acid-resistant steel – the reaction chamber is resistant to corrosion and adapted to contact with water.

✅ Connections DN25 R1” – allow you to connect the device to popular water installations.

✅ Working pressure up to 10 bar – enables use in typical pressure installations.

✅ Vertical, horizontal or angled installation – allows you to adjust the position of the lamp to the available installation space.

✅ Simple replacement of the radiator – the service does not require unsealing of the hydraulic part of the device.

✅ Compact design – makes it easy to find the right installation location in the water system.

⭐ Application of TMA D6 sterilizer

✔ Single-family houses equipped with up to two bathrooms.

✔ Cottages and apartments using their own water source.

✔ Offices and small commercial facilities where it is necessary to protect the installation from microorganisms.

✔ Gastronomy and hospitality, as part of a properly designed water treatment system.

✔ Wells and own shots, after performing appropriate tests and applying the required pre-filtration.

✔ Ponds and ponds, where UV radiation helps to limit the growth of bacteria and algae found in flowing water.

✔ Small industrial installations whose flow parameters are compatible with the capabilities of the device.

⭐ Disinfection of water with UV radiation

✔ The TMA D6 sterilizer uses UV C ultraviolet radiation with a wavelength of 254 nm.

✔ Water flowing through the chamber is exposed to radiation, which damages the genetic material of microorganisms and limits their ability to continue multiplying.

✔ With properly selected flow, radiation dose and proper water quality, the device can provide reduction of microorganisms up to 99,9%.

✔ The lamp supports neutralizing, among others, Bacteria of the Coli group, Escherichia coli, fecal streptococci, Legionella and Clostridium perfringens.

✔ The disinfection process takes place without changing the taste and smell of water and without leaving chemical by-products in it.

✔ UV sterilization does not remove deposits, metals, chemical compounds or mechanical impurities from the water, so the device should work with a properly selected filtration system.

⭐ Installation in water system

✔ The device can be mounted in vertical, horizontal or angle position, depending on the installation layout and installation recommendations.

✔ The included handles allow stable attachment of the lamp in the prepared place.

✔ Connections DN25 R1” allow you to incorporate the device into the water system of the appropriate diameter.

✔ The design allows replacement of the radiator without opening the water chamber, which reduces the risk of unsealing the installation during servicing.

✔ At the installation site, leave adequate space to remove the radiator and quartz cover.

✔ The sterilizer requires access to an electrical system with a voltage of 230 V.

✔ The maximum temperature of water entering the device is 45°C.

✔ For proper effectiveness, you should regularly check and clean the quartz shield on which mineral compounds can settle.

⭐ Technical specification

✔ Nominal flow rate: 2,30 m³/h at T10=95% transmission and 400 J/m² dose

✔ Operating pressure: up to 10 bar (1,0 MPa)

✔ Connections: DN25 (R1”)

✔ UV radiator: 1 x 27 W, durability up to 16 000 hours

✔ Body material: acid-resistant steel, satin finish (Ra< 0,8 µm)

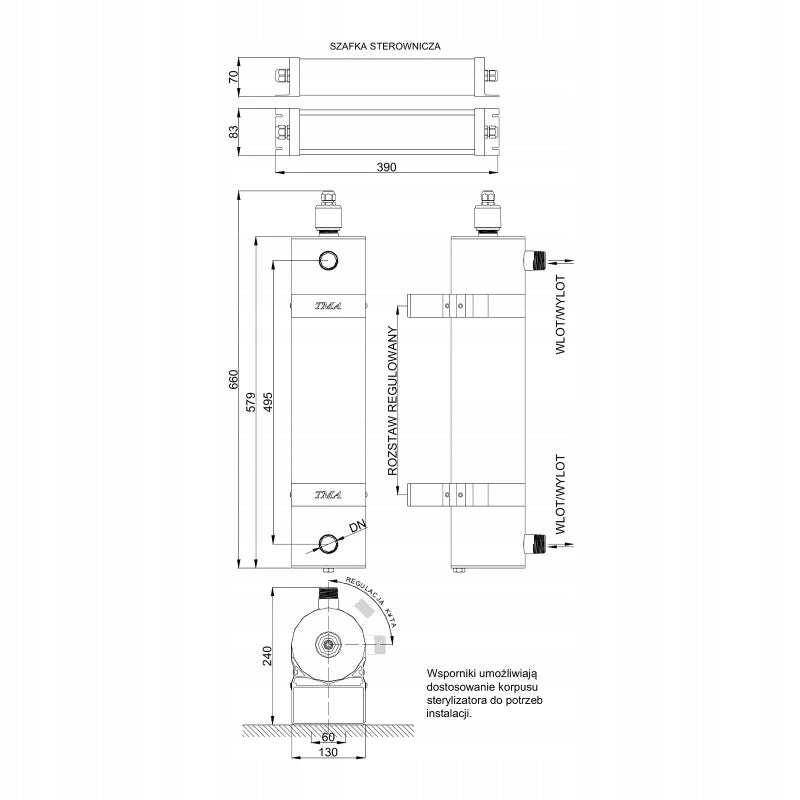

✔ Dimensions: 660x130x240 mm

✔ Weight with control system: 4,5 kg

⭐ FAQ – Frequently Asked Questions

❓Is TMA D6 suitable for disinfecting water throughout the home?

✅Yes, TMA D6 is designed for medium-sized installations such as single-family homes with up to two bathrooms, ensuring effective disinfection of water throughout the house.

❓What are the operating costs of the device?

✅The main operating costs are electricity consumption (27 W) and periodic replacement of the UV radiator every 16 000 hours of operation.

❓What applications is the UV lamp TMA D6 suitable for?

✅The UV TMA D6 lamp is ideal for disinfecting water in small installations, such as single-family houses (up to 2 bathrooms), holiday homes, apartments, offices or ponds.

❓What is the efficiency and power of the TMA D6 radiator?

✅TMA D6 has a 27 W radiator and provides a nominal flow of 2,30 m³/h with T10=95% transmission and a dose of 400 J/m².

❓What microorganisms does the TMA D6 sterilizer eliminate?

✅The UV TMA D6 lamp effectively removes Coli, Escherichia coli, fecal streptococcus, Legionella, Clostridium perfringens and other bacteria and viruses present in the water.

❓How long does the UV radiator work in the TMA D6 model?

✅The manufacturer declares the durability of the radiator at the level of 16 000 hours, which corresponds to about 666 days of continuous operation.

❓Is the installation and servicing of the TMA D6 complicated?

✅The UV TMA D6 lamp is characterized by simple installation and servicing. It can be installed vertically, horizontally or at an angle, and replacing the radiator does not require the use of tools.
