Vandens minkštinimo stotis Klarwod CS Shadow 20 l

Trumpai apie prekę

Prekė: Vandens minkštinimo stotis Klarwod CS Shadow 20 l. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Klarwod
• Modelis: CS Shadow 20 l
• Talpa: 20 l

CS Shadow is a fully automatic, maintenance-free water softening station designed for use on the main water intake in residential buildings and single-family houses.

The CS SHADOW device removes calcium and magnesium ions from the water.

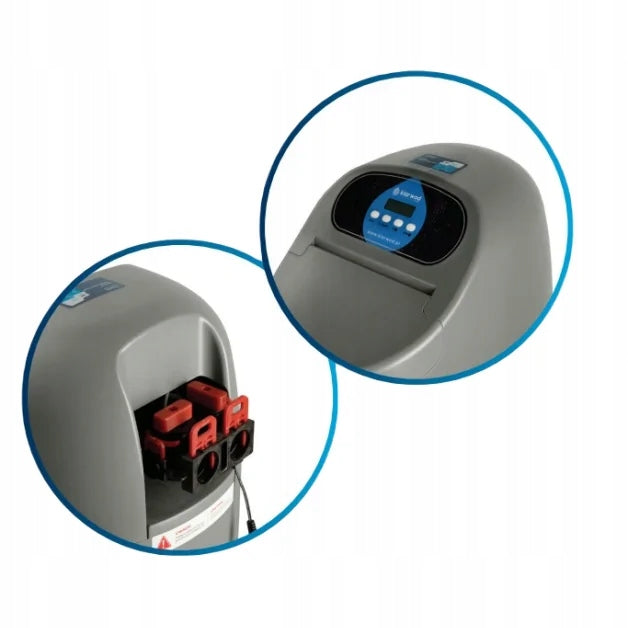

Reliable volumetric and time control head BNT

The device has a very convenient, reliable and simple control head with mixing, which allows you to obtain any hardness of treated water.

The control head is controlled by intuitive software displayed on the LCD screen. The main screen shows the current time. In addition, information about the regeneration mode, remaining volume or number of days to regenerate is displayed.

Diagnostic functions

The electronic controller allows you to control all settings.

Bipass valve

In case of failure or maintenance of the softener, you can turn off the softener from the water circuit using a bypass valve, so-called. BYPASS. Then you can still use the water, because only the softener has a cut off supply

ADVANTAGES AND FUNCTIONS OF THE DEVICE

The device is easy to install and convenient to use.

• convenient LED display and panel
• automatic keyboard lock
• regulation of the water hardness level
• valve type bypass
• two anti-flooding systems
• electronic controller for controlling settings
• possibility of removing the controller from the housing
• high-performance ion exchange resin
• regeneration modes: temporal, instantaneous volumetric, delayed volumetric, time-volumetric
• menu in Polish

DEPOSIT OF PURSANIT CER-E100

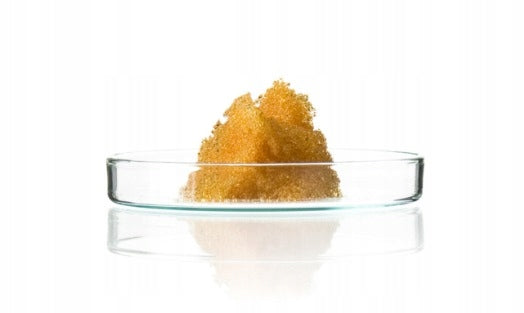

PURSANIT CER resin is a polystyrene highly acidic cationic resin with a gel structure. Cationite on the basis of ion exchange replaces ions causing water hardness, i.e. calcium and magnesium for sodium ions. After the ion exchange capacity has run out, the resin must be regenerated with a solution of sodium chloride.

The resin has a PZH certificate for contact with drinking water number HK/W/0116/01/2011.

The deposit should be replaced after 5 - 10 years of operation.

SPECIFICATION

• Bed capacity (litre): 20
• Flow rate (m3/h): 1,4
• Ion exchange capacity (m3/dH): 60
• Average salt consumption per regeneration (kg): 2
• Salt tank capacity (kg): 57
• Device Size (cm): 35 / 50 / 109
• The size of the tank for the Wednesday bed. / h. (inches): 8ʺ / 35ʺ
• Operating temperature (st. C): 1 - 30
• Operating pressure (bar): 2 – 6
• Supply Voltage (V/Hz): 220-240V / 50-60Hz
• Operating Voltage (V): 12
• Power Consumption (W): 5 (only during regeneration)
• Connection (inches): 1ʺ
