Vandens minkštiklis LOGIQUE 25K_MN, sausas bakas, mono derva, up-flow

Trumpai apie prekę

Prekė: Vandens minkštiklis LOGIQUE 25K_MN, sausas bakas, mono derva, up-flow. Kategorija: Vandens filtrai ir minkštikliai.

• Gamintojas: Supreme
• Modelis: SUPREME LOGIQUE 25K_MN
• Talpa: 25 l

The water softener series SUPREME-LOGIQUE 25K_MN is a modern line of devices that have been equipped with a professional and reliable control valve "PERFORMA LOGIX 269" PENTAIR.

The head is made of stainless steel elements, resistant to UV radiation. The body of the controller is made of fiber reinforced polymer. The NOVARAM internal memory maintains the dynamic memory settings within no more than 8 hours of power loss. The control head is equipped with a “MIXING” mixing valve.

Advantages:

Extended manufacturer's warranty*:

• 10 years for pressure vessel, compact housing and top cover,
• 5 years for control valve and mechanical parts,
• 2 years for driver circuit board, power supply and brine float valve.

• High quality of workmanship,

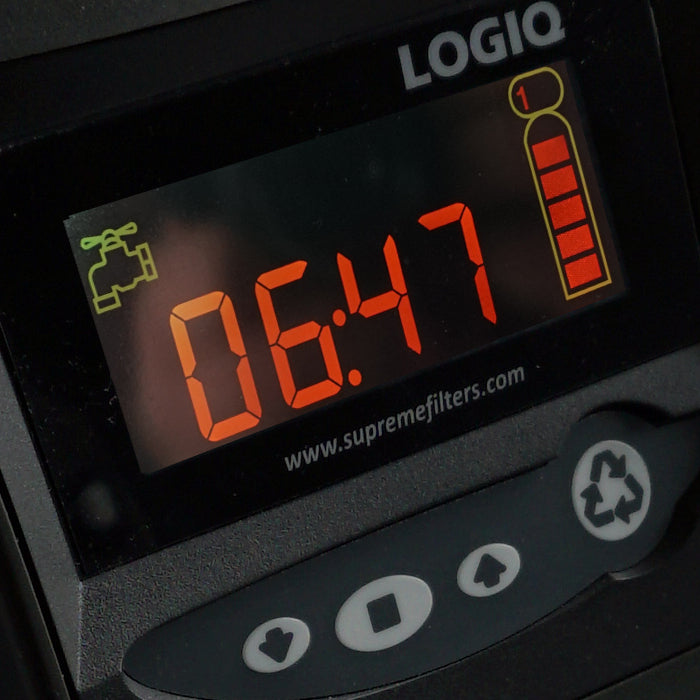

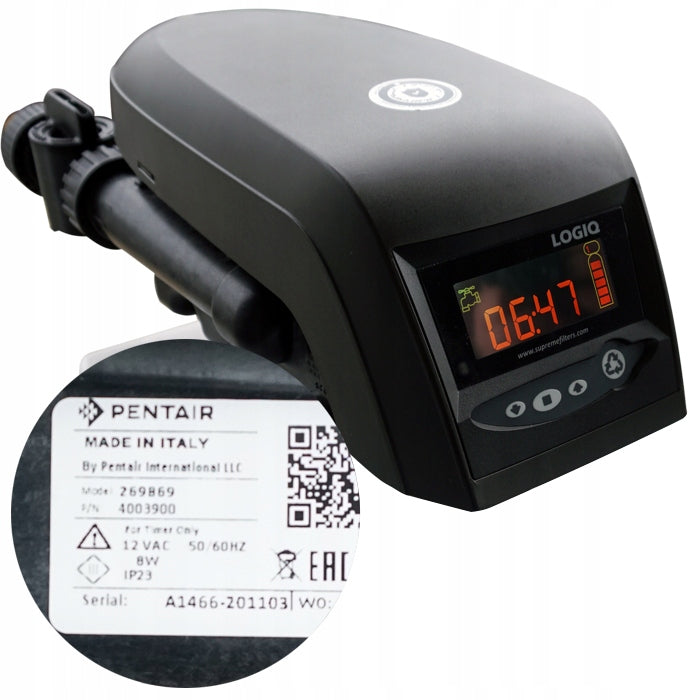

• Professional electronic volumetric control valve "PERFORMA LOGIX 269" PENTAIR,
• High-performance monospheric resin PURE SOFT MONO,
• Possibility to enable the economical mode of "variable reserve function",
• Modern countercurrent regeneration system - "UP-FLOW",
• Mixing valve "MIXING",
• Low consumption of water and salt in the regeneration cycle,
• Dry tank function,
• Internal memory NOVARAM, enabling maintenance of dynamic memory in the absence of power,
• Efficient bottom basket distribution system equipped with a special deflector (DFLR),
• Possibility of retrofitting the system: with BY-PASS valve.

*in the case of installation of a system for tap water and use in the form of mechanical filter protection and warranty service once a year, does not apply to companies.

Modern "UP-FLOW" regeneration system, deflector system (DLFR) and the ability to enable the "variable reserve function" cause that the SUPREME-LOGIQUE series systems consume small amounts of salt and water throughout the regeneration cycle.

Intelligent control valve "PERFORMA LOGIX 269", monitors the flow of water through the device and is able to perform proportional regeneration based on the average consumption of the last four weeks. The SUPREME-LOGIQUE series operates in dry tank mode.

The SUPREME-LOGIQUE series can be additionally equipped with a BY-PASS valve. With the BY-PASS valve, maintenance work can be carried out without blocking the supply of raw water to the installation.

The SUPREME-LOGIQUE series softeners use the best monospheric ion exchange resin on the market PURE SOFT MONO by BWG Components, which exhibits much better, faster rinsing properties, which makes it slower to wear.

During countercurrent regeneration "UP-FLOW", brine solution is fed to the bed "from the bottom up". At the bottom of the column there is mainly a deposit with a small amount of water, so there is no dilution of the brine solution. The brine solution is used slowly and evenly, regenerating the bed very thoroughly from the least to the most used. The "variable reserve function" allows you to work in the "proportional" mode in the event that the ion exchange capacity of the deposit has not been completely exhausted, while the head has initiated the regeneration mode, then the controller calculates the appropriate dose of brine, which is needed to perform regeneration.

Technical specification:

• MODEL: SUPREME LOGIQUE 25K_MN
• Bottle size: 10X30
• Bed volume: 25 dm3
• Working pressure min./max.: 1,38 bar / 8,20 bar
• Working temperature of water min./max.: 1°C - 38°C
• Ambient temperature min./max.: 1°C - 49°C
• Electrical connector: 220-240V - 12V AC 50/60Hz
• Maximum power consumption: 8 W
• Hydraulic connector inlet/outlet: external thread. 1” BSP
• BY-PASS valve: yes
• Raw water mixing: yes
• Recovery type (recommended): Volume delayed with the possibility of temporary operation and variable reserve function
• Recovery system: Countercurrent UP-FLOW
• Type of deposit: Special monospheric ion exchange resin
• Dry tank function: yes
• Memory retention: 8 hours
• Washing water consumption for regeneration (at 3 bar): 90 litres
• Nominal interchangeable capacity: 82,5 m³x°d
• Salt consumption for regeneration: 3,2 kg
• Type of regenerator: Tableted salt

Dimensions:

• System dimensions (H x W x head) (mm) - 1200 x 300 x 500
• Inlet/outlet height (mm) - 810
• Inlet/outlet height including bypass (mm) - 810

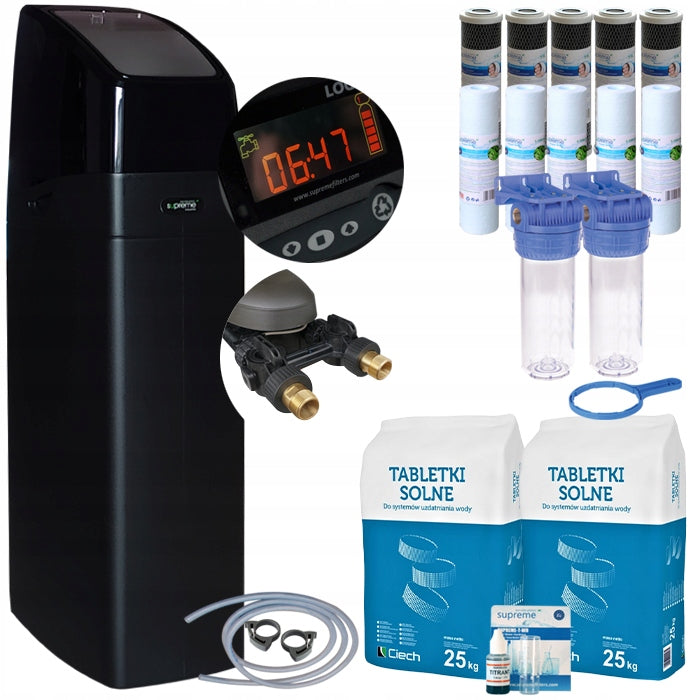

BY PURCHASING THE SUPREME LOGIQ 25K SOFTENER YOU WILL ADDITIONALLY RECEIVE:

• 2 in-line sets with mounting plate, key insert
• 5 pieces of bacteriostatic foam cartridges that are designed to stop solid contaminants such as sand rust silt and protect the softener from getting into the particulate head.
• 5 carbon cartridges by SUPREME S-BL that effectively remove chlorine, organic substances from the water and improve the taste and smell of water.
• 1 drop hardness tester
• 2 bags of tablet salt
• 5 mb. flexible hose for draining rinses
• 2 mounting clips for hose.
