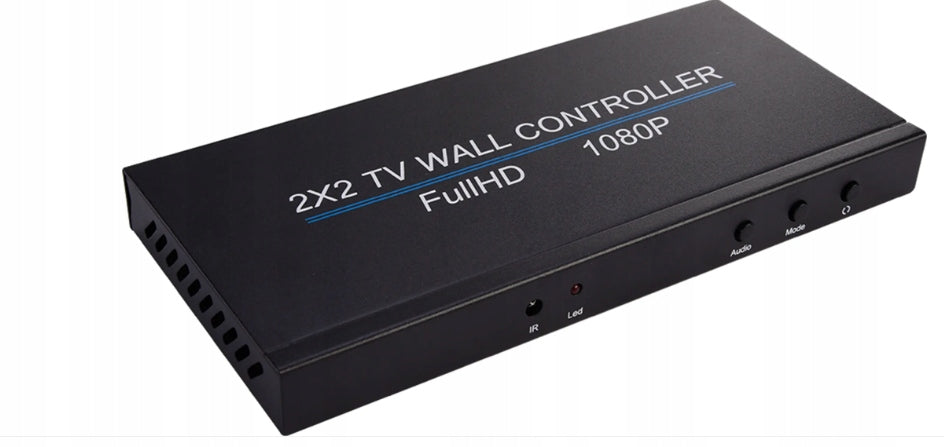

Vaizdo sienos valdiklis TV WALL 2x2 HDMI, 4 išėjimai, Full HD 1080P, nuotolinio valdymo pultas

Trumpai apie prekę

Prekė: Vaizdo sienos valdiklis TV WALL 2x2 HDMI, 4 išėjimai, Full HD 1080P, nuotolinio valdymo pultas. Kategorija: Kita.

• Gamintojas: no brand
• Modelis: TV WALL

Video Wall Controller TV WALL 2x2 HDMI 4 Outputs Full HD 1080P Remote Control

• 1 HDMI 1.3 input
• 4 HDMI outputs
• Resolution up to 1920 × 1080P
• Support 24/30/50/60 Hz
• 7 modes of screen layout
• Rotate the image by 180°
• Button or remote control

✨ TV WALL Controller – one image spread over several screens ✨

☑ Model: TV WALL

The TV WALL video wall controller allows you to split an image from a single HDMI source between several TVs, monitors or projectors. The device has 1 HDMI 1.3 input and 4 HDMI outputs, so you can create a video wall from up to four screens. It supports 1920× 1080P resolution and 24, 30, 50 and 60 Hz frequencies. You can choose from 1x2, 2x1, 1x3, 3x1, 2x2, 1x4 and 4x1 configurations, which makes it easy to adjust the display to the screen setting. You can select the MODE mode on the housing or using the included infrared remote control.

✅ Key features of the product

• Divide the image into four screens
• Seven video wall configurations
• Full HD 1080P image support
• Four independent HDMI outputs
• 180° image rotation function
• Remote control or MODE button

✍ Specification:

• Model: TV WALL
• Type: Video Wall Controller
• Manufacturer code: Wall controller
• EAN: 728865133175
• Input: 1 x HDMI
• Input standard: HDMI 1.3
• Outputs: 4 x HDMI
• Supported resolution: 1920 × 1080P
• Supported Frequency: 24/30/50/60 Hz
• Output resolution: 1920 × 1080P at 60 Hz
• Modes: 1x2, 2x1, 1x3, 3x1, 2x2, 1x4, 4x1
• Image Rotation: 180°
• Control: MODE button / infrared remote control
• Power Supply: DC 12V/1A
• Operating System: Plug & Play

Packaging: Original.

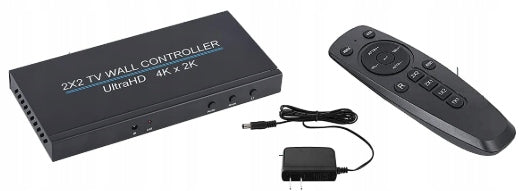

Content of the package:

• 1 x 2x2 HDMI WALL Video Wall Controller
• 1 x 12V/1A power supply
• 1 x Infrared Remote Control
• 1 x User Manual

✅ Division of the image into four screens

The controller allows you to use up to four screens to display images from a single HDMI source. This way you can create a larger display area from several TVs, monitors or projectors.

✅ Seven video wall configurations

You do not have to limit yourself to the classic 2x2 layout. The device also supports 1x2, 2x1, 1x3, 3x1, 1x4 and 4x1 configurations. This allows you to adjust the video wall to the number of screens and how they are arranged.

✅ Full HD 1080P image support

The controller supports 1920× 1080P resolution and 24, 30, 50 and 60 Hz frequencies. Four HDMI outputs support 1920× 1080P at 60 Hz.

✅ Four independent HDMI outputs

You have 4 HDMI outputs at your disposal. Each of them can be combined with the appropriate screen to build the selected video wall layout.

✅ Image rotation function by 180°

The device offers the ability to reverse the output image by 180°. The function gives you more freedom when setting screens and preparing a specific wall layout.

✅ Control of remote control or MODE button

You can change the display configuration without complicated operation. Select the appropriate mode using the MODE button located on the device or use the infrared remote control.

The controller works in Plug & Play system. Connect the signal source to the HDMI input, then connect the TVs, monitors or projectors with the appropriate HDMI outputs and connect the 12 V power supply. After starting, it remains to select the necessary screen layout.

The device will work, among others, for presentations, in conference rooms and wherever you need to create a multi-screen surface for displaying video materials.

❓Q&A Questions and Answers❓

➡ How many screens can be connected to the WALL TV controller?

The device is equipped with 4 HDMI outputs, allowing you to connect up to four screens.

➡ Does the controller support 2x2 video wall layout?

Yes. 2x2 mode is one of the seven display layouts available.

➡ What other configurations can be set?

There are 1x2, 2x1, 1x3, 3x1, 2x2, 1x4 and 4x1 modes.

➡ What resolution does the controller support?

The device supports Full HD 1920 × 1080P at 24/30/50/60 Hz.

➡ Can you control the device without a remote control?

Yes. The display mode can also be selected using the MODE button located on the device.

➡ Is the power supply included?

Yes. The package includes a 12V/1A power supply, as well as an infrared remote control and user manual.
