Trumpai apie prekę
Prekė: Vaizdo įrašymo įrenginys KENIK KG-13516L-A, 5 kanalai, CVBS/TVI, AHD/CVI/IP CCTV. Kategorija: Garso įrašymo įrenginiai.
- Gamintojas: KENIK
- Modelis: KG-13516L-A

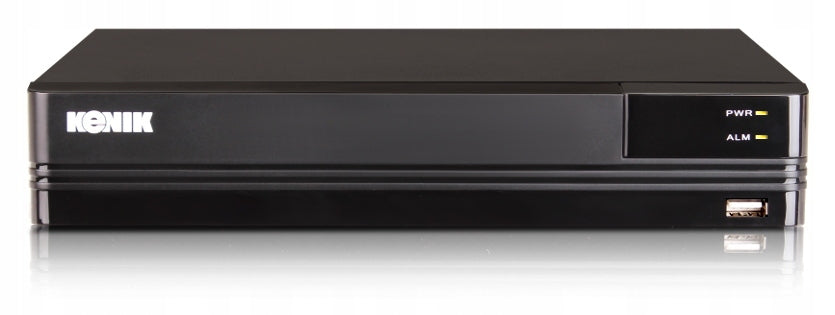

5IN1 RECORDER KENIK KG-13516L-A
The most important features
- 5in1 hybrid recorder: support 5 CVBS/TVI, AHD/CVI/IP technologies (automatic detection)
- Support 16 AHD/CVI/TVI/CVBS/IP cameras + 2x IP
- Recording at 1080N (960x1080) at 12fps
- H.265+/H.265 compression
- Support 1 SATA hard drive up to 8TB
- Support for ONVIF 2.6
- supports AOC (audio over coaxial)
- SMD (man/vehicle)
- Record directly to a cloud drive (Google Drive, Dropbox)
- Mobile preview on smartphone (Android, iPhone)
- Free in Polish for use on your computer
- Cloud Connection Support (P2P)
- S.M.A.R.T function
Description
The modern Kenik KG-13516L-A recorder is a universal device cooperating with cameras in any technology available on the market (AHD, CVI, TVI, IP, analog). This means that we can freely combine systems from different manufacturers. Ideally suited for a small monitoring system. A big advantage is remote viewing on the phone from anywhere in the world and working in the cloud. The recorder allows you to record on Google Drive or Dropbox. The menu of the in Polish facilitates the operation and configuration of the necessary functions. Full HD camera video recording provides excellent image and effective object monitoring.
Modes of operation
The recorder has the ability to connect cameras in AHD/CVI/TVI/analog/IP technology in any configuration. Thanks to this, we can use the cameras we already have and modernize our system with higher HD quality. In addition, the recorder allows you to add two extra IP channels and support up to 18 cameras at the same time.
Intelligent IVS image analysis
The recorder is equipped with support for intelligent video analysis. Event detection was used in the case of: detection of an intruder in the zone, crossing the line. This increases the effectiveness of the monitoring system and the safety of the controlled facility.
Onvif
Onvif (Open Network Video Interface Forum) is an organization of CCTV manufacturers focused on the issue of standardization, a common protocol for these devices. This group was created to unify the protocol, i.e. the way of communication between devices of different suppliers. At present, the entire organization brings together about 450 companies and institutions from around the world.
Since its introduction, the Onvif standard itself has undergone successive stages of development and encountered various unexpected problems. It happened that two different devices with the implemented protocol did not work or their functionality was limited. Today, the standard is offered in version 2.6 and in the vast majority of cases allows for seamless integration of any devices.
Kenik Mobile preview
Thanks to the free Kenik Mobile application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.
Working in the cloud Kenik
Each Kenik IP camera has the ability to connect via the cloud. Thanks to this solution, without complicated configuration, every user can easily connect to the camera and see the image. The service is free.
VMS Pro software
VMS Pro is software that allows you to preview the image and manage the DVR on your computer. It allows you to connect several recorders located in different locations and preview the image from up to 128 cameras. In addition, creating an e-map makes it easier to browse and allows you to divide the system into zones. Support for up to 4 monitors at the same time will certainly help.
Mobile preview
Thanks to the free uCloud Cam application, we have the ability to remotely view the image from the camera on your mobile phone. It supports such systems as: Android, iOS. This gives us the ability to control what is happening in the monitored facility from anywhere in the world. When connected in the cloud, simply enter the camera ID number and enjoy remote access to your device.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 32769 |
| Parametry | Brand | KENIK |
| Parametry | Model | KG-13516L-A |
| Parametry | Product weight with unit packaging | 1 kg |
| Parametry | Product width | 28 cm |
| Parametry | Product height | 8 cm |
| Parametry | Product depth | 36.5 cm |
| Parametry | Product weight | 1 kg |
| Parametry | Number of supported cameras | 16 |
| Parametry | Maximum recording resolution | 2 Mpx |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 8 TB |
| Parametry | Video compression | not specified |
| Parametry | Video outputs | HDMI |
| Parametry | Number of USB ports | 2 |
| Parametry | Network interface | RJ-45 10/100 |
| Parametry | Functions | phone app |
| Parametry | EAN (GTIN) | 5908231252258 |
| Parametry | Certificates of conformity | CE |
| Parametry | Technology | AHD,CVBS,HD-CVI,HD-TVI,IP |
