Prekė: Ultragarsinis storio matuoklis kietoms medžiagoms ir lakui 1–22 mm. Kategorija: Dažų storio matuokliai.
- Gamintojas: Benetech
- Modelis: GM100
Ultrasonic thickness gauge is an intelligent and handy device that, based on ultrasound and microprocessor, provides fast and accurate thickness measurement of most industrial materials. The device is widely used in various precision measurements for various equipment/parts in the industrial sphere; one of the important applications is thickness monitoring during the operation of various pressure containers.
Commonly used in metalworking production process and commercial control. It can be used to measure various types of materials that are characterized by a constant speed of sound propagation in them.
- Fast calibration
- Automatic zeroing function
- Measurement memorization function (10)
- Auto-off function
- Low battery indicator
- Energy saving mode
1. Chemical industry
2. Aviation industry
3. Metal industry
4. Shipbuilding industry
1. plastic
2. Glass
3. Metal
4. Ceramics
- Measurement range: from 1.2 to 220 mm (in steel).
- Ultrasound range: from 1000 to 9999m/s
- Accuracy: ± 1% H + 0.1
- Resolution: 0.1 mm
- Quick calibration: YES
- Automatic zeroing: YES
- Measurement memorization: YES (10)
- Auto-off function: YES
- Battery indicator: YES
- Battery saving mode: YES
- Device dimensions: 72 x 35 x 145 mm
- Weight: 1005 g
- The icon of a weak battery
- Coupling icon
- Sound Speed Unit
- Unit thickness
- Speed icon
- Thickness icon
- Value storage icon
- Number of the stored value
- Calibration icon
- ON/OFF button
- Calibration button
- Speed button
- Memory button
- Enabling highlighting
- Button to adjust selected parameters (down)
- Button to adjust selected parameters (up)
- Receiver socket
- LCD display
- Case
- Keyboard
- Trial block (calibration)
- Receiver socket
- Transducer
- Battery compartment (rear housing)

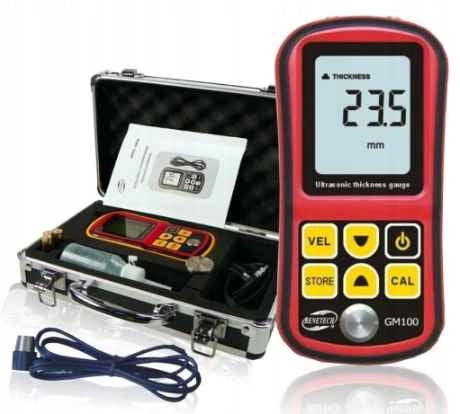

- 1 piece. Thickness meter
- 3 pcs. Alkaline 1.5V AAA battery
- 1 piece. Thickness sensor with cable (1m)
- 1 piece. Magnetic suction cup
- 1 piece. Polish User Manual
- 1 piece. Practical and elegant suitcase
- 1 piece. Original packaging
- 1 piece. Coupling agent
NOTE!!!
Polish instruction manual can be found in the attachment at the end of the description
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Benetech |
| Parametry | Product weight with unit packaging | 1.1 kg |
| Parametry | EAN (GTIN) | 5903738810536 |
| Parametry | Model | GM100 |
| Parametry | Probe type | on the wire |
| Parametry | Read-out history | yes |
| Parametry | Manufacturer code | GM100 |
| Parametry | Batteries included | yes |
| Parametry | Additional information | automatic shutdown,case |
