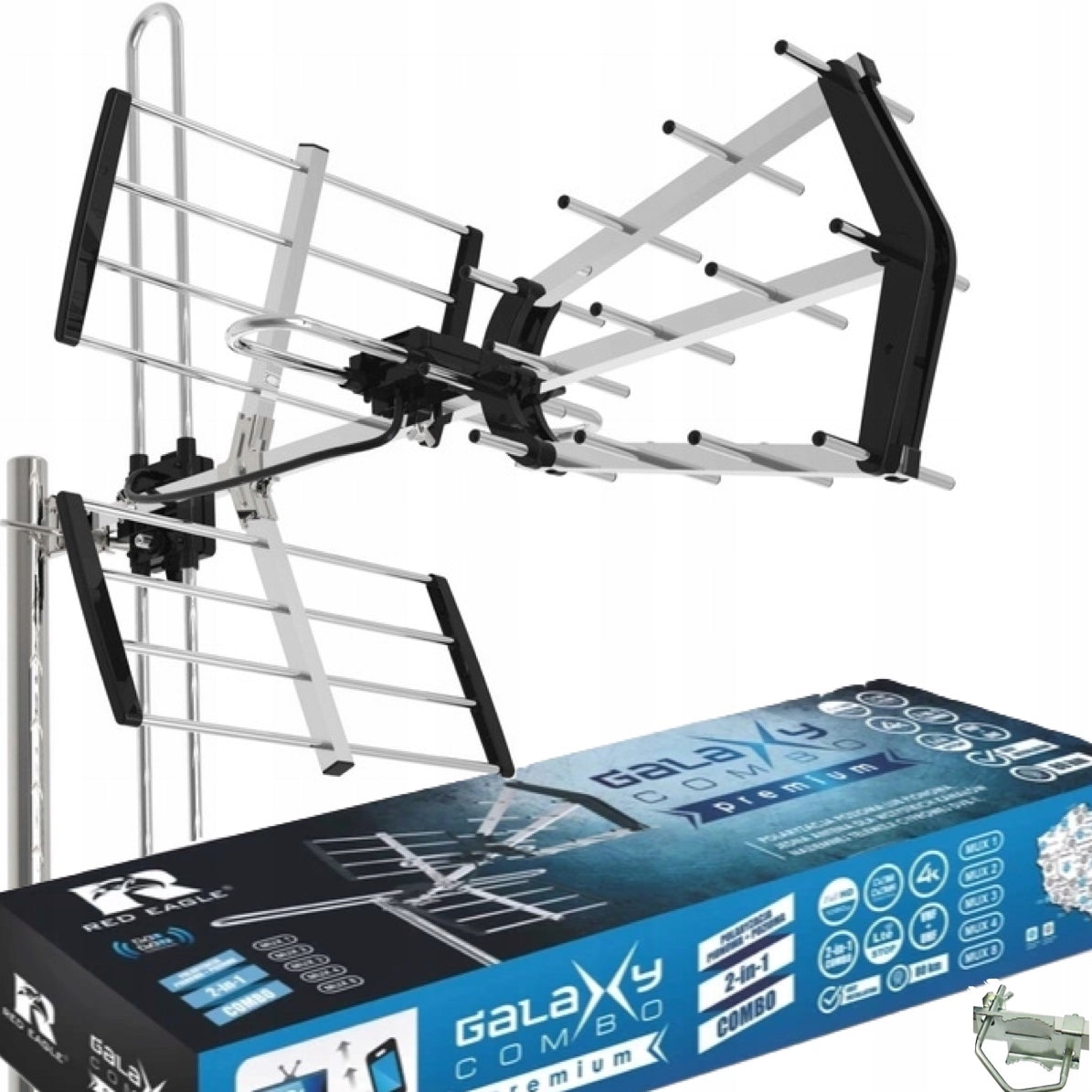

TV antena DVBT2 COMBO 4K MUX8 LTE VHF UHF, nuotolis 80 km

Trumpai apie prekę

Prekė: TV antena DVBT2 COMBO 4K MUX8 LTE VHF UHF, nuotolis 80 km. Kategorija: Antenos.

• Gamintojas: Red Eagle
• Modelis: Galaxy Combo Premium
• Spalva: silver

UHF and VHF enables MUX 1, MUX 2, MUX 3, MUX 6 and MUX 8 reception

• New model of the most powerful antenna available on the market
• Refined design and enhanced components
• Fully weather resistant
• Reinforced construction
• Additional dipole
• Receives Full HD TV and MUX 8
• Antenna connector "F" (standard)
• Built-in filter against LTE interference
• Factory Range Antennas 80km
• energy gain: 32dB

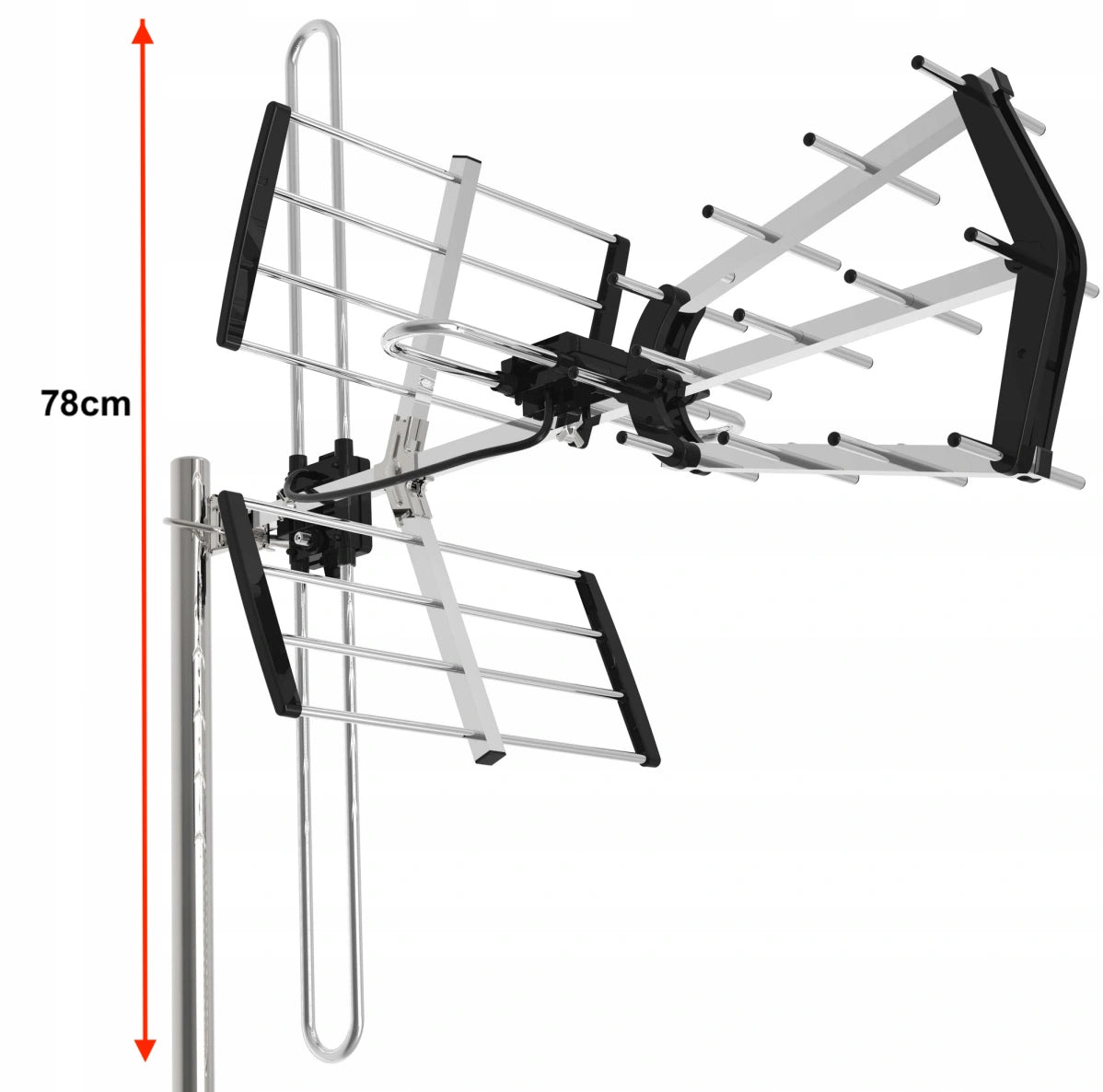

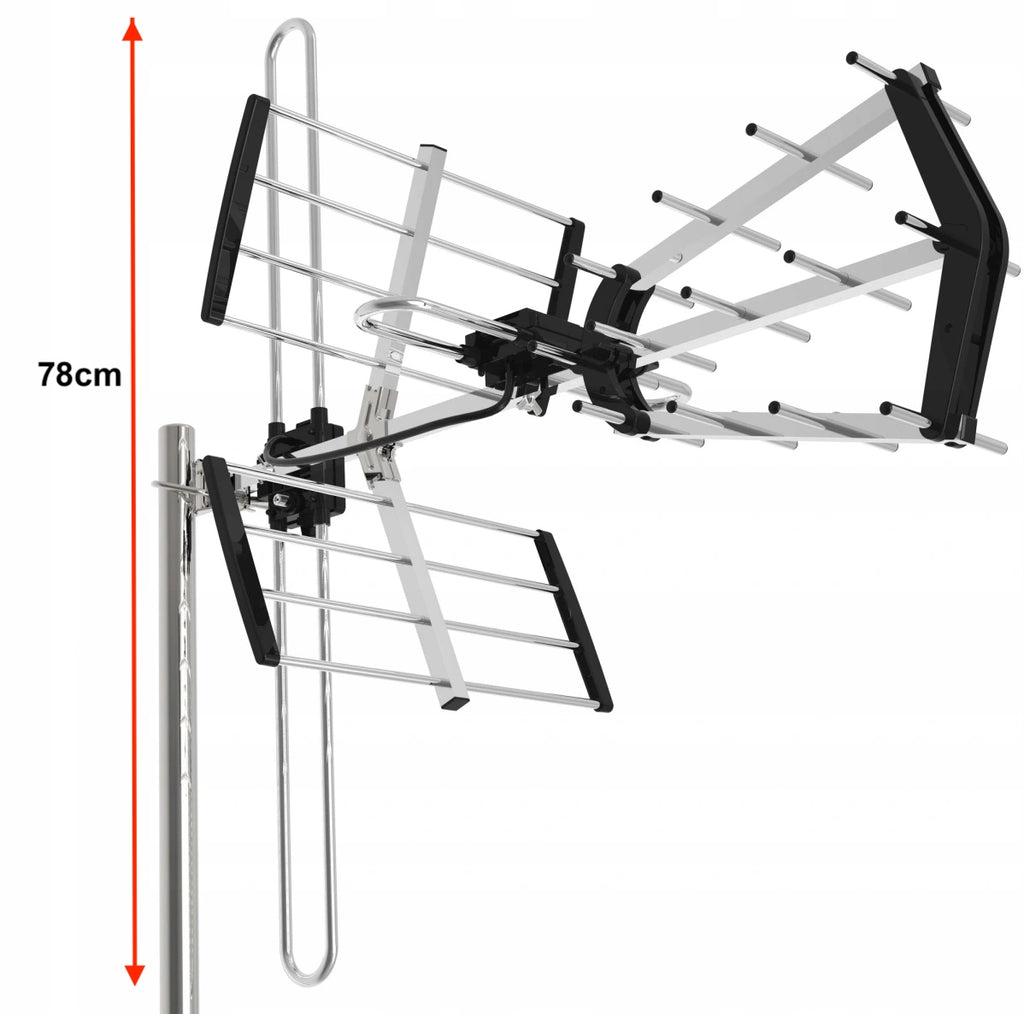

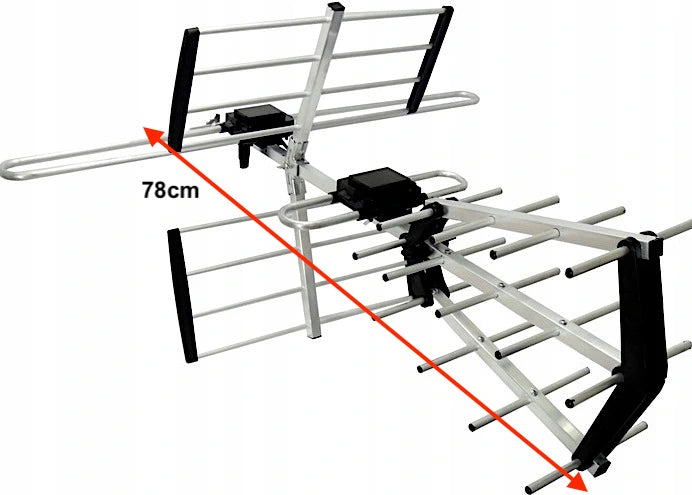

• antenna length: 78cm

HIGHEST IMAGE QUALITY

Ideally suited for receiving DVB-T/T2 high definition digital TV in FULL HD, 4K

Directional DVB-T/T2 antenna

For terrestrial TV reception, it enables the reception of MUX 8 in two polarities V and H.

Now even more reliable, by adding an LTE filter, eliminating interference from mobile networks.

One antenna to receive all channels regardless of polarity.

✅ RECEIVES DVB-T and DVB-T2 SIGNAL

DVB-T2 stands for terrestrial transmission of digital television, radio and data signals and is a direct successor to the DVB-T standard. DVB-T2 provides much better quality of broadcast programs and a much more robust reception signal. Thanks to DVB-T2, more data can be transmitted than in the case of DVB-T.

✅ ALL MUXs in one antenna

MUX1, MUX2, MUX3, MUX6, MUX8

It enables analogue and digital DVB-T reception of TV programs in the range from 174 – 230 MHz, 470 – 790 MHz.

For mounting on:

• balcony
• wall
• mast

COMBO VHF-UHF technology

COMBO antennas thanks to the use of additional headlights allow reception of VHF-UHF.

The antenna enables reception of DVB-T digital terrestrial television signals in the VHF 174-230 MHz band (multiplex 8) and the UHF 470-790 band (multiplex 1,2,3,6,8)

The antenna is equipped with an additional dipole

which allows the reception of VHF channels, thanks to which it is possible to receive the 174 - 230 MHz band, which allows the reception of MUX 8, on which new programs and DAB+ digital radio are broadcast.

The antenna works with all available in Poland multiplexes

✅ Now even more reliable

by adding an LTE filter to eliminate interference from mobile networks.

• Durable and stable construction.
• Resistant to water and UV radiation.
• Installation without the use of tools.
• Very good parameters.

- LTE filter eliminates interference from mobile networks providing high-speed Internet services in the 800 MHz band, the end of the TV band is located in the immediate vicinity of the LTE 800 MHz band. This may result in interference with the reception of digital terrestrial television. On the TV screen, the picture may stop, colored bars and squares may appear. The antenna offered at this auction, thanks to the LTE filter, cuts unwanted signals above 790 MHz, and thus is resistant to the above-described interference from the LTE network.

Antenna eliminates DVB-T2/LTE interference

The antenna has an integrated LTE filter that allows you to eliminate interference of digital terrestrial television signals from transmitters or devices using LTE technology.

HORIZONTAL POLARISATION

VERTICAL POLARISATION

COMBO antenna

enables obtaining the highest image quality thanks to the new antenna design. Very high antenna efficiency, even at considerable distances from the transmitter. Meets the requirements of modern TV sets, i.e. PLASMA, LCD and LED. The image received digitally by the COMBO antenna exceeds the quality of the transmission of satellite television programs. Athena COMBO has innovative two sealed housings of two symmetrizers made of high quality plastic, which prevents deterioration of reception caused by weather conditions.

• receiving channel: VHF 6 - 12 CZ, UHF 21 - 60 CZ
• bandwidth: VHF 168 - 230MHz, UHF 470 - 800 MHz
• energy gain: VHF: 14dB, UHF: 18dB
• Output Impedance: 75 ohms
• Antenna length: 78cm

Mast holder included with antenna!!

VERTICAL OR HORIZONTAL POLARIZATION?

in Poland digital terrestrial television transmitters are divided into those broadcasting in vertical or horizontal polarization. COMBO antenna through a very thoughtful design has been adapted to both vertical and horizontal polarization reception.

If you do not know in what polarity your nearest transmitter broadcasts, you can easily check on the Internet by typing in the search engine: dvbt range map.

There you will also check in which direction it is best to direct the antenna in your area and whether you are within the range of all multiplexes.

List of digital terrestrial television channels

Within DVB-T2 in Poland. Multiplex is a package of television programs, radio programs and additional services simultaneously transmitted digitally to the recipient in one frequency channel.

Current list of DVB-T2/HEVC channels in Poland (2025)

MUX-1

• Stopcage
• Eska TV
• TTV
• Polo TV
• TV Trwam
• Focus TV
• HD antenna
• Events 24

MUX-2

• Polsat
• TVN
• TV4
• TV6
• TV Pulse
• Pulse 2
• TVN 7
• Super Polsat

MUX-3

• TVP1 HD
• TVP2 HD
• TVP Info
• TVP3 (regional)
• TVP Sport
• TVP History
• TVP Culture
• TVP ABC

MUX-6

• TVP Document HD
• TVP Science
• TVP Culture 2
• TVP History 2
• TVP ABC 2
• TVP World
• TVP Entertainment
• TVP Polonia

MUX-8 (DVB-T MPEG-4)

• Metro
• Zoom TV
• New TV
• WP
• Republic
• wPolsce24

Specifications
