Trumpųjų jungimų detektorius UNI-T UT25CL su LED žibintuvėliu

Trumpai apie prekę

Prekė: Trumpųjų jungimų detektorius UNI-T UT25CL su LED žibintuvėliu. Kategorija: Detektoriai.

• Gamintojas: UNI-T
• Modelis: UT25CL

The UT25CL from Uni-T is an advanced device designed for professionals in the field of electrical engineering and installation. It is a versatile tool that allows for precise detection and location of wires in walls, floors, and underground. Thanks to the ability to identify interruptions, short circuits and track cable paths, this device is invaluable for diagnostics and repairs of electrical installations. Additionally, the UT25CL is suitable for detecting live wires, locating fuses, and metal water supply and heating pipes, making it an ideal solution for comprehensive construction infrastructure operations.

The UT25CL features advanced functionality that includes adjustable sensitivity (3 levels), the ability to connect up to 8 transmitters, and practical accessories such as a flashlight and screen backlight. The device has a CAT III 480V and IP54 protection rating, which ensures safety and reliability in harsh operating conditions. AC and DC voltage measurement, fuse detection and RCD, as well as measurement accuracy make the UT25CL a reliable tool for professionals who require precision and efficiency in their work.

Technical parameters

- manufacturer: Uni-T

- model: UT25CL

- application:

► wire pair finder

► cable locator

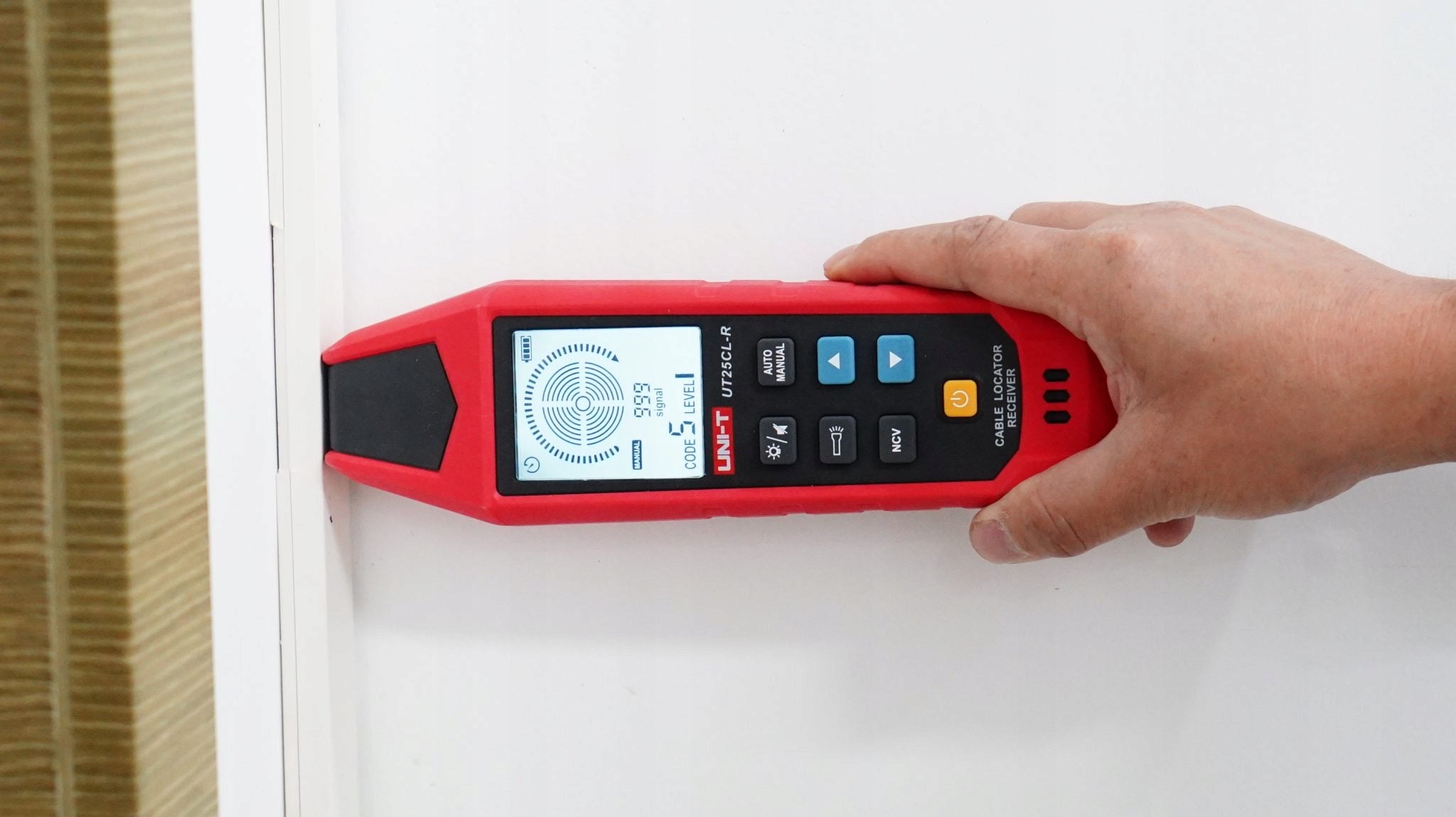

► detection of wires in walls, floors

► detection of interruptions in wires

► short-circuit detection

► tracking cable paths underground

► locating wires and searching for live wires

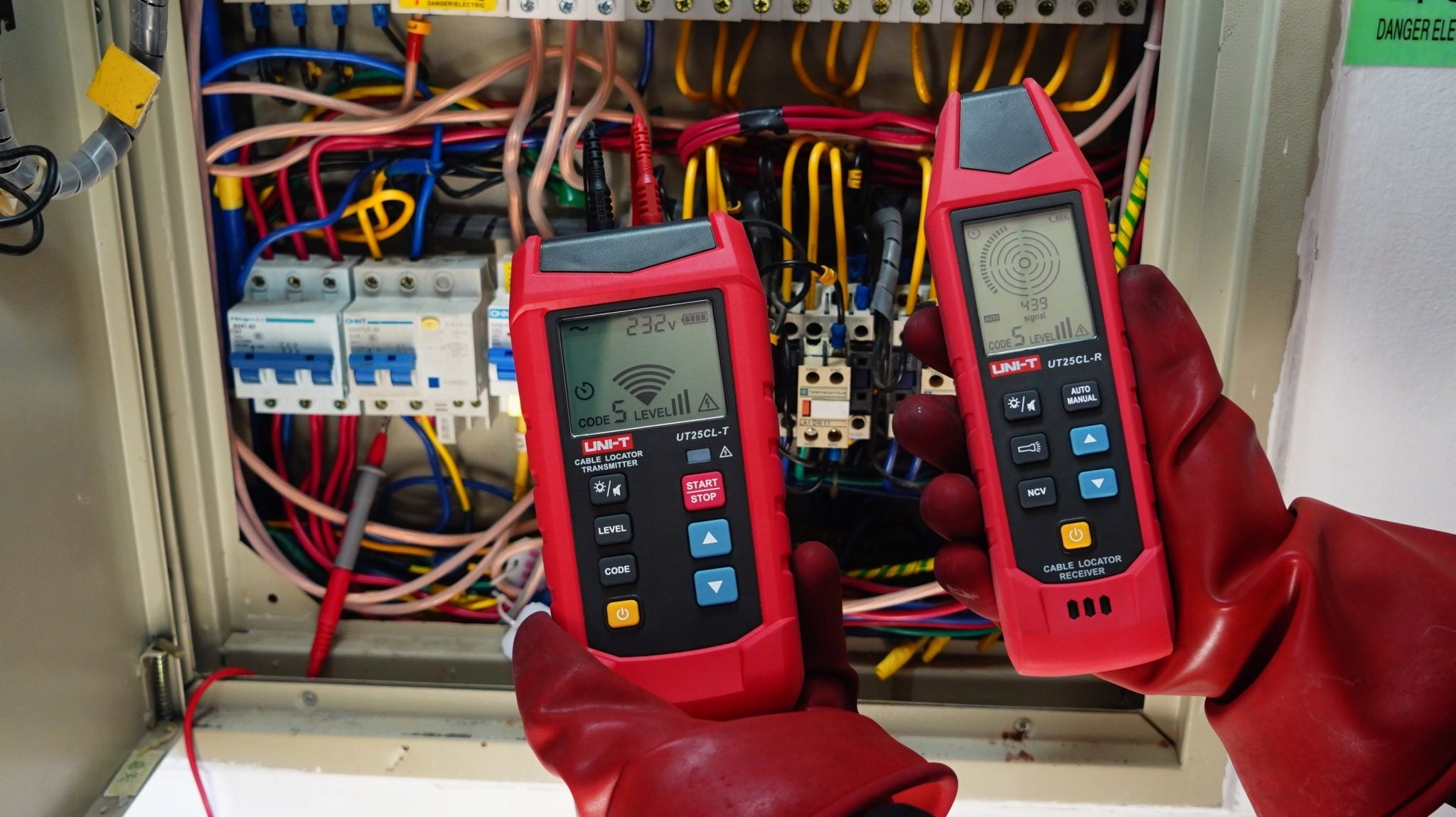

► location of fuses and related devices

► identification of short circuits and breaks in underfloor heating

► tracking of metal water supply and heating pipes

- adjustable sensitivity - 3 levels

- possibility of connecting to 8 transmitters

- flashlight

- Backlighting screens

- degree of protection: CAT III 480V

- IP54 protection

- measurement of both AC and DC voltage

- Fuse and RCD detection

Output transmitter

- Signal frequency: 33kHz

- testing of cables with voltage measurement: 8 - 480V AC/DC AC:50/60Hz

- accuracy of voltage measurement: 2,5%+digits

- LCD display

- backlight

- the ability to encode the transmitter from 0 to 7 and recognize the signal with the transmitter number

- single pole test (test of live wires, maximum 480V)

- bipolar test (test of live wires, maximum 480V)

- LED indicator ELV

► if the input voltage exceeds 25V, the LED ELV lights up

► as the voltage increases, the brightness of the ELV LED increases

► in any other case, the LED does not light up or is dim

- adjustable signal level

- Indicator of discharged battery

Receiver

- Signal frequency: 33kHz

- depth of penetration, search depending on the set signal level

► single pole test depth: 0 - 2,5m

► bipolar test depth: 0 - 0,5m

- non-contact voltage detection: 80-1000V 50/60Hz

- depth of voltage detection: 0 - 0,4m

- the ability to encode the receiver from 0 to 7 and recognize the signal with the transmitter

- 3 levels of sensitivity and signal volume

- ability to detect up to 8 transmitters at the same time

- TN LCD display

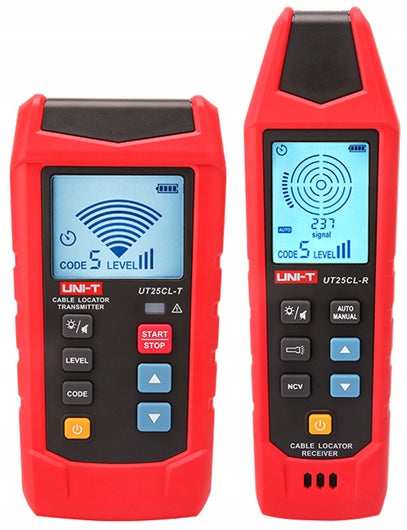

The set includes

- 1 x UT25CL transmitter

- 1 x UT25CL receiver

- 1 x needle-tipped wires - set

- 1 x measuring crocodiles - set

- 1 x banana - banana measuring wires

- 1 x measuring cable terminated with AC plug

- 1 x suitcase

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	UNI-T
Parametry	Kind	wire detector
Parametry	Power supply	rechargeable battery
Parametry	Manufacturer code	UT25CL
Parametry	EAN (GTIN)	5905567103711
Parametry	Product weight with unit packaging	3.232 kg
Parametry	Batteries included	yes
