Prekė: TPMS programuotojas testeris REDATS C-120 WiFi, PL kalba, viso gyvenimo atnaujinimas. Kategorija: Diagnostikos testeriai ir sąsajos.
- Gamintojas: Redats
- Modelis: 19-01-22

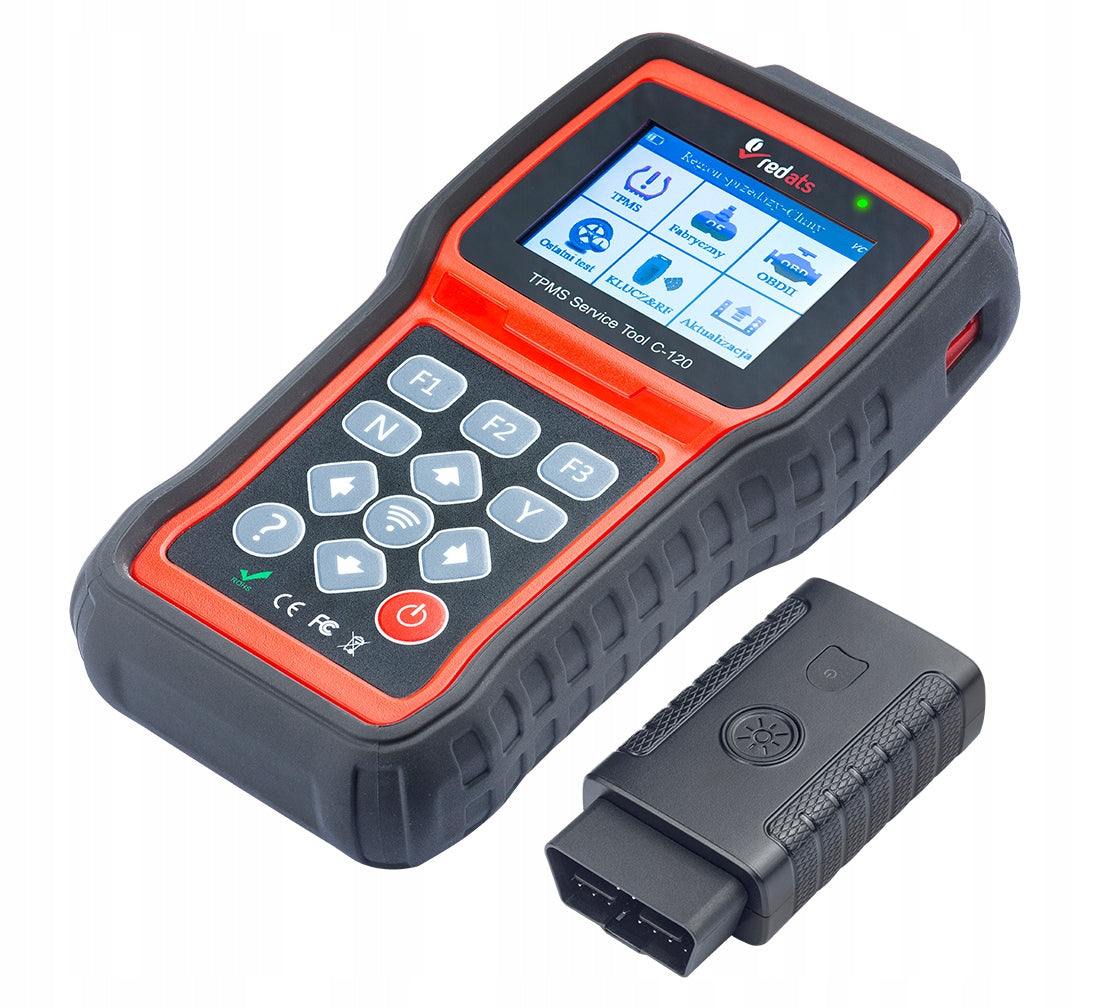

Diagnostic device for TPMS REDATS C-120
Brand: REDATS
Symbol: 19-01-22
Update: Lifetime
Radio emission: 125 MHz, 315 MHz. 433MHz
Protective case on the device: Yes
Additional functions: Check the operating frequency of the wireless key.
Communication interface:
- Built-in WIFI 802.11 b/g/n wireless network card
- USB 2.0 OTG/standard USB 2.0 HOST
- Specification Bluetooth v2.1+EDR; Bluetooth 4.0 Low
- Energy (LE) (10 to 20 m)
Communication protocols:
- ISO 15765-4 (CAN)
- SAE J1850 (PWM)
- SAE J1850 (VPW)
- ISO 14230-4 (KWP2000)
- ISO 9141-2
Supported sensors for programming:
- Redats S20R
- Redats S20B
- Redats S20S
Supported sensors for activation (reading): >99%
Radio reception: 315 MHz, 433 MHz
LED OBD Option: Yes
Battery capacity: 3000 mAh
Power Supply: 3,7V Lithium Polymer Battery
Working temperature: from 0 to 55℃
Storage temperature: from -20 to 70℃
Main unit weight: 0,4 kg

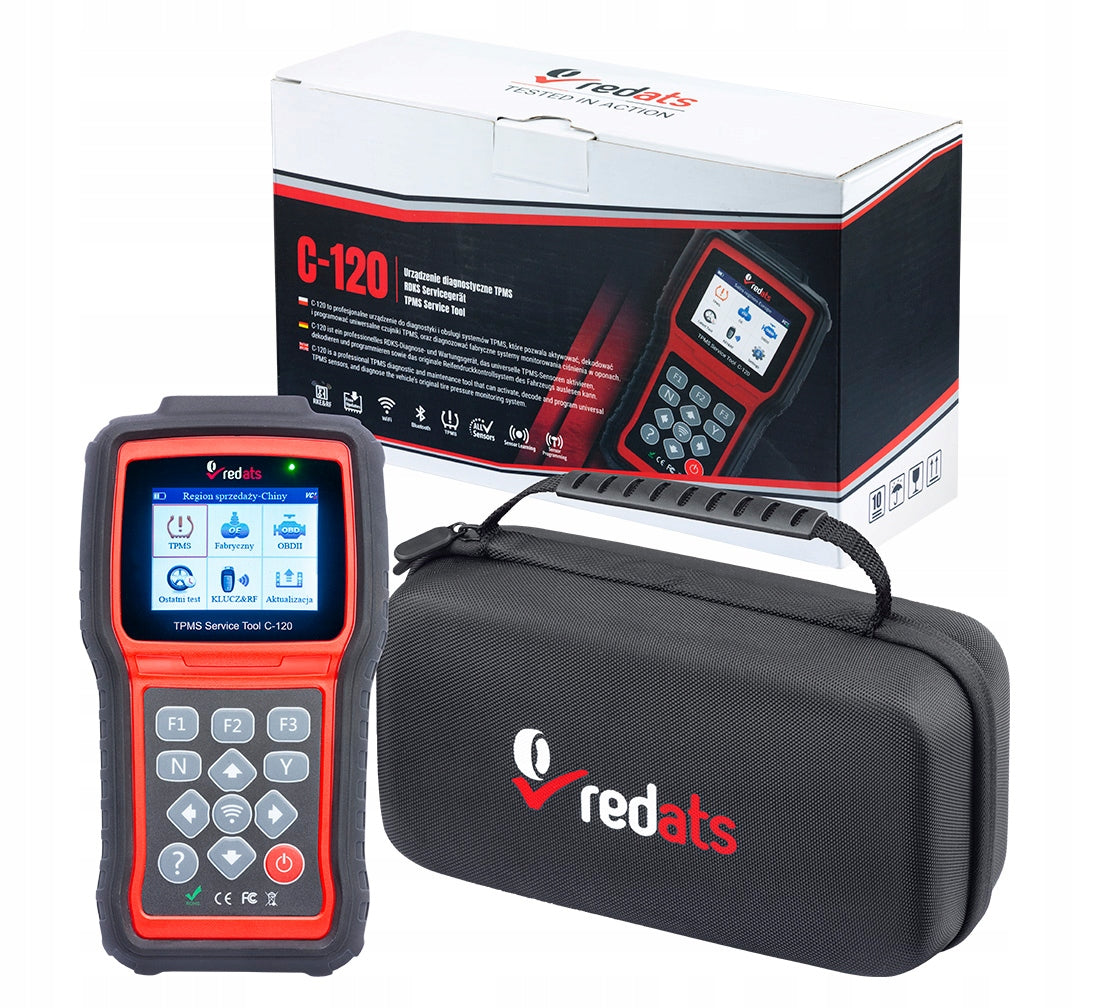

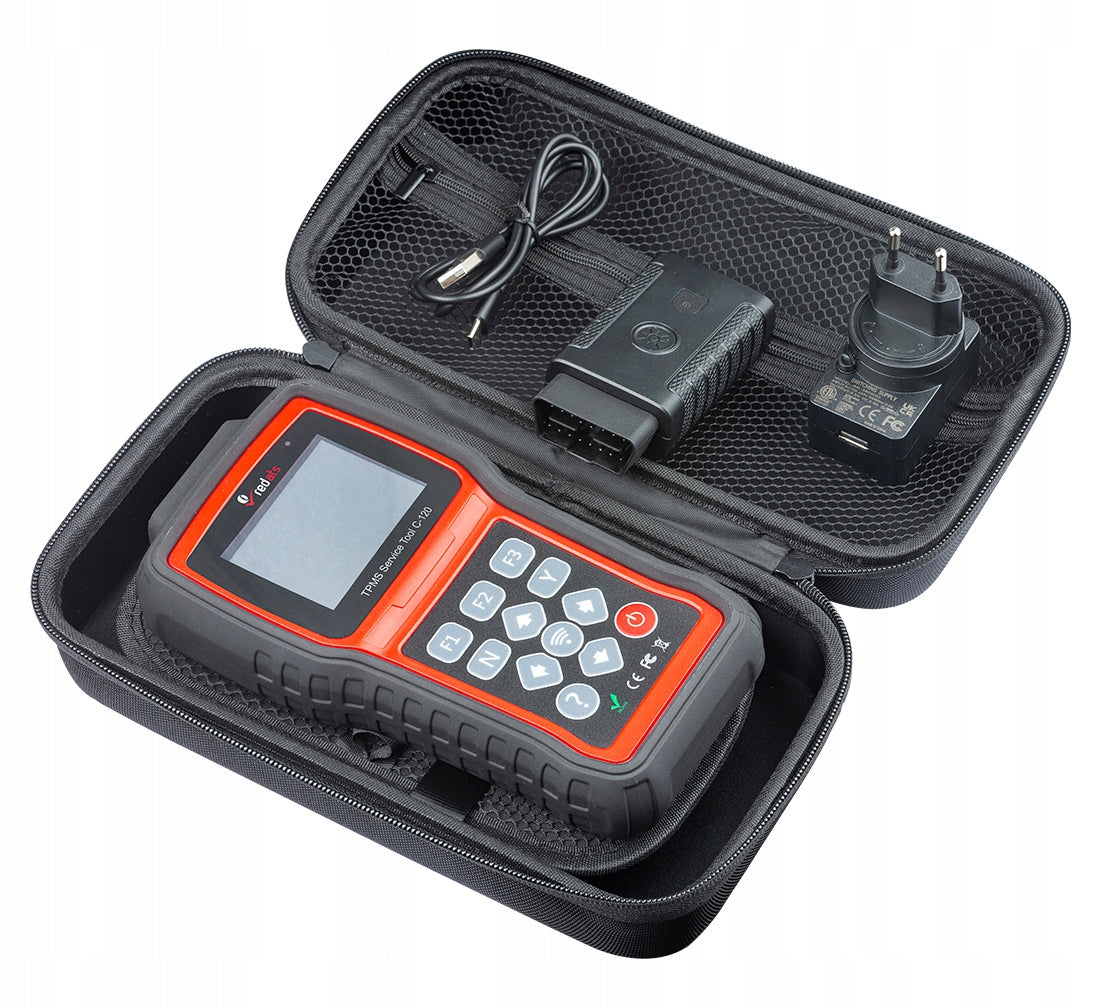

Set:
- Programmer C-120
- Communication interface
- Charger
- USB cable
- User manual
Display: Backlit, TFT color display 240x320
Dimensions of the main device (length x width x thickness. ): 200mm x 108mm x 42mm
What kind of equipment is this?
REDATS C-120 is a diagnostic device that enables quick diagnostics of TPMS systems and programming of pressure sensors in passenger cars.
EXCEPTIONAL OFFER ON THE MARKET - LIFETIME UPDATES!
Briefly. In REDATS - you buy once, you use for years!
It's not like other manufacturers where you buy the device and you only have updates for 12 months. And then you have to pay.
In REDATS you have free updates for the ENTIRE PERIOD OF USE OF THE tester.
SERIOUSLY.
Updates are lifetime - as long as your device is running and you're using them, you have access to system updates for as long as you have access.
Well, you'll admit it's a good deal, won't you?
The most important facts about this diagnostic device for pressure sensors!
See:
- Battery capacity: 3000 mAh - lasts a long time!
- Display: TFT 240x320
- 3,7V Lithium Polymer Battery
- LIFETIME UPDATES!
What sensors are you going to program?
The programmer will support REDATS sensors:
- REDATS S20R
- REDATS S20B
- REDATS S20S
What sensors will you read?
This TPMS scanner will allow you to read 99% of sensors that are available on the market :)
Do you need a diagnostic scanner for TPMS?
What a question. Of course!
The fact that every car today has TPMS sensors is obvious.
Therefore - how you operate at the wheels, and whether it is ordinary, seasonal replacements or repairs, such equipment for TPMS simply must be on your service.
Because imagine these situations. A customer arrives with a glowing sensor control. Or a faulty valve with a pressure sensor.
If you have that kind of equipment, you're in. You make money. After the subject.
If not, you are sending people to the competition. You're losing your income. And you often risk a poor opinion on the Internet!
Communication protocols - TPMS device REDATS
This tester works with the following protocols:
- ISO 15765-4 (CAN)
- SAE J1850 (PWM)
- SAE J1850 (VPW)
- ISO 14230-4 (KWP2000)
- ISO 9141-2
How does this TPMS tester work?
It's very simple. You have 2 options:
- If you just want to read sensor data or make a sensor clone, all you have to do is connect to the sensor in the wheel.
- If you want to update the sensor numbers (e.g. After replacing the sensors in the car), all you have to do is plug the scanner into the OBD connector in the car.
However, regardless of the action you want to do - you start the device. And you have access to the entire TPMS system. With this device, you can read all the data from TPMS sensors - for example:
You're starting. And you have access to the entire TPMS system. With this device, you can read all the data from TPMS sensors - for example:
- Sensor ID number,
- Pressure in bars, psi or kPa,
- temperature in °C or °F.
Will I program TPMS with this scanner?
Yes. With REDATS C-120 you can quickly and easily make
- Programming of TPMS sensors
- Cloning of TPMS sensors
- Cloning of TPMS sensors by OBD2 connector.
- Reading TPMS sensors via OBD2 connector in the car
- Diagnostics of the Wheel Pressure Monitoring System in the Car (TPMS)
Huge database
You're not just programming TPMS. But you also have all the data at hand! This scanner still has
- OEM sensor database.
- Database of the torque of tightening the nut/screw of the wheel.
- Database of how to retrain/program sensors for a given car.
Briefly. No more searching for information. You have everything at hand, in one device!
You'll see everything
In the cube that is attached to this tester is a small LED light. Even in the middle of winter, in poor light, you will always hit the OBD socket :)
A little bonus at the end!
A customer comes to you and complains that his wireless key is opening the car less and less? Or does it not open at all? Well, with this tester, you're not sending a man back with a receipt. Because this scanner can check:
- whether the key sends a signal
- at what frequency it sends the signal
Thanks to this, you will check whether the key is falling or maybe the module from the central lock, thus gaining a chance for another earnings.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Redats |
| Parametry | EAN (GTIN) | 5902730173090 |
| Parametry | Manufacturer code | 19-01-22 |
| Parametry | Batteries included | yes |
