Trumpai apie prekę

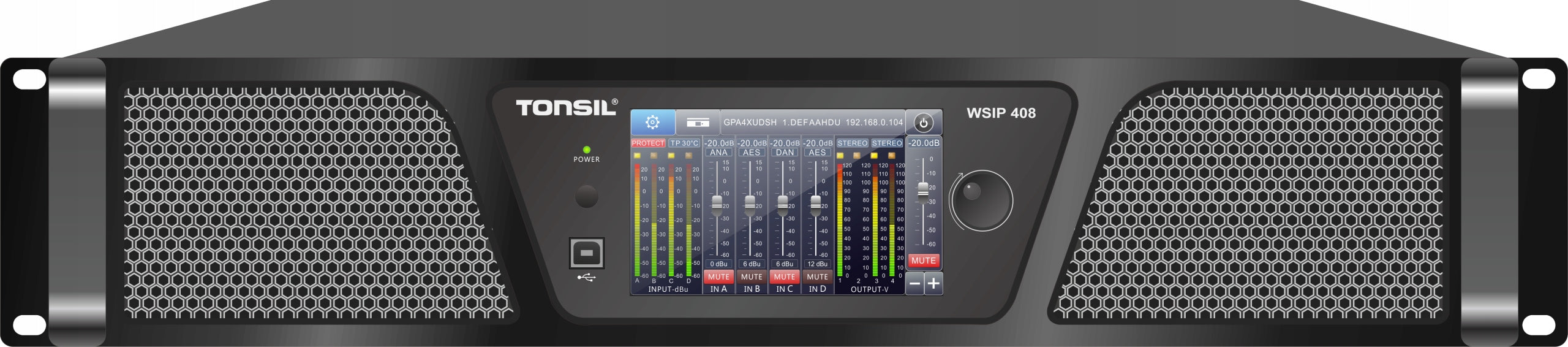

Prekė: Tinklo stiprintuvas TONSIL WSIP-408 DSP 4x1600W 70V/100V IPS 4.3" IP ekranas. Kategorija: Stiprintuvai.
- Gamintojas: Tonsil
- Modelis: WSIP-408
- Spalva: black
Tonsil WSIP 408 – network installation amplifier with DSP
Tonsil WSIP 408 is a professional amplifier for demanding sound systems, in which high power goes hand in hand with convenient network control and built-in DSP processor. It is a great base for systems in commercial facilities, halls, multifunctional rooms and wherever stability, control and quick configuration count.
4 high power channels and operating modes for installation
You have at your disposal 4 channels with a power of 4×800 W / 8 Ω or 4×1600 W / 4 Ω, and in bridge mode up to 2×3200 W / 8 Ω. The amplifier allows you to work in Matrix and Bridge modes with fast switching, so you can easily adjust it to the layout of zones and specific project assumptions.
IP control and full monitoring – installation under control
WSIP 408 supports management via TCP/IP and allows remote on/off and real-time monitoring. Additional interfaces USB, RS232, RS485 facilitate integration with the system and service in fixed installations.
DSP + FIR – precise tuning and consistent sound
The built-in DSP processor gives you tools for system settings, and the FIR function with 4×2048 Taps support is available as standard. You can also adjust the input level thanks to the 3-stage sensitivity adjustment 0 dBu / 6 dBu / 12 dBu – from the software or screen.
4.3" IPS screen – fast on-site service
The 4.3" IPS (capacitive) colour touch screen makes it easier for installers and service technicians to work: the most important functions are at hand and the configuration is faster and clearer.
Technical specification
- Main parameters: 4-channel amplifier | power: 4×800 W / 8 Ω, 4×1600 W / 4 Ω, 2×3200 W / 8 Ω (bridge) | lines: 100 V (2×1250 W bridge), 70 V (4×1225 W) | min. impedance 4 Ω / channel

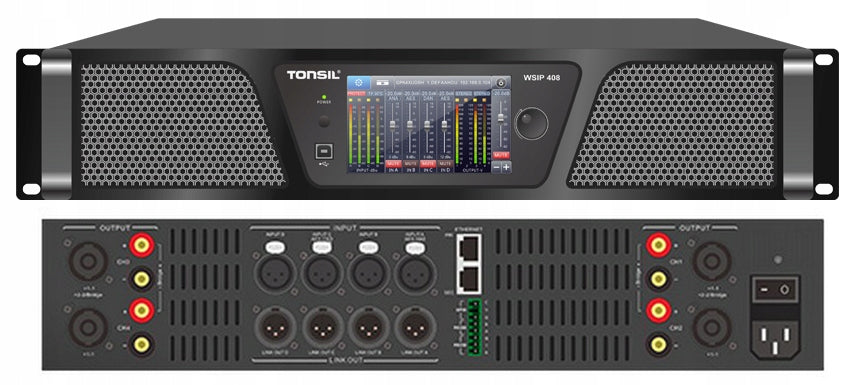

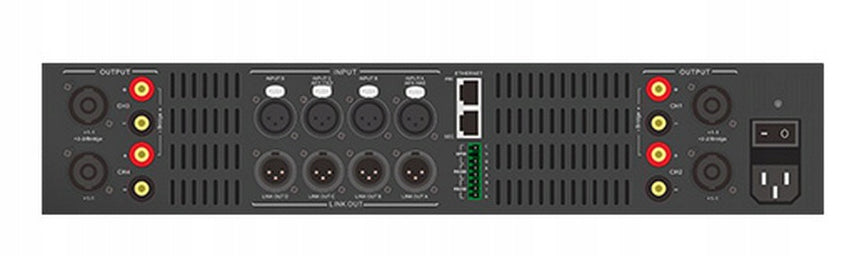

- Inputs/Outputs: 4× XLR (balanced) | Outputs: 4× Speakon + 4× terminal blocks | max. Input level 20 dBu / 7,75 V
- Sensitivity / gain: 0 / 6 / 12 dBu → 40,3 / 34,3 / 28,3 dB (103,5× / 51,8× / 26×)
- Audio: band 20 Hz – 20 kHz (±0,5 dB) | SNR 100 dB | THD+N < 1% | DSP 48 kHz / 24 bit, FIR 4×2048 taps
- Functions: Matrix / Bridge (free switch) modes | USB, TCP/IP, RS232, RS485 control | 4.3" IPS touch screen
- Security: limiter, temperature, DC, HF, short circuit, back EMF, peak/surge limiter, soft start, over/undervoltage
- Power supply: 180 – 264 V AC
- Dimensions and weight: 485 × 460 × 90 mm | pack of 590 × 585 × 165 mm | 12,35 kg net / 16,4 kg gross
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Tonsil |
| Parametry | Model | WSIP-408 |
| Parametry | Product weight with unit packaging | 16.4 kg |
| Parametry | Product width | 48.5 cm |
| Parametry | Product height | 9 cm |
| Parametry | Product depth | 46 cm |
| Parametry | Product weight | 12.35 kg |
| Parametry | Color | black |
| Parametry | Number of channels | 4 |
| Parametry | Number of analog audio inputs | 4 |
| Parametry | Number of analog audio outputs | 4 |
| Parametry | Communications | none |
| Parametry | Functions | sound equalizer |
| Parametry | THD distortion | 1% |
| Parametry | Frequency response | 20–20000 Hz |
| Parametry | Signal-to-noise ratio | 100 dB |
| Parametry | EAN (GTIN) | 5907972801961 |
| Parametry | Manufacturer code | 5907972801961 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Other connectors | USB,other |
