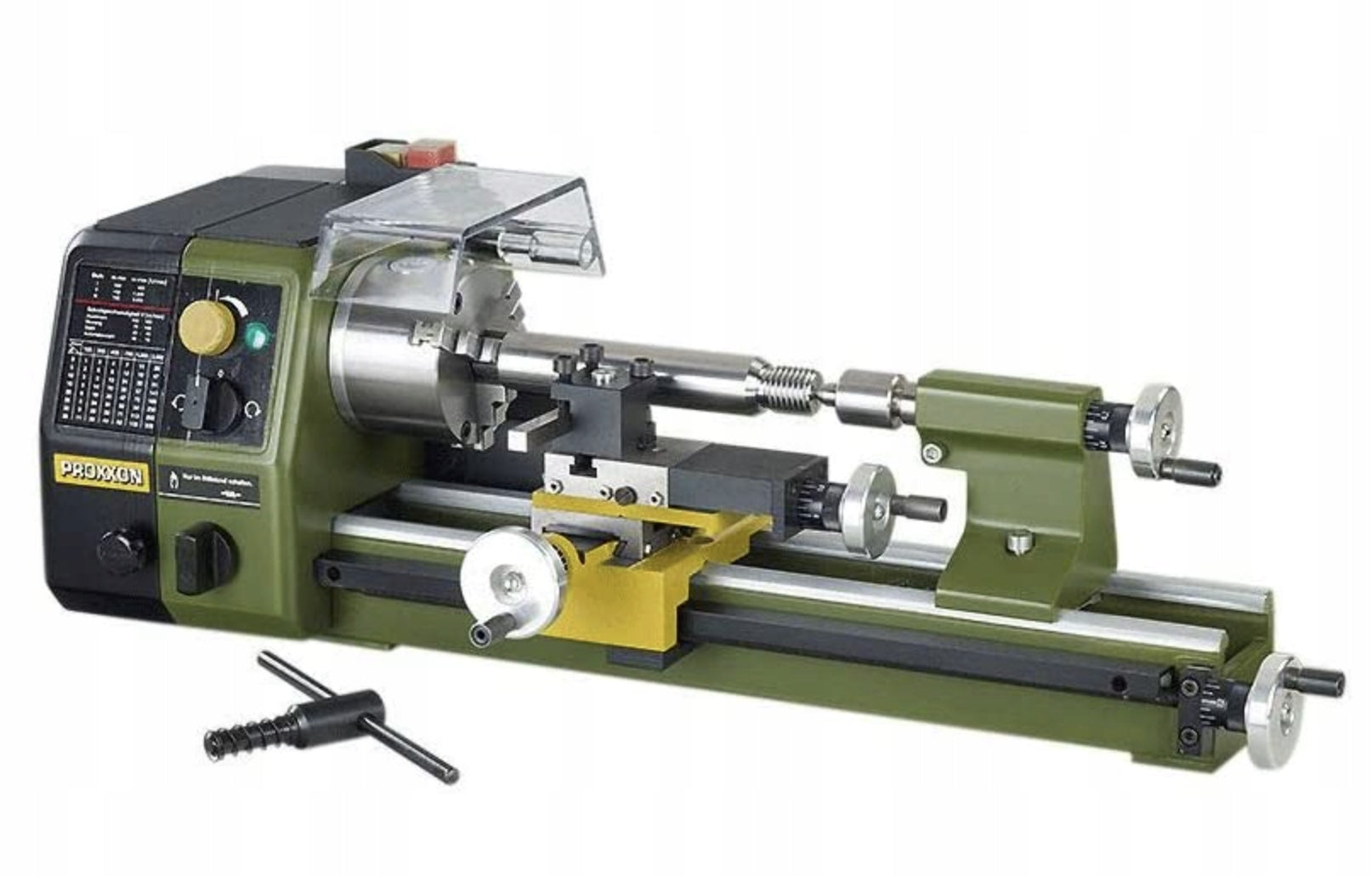

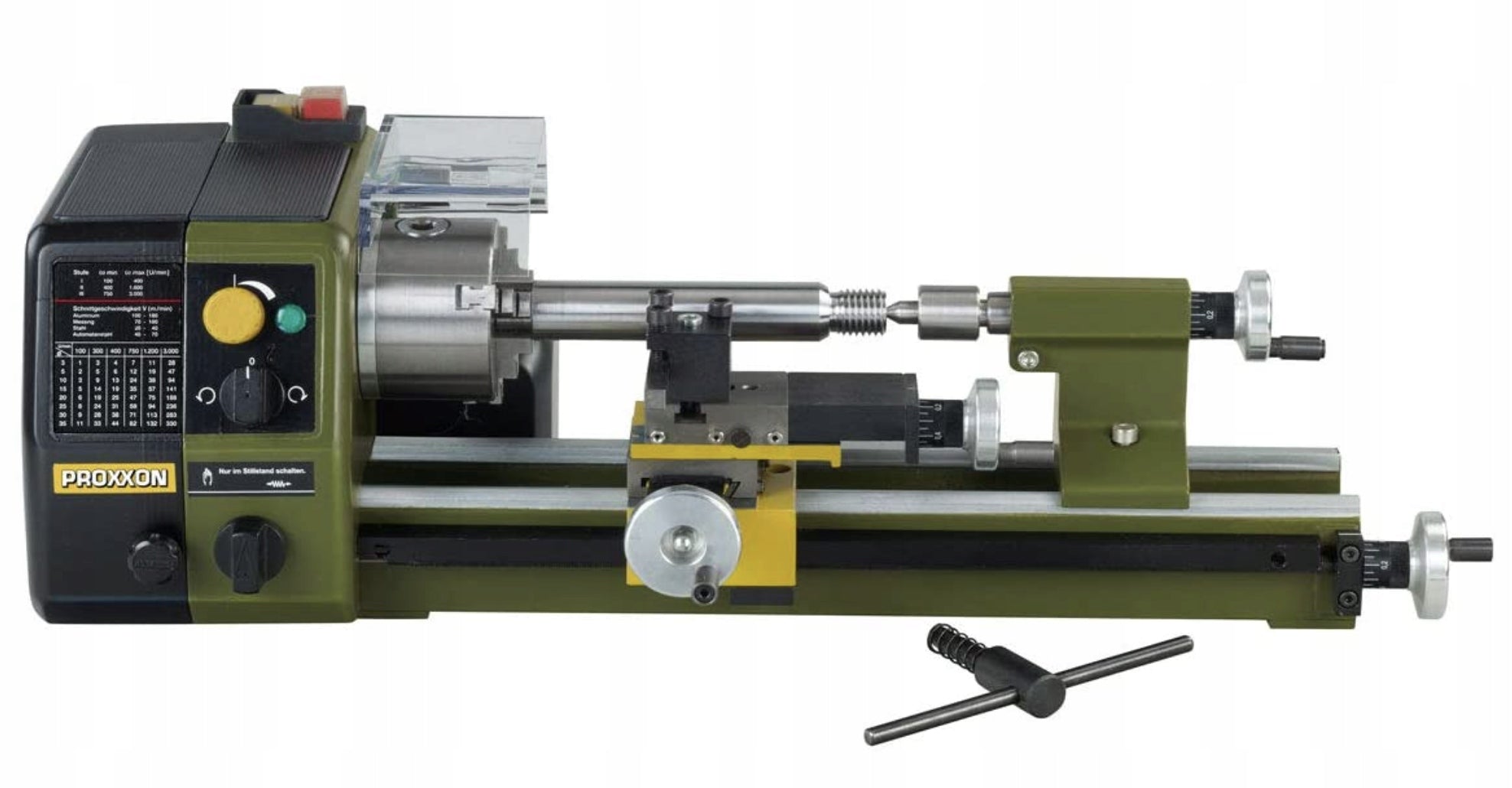

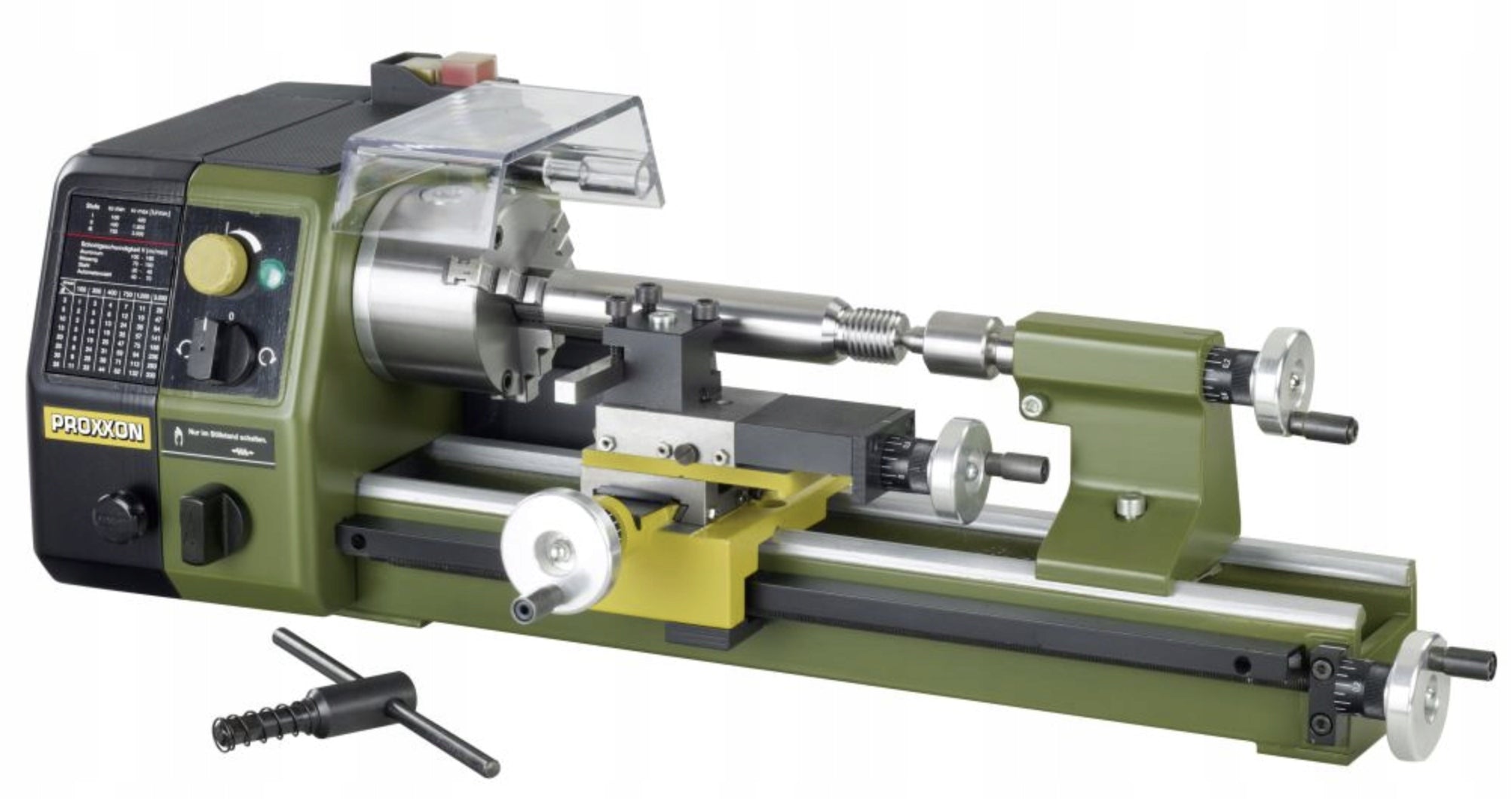

Tikslus tekinimo staklės Proxxon PD 250/E

Trumpai apie prekę

Prekė: Tikslus tekinimo staklės Proxxon PD 250/E. Kategorija: Įrankių rinkiniai.

• Gamintojas: Proxxon
• Modelis: 24002

PROXXON – for professionals!

power supply 230V. 50/60Hz.

length 560 mm

width 270 mm

height 170 mm.

Weight 12kg.

For cross turning, longitudinal turning, cone turning and threading. To work with ma

brass, aluminium and plastics. With flange to attach milling head

Canine spacing: 250mm. Cross feed 70mm. Height above the transverse sled 43mm.

Bed: Made of cast iron with a wide spacing and prismatic sled. Operation without vibration even at high obciążeniach.Tylny flange for fixing the milling and turning head PF 230. Covered guide spindle.

Shadow: Made of cast aluminum. Main spindle mounted on precision bearings (beating without handle 1/100mm) with a hole of 10.5mm. Diameter on handle side 70mm, inner hole 14mm. Roller with hole MK 2. Rotary switch for automatic feed with guide spindle and pull screw (optional 0.05 or 0.1mm per rotation).

Horse: Made of cast aluminum. Bushing Ø 20mm with the possibility of extending up to 30mm. With millimeter graduation, MK 1 hole and rotary fang. Bracket: Cast Bed Sleigh

Drive: Quiet dedicated DC motor with three-stage belt transmission for selecting speeds of 300 – 900 and 3.000 rpm. Additional speed control (full-period electronics) with smooth speed change to 100 – 300 and 1 000 rpm depending on the gear ratio. Right and left gear. Main switch with safety switch function and reboot protection.

Lathe holder: High quality three-jaw lathe holder according to DIN 8386 Class 1 (coaxial tolerance: 0.04mm). Workpiece size range: from 2 to 75mm thanks to the possibility of reverse mounting of the jaws. Comes with a lathe handle cover with safety switch.

Knobs: Made of aluminium, with adjustable scale (1 plot = 0.05mm, 1 rotation = 1mm).

Threading tool: With shift gears enabling cutting of right and left metric threads with the most commonly used graduations (0.5 – 0.625 – 0.7 – 0.75 – 0.8 – 1 – 1.25 – 1.5mm).

Originating from Germany, Proxxon is a leading manufacturer of excellent wrenches and professional microelectronic tools. The offer of an experienced company includes m.in. high-quality lathes, jigsaws, drill-milling machines or micro milling machines. Technologically advanced Proxxon tools are used in mechanics, electronics, prosthetics or jewelery. They are appreciated by professionals as well as modelers or DIYers working at home.

Specifications
