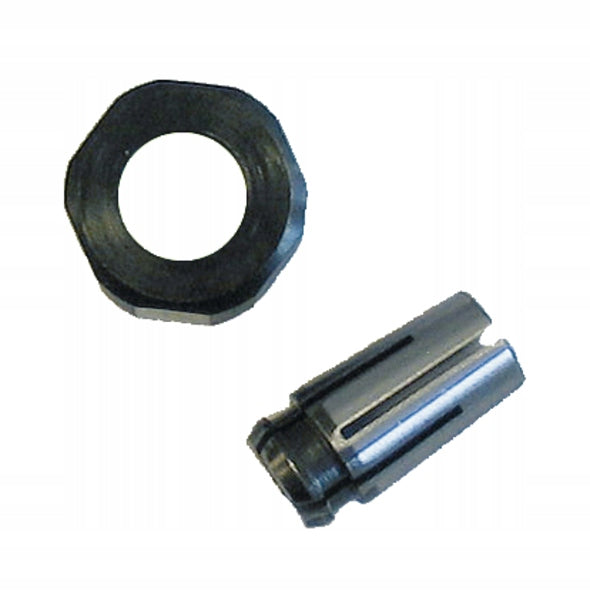

Terminalo įvorė Makita 3mm, GD0810C, GD0811C

Trumpai apie prekę

Prekė: Terminalo įvorė Makita 3mm, GD0810C, GD0811C. Kategorija: Įrankių rinkiniai.

• Gamintojas: Makita
• Modelis: 193011-3

new original

( DIE GRINDER)

Manufacturer: Makita

EAN code: 88381156394

Manufacturer code: 193011-3

Technical specification

Application in straight grinders:

GD0800C

GD0801C

GD0810C

GD0811C

Diameter: 3 mm

Type: A (set with nut)

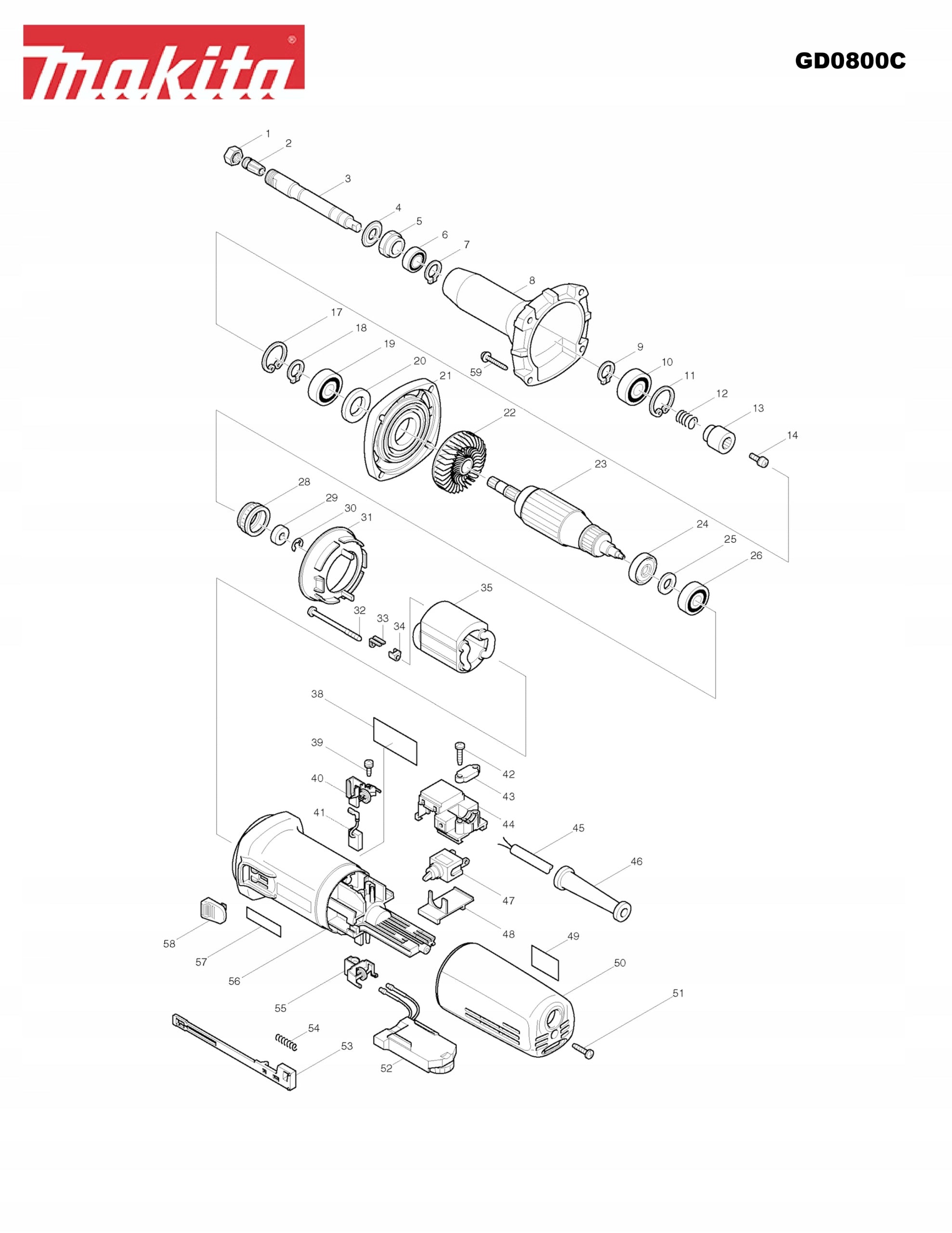

List of parts for GD0800C

item of the article, catalog number, product description, quantity:

001; 763645-2 COLLET NOTES; 1

002; 193012-1 COLLET CONE 6 SET; 1

C10; 763646-0 COLLET CONE 6; 1

003; 324042-3 Spindle; 1

004; 213209-7 Oil seal 16; 1

005; 285700-5 BEARING RETAINER; 1

006; 211141-9 BALL BEARING 6901LLB; 1

007; 961052-5 Retaining ring (EX. ) S-12; 1

008; 317368-0 Drum; 1

009; 961052-5 Retaining ring (EX. ) S-12; 1

010-1; 211148-5 BALL BEARING 6001ZZ; 1

011; 962106-1 Retaining Ring (IN. ) R-28; 1

012; 233901-9 Locking spring 12; 1

013; 323989-8 Clutch; 1

014; 265082-1 Beveled countersunk screw M4X8; 1

017; 962106-1 Retaining Ring (IN. ) R-28; 1

018; 961052-5 Retaining ring (EX. ) S-12; 1

019-1; 211148-5 BALL BEARING 6001ZZ; 1

020; 253084-9 Washer 12; 1

021; 317367-2 BEARING BOX; 1

022; 240036-9 Fan 57; 1

023B1; 515219-3 Rotary electric motor set 230-240V; 1

024; 681656-4 Insulation pad; 1

025; 253823-7 Washer 7; 1

026; 210023-2 BALL BEARING 627DDW; 1

028; 421770-2 Rubber labyrinth ring 22; 1

029; 688117-5 Magnet sleeve; 1

030-1; 259039-2 SELF LOCK 6; 1

031; 413076-2 Steering threshold plate; 1

032; 266259-1 Self-tapping screw with thick head 4X60; 2

033; 344871-8 RETAINER; 2

034; 417237-6 Insulation cover; 2

035B_; 626524-4 Stator 230-240V; 1

038-1; 814S07-2 Nameplate GD0800C; 1

039; 266256-7 Self-tapping screw with convex cylindrical head PT 3X10; 4

040-1; 643760-7 Carbon brush holder; 1

041-1; 191978-9 Carbon brushes; 1

042; 265995-6 Self-tapping screw with convex cylindrical head PT 4X18; 2

043-1; 687052-4 STRAIN RELIEF; 1

044A_; 632945-0 Circuit Breaker Block; 1

045G1; 665394-6 Power cable 1.0-2-2.5; 1

046A_; 682559-5 CORD GUARD 8; 1

047-1; 651418-4 Switch ST115A-40; 1

048; 687113-0 Cover; 1

049; 816800-6 Sticker with instructions; 1

050; 417185-9 Rear cover; 1

051; 265995-6 Self-tapping screw with convex cylindrical head PT 4X18; 1

052A_; 631391-4 Driver; 1

053; 417187-5 Switch lever; 1

054; 233071-4 Pressure spring 4; 1

055-1; 643974-8 Carbon brush holder; 1

056-2; 417812-8 Engine housing; 1

058-1; 417813-6 Switching knob; 1

059; 265999-8 Self-tapping screw with convex cylindrical head PT 4X25; 4

060; 800092-7 Label; 1

A01; 781203-2 Key 13; 1

A02; 781206-6 Key 19; 1

A03; 192985-5 Side handle set; 1

C11; 153503-4 Set of handle 36; 1

C20; 415485-1 Base of handle; 1

C30; 921919-9 Hexagon head screw M8X110; 1
