Suvirinimo inverteris WELDMAN MEGA MIG 330 MMA FLUX 400V 330A IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris WELDMAN MEGA MIG 330 MMA FLUX 400V 330A IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman

PROVEN SEMI-AUTOMATIC WITH FEEDER AND CHASSIS - EVEN EASIER AND FASTER WORK!

Manufacturer: WELDMAN ║ Welding methods: MIG/MAG, MMA, FLUX ║ Power supply: 400V ║ Welding current: 330A ║ Efficiency: 60% ║ Weight: 47kg

DEVICE ADVANTAGES

• Smooth adjustment of welding parameters
• Recognised manufacturer for years - SOLID WORKMANSHIP
• MIG MAG and MMA welding options
• Made in IGBT technology
• Failure-free operation
• Welding current 330 A
• Ideal for small workshops and professional construction and assembly tasks
• Clear displays of welding current and voltage
• Possibility of soldering thanks to inductance regulation
• Possibility of using a spool with wire up to 15kg
• Heavy-duty chassis with space for a gas cylinder

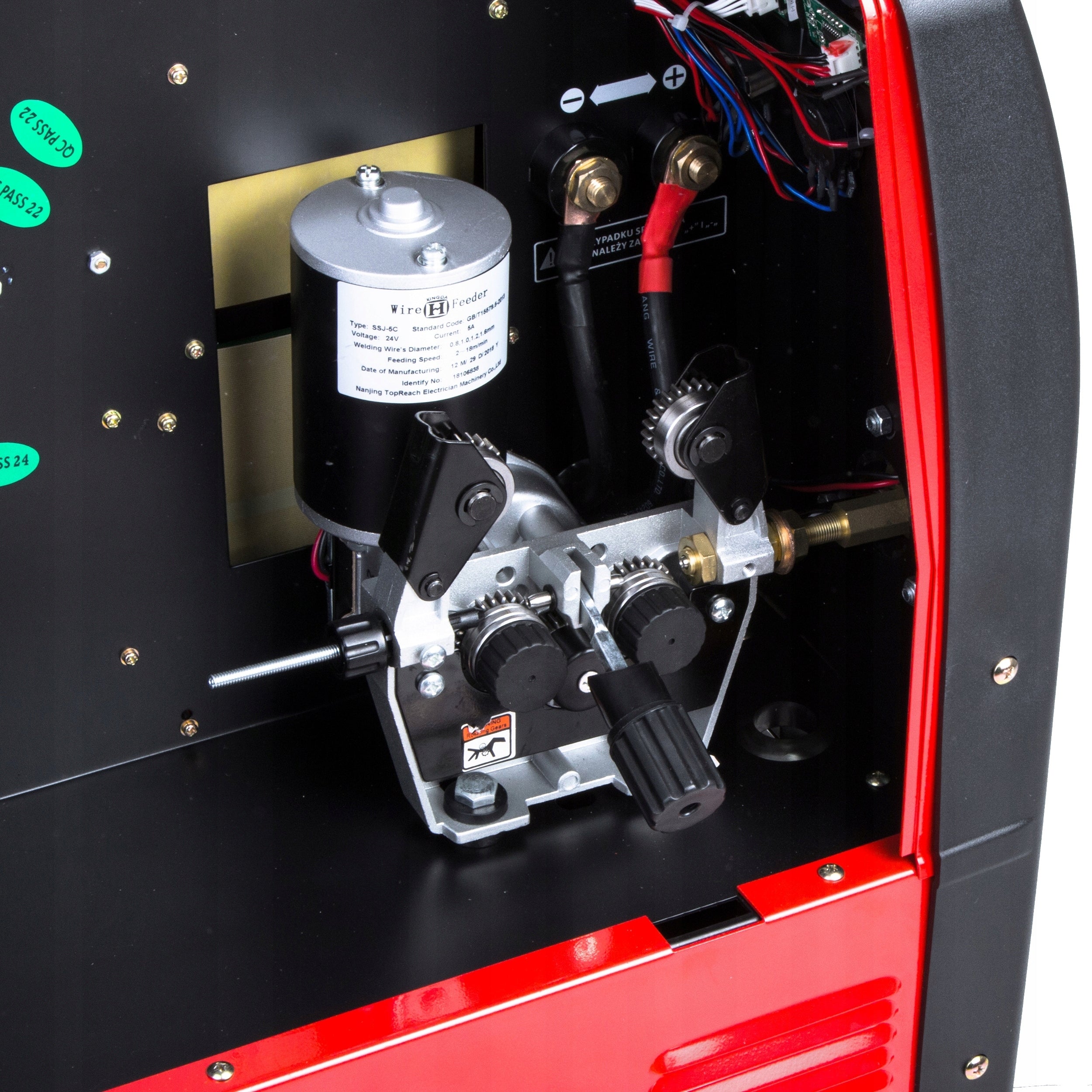

• Professional feeder 4x4
• EURO socket for connecting the holder
• Three-phase power supply 400V

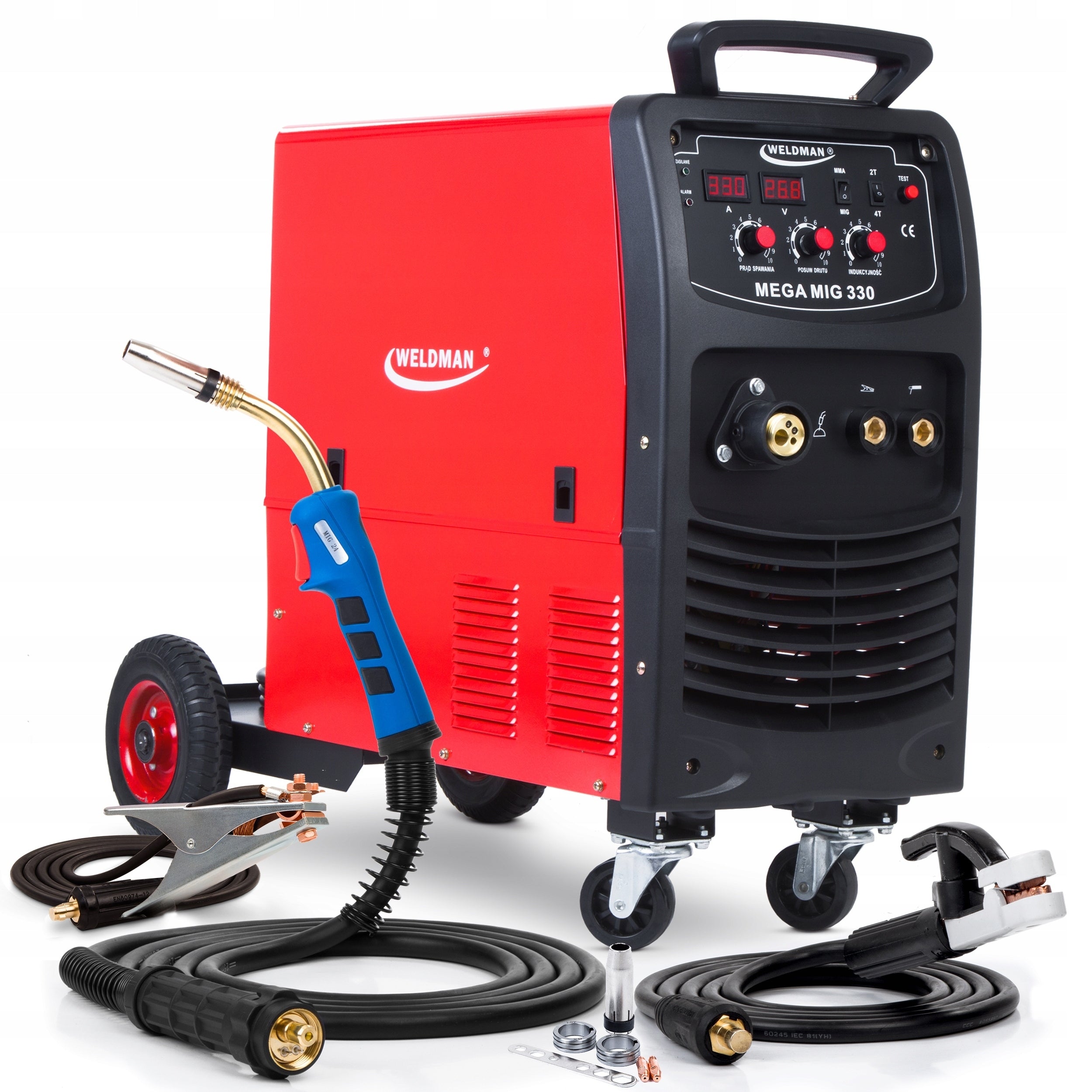

The WELDMAN MEGA MIG 330 Inverter Welding Machine is an excellent semi-automatic that is ideal for work in small workshops and industrial-scale construction and assembly tasks. The semi-automatic machine Weldman is characterized by failure-free operation, facilitating the work is the chassis, which ensures quick and easy transport of the MEGA MIG 330 welding machine.

POWER SUPPLY PARAMETERS:

• Power supply voltage: 400V
• Number of phases: 3ph
• Power Current Frequency: 50Hz
• Current protection: 25A

TECHNICAL PARAMETERS:

• MIG/MAG welding current range: 50-330A
• MMA welding current range: 50-330A
• Efficiency: 60%
• Welding voltage: 16,5-27,5V
• Idle voltage: 65V
• Feeder: 4-roller
• Max. Spool size: 15kg
• Spool diameters with wire: 200mm, 300mm
• Steel wire diameter: 0.8/1.0/1.2mm
• Inox wire diameter: 0.8/1.0/1.2mm
• FLUX wire diameter: 0.8/1.0mm
• Electrode diameters: 1,6/2,0/3,2/4,0mm

PHYSICAL PARAMETERS:

• Degree of protection: IP21S
• Cooling: fan
• Dimensions: 900x400x760mm
• Weight: 47kg

MULTIFUNCTIONALITY

The device allows MIG/MAG welding with a maximum current of 330A at an efficiency of 60%. This ensures that you get a meltdown of ok. 9mm and welding materials up to 18mm thickness. The welder is powered by 400V which guarantees the stability of the source and high resistance to interference or voltage drops.

INTUITIVE OPERATION

Easy-to-use control with three dedicated knobs. Each is responsible for a different parameter and allows for precise setting of voltage, wire feed speed and inductance. In addition, from the control panel using dedicated buttons you can choose the welding method and the function 2T or 4T.

CHASSIS

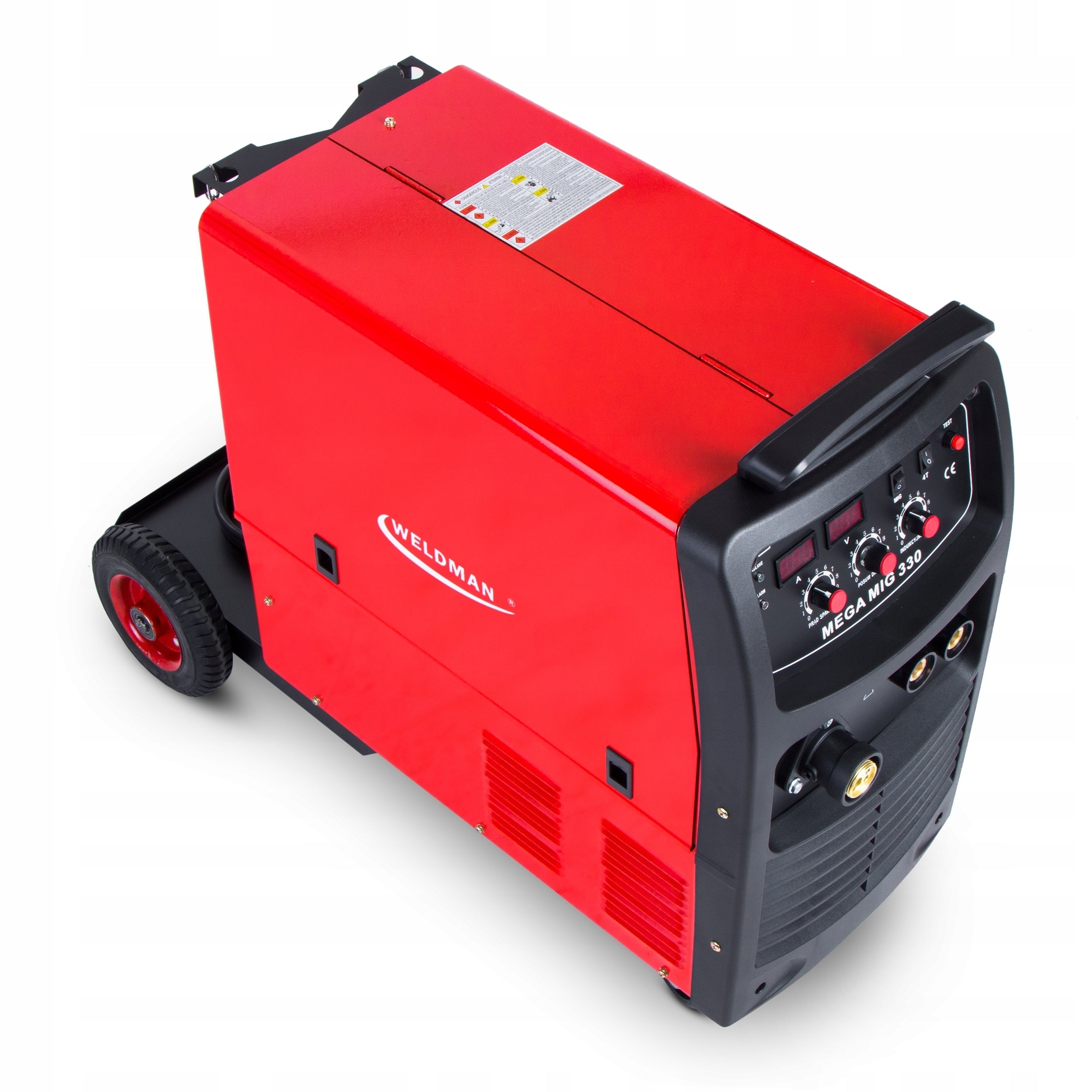

Solidly made chassis allows you to mount a welding cylinder, without having to invest in a welding trolley. The chassis has durable wheels, including two front swivel wheels, which guarantee high mobility of the device and transport even on uneven ground.

LOW-COST EXPLOITATION

WELDMAN MEGA MIG 330 is a very cheap device in operation, thanks to the possibility of using a large spool with 15kg wire. The use of a spool eliminates, the risk of downtime due to changing the wire, and the wire itself is much cheaper to buy. The welder also allows the use of smaller spools with 5kg wire.

FLUX - arc welding with powder wire, not requiring the use of gas cylinders. We use self-shielding wire, which is filled with flux or a chemical that produces protective gases during welding.

LUTOSPELING - this is a process by which you can freely connect galvanized sheets, which are often used in car bodies. The main advantage of solder welding is the maintenance of a protective zinc coating at the solder-zinc interface.

OVERLOAD SWITCH - built-in protection against overheating of the device, prolonging its service life.

IGBT - modern IGBT transistors are used in the welding machine, the solution ensures lower electricity consumption, greater resistance to interference, voltage drops, but also trouble-free operation.

INCLUDED IN THE SET:

• Welding machine WELDMAN MIG 330
• Welding torch MB24 - 4m
• Electrode holder - 2,5m
• Bulk holder - 2m
• User manual in Polish

+ ADDITIONAL ACCESSORIES

• Operating elements of the MIG handle (nozzles, current tips, wrench)
• Rollers for steel - 0,8/1,0mm (installed in the device)
• Rollers for steel - 1,0/1,2mm
