Trumpai apie prekę
Prekė: Suvirinimo inverteris PATON VDI 200 PRO MIG MAG MMA TIG 200A PULSE IGBT 230V. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Paton
- Modelis: PATON MMA VDI 200 PRO
EUROPEAN PRODUCTION, THE HIGHEST QUALITY, HUGE POWER OF THE WELDING MACHINE!
Manufacturer: PATON ║ Welding methods: MMA, TIG DC, MIG/MAG ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 70%
PATON VDI 200 PRO DC WHY CHOOSE THIS MODEL? KNOW ALL ITS ADVANTAGES
- Power 200A in work sugar 70%
- Stable, voltage-resistant operation with the device
- Pulse welding function in each method
- Ability to work with the aggregate
- Longer protection period - up to 60 months !
- ANTI STICK function
- HOT START function
- ARC FORCE function
- Optimal size and weight
- Device saving energy
- For home, workshop and industrial
- Works well in an environment with high humidity and high dustiness
- IGBT inverter technology
- Security with a double layer of varnish elements electronic
- Overheating protection
- Failure-free operation with the device
- High-quality construction of welding machines
- Possibility of welding MIG/MAG when connecting an external wire feeder - to be purchased on our other offers
- Durable and robust case transport included
- Adaptive cooling suitable for the temperature of the device
PATON VDI 200 PRO is a model distinguished by high efficiency and a wide range of applications. Welding machine recommended for people who care about excellent welding parameters and ideal work. The device allows welding with a maximum current of 200A with an efficiency of 70% . With an efficiency of 100%, the welding current is 167A The PATON ECO welding machines are distinguished by excellent production quality on the market. All Paton welding machines produced are in Europe. An additional advantage is longer protection - up to 60 months. All electronic components of the welding machine are impregnated with two layers of high quality lacquer, which ensures reliability during the entire service life, increases the life of the welding machine and allows you to work in production conditions with high dustiness and high humidity. The welder also has a built-in operation stabilization system i allows you to work for a voltage range from 160V to 260V This allows you to work on a long extension cord, power supply from a power generator or in weaker networks where there are fluctuations in the supply voltage.
HOT START AND OTHER FUNCTIONS
HOT START – “hot start” – consists in temporarily increasing the welding current above the set value at the moment of arcing. This prevents the phenomenon of “sticking the electrode” in the initial phase of welding, making it easier to start the whole process.
Arc-Force function – it is used to improve the stability of combustion in the short arc and prevent the electrode from “sticking”. When a drop of metal separates from the electrode, the current is automatically raised to a given level - if there is a suitable switch (as in the "Professional" series). By lowering the “Electric arc force” to reduce power consumption from a weak grid or increasing it in a strong grid, the stability of arc combustion is even much better improved.
Anti-Stick function – allows the welder to easily subtract the electrode from the product, without the risk of visual paralysis. During a short circuit after a short break, the welding current is automatically reduced. After separating the electrode from the element, the source automatically restores its operation.
FAN STOP - an adaptive fan, a solution that increases the life of the fan itself and additionally reduces the amount of dust in the device itself. The fan speed increases at the beginning of operation and when it is heated and decreases when the welding machine is cooled
DISPLAY - a huge advantage of the welding machine is a large and easy-to-read display - it shows us current values and optional functions. The display always shows the basic value of the parameter for a given method: current (MMA / TIG), voltage (MIG/MAG). In addition, it also presents graphic names of the current function.
POWER SUPPLY PARAMETERS
- Power supply: 230V
- Frequency: 50/60Hz
- Number of phases: 1ph
TECHNICAL PARAMETERS
- MMA welding current: 200A
- Welding current range: 10-200A
- Welding current in cycle 70%: 200A
- Welding current in cycle 100%: 167A
- Efficiency: 70%
- Diameter of wrapped electrode: 1,6 – 5,0mm
- Idle voltage: 75V
- Working temperature range: -25 ÷ 45ºС
- - Subwoofer power consumption: 8,0kVA
- Welding current adjustment: liquid
ADDITIONAL FUNCTIONS
- Hot Start: YES
- Anti-Stick: YES
- Arc Force: YES
- Puls: YES
- MMA function: YES
- TIG function: YES
- Display: YES
PHYSICAL PARAMETERS
- Dimensions: 330x110x250mm
- Weight: 5,6kg
- Degree of protection: IP33

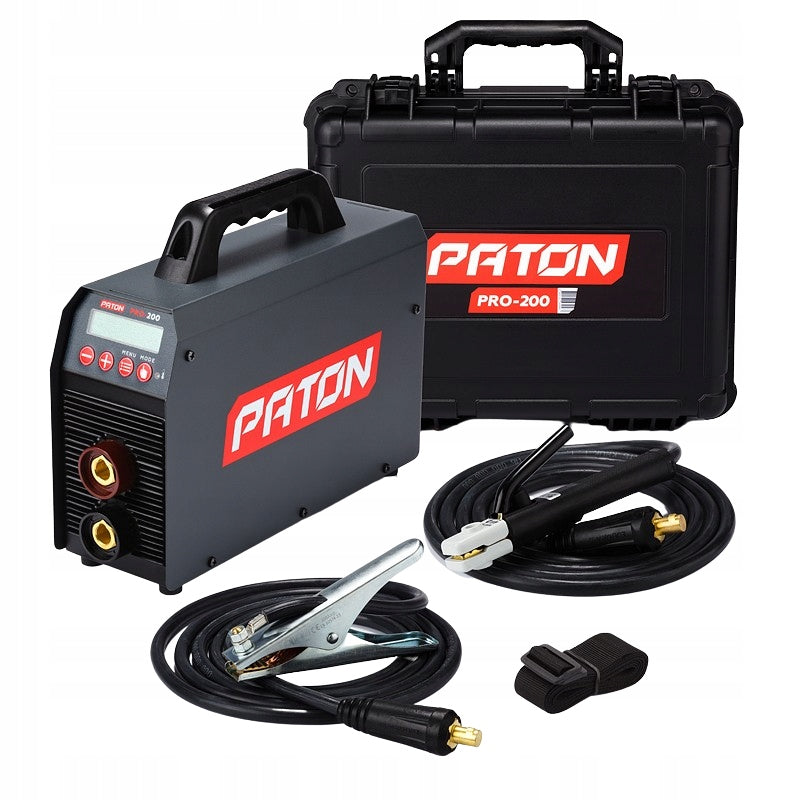

THE SET INCLUDES:
- Welding machine PATON™ VDI 200 PRO DC
- Mass holder ABICOR BINZEL MK300 - 3m
- Electrode holder ABICOR BINZEL DE2200 - 3m
- Carrying strap - 1pcs
- Composite case
- User manual and warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Paton |
| Parametry | Power consumption | 8 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 70% |
| Parametry | Maximum electrode diameter | 5 mm |
| Parametry | Device weight | 5.6 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Additional features | infinitely adjustable welding current |
| Parametry | Product weight with unit packaging | 8 kg |
| Parametry | Manufacturer code | PATON MMA VDI 200 PRO |
| Parametry | EAN (GTIN) | 5904624040365 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
