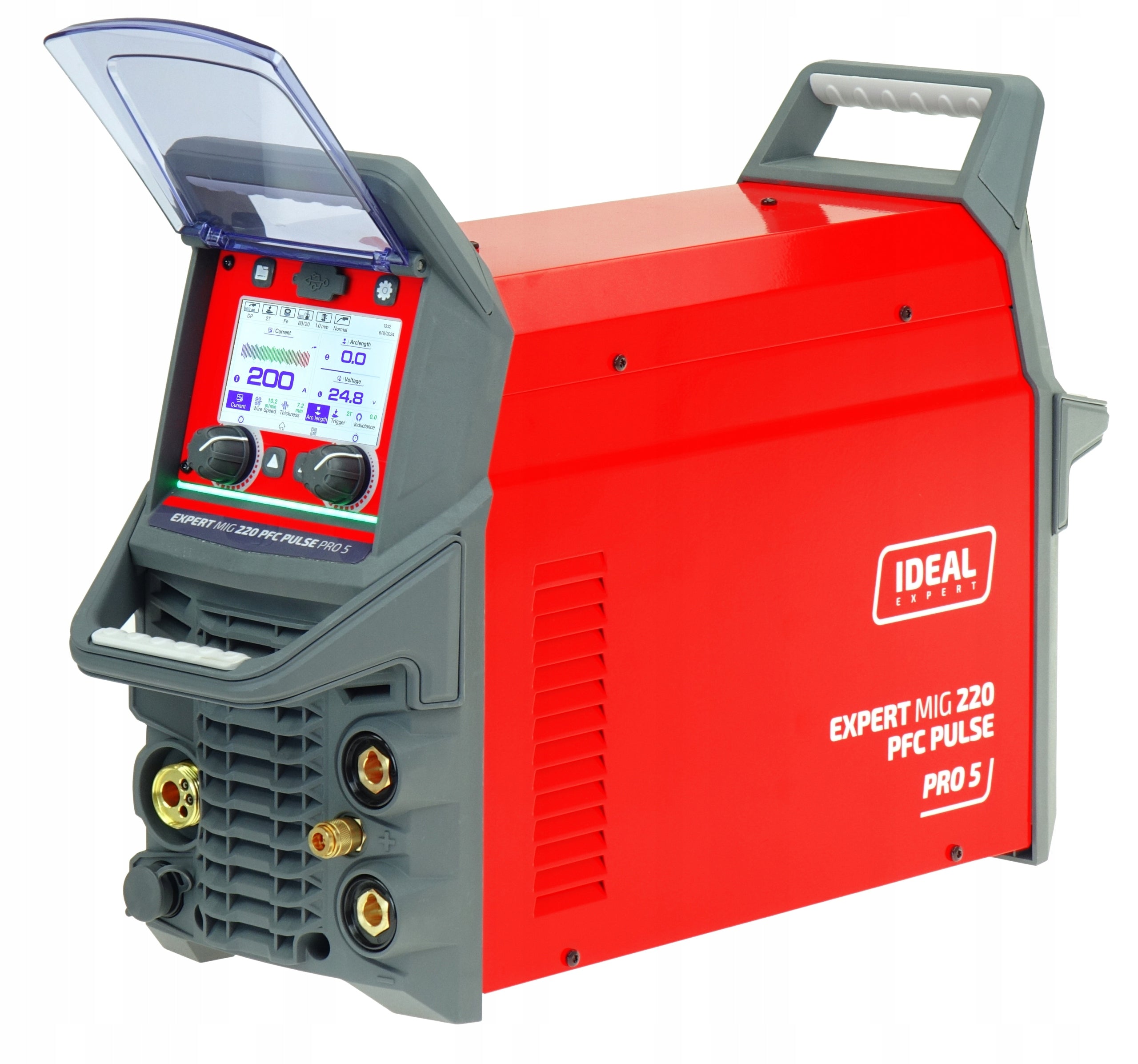

Suvirinimo inverteris MIGOMAT IDEAL EXPERT MIG 220 PFC PULS 4R MAG Synergy

Trumpai apie prekę

Prekė: Suvirinimo inverteris MIGOMAT IDEAL EXPERT MIG 220 PFC PULS 4R MAG Synergy. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXMIG220P
• Ilgis: 650 mm
• Plotis: 210 mm
• Aukštis: 530 mm

✅Do you need a solid wire feeder in your equipment?

• 4-roll feeder⚡

✅ Do you want to work in difficult power conditions?

PFC technology – Power Factor Correction ensures stable operation even with a weak network ⚡

✅ Does full parameter control matter to you?

Modern touch LCD panel Pro5 + USB for updating and saving programs ⚡

✅ Do you weld steel, aluminum or stainless steel?

Synergy + Pulse / Dual Pulse mode – precise settings for each material ⚡

✅ Do you care about efficiency and mobility?

Working cycle 200A at 60% – at only 18 kg ⚡

✅ Do you need energy efficiency?

Only 27 W in Smart Standby mode – energy savings at maximum readiness ⚡

▶ Why is IDEAL EXPERT MIG 220 PFC PULSE PRO 5 the best choice?

✅ MIG: 20–200A, MMA: 10–200A, TIG Lift: 10–200A

✅ PFC technology – stable operation even with a weak network

✅ Modern LCD panel Pro5 – touch screen with quick access to functions

✅ Working modes 2T/4T/S2T/S4T + SPOT – full control over the weld

✅ Synergy, Pulse and Double Pulse – perfect settings for any material (steel, aluminum, stainless steel, CuSi)

✅ Compact and mobile – only 18 kg weight

✅ Energy saving – standby power consumption only 27 W (SMART mode)

✅ 230V single-phase power supply – ideal for workshops and field use

✅ Excellent price/quality ratio ⚡

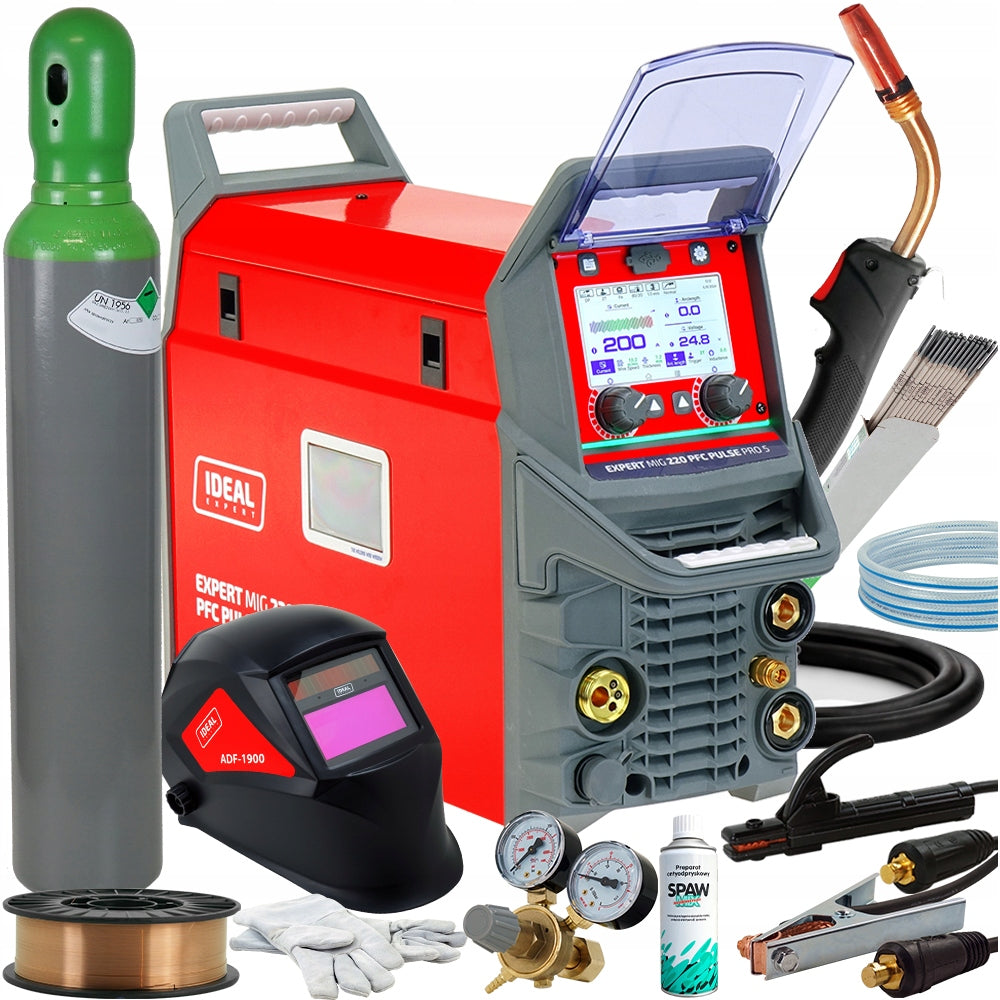

▶ WHAT WILL YOU FIND IN THE PACKAGE?

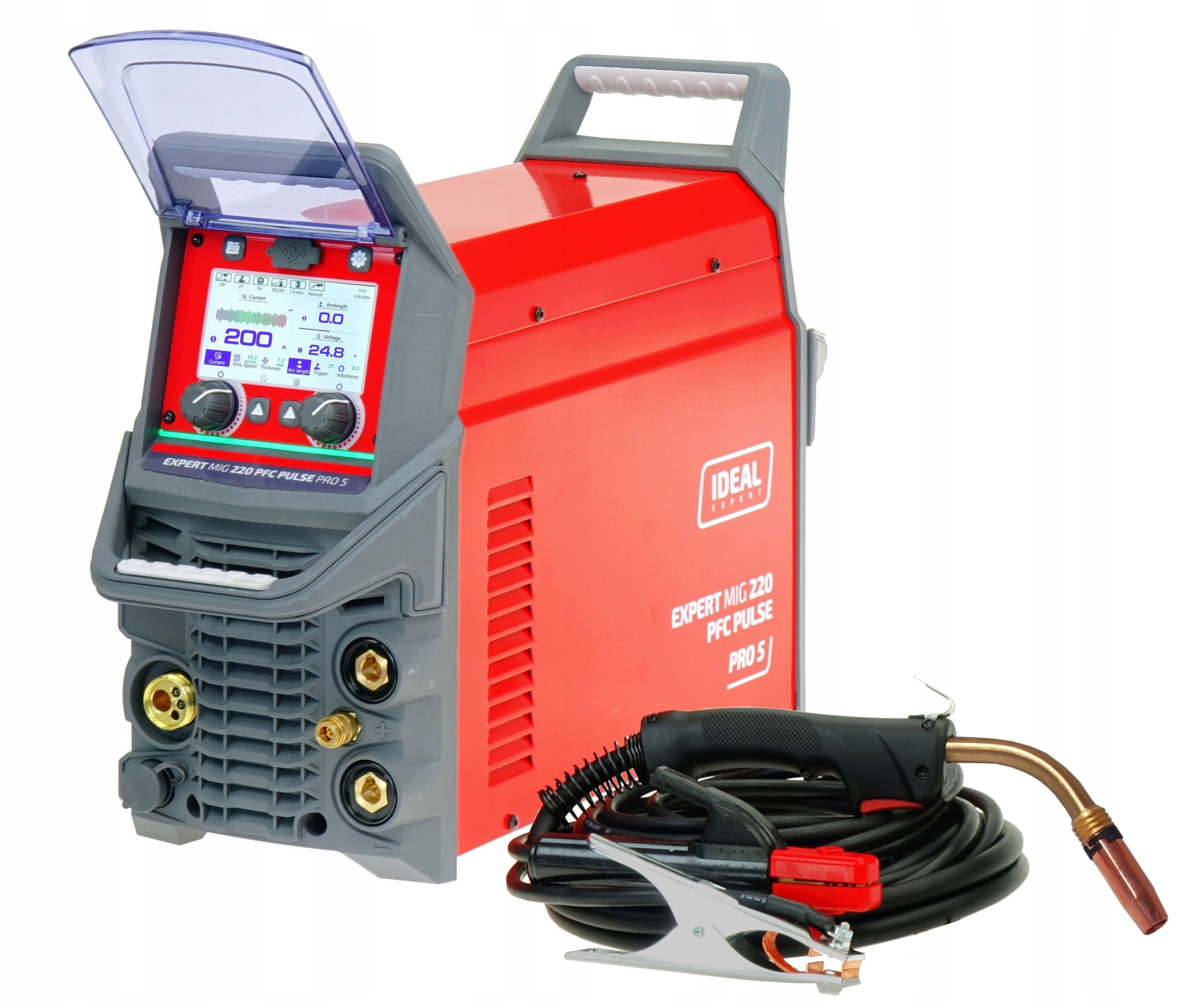

✔ EXPERT MIG 220 PFC PULSE Pro5 LCD

✔ MIG/MAG MB24 welding torch - 3m

✔ MMA electrode holder

✔ Mass cable

✔ Instruction manual in Polish

⏩MAG WELDING KIT WITH 8L CYLINDER

• factory new cylinder for Ar/CO2 with a capacity of 8l (ready to fill) - has the approvals required by gas sales outlets,
• Ar/CO2 reducer with two clocks + gas line,
• SG2 steel welding wire D200 0,8mm x 5kg,
• welding gloves,
• Anti-chipping preparation,
• PACK OF 1KG ELECTRODES FOR WELDING MMA

⏩Self-tinting visor IDEAL ADF 1900

▶ SYNERGISTIC MIGOMAT BRAND IDEAL EXPERT MIG 220 PFC PULSE PRO 5

EXPERT MIG 220 PFC PULSE Pro5 LCD is an inverter, synergic and multifunctional welding source, designed for arc welding using the MIG/MAG, FLUX, TIG LIFT method and the MMA method (wrapped electrode). It also allows pulsed current welding: single PULSE and double PULSE. The device has been designed for a wide range of applications: from maintenance work, through welding of steel structures, to repairs of car bodies.

EXPERT MIG 220 is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture, and with reverse polarity without gas.

Quick synergistic adjustment of welding parameters through a 5-inch touch LCD display makes the device very easy to use. Just set the thickness and type of welded material and start welding: intelligent and automatic welding arc control system, step by step, will choose the best parameters, for each welding position and for each material. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs. With the MIG/MAG method, we can choose the button mode in the handle, between working in SPOT mode (point welding), 2-bar (without lock), 4-bar (button lock for long welds), S2-bar and S4-bar.

⏩SAVE YOUR SETTINGS, LOAD WITH ONE CLICK – SMART MEMORY JOB FUNCTION WITH USB PORT

The modern JOB memory system allows you to save all individual welding settings – current, voltage, wire feed speed, inductance or operating mode. Thanks to this, you can create your own library of programs tailored to different materials and sheet thickness, and then recall them with one click. This saves a lot of time with repetitive work and guarantees the repeatability of welds.

In addition, the device is equipped with a USB port, which allows you to export saved settings to an external media (e.g. pendrive), their import to another machine, as well as software update. So you can be sure that your equipment will always be compatible with the latest solutions and functions of the manufacturer.

⏩TOUCH 5" INCH LCD DISPLAY

The user-friendly interface is a huge advantage of this model. Thanks to this, advanced welding parameters are much simpler and more convenient. MIG is easy to use and already in the first contact with the function panel, the user can easily adjust the parameters.

Advanced welding parameters and excellent welding characteristics of the source translate directly into good welding quality.

⏩ SPOT WELDING

Metal Inert Gas (MIG) spot welding is a welding technique that involves creating single welding points instead of a continuous weld. The method is used when it is necessary to connect two metal elements at specific points, which allows to reduce the heating of the material and minimize deformation.

MIG spot welding is ideal for precise joining of metals at specific points, which minimizes the impact of heat on the material and allows for aesthetic, strong joints.

▶ SYNERGISTIC PROGRAMS (SON):

✔ Mild Steel – steel wires (for black steel)

✔ Flux-cored metal – self-shielding wires (FLUX)

✔ Stainless Steel – stainless steel wires

✔ AlMg5 – aluminium wires with magnesium

✔ CuSi3 – wires for soldering (copper + silicon)

⏩MIGRATION WELDING WITH PULSE

In MIG welding with so-called. With a pulsating arc, the end of the electrode wire melts accelerated, forming and peeling off metal droplets. The resulting welding arc and metal flow characteristics from the end of the wire to the welding lake, ensure better quality of the welded joint and less chipping. Pulsed MIG welding also reduces thermal deformations caused during welding. This process is recommended for use e.g. during welding of stainless and acid-resistant steels.

⏩ DOUBLE PULSE MIG WELDING

Dual pulsation MIG welding is particularly useful for welding aluminium and its alloys. Thanks to the use of a double pulse, with the appropriate setting of parameters, it is possible to obtain a weld that goes far beyond the capabilities of the conventional MIG method.

A well-made MIG weld with double pulsation is aesthetically and qualitatively similar to the welded joint obtained by TIG AC method. However, the difference is that during double pulsation MIG welding much higher efficiency is achieved, and the semi-automatic welding technology itself is much simpler for the operator than TIG welding.

⏩PFC TECHNOLOGY – STABLE OPERATION AND ENERGY SAVING

PFC (Power Factor Correction) technology used in the device makes the welding machine work stably even with voltage fluctuations in the network and draws less current while maintaining full power. This allows it to be securely connected to long extension cords and generator sets, and the electrical system is less strained. PFC improves the energy efficiency of the device and provides cleaner, more reliable operation in accordance with EMC standards.

▶ Professional wire feeder

Stable feeding of welding wires of various types. Ability to work with longer MIG handles. Good welding parameters - better weld quality.

The device is equipped with a proven wire feeding mechanism that has been working in MIG/MAG devices for many years.

▶ Solid workmanship

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

The compact and compact design makes the device applicable in workshop and repair work, both in halls and in the field. The transport handle makes it easy to carry the device.

⏩Power supply parameters:

• Supply Voltage: Single Phase 230V/50Hz
• Technology: PFC IGBT Inverter
• Network Security: C20
• Cooling: Forced – Air Fan (AF)
• Degree of protection: IP23S
• Insulation Class: H
• Weight: 18 kg

⏩ MIG/MAG welding parameters:

• MIG/MAG welding current: 20 – 200A
• MIG/MAG cycle: 60% – 200A, 100% – 110A
• Welding Voltage: Smooth Adjustment
• Wire feed speed: smooth adjustment (m/min)
• Reel support: max 5 kg (D200)
• diameter of aluminium wire: 1.0÷1.2mm,
• diameter of solder wire: 0.8÷1.0mm,
• diameter of powder wire: 0.8÷1.0mm,
• diameter of steel wire: 0.6÷1.0mm,
• Stainless steel wire diameter: 0.8÷1.0mm,
• diameter of welding electrode: 1.6÷5.0mm,
• Polarity change: YES (inside the feeder)
• Inductance Regulation: YES

⏩ TIG welding parameters:

• TIG welding current: 10 – 200A
• Output Current: DC Constant
• Arch ignition: contact – Lift
• TIG duty cycle: 60% – 200A, 100% – 130A
• Operating Modes: 2T/4T

⏩Additional Features:

• current drop adjustment (Down Slope)
• regulation of gas outflow after welding (Post-Gas)

⏩MMA welding parameters:

• MMA welding current: 10 – 200A
• MMA work cycle: 60% – 200A, 100% – 130A
• Electrode diameter: 1,6 – 5,0 mm

• INDUCTANCE - weld face width control and reduction of welding chipping,

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MIG/MAG is a popular process both in hobby applications and in industry. It consists in welding with a hot melt electrode (in the form of wire wound on a spool) in a gas shield. The advantages of semi-automatic MIG/MAG welding include: ease of mastering the method at the basic level, high welding efficiency, high quality of the resulting weld.

• TIG DC - welding with a non-melting electrode in an inert gas shield, e.g. alloy and non-alloy steels.

• SYNERGY MIG/MAG/FLUX - a program that automatically selects the feed of the wire to the set welding current. Attention! Possibility to choose the diameter of the welding wire and the type of gas - greater precision in the operation of Synergy.

• 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow,

• 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow

• S4T (button lock for long welds, with adjustment of initial and final current)

• SPOT WELDING - Super function for making even point welds or spot welding of thin plates on the tab.
