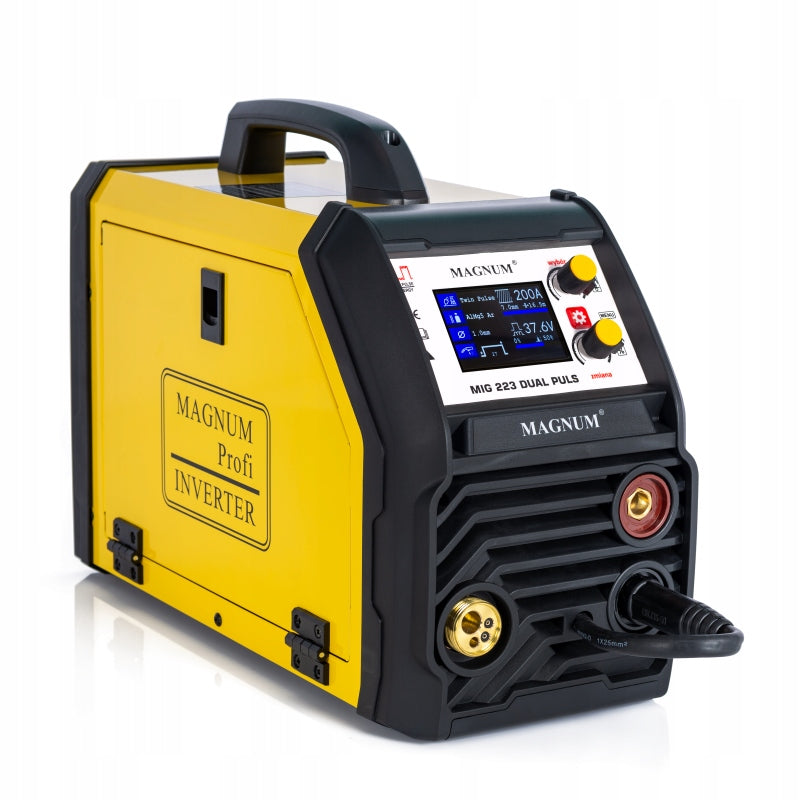

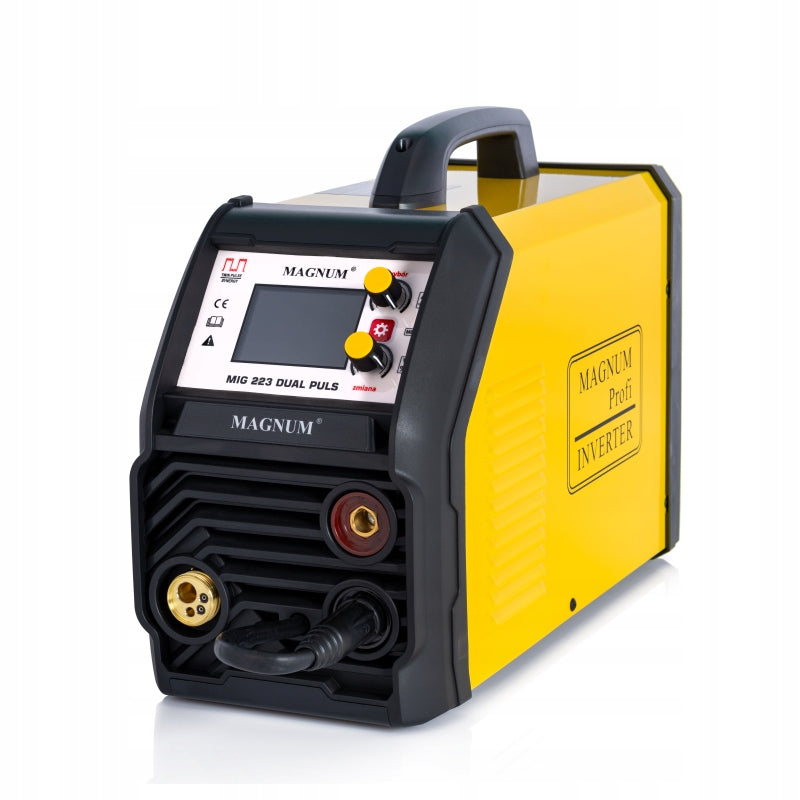

Suvirinimo inverteris Magnum MIG 223 DUAL PULS SYNERGY LCD TIG Lift

Trumpai apie prekę

Prekė: Suvirinimo inverteris Magnum MIG 223 DUAL PULS SYNERGY LCD TIG Lift. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: U MI 223 LCD
• Ilgis: 510 mm
• Plotis: 195 mm
• Aukštis: 395 mm

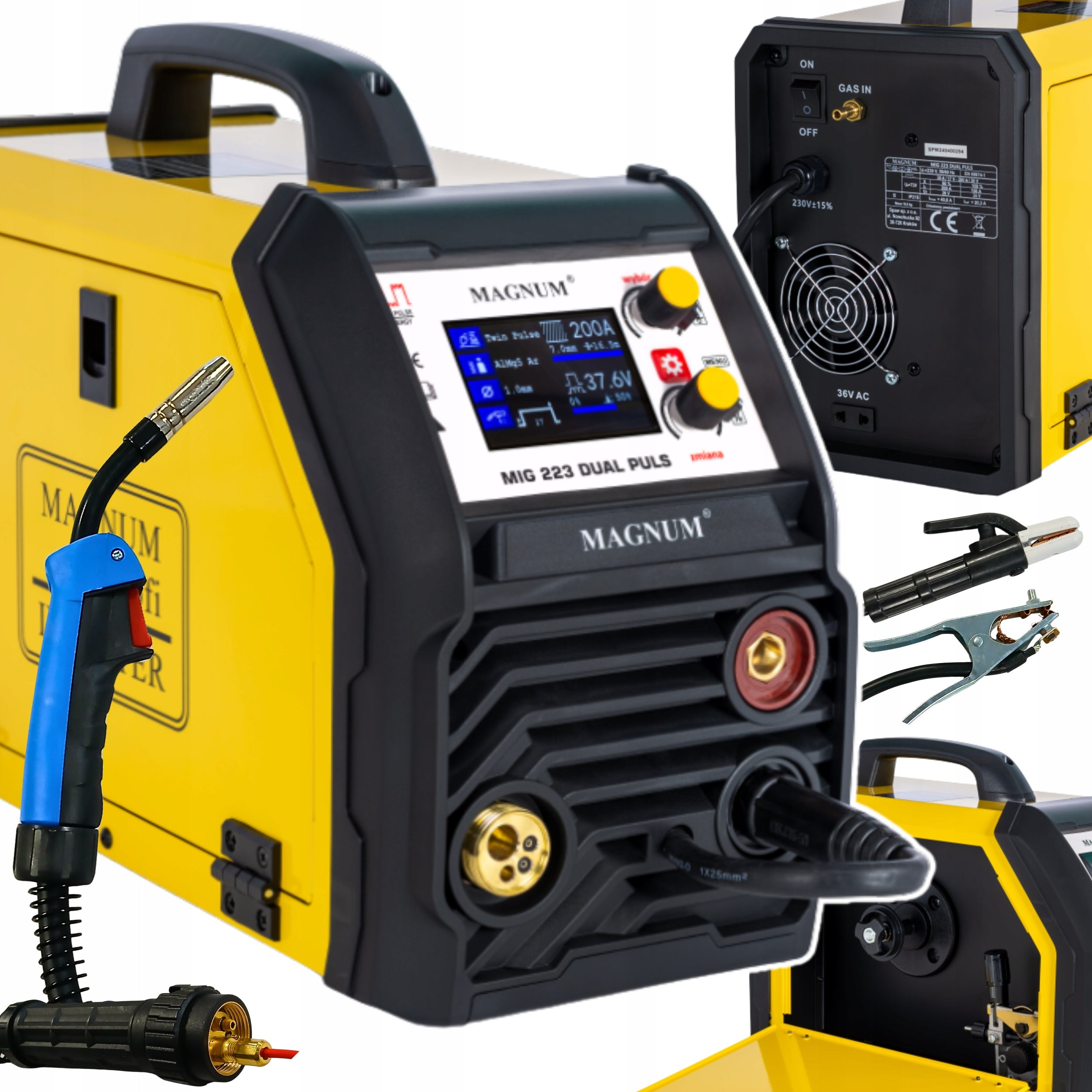

➡ Working cable MB24 3 m

➡ MMA working cable 2m

➡ Mass cable 2m

➡ Teflon cartridge red 1,0/1,2 (in working handle)

➡ Red steel cartridge 1,0/1,2

➡ Feed rollers for steel 0,8/1,0

➡ Feed rollers for aluminium 1,0/1,2 (mounted in the feeder)

➡ User Manual

⭐ ⭐ ⭐ ⭐ ⭐

MIG 223 DUAL PULS with LCD display is a versatile and technologically advanced welding device, designed for welding using MIG-MAG, MMA and TIG LIFT methods.

Perfect for manual, electric welding of a wide range of materials, including:

✔ low carbon and low alloy steels

✔ high-alloy, stainless and acid-resistant steels

✔ aluminium and its alloys

✔ soldering

✔ synergistic modes

⭐ ⭐ ⭐ ⭐ ⭐

The device offers different pulsation modes:

• With pulsation single welding current
• With pulsation double welding current

⭐ ⭐ ⭐ ⭐ ⭐

The MIG 223 DUAL PULS device offers the possibility of welding using the MIG/MAG | MMA | TIG LIFT | TIG LIFT PULS | spot | cyclic spot methods. Thanks to its advanced design and software with digital control, it provides excellent welding parameters and high quality welded joints.

⭐ ⭐ ⭐ ⭐ ⭐

MIG 223 DUAL PULS is suitable for different working environments:

✔ locksmith workshops

✔ repair workshops

✔ automotive industry

✔ factory

Equipped with IGBT transistors, the device minimizes electromagnetic interference and increases the efficiency and reliability of the power source. The high switching frequency ensures that the current is quickly adjusted to changes in parameters during welding, resulting in lower energy consumption.

⭐ ⭐ ⭐ ⭐ ⭐

MIG 223 DUAL PULS has a number of advanced features including:

✅ single and double PULS

✅ built-in synergic programs

✅ adjustable gas outflow time before welding

✅ adjustable gas outflow time after welding

✅ adjustable duration of initial and final current

✅ adjustable welding time at point

✅ adjustable break time when welding at point

✅ adjustable value of initial and final current

✅ adjustable pulsation frequency

✅ adjustable inductance

✅ adjustable pulsation balance

✅ adjustable amplitude of welding intensity

✅ correction of the voltage value of the initial and final current

✅ correction of wire burning height after welding

✅ correction of wire access speed

✅ correction of voltage values peak and base current

✅ ability to save 35 own settings

✅ functions: 2T/4T/S2T/S4T | HOT START | ARC FORCE | VRD

⭐ ⭐ ⭐ ⭐ ⭐

Parameters:

• Welding current/ Efficiency: 200A/60%;
• Power supply: 230V
• Network security: 20A
• Current adjustment range: 35-200A(MIG); 20-180A(MMA)
• Wire diameter: 0,8/1,0/1,2 mm
• Wire spool: max 5kg
• Rolls: 2
• Weight: 10,5kg

⭐ Why choose MAGNUM? ⭐

The MAGNUM brand devices have been designed for the dynamically developing welding market in Europe.

High quality, efficiency and reliability of these devices are the features that quickly won the hearts of customers, and the relatively attractive price made them one of the most recognizable brands of welding devices on the market.

The offer of MAGNUM devices fully covers customer demand for type and power in individual groups of welding equipment: MMA, TIG, MIG and CUT. The extensive equipment of each product makes them devices ready to work, and a wide range of accessories encourages distributors to buy the MAGNUM brand.

MAGNUM devices are dedicated to both industry and small and medium-sized service workshops.

⭐ ⭐ ⭐ ⭐ ⭐

Photo gallery:

Specifications
