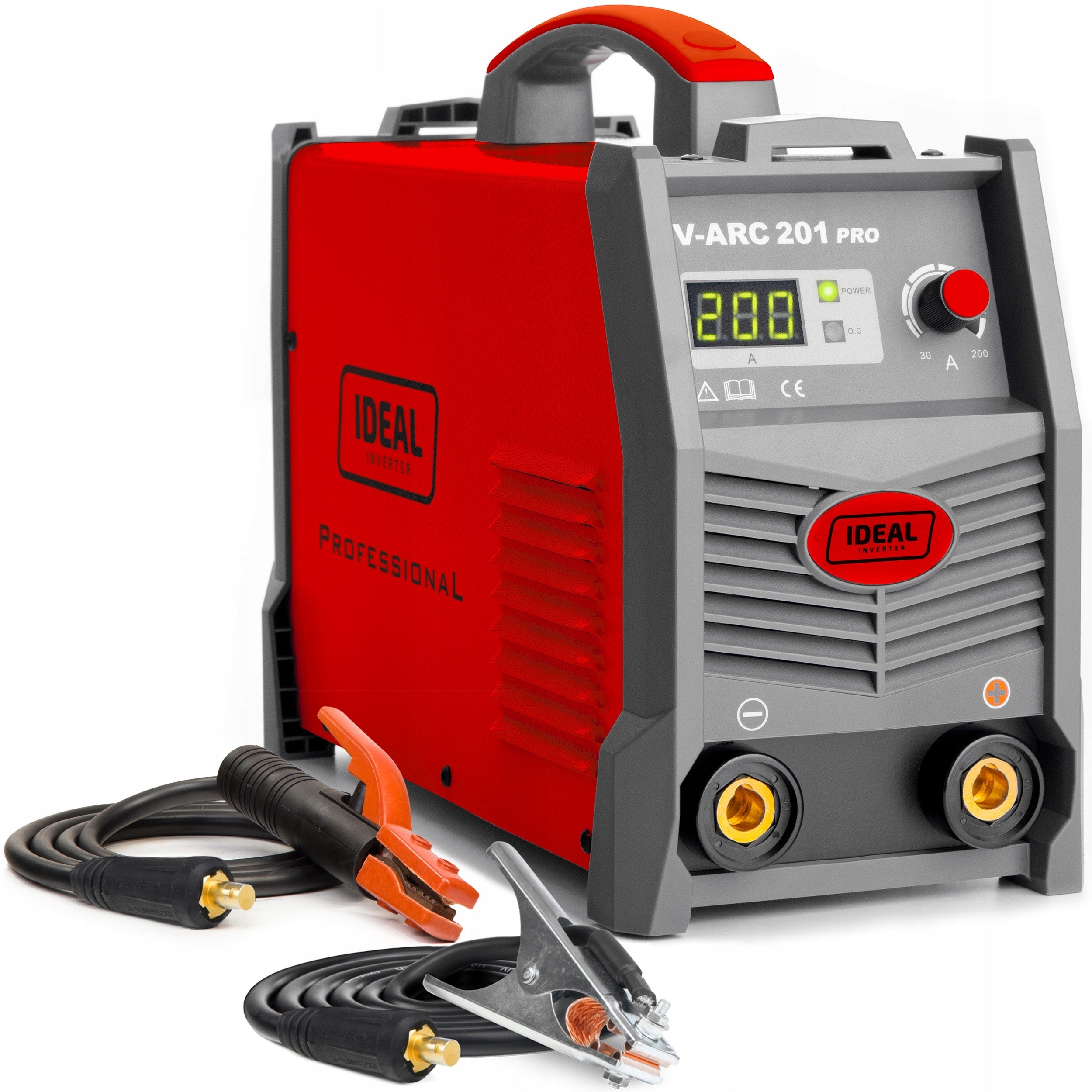

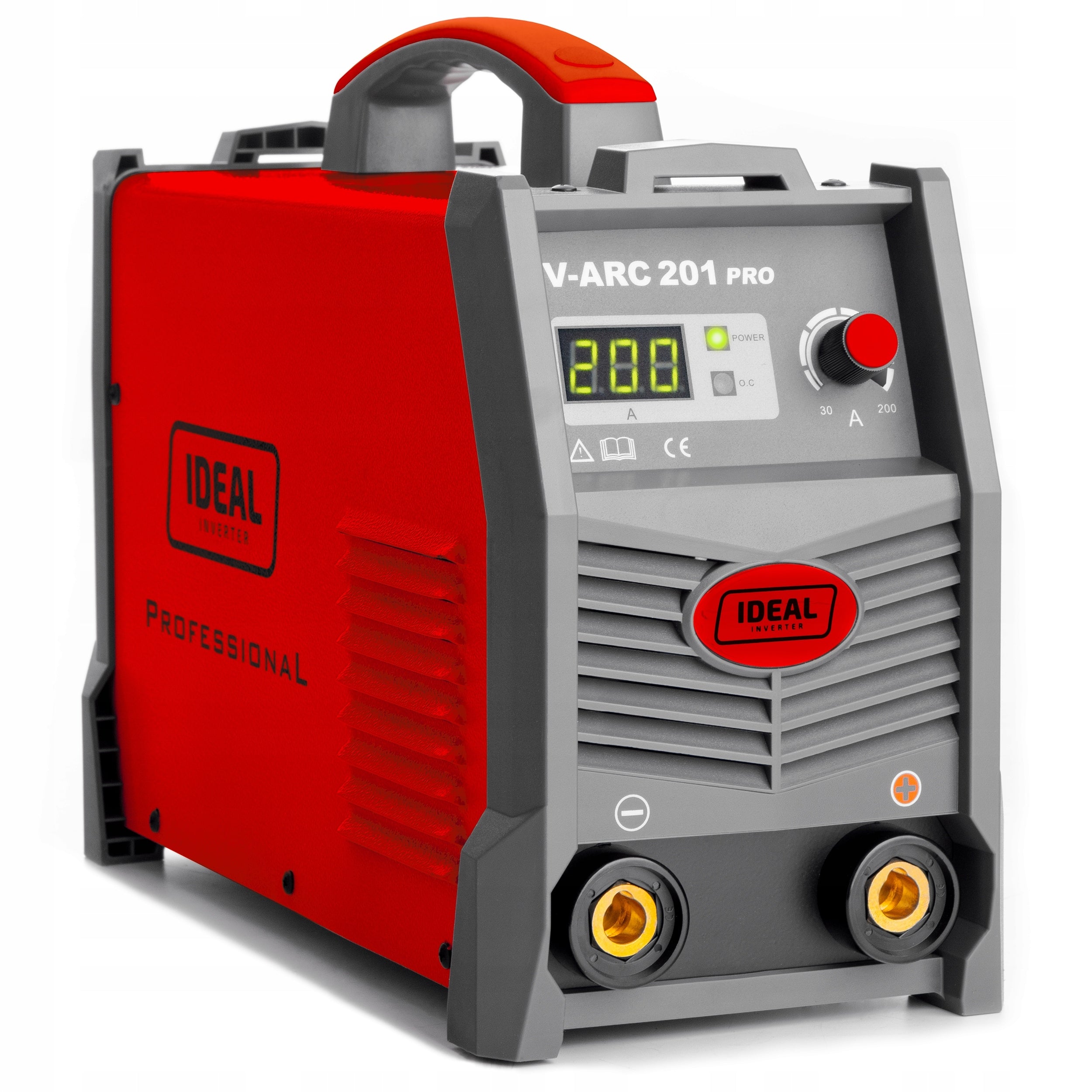

Suvirinimo inverteris IDEAL V-ARC 201 PRO 200A 230V MMA TIG DC IGBT

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL V-ARC 201 PRO 200A 230V MMA TIG DC IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: V-ARC201

Manufacturer: IDEAL ║ Welding methods: MMA, TIG Lift DC ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

• Welding with 200A current at 60% duty cycle
• Welding methods: MMA , TIG Lift
• IGBT inverter technology
• Smooth regulation of welding parameters
• For workshop , hobby , household and field work
• The Arc Force function allows you to adjust the dynamics of the welding arc
• The Hot Start function makes it easier to ignite the electric arc and preheat the welded material
• The Anti Stick function allows the welder to detach the electrode more easily

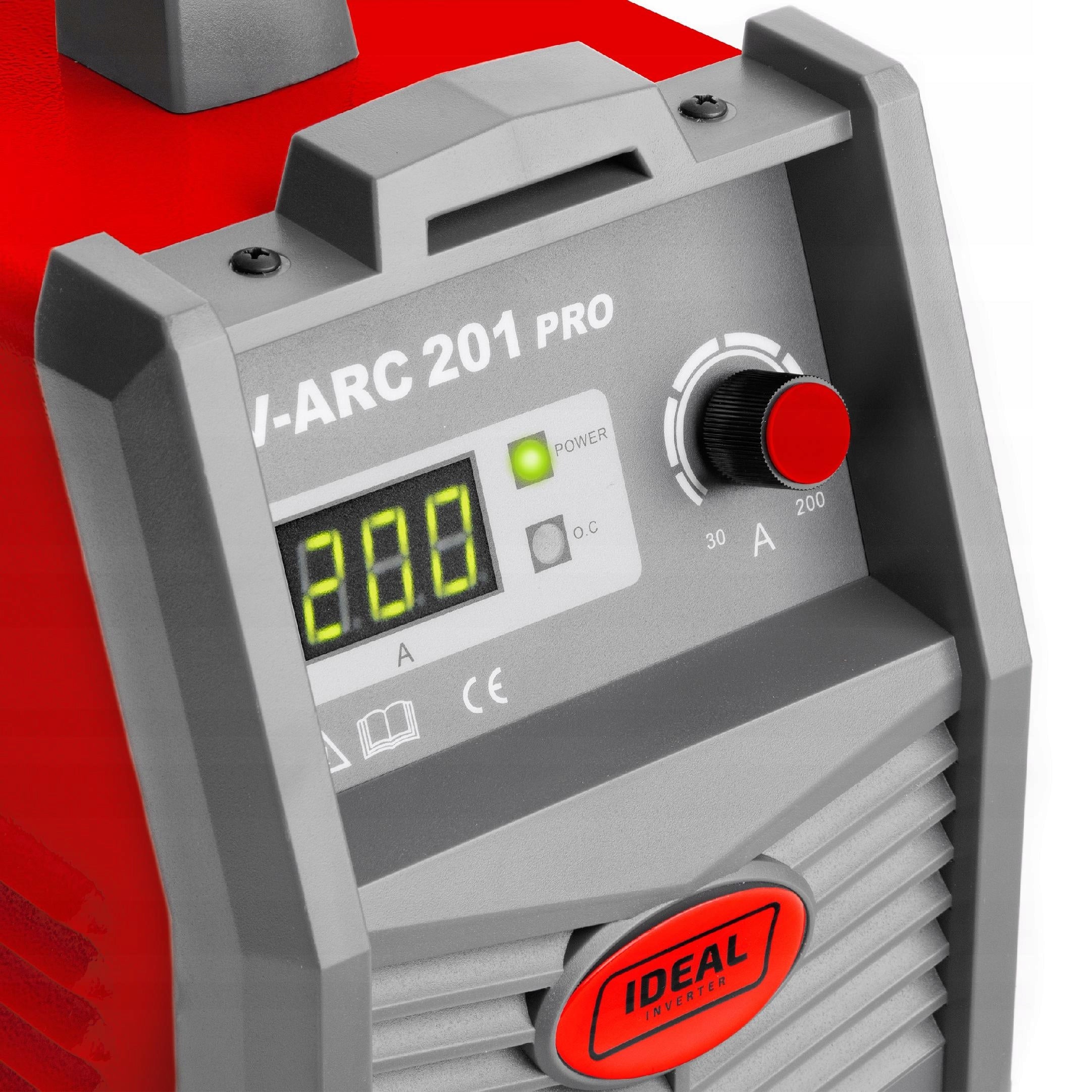

• Simple , legible control panel
• The metal body of the device protects against damage from the outside
• Comfortable handle for easy transport

The V-ARC 201 PRO + ACX inverter welder has been designed to perform MMA welding with a coated electrode with direct current (DC) and the TIG method with direct current (DC) with short-circuit arc ignition. It was created for welding with rutile and basic electrodes, for welding stainless steel and cast iron. The TIG LIFT DC option enables welding with a non-consumable electrode in an inert gas shield. Thanks to the electronic control, it is possible to smoothly adjust the welding current.

ANTI-STICK - allows the welder to easily separate (subtract) the electrode from the product, without the risk of eye injury. In the event of a short circuit (if any), after a short break, the welding current is automatically reduced. After the electrode is separated from the element, the source automatically restores its operation. It improves the efficiency of welding, the short circuit of the electrode is accompanied by its overheating, which may result in its damage.

IGBT - the welder uses modern transistors, a solution that ensures minimum electromagnetic interference, low power losses in the basic systems, enabling increased efficiency and reliability of the power source.

ARC FORCE - allows you to adjust the dynamics of the welding arc. Reducing the value of the function gives a soft arc and a smaller depth of penetration, while increasing the value of the function causes deeper penetration and the possibility of welding with a short arc. When setting the highest value for the ARC FORCE function, it is possible to push the electrode into the pool of molten metal and burn through the material.

HOT START - it is a temporary increase in the welding current in order to facilitate the ignition of the electric arc and the initial heating of the welded material.

POWER PARAMETERS

• Power supply : 230V
• Number of phases : 1ph
• Frequency : 50Hz
• Open- circuit voltage : 57V

TECHNICAL PARAMETERS

• Welding current adjustment range : 30 - 200 A
• Maximum current : 200 A
• Efficiency : 60%
• Welding electrode diameter : 1.6 - 4.0mm
• Power : 7.3 kW

ADDITIONAL FEATURES

• Arc Force function : Yes
• Hot Start Function : Yes
• Anti Stick Function : Yes

PHYSICAL PARAMETERS

• Degree of protection : IP21
• Device weight : 8 kg
• Device dimensions : 445x260x350 mm

BY BUYING FROM US, YOU GAIN

• V-ARC 201 PRO +ACX welding machine
• Electrode holder - 3m
• Mass handle - 2m
• Warranty Card
• User manual

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Welding methods	MMA
Parametry	Power consumption	9.13 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	8 kg
Parametry	Welding range	30–200 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	300 cm
Parametry	Additional features	infinitely adjustable welding current
Parametry	Product weight with unit packaging	8 kg
Parametry	Manufacturer code	V-ARC201
Parametry	EAN (GTIN)	5903991102355
Parametry	Packaging status	original
