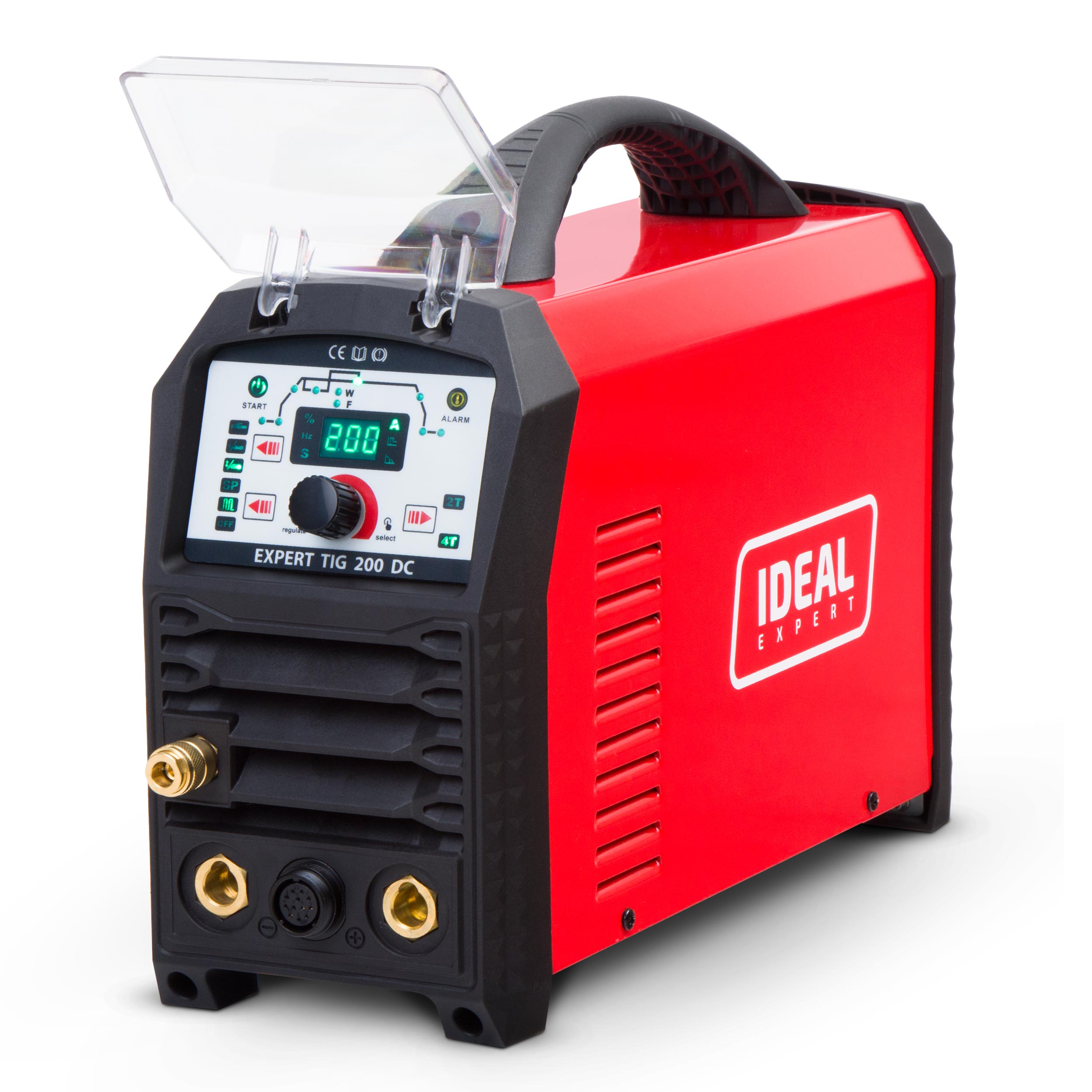

Suvirinimo inverteris IDEAL TIG 200 DC MMA PULSE 230V 200A HF IGBT, 4 m komplektas

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL TIG 200 DC MMA PULSE 230V 200A HF IGBT, 4 m komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: EXTIG200DC

Manufacturer: IDEAL ║ Welding methods: TIG DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Duty cycle: 35%

PROFESSIONAL EXPERT SERIES - SUITABLE FOR THE TOUGHEST APPLICATIONS, WITH A PROFESSIONAL TIG TORCH WITH CONTROL.

The IDEAL EXPERT TIG 200 DC welder is a professional device for TIG DC welding of steel, copper, stainless steel, acid and other weldable materials. High power 200A , guarantees penetration of approx. 5mm and gives us the ability to weld elements up to 10mm thick .

ADVANTAGES OF THE DEVICE:

• Non-contact HF arc initiation
• Ladder type full TIG DC panel
• Fully adjustable TIG PULS welding
• Latest generation IGBT transistors
• Full Ladder Control Panel

The welding machine impresses with its small dimensions and weight of only approx. 7kg . Small dimensions and weight make this model unrivaled in its class of welding machines, they also guarantee high mobility and the ability to work even in hard-to-reach places.

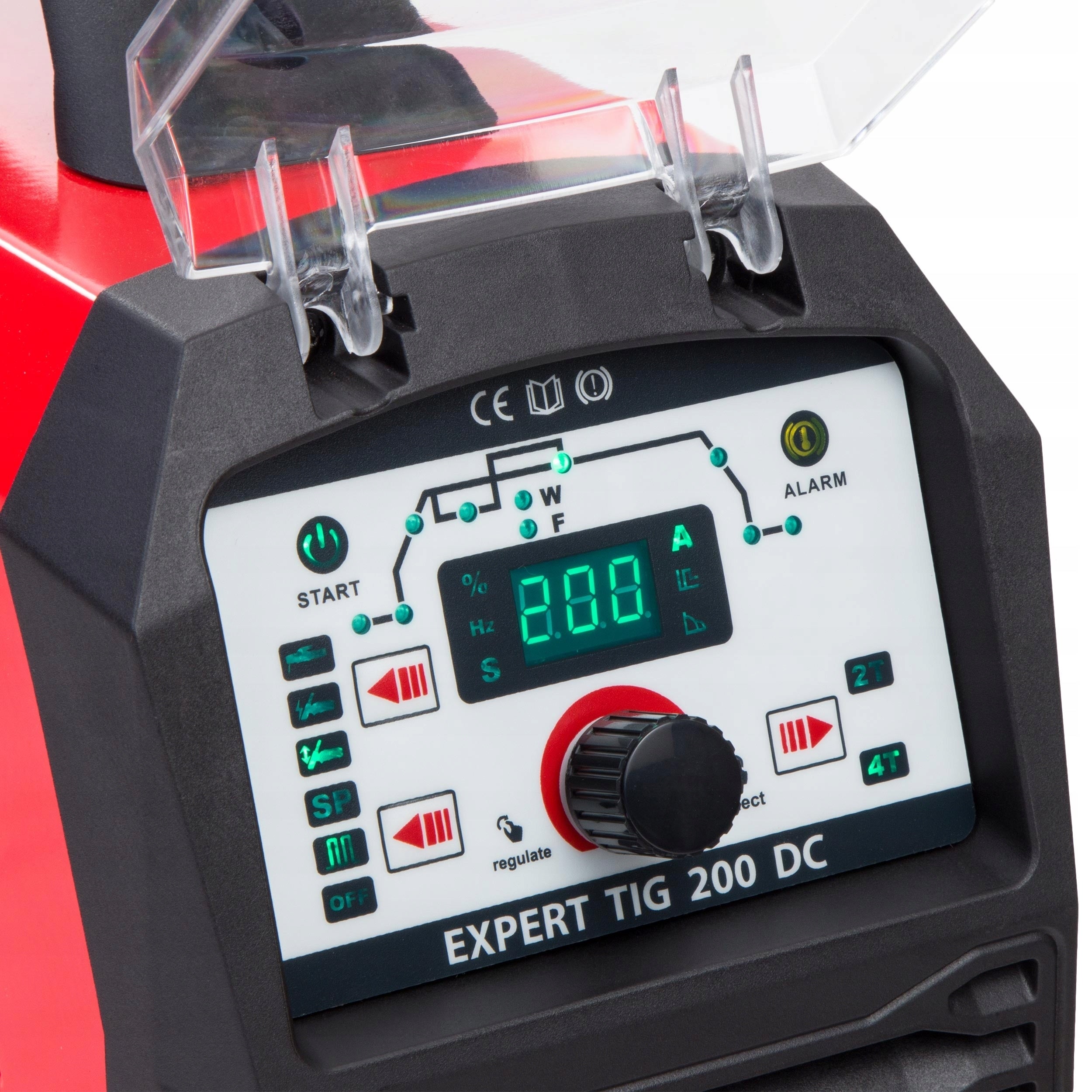

EASY OPERATION AND FULL CONTROL PANEL

The device has a clear and transparent " soft panel ", and parameter adjustments are made using a multifunctional knob and several buttons, which makes setting the welder very easy and intuitive. From the control panel, you can select the welding method and the 2T function (welding with the torch button pressed), or 4T used for longer welds (without having to hold the torch button). The arc is struck without contact by means of a built-in HF ionizer. In addition, the HF system improves welding stability and provides instant adjustment of the current to changes in parameters during welding.

WELDING WITH PULSE

The welder has TIG PULS pulse welding options. Welding with pulse significantly reduces overheating of the material, reduces spatter giving very precise penetration. Thanks to this function, the welder has greater control over the welding process, and the weld itself is narrower and nicer, and also allows the welding of thin elements . The arc is struck without touching using the built-in HF ionizer or in the LIFT touch mode.

WIDE RANGE OF APPLICATIONS

The welder is designed for all kinds of welding works in locksmith workshops, repair workshops, industrial workshops, factories, etc. Allows welding of black, stainless and chromium-nickel steel .

The device is equipped with a 4m TIG SR 26 welding torch with a high current capacity, thanks to which it will withstand work even in long cycles. The handle also has a remote control in the handle , which greatly facilitates the work and it is possible to remotely change the current during welding . In addition, the leather sleeve significantly extends its durability and ensures more comfortable work.

We add consumables for the start to each handle, thanks to which the handle is armed and ready to work. In addition, all chuck replacement parts are readily available and can be purchased at attractive prices.

The arc is struck without contact by means of a built-in HF ionizer. In addition, the HF system improves welding stability and provides instant adjustment of the current to changes in parameters during welding.

POWER PARAMETERS

• Power supply: 230V
• Frequency: 50Hz
• Number of phases: 1ph
• Mains protection: 25A "C"
• Maximum power consumption: 6.9kW

TECHNICAL PARAMETERS

• TIG welding current range: 5 - 200 A
• Current rise time: 0 - 10s
• Current fall time: 0 - 10s
• Pulse frequency Hz: 0.5 - 200
• Pulse length: 5 - 95%
• Gas after: 0 - 10s
• Gas before: 0 - 2s
• Power: 6.9 kW
• Open-circuit voltage: 89V
• Final current: 5 - 200 A
• Maximum current: 200A - 35%
• Current at 100% operation: 120 A
• Current at 60% operation: 155 A
• Starting current: 5 - 200 A
• Welding electrode diameter: 1.6 - 4.0 mm

ADDITIONAL FEATURES

• PULSE function: YES
• HF function: YES - non-contact ignition
• 2T/4T function: YES
• PRE GAS: YES
• POST GAS: YES
• Current Slew: YES
• Current drop: YES
• HOT START function: YES
• ARC FORCE function: YES
• VRD function: YES

PHYSICAL PARAMETERS

• Degree of protection: IP23
• Weight: 7kg
• Dimensions: 620x270x390mm

A COMPLETE STARTER KIT if you have AR tanks and a visor.

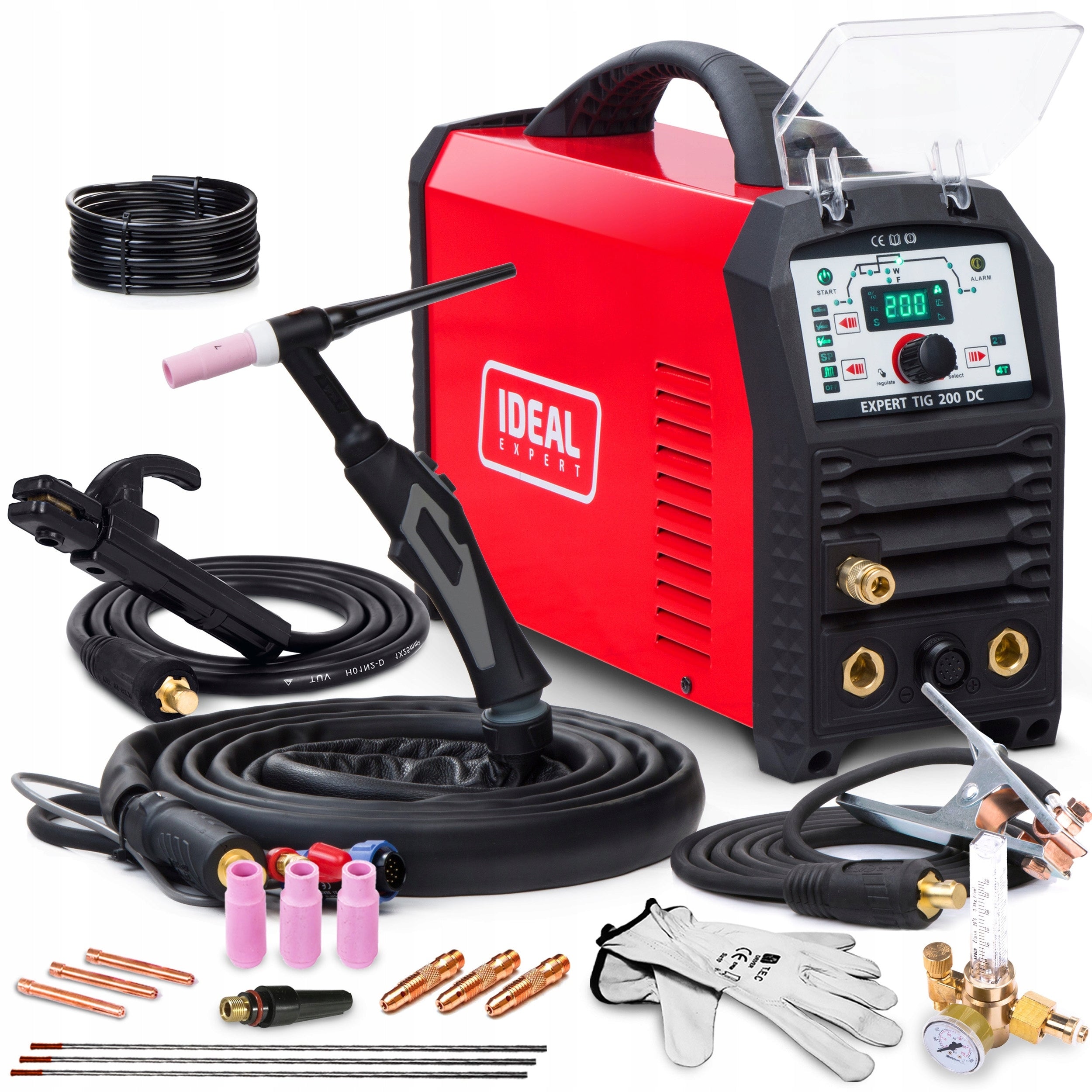

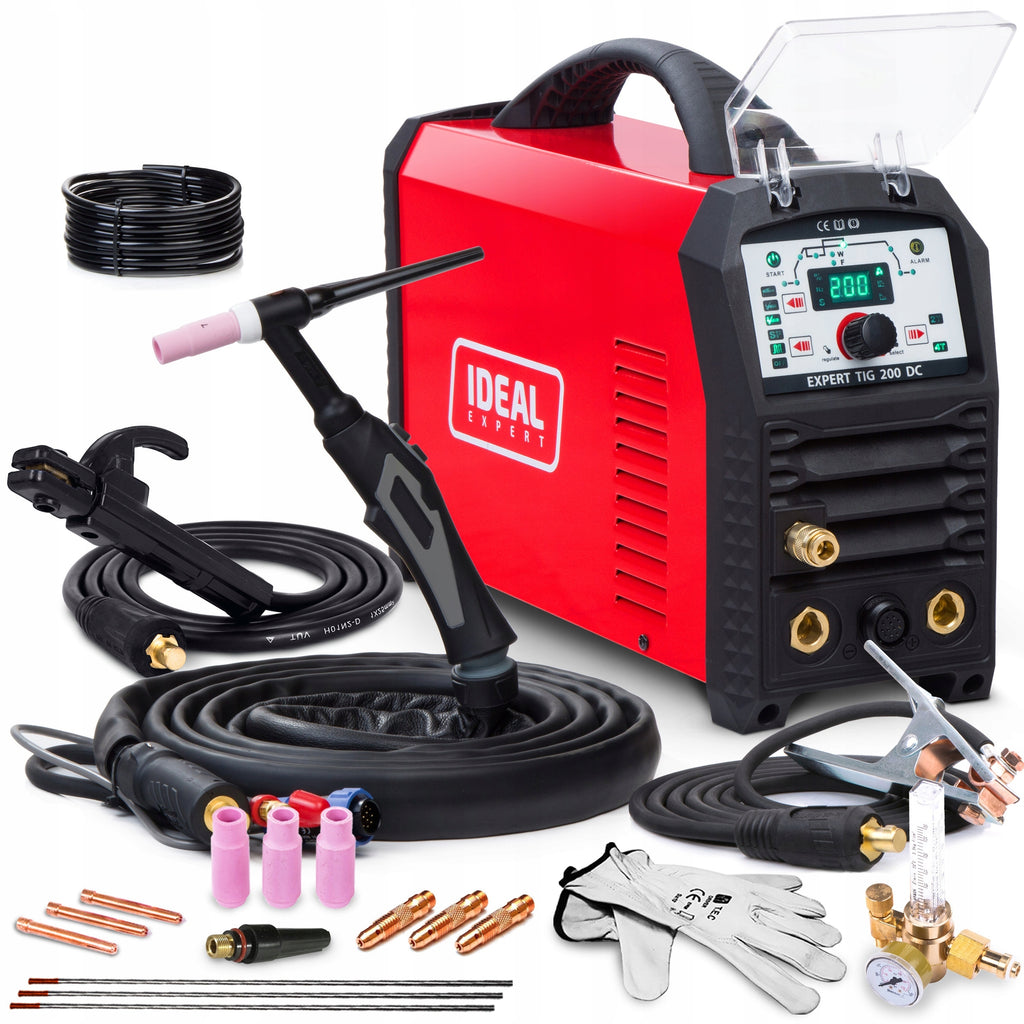

INCLUDED :

• Reducer with rotameter - precise reducer with regulation. Our model has a manometer to control the pressure in the cylinder and a rotameter to precisely set the working pressure.
• Flame retardant gloves for TIG welding.
• Gas hose - to connect the reducer to the welding machine.

+ HANDLE CONSUMABLES:

• Ceramic nozzle - 3 pcs.
• Collet 1.6/2.4/2.0mm - 3 pcs.
• Connector 1.6/2.4/2.0mm - 3 pcs.
• Medium TIG plug SR 17/18/26 - 1 pc.
• Red TIG electrode 1.6/2.0/2.4mm - 3 pcs. - universal electrodes for welding all types of steel

• IDEAL EXPERT TIG 200 DC welder
• TIG torch type SR 26 - 4m
• Mass handle - 3m
• Electrode holder - 3m
• User manual and warranty card

+ ADDITIONAL ACCESSORIES:

• Ar/CO2 cylinder reducer with rotameter
• Gas hose
• TIG welding gloves
• Basic operating elements of the TIG torch (plug, electrode, sleeve, ceramic nozzle)

+ HANDLE CONSUMABLES:

• Ceramic nozzle - 3 pcs.
• Collet 1.6/2.4/2.0mm - 3 pcs.
• Connector 1.6/2.4/2.0mm - 3 pcs.
• Medium TIG plug SR 17/18/26 - 1 pc.
• Red TIG electrode 1.6/2.0/2.4mm - 3 pcs.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	8 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	35%
Parametry	Maximum electrode diameter	4 mm
Parametry	Device weight	7 kg
Parametry	Welding range	5–200 A
Parametry	Length of ground cable	300 cm
Parametry	Welding cable length	400 cm
Parametry	Product weight with unit packaging	11 kg
Parametry	Manufacturer code	EXTIG200DC
Parametry	EAN (GTIN)	5903991100146
Parametry	Packaging status	original
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,LCD display
