Suvirinimo inverteris IDEAL TECNOMIG 203 LED MIG/TIG/MMA TIG rinkinys

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL TECNOMIG 203 LED MIG/TIG/MMA TIG rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: TMIG203
• Ilgis: 440 mm
• Plotis: 170 mm
• Aukštis: 290 mm

Inverter welder MIgomat IDEAL TECNOMIG 203 LED MIG/TIG/MMA TIG set

IDEAL

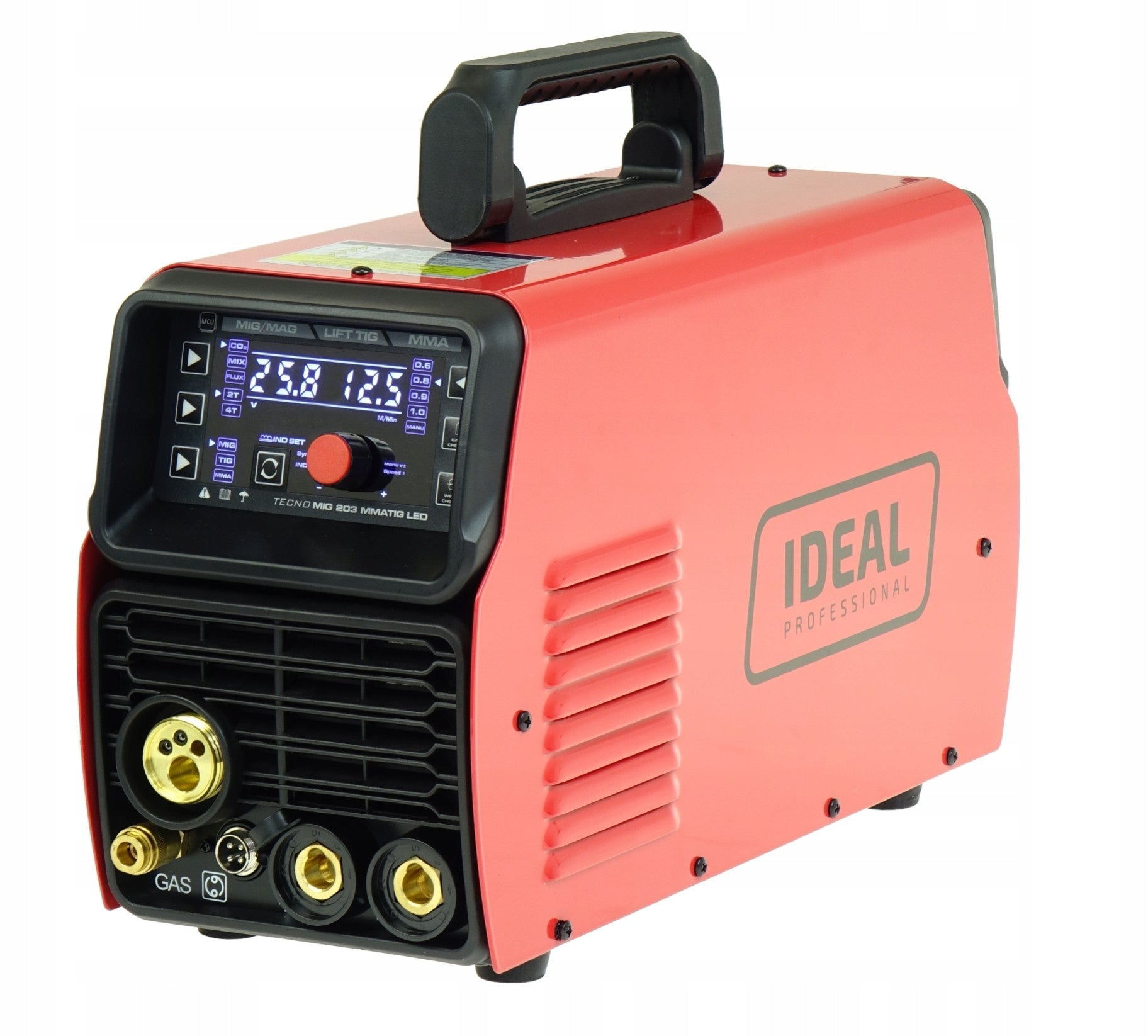

TECNOMIG 203 MIG/TIG/MMA SYNERGIC VRD is an inverter synergistic semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, MMA and FLUX methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

TECNOMIG 203 is used for soldering galvanized sheets, welding stainless steel, carbon steel and low alloy and aluminium. Welding is carried out in an inert gas, active gas or mixture shield, and with reverse polarity without gas.

With the MIG/MAG method, we can choose the button function in the handle between working in 2T mode (without button lock)/4T (button lock for long welds)

With the MMA method, we have the ability to enable the VRD (VOLTAGE REDUCTION Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides over-the-counter safety when working in humid environments.

✅ Welding Current 200A

✅Gnizado EURO

✅LCD display

✅ TIG 17 HANDLE included

✅Ready-made TIG and MIG welding machine

✅Welding trolley included

✅Professional feeder

✅Synergy - is a function of MIG/MAG welding machines, which allows for automatic selection of welding parameters, we choose the type of welded material, wire diameters, shielding gas and welding current or material thickness and the device will automatically select the appropriate welding parameters from these settings we can make slight adjustments

✅Inductance regulation – allows you to reduce the amount of heat at the welding site. The sheet does not deform and the protective layer of zinc is not damaged, the function used for lutowelding. Higher inductance (soft arc) results in a wider welding lake and less chipping. In contrast, lower inductance produces a stable, focused arc.

✅LUTOSPELING - MIG/MAG soldering has adopted a name created from two different technologies. Soldering as a bonding process in which there is no melting of the native material only solder and MIG / MAG welding technology, from which the preparation of the edges of the material as for welding and the method of melting the wire in the electric arc in the atmosphere of protective gases, fed automatically from the spool, were used. Soldering could be called soldering by welding method. The protective gas used is most often pure argon

In the welding process, evaporating zinc is the cause of the porosity of welds, because high temperatures formed in this area destroy the protective layer, the combined elements lose their corrosion resistance. Mechanical removal of zinc before welding as well as re-application in places where evaporation has occurred is a very expensive process. Supplementing cavities with zinc preparations (paints) does not sufficiently protect the structure against corrosion. In addition, it should be noted that when welding galvanized sheets, there is a very large emission of zinc vapors harmful to health. These inconveniences can be avoided by using MIG/ MAG soldering technology.

✅IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

✅Aluminum welding capability

✅ adjustable feeder access speed,

✅Function 2/4 Bar

✅Professional 2-roll feeder

✅ 2T/4T - at two bars after pressing the start button, the welding process is stopped after releasing the button - at four bars after the first press and release of the button, the welding process takes place at the second press, it is a more convenient solution for longer welds.

✅ FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

✅ Inductance regulation - allowing less heat to be introduced into the welding site. The sheet does not deform and the protective layer of zinc is not damaged, useful in lutowelding.

✅ LUTOSPELING - this method is quite similar to MIG/MAG welding, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material with which we work. The second part of the name, MIG/MAG, comes from the use of the method of melting wire in an electric arc surrounded by protective gas, as well as from the preparation of the edge of the material in the same way as for traditional welding. However, the soldering method is used not only for bonding galvanized sheets, but also thin sheets made of stainless steel and various connections, m.in. acid-resistant steel of ordinary quality steel or copper with steel.

✅ Synergy - is a function of MIG/MAG welding machines, which allows for automatic selection of welding parameters, we choose the type of welded material, wire diameters, shielding gas and welding current or material thickness and the device will automatically select the appropriate welding parameters from these settings we can make slight adjustments

✅ IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

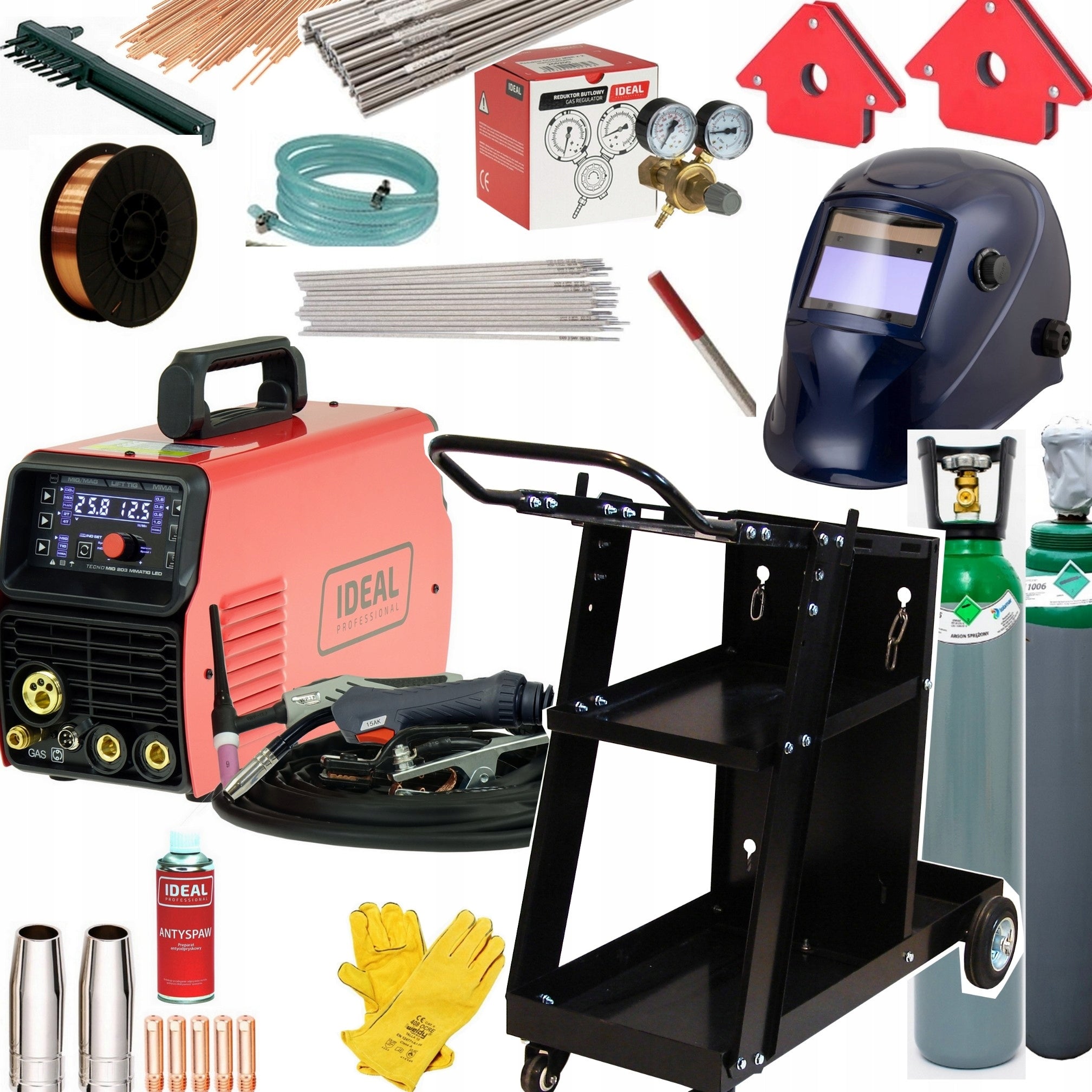

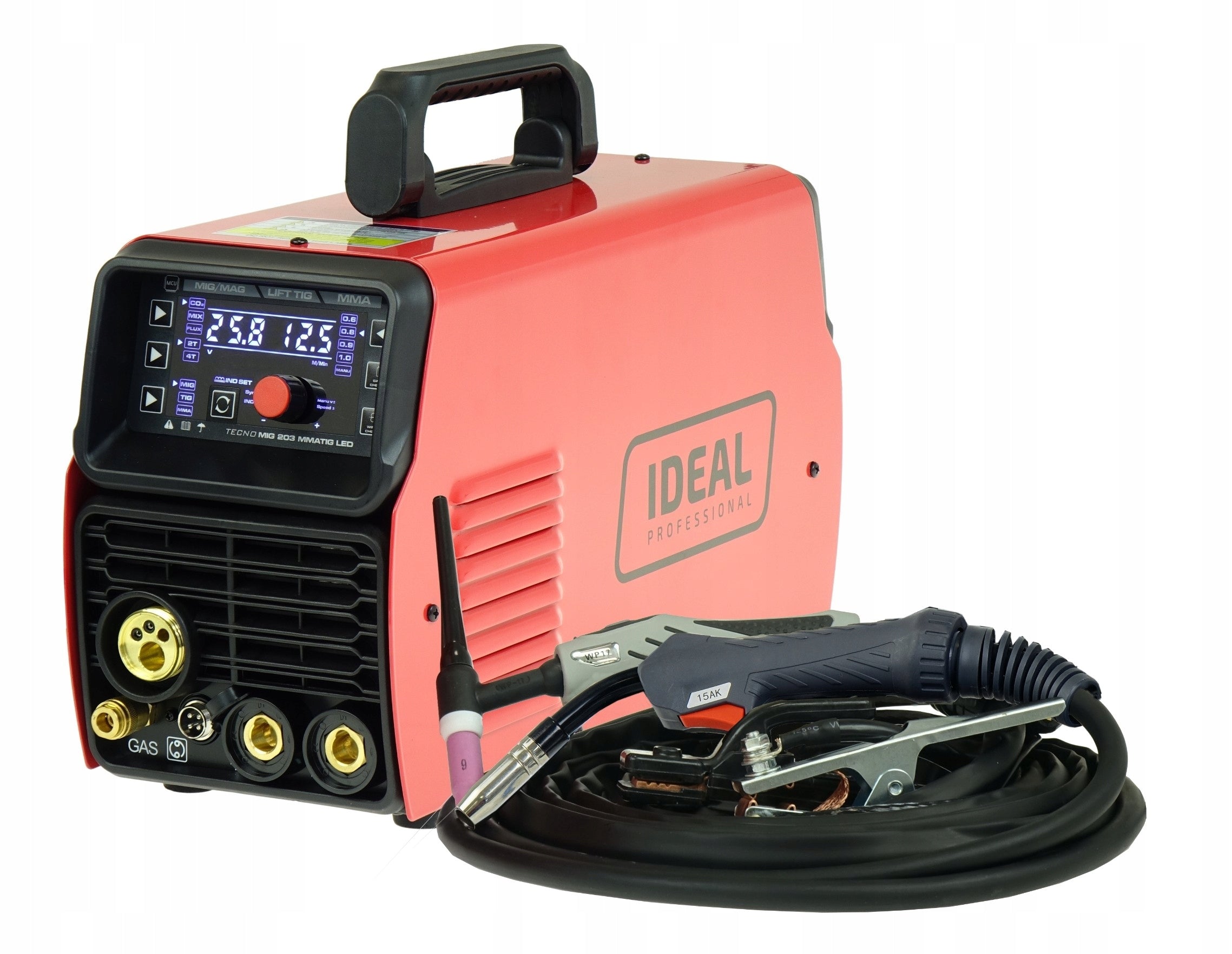

Delivery includes a device with a welding torch

• MIG 15 with a length of 3 meters,
• 2 meter long mass cable
• electrode cable with a length of 3 meters
• Operating elements of handles
• New 8l cylinder filled with CO2/AR Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization 10 years - CAN be exchanged at any distributor
• Mini reducer
• Welding wire Sg2 0,8/5 KG
• Anti-chipping SPRAY
• Welding gloves
• 2 x Gas Nozzle
• 5 x Current Tip
• APS 510 visor
• 1Kg rutile electrodes
• Welding Angles 12kg x 2
• Universal trolley IDEAL 4-wheel,3 shelves
• Gas line
• TIG LIFT set
• TIG LIFT 9V handle
• Red electrode 1,6
• Steel Wire Starter Kit 0,5kg
• Stainless Steel Wire Starter Kit 0,5KG
• New 8l cylinder filled with ARGON Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization 10 years interchangeable at each distributor.

• Power supply network protection: 25 A immediate (type C)
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power:5,9 kW
• Idle Voltage:50 V
• Current at work 100%:155 A
• Current at 60% operation:200 A
• Aluminium wire diameter:0,8 - 1,0 mm
• Wire diameter for soldering:0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,6 - 1,0 mm
• Welding electrode diameter: 1,6 - 4,0 mm
• Welding Current Adjustment Range: 50 - 200 A (MIG) / 10 - 160 A (MMA) / 10 - 200 A (TIG)
• Wire spool size: 5 kg
• Degree of protection: IP21S
• Weight of the device / set: 12 / 14 kg
• Overall dimensions L x W x H: 440x170x290 mm
• Package Dimensions L x W x H: 505x340x335 mm



APS welding visors with variable degree of protection DIN 4/9-13, variable lightening time and the ability to set sensor sensitivity.

Designed for MIG/MAG, TIG and TIG PULSE and MMA welding, equipped with grinding function.

High quality LCD filters in optical class 1/1/1/2.

Power source: photovoltaic cell + replaceable battery.

4-spoke adjustable headrest ensures comfort of use.

The shell conforms to EN175B for greater impact resistance.

PHYSICAL PARAMETERS

• Type of welding filter: APS-510G
• Weight: 475g
• Filter size: 96x39 mm

TECHNICAL PARAMETERS

• Response time: < 1/30000s
• Number of sensors: 2
• Optical class: 1/1/1/2
• UV/IR protection: up to 16 DIN
• Dimming adjustment: 4/9-13 DIN
• Adjustable sensitivity: √
• Adjustable delay: Gradually 0.1-1.0s
• Standard: CE, EN175B, EN379, EN166
• Battery depletion rate: √
• Power supply: Photovoltaic cell + battery 1xCR2032

APPLICATION

• Plasma cutting: √
• MIG/MAG ; MMA: √
• Grinding: √
• TIG, minimum current: √, >10A

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	7.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	12 kg
Parametry	Welding range	10–200 A
Parametry	Height	290 mm
Parametry	Length	440 mm
Parametry	Width	170 mm
Parametry	Length of ground cable	2 cm
Parametry	Welding cable length	3 cm
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	TMIG203
Parametry	EAN (GTIN)	5906329653406
Parametry	Packaging status	original
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
