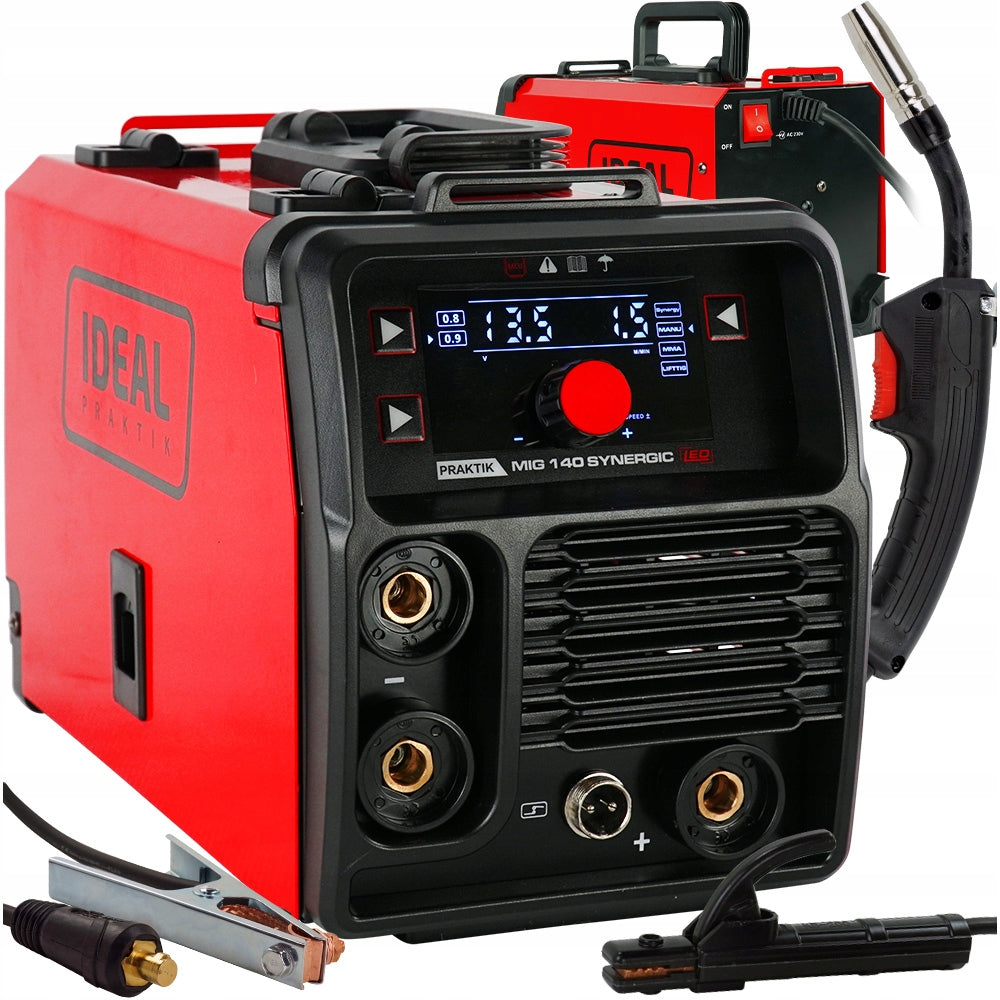

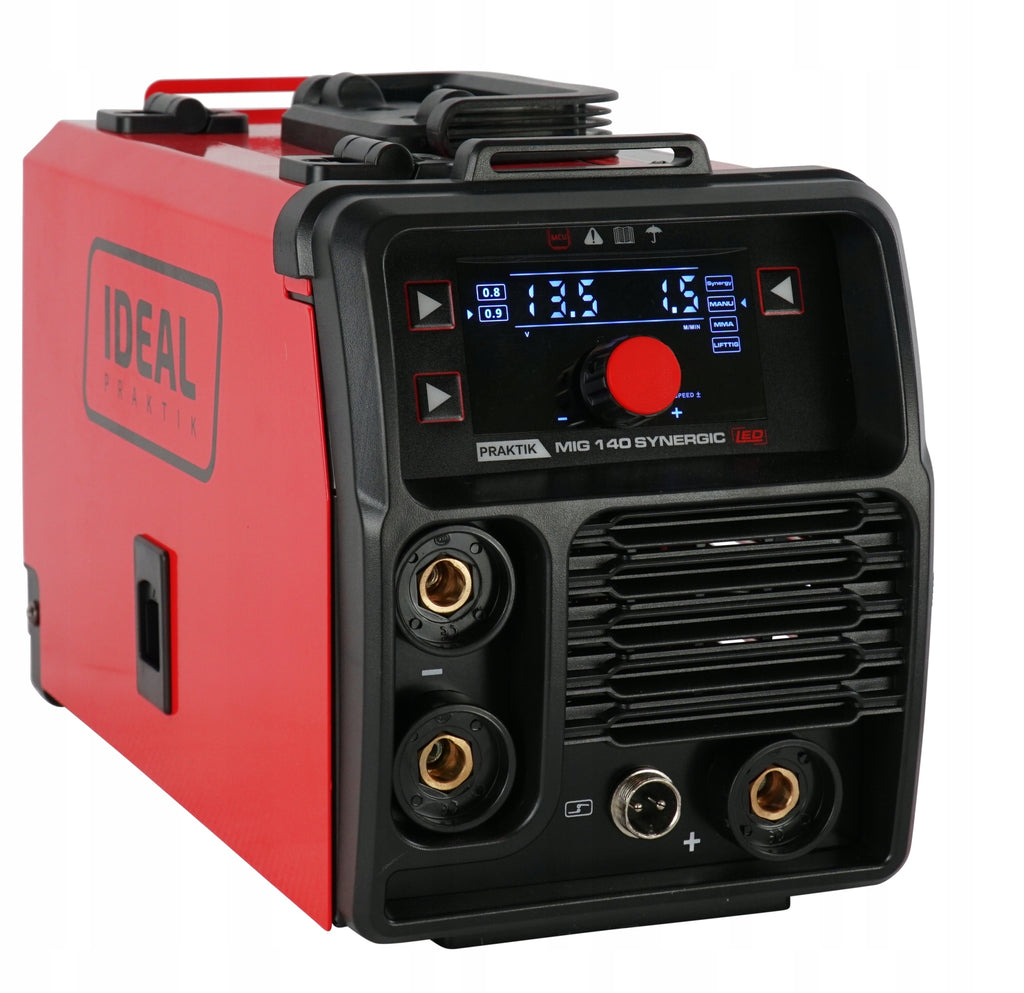

Suvirinimo inverteris IDEAL PRAKTIK MIG 140 SYNERGIC LED, pusiau automatinis

Trumpai apie prekę

Prekė: Suvirinimo inverteris IDEAL PRAKTIK MIG 140 SYNERGIC LED, pusiau automatinis. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: PRAKTIK MIG 140 SYNERGIA
• Ilgis: 305 mm
• Plotis: 160 mm
• Aukštis: 240 mm

✅WELDING METHODS: MIG NO GAS, MMA, TIG LIFT

✅Welding current: MIG: 30-140A, MMA/TIG LIFT 15-140A

✅Synergy

✅good electronics inside and functionality

✅high 60% duty cycle for rated current,

✅made in IGBT inverter technology,

✅small size and handle for safe handling in the field,

✅Power supply voltage: single-phase 230V,

✅Manufacturer: IDEAL.

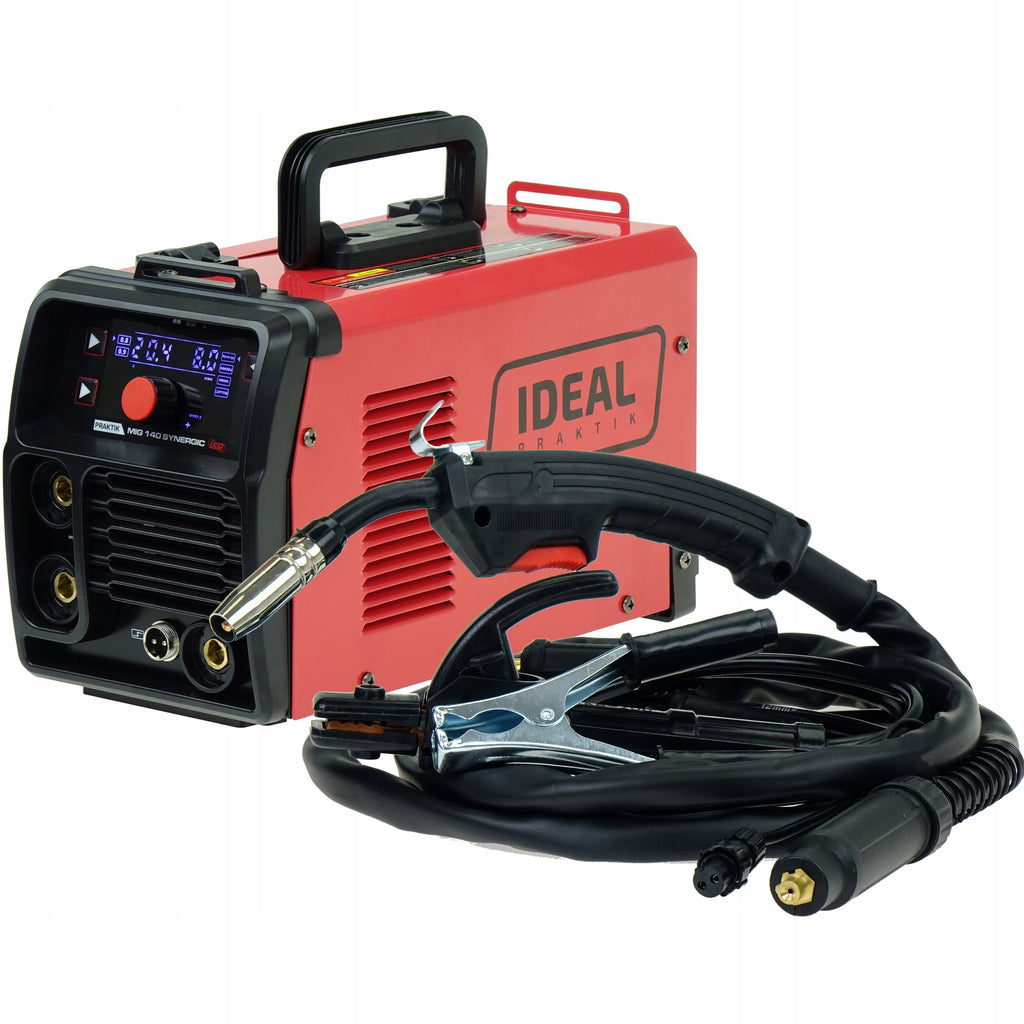

⏩WHAT WILL YOU FIND IN THE PACKAGE?

✔ IDEAL PRAKTIK MIG 140 SYNERGIC LED

✔ MIG holder TW-14 2m

✔ Mass cable

✔ Electrode cable

✔ Operating instructions

PRAKTIK MIG 140 SYNERGIC LED is a synergistic inverter semi-automatic welding machine designed for arc welding using the FLUX, TIG LIFT and MMA methods. The device has been designed for a wide range of applications: from maintenance work to repairs of simple steel structures.

Welding is carried out using self-shielding wire, without additional gas (FLUX), or in an inert gas shield (TIG LIFT only).

The FCAW method is arc welding with core wire (powder). It is a welding method similar to the MIG/MAG method, except that the wire inside is filled with flux or a chemical that produces protective gases during welding. FCAW welding combines the advantages of both wrapped electrode welding and MAG welding.

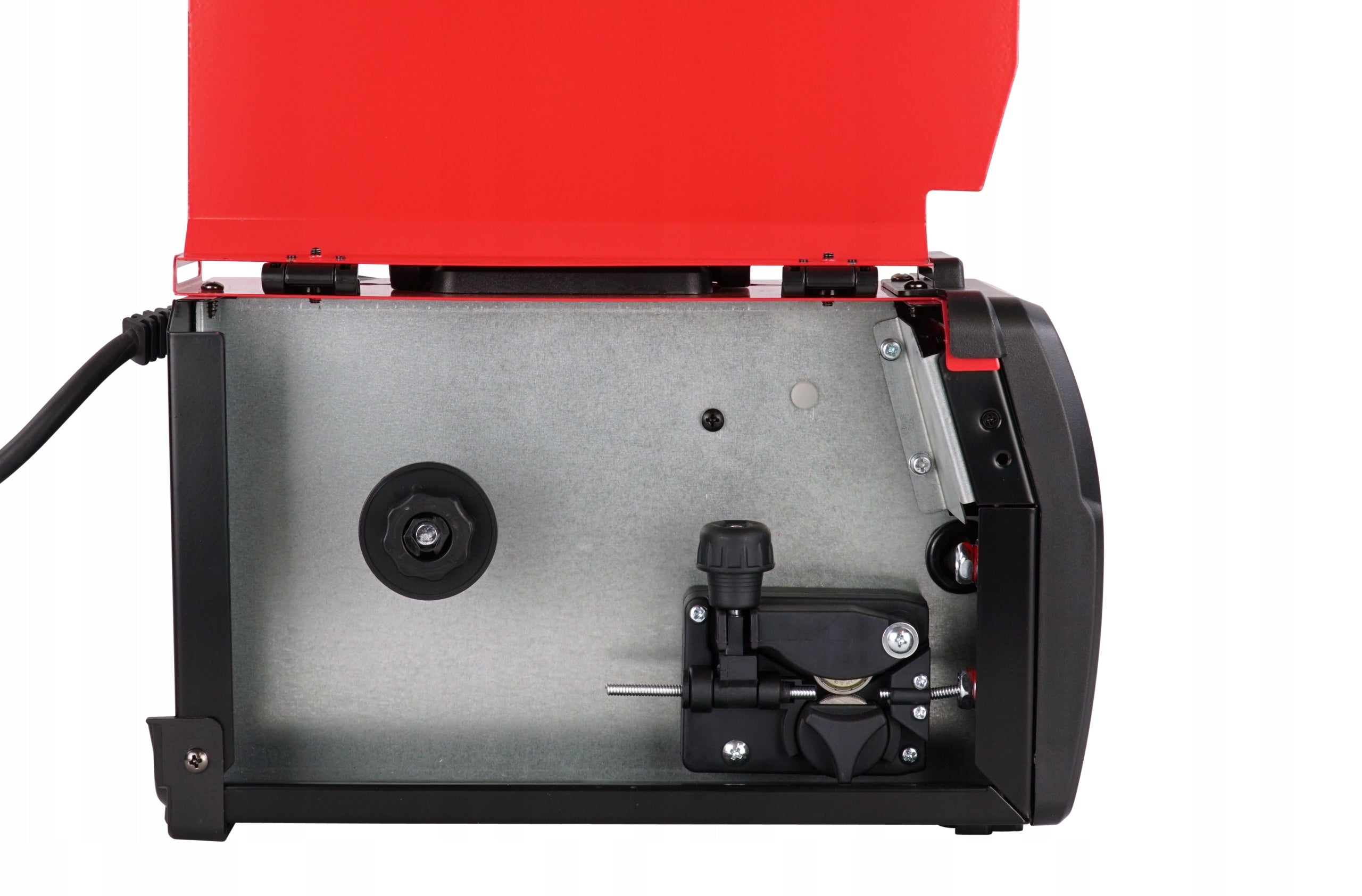

Professional 2R wire feeder - it is a reliable wire feeding regardless of the spool weight and type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

The device is made of elements that allow for effective operation of the welding machine in demanding conditions.

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

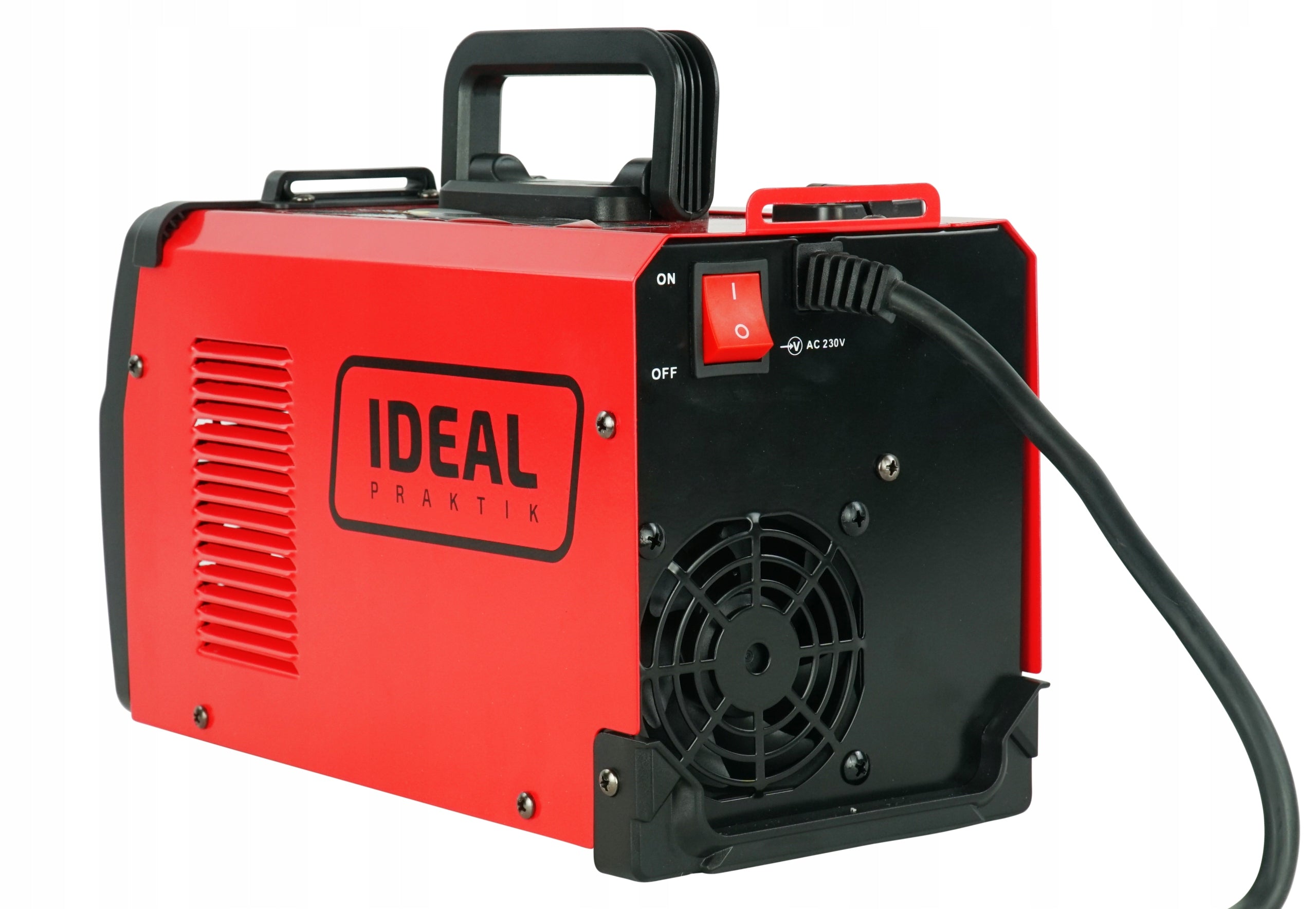

The handle attached to the welding machine housing allows it to be comfortably moved to its destination.

⏩POWER SUPPLY PARAMETERS

• Power Supply: 230V
• Welding methods: self-shielding wire, mma
• Maximum welding current: 140A
• Working cycle: 60%
• Net weight: 3,5kg
• Degree of protection: IP21S
• Idle current voltage 56 V

⏩Welding parameters

• Welding Current: 30 - 140A
• MIG parameters adjustment: smooth
• Wire diameter: 0,8 /0,9/1,0 mm
• Wire spool weight: max. 1kg - D100

⏩ TIG LIFT welding parameters

• Welding Current: 15 - 140A

⏩ MMA welding parameters

• Welding Current: 15 - 140A
• Efficiency (at 40°C) 60% 140A
• Efficiency (at 40°C) 100% 108A

• FCAW (FLUX) - a popular variant of the MAG method - semi-automatic welding with a hot melt electrode (welding wire on a spool). The main difference is that it is welded with a special self-shielding wire, which does not require the use of shielding gas. Simplifying, we can say that this method combines two processes: MAG welding and MMA electrode welding.

• MMA - this is probably the best known and widespread welding method. The type and diameter of the wrapped electrode is selected depending on the type of material being welded. The MMA method does not require shielding gases. Welding is carried out using an electrode in a special sheath, which under the influence of the heat of the welding arc melts to form a weld. Melting sheath provides protection for the welding lake.

• IGBT - welding machine is made in modern inverter technology using IGBT transistors. Thanks to this, it has stable welding parameters, enjoys high efficiency and, above all, ensures good welding quality.

Choose a brand whose history dates back to the beginning of the twenty-first century. Ideal is the leading brand of welding equipment in Poland.

A wide range of Ideal devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Ideal brand most often due to its high quality, affordable price and reliability.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	11 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	3.5 kg
Parametry	Welding range	30–140 A
Parametry	Height	240 mm
Parametry	Length	305 mm
Parametry	Width	160 mm
Parametry	Length of ground cable	120 cm
Parametry	Welding cable length	200 cm
Parametry	Product weight with unit packaging	6 kg
Parametry	Manufacturer code	PRAKTIK MIG 140 SYNERGIA
Parametry	EAN (GTIN)	5903991109903
Parametry	Model	PRAKTIK MIG 140 SYNERGIA
Parametry	Welding methods	MIG/MAG,MMA,TIG

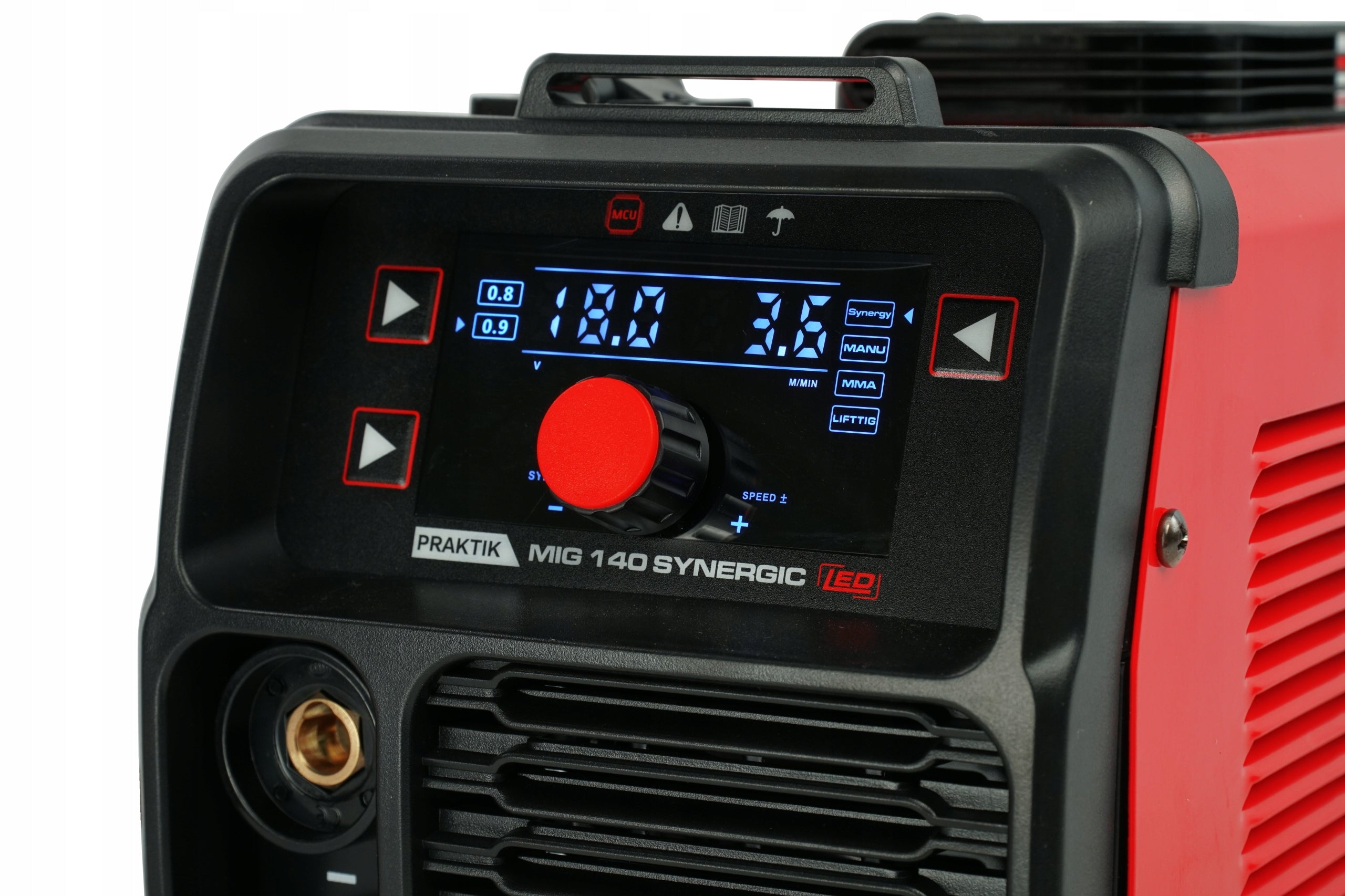

Parametry	Additional features	infinitely adjustable welding current,LCD display
