Trumpai apie prekę
Prekė: Suvirinimo aparatas Weldman Tornado 200 TIG AC DC MMA Pulse 200A 230V ALU. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: 103 037
Manufacturer: WELDMAN ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
TIG welding machine for aluminum, steel and INOX easy to use! A popular and proven model of a good brand WELDMAN!
The WELDMAN TORNADO inverter welding machine allows for quality welding of all weldable materials. The very high efficiency of the device allows for a wide range of applications and instant adjustment of the current to changes in parameters during welding. One of its most important advantages is the possibility of obtaining a clean, high-quality weld.
ADVANTAGES OF THE DEVICE:
- Quality welding of aluminum and its alloys
- Full panel TIG - AC/DC
- High efficiency of 60% at 200A current
- Non-contact arc initiation - HF ionizer
- Fully adjustable TIG PULS welding
- Professional 4m welding torch
WELDMAN TORANDO TIG is a proven model that is distinguished by its robustness and reliability. The welder will work in both small workshops and large production plants.
ADDITIONALLY COMPLETE WELDING SET:
GAS CYLINDER, REGULATOR, HOSE
IGBT TECHNOLOGY
The TORNADO TIG device is an inverter welder made of technologically advanced components. The use of inverter technology has reduced the dimensions and weight of the device, which makes it possible to work in hard-to-reach places.
WELDING WITH PULSE
Thanks to the pulse welding function and the possibility of adjusting its parameters, we have an impact on the arc focus and the shape of the weld, as well as the possibility of welding thin elements . This guarantees the purity and high quality of the weld. Arc ignition is carried out using a built-in HF ionizer, which allows contactless ignition of the welding arc .

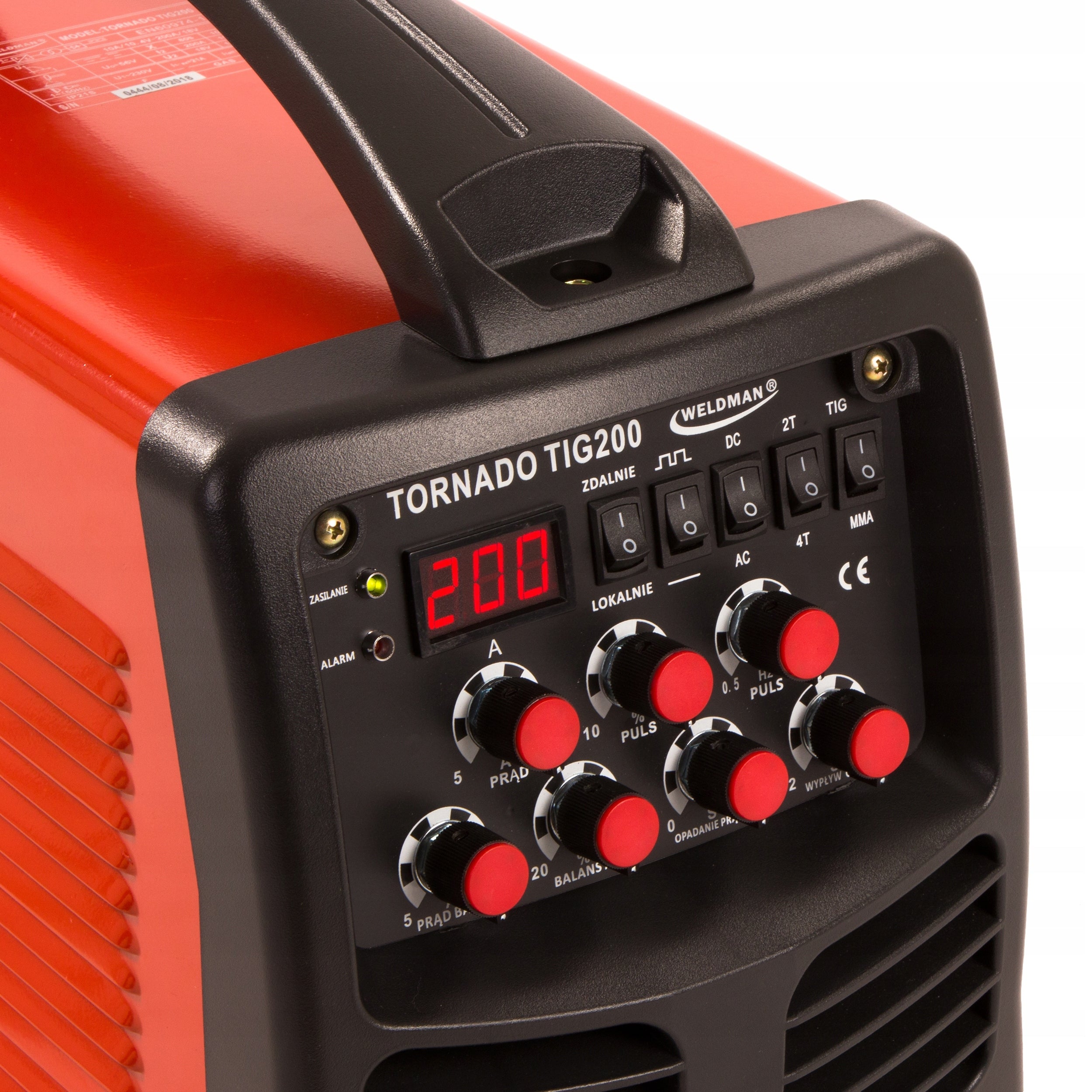

INTUITIVE CONTROLS
The welder has quick and easy-to-use control using dedicated knobs . Each is responsible for a different parameter and allows you to precisely set the desired value. What's more, from the control panel using the buttons, you can select the welding method and the 2T function (welding with the torch button pressed), or 4T used for longer welds (without having to hold the torch button).
PROFESSIONAL TIG WELDING TORCH - 4m
The welder is equipped with a professional TIG welding holder, type SR 26 , 4m long. The cable of the handle has been equipped with a handle with a joint, thanks to which it does not restrict movement and greatly facilitates work.
REMOTE CONTROL
The great advantage of the welder is the welding current adjustment function using the remote control pedal . Thanks to this, remote, wired adjustment of the welding current is possible.
Remote control will work well in works where frequent changes of current intensity are needed, e.g. in the field of construction. welding rims or aluminum structures .
ATTENTION !!!
The pedal is not included, but is available in our other auctions.
(copy and paste the link in your browser window)

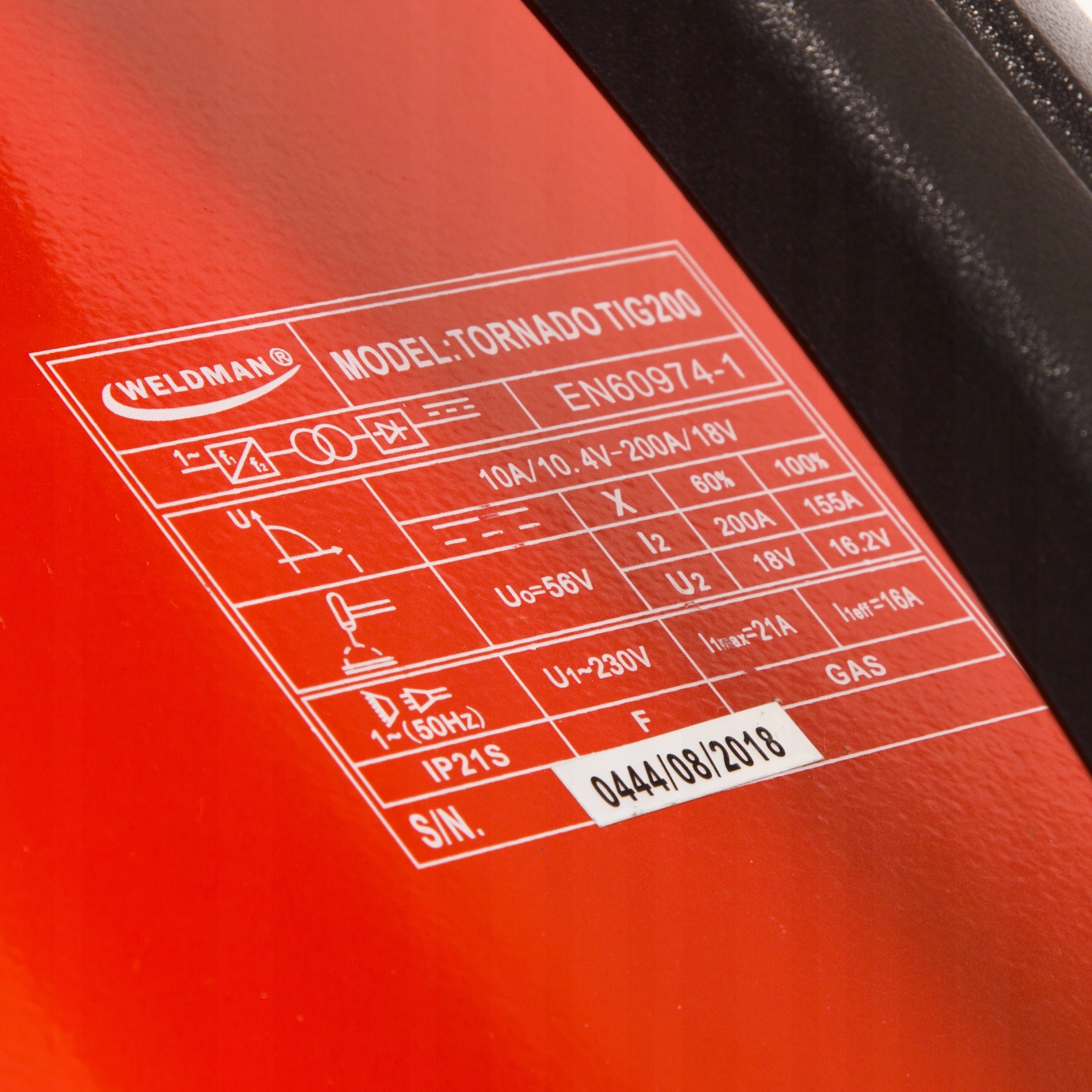

POWER PARAMETERS
- Power supply: 230V
- Frequency: 50Hz
- Number of phases: 1ph
- No-load voltage: 62V
- Mains protection: 20A
TECHNICAL PARAMETERS
- TIG welding current: 10-200A
- TIG duty cycle: 60%
- TIG welding voltage: 10.4 - 18V
- MMA welding current: 10-200A
- MMA duty cycle: 60%
- MMA welding current voltage: 20.4 - 28V
ADDITIONAL FEATURES
- PULSE function: YES
- AC function: YES - aluminum welding
- DC function: YES
- HF function: YES
- 2T/4T function: YES
PHYSICAL PARAMETERS
- Insulation class: IP21S
- Security grade: F
- Weight: 17kg
- Dimensions: 480x240x400mm
SET COMPOSITION:
- Brand new reusable Argon gas cylinder with a capacity of 8l and a pressure of 200bar. The cylinders have a 10-year legalization and can be filled at any point with technical gases .
- Reducer with rotameter - precise reducer with regulation. Our model has a manometer to control the pressure in the cylinder and a rotameter to precisely set the working pressure.
- Gas hose - to connect the reducer to the welding machine.
ESSENTIAL KIT NEEDED TO START WELDING WORKS WITH A TIG WELDING MACHINE
You can choose a welding helmet yourself by looking at our other auctions or rely on our help.

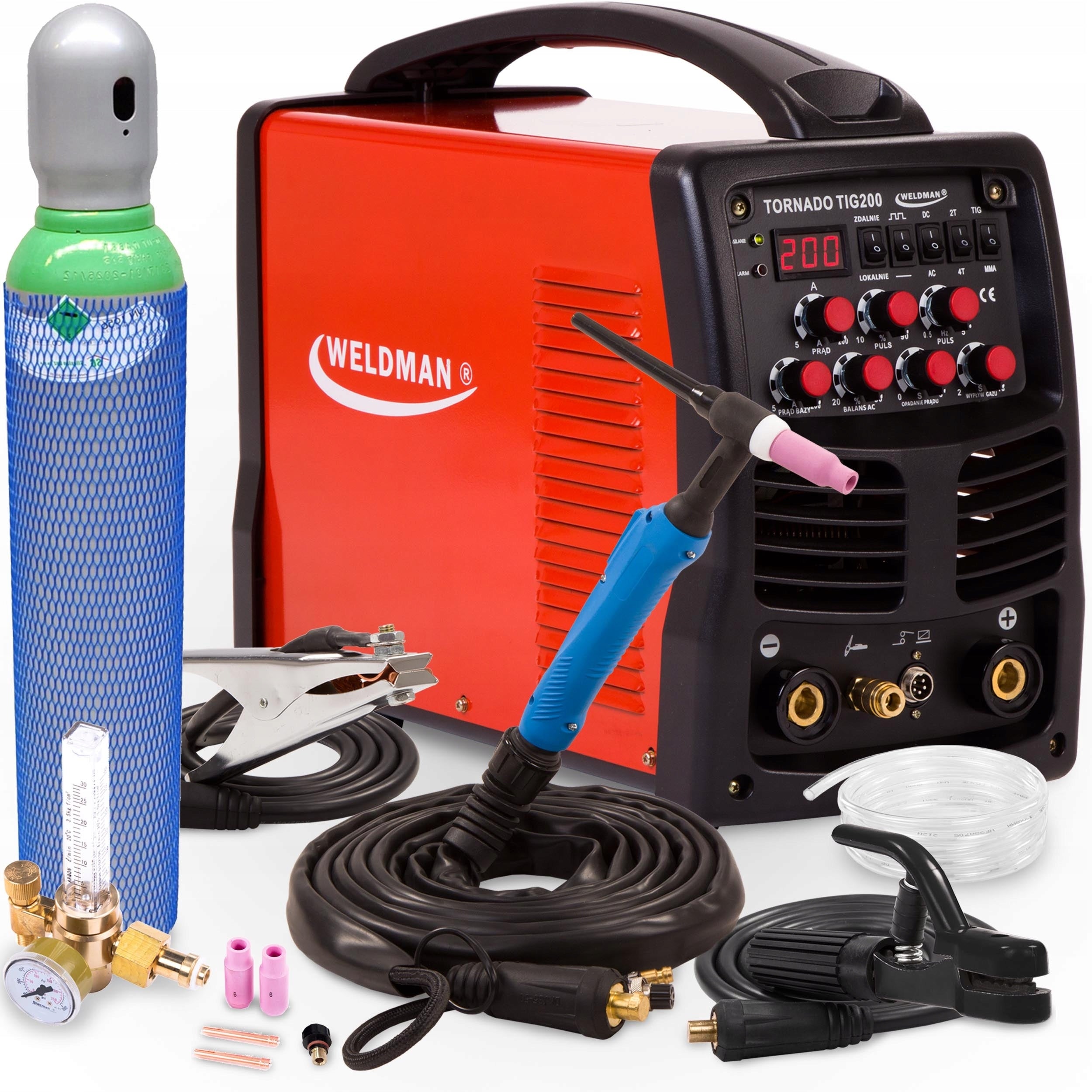

THE POT CONTAINS:
- WELDMAN TORNADO TIG 200 welder
- TIG welding torch type SR26 - 4m
- Mass handle - 2m
- Electrode holder - 2m
- User manual and warranty card
+ WELDING ACCESSORIES:
- Argon gas cylinder 8l
- Ar/CO2 cylinder reducer with rotameter
- Gas hose
+ CONSUMABLE PARTS OF THE HANDLE:
- Ceramic nozzle - 3 pcs.
- Short plug - 1 pc.
- long stopper - 1 piece
- Current connector - 1 pc.
- Sleeve - 3 pcs.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 17 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Manufacturer code | 103 037 |
| Parametry | EAN (GTIN) | 5902701751265 |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
