Suvirinimo aparatas Weldman Mistral MIG 210 Synergy 5in1 TIG MMA Plasma su 2 balionais

Trumpai apie prekę

Prekė: Suvirinimo aparatas Weldman Mistral MIG 210 Synergy 5in1 TIG MMA Plasma su 2 balionais. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Weldman
• Modelis: Mistral MIG 210 SYNERGIA WELDMAN SPAWARKA I PLAZMA
• Ilgis: 520 mm
• Plotis: 220 mm
• Aukštis: 400 mm

MISTRAL MIG 210 SYN SEMI-AUTOMATIC WELDING MACHINE - versatility and power in one device! ✅

Manufacturer: Weldman ║ Welding methods: MIG/MAG, MMA, FLUX, TIG Lift and plasma cutting ║ Power supply: 230 V ║ Welding current: 200 A ║ Duty cycle: 60%

5-in-1 welding and cutting set - set with 2 full cylinders: Argon/CO2 for MIG welding and Argon for TIG welding

You are purchasing a complete set for MIG/MAG welding, TIG Lift, MMA and plasma cutting . The package includes a Weldman Mistral MIG 210 welding machine , 4 handles , 2 full cylinders , a reducer, wire, a helmet, gloves and starting accessories. This is a quick start to work without selecting the most important elements in several separate auctions.

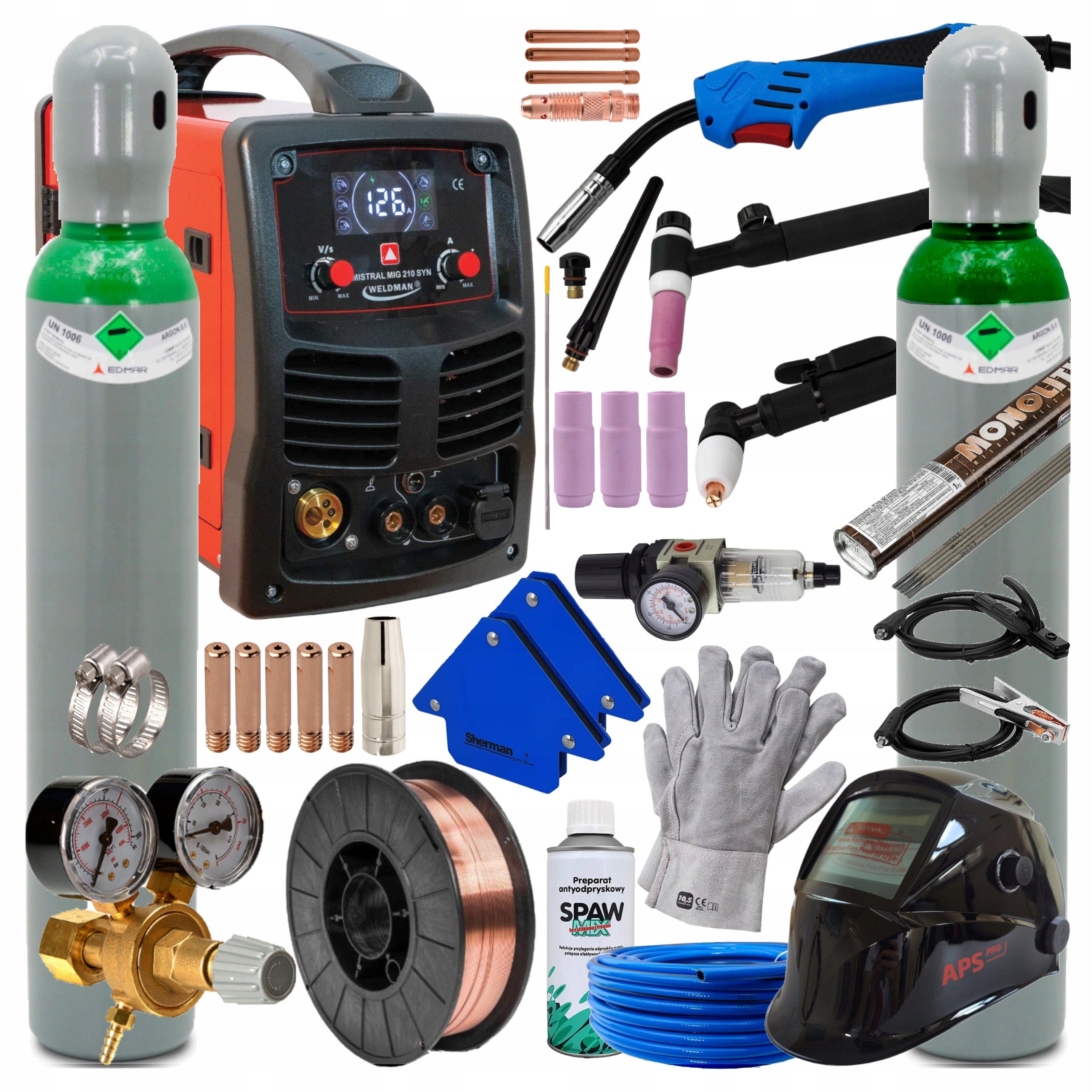

✅ Package includes

First, you see the most important elements of the set: the device, handles and accessories for working with several methods.

⚙ Welding machine and 4 handles

• Welder Weldman MIG 210 SYN
• Welding torch WP 17V - 4 m
• Plasma cutting holder PT-31 - 4 m
• MIG/MAG welding torch type MB15 - 3 m
• Electrode holder - 2,5 m
• Bulk holder - 2 m

✅ Cylinders and gas connection

• Gas cylinder - Argon 99,9%
• Gas cylinder - Argon/CO2 mixture
• Reducer - 1 pc.
• Gas hose - 2 m
• Worm band - 2 pcs.

This is part of the set that allows you to prepare a stand for MIG/MAG welding and TIG Lift.

⚡ Starting materials and accessories

• Steel wire SG2 - spool 5 kg
• Welding angles - 2 pcs.
• Welding gloves MIG long - 1 pc.
• Anti-chipping preparation SPAWMIX spray - 400 ml

⚙ TIG, MIG and MMA consumable parts

• Tungsten electrode - 1 pc.
• Gas nozzle for TIG Lift handle - 3 pcs.
• Current switch - 1 pc.
• Terminal bushing - 3 pcs.
• Long cork - 1 pc.
• Short cork - 1 pc.
• Current tip 0,8 mm - 5 pcs.
• Gas nozzle for MB-15 - 1 pc.
• Wrapped electrodes - pack of 1 kg
• Welding hammer - 1 pc.
• Welding brush - 1 pc.
• Welding mask/disc - 1 pc.

Why does this set make a difference?

This is important because with such a device, the customer often does not know what else to buy. Here he gets not only a welder and cylinders, but also a practical stock of items to start.

⚙ The most important functions of the device

• 5in1 device: MIG/MAG, FLUX, TIG DC Lift, MMA and plasma cutting,
• inverter technology IGBT,
• synergy - easier to set parameters,
• EURO handle,
• LCD display,
• power supply 230 V,
• maximum welding current 200 A,
• work cycle 60%,
• support for wire spools up to 5 kg,
• MIG/MAG wire diameter: 0,6-1,0 mm,
• FLUX wire diameter: 0,8-1,0 mm,
• maximum cutting thickness: 12 mm.

⚡ MIG/MAG welding parameters

• welding current: 40-200 A,
• work cycle: 60%,
• intensity at 60%: 200 A,
• intensity at 100%: 155 A,
• voltage at 60%: 24 V,
• voltage at 100%: 20,7 V,
• maximum current consumption: 15,5 A.

⚡ TIG DC Lift Parameters

• welding current: 15-200 A,
• work cycle: 60%,
• intensity at 60%: 200 A,
• intensity at 100%: 155 A,
• voltage at 60%: 18 V,
• voltage at 100%: 15,3 V,
• maximum current consumption: 14 A.

⚡ MMA Parameters

• welding current: 40-200 A,
• work cycle: 60%,
• intensity at 60%: 200 A,
• intensity at 100%: 155 A,
• voltage at 60%: 28 V,
• voltage at 100%: 25,3 V,
• maximum current consumption: 16 A.

⚡ Parameters of plasma cutting

• cutting current: 20-40 A,
• work cycle: 60%,
• intensity at 60%: 40 A,
• intensity at 100%: 31 A,
• voltage at 60%: 96 V,
• voltage at 100%: 90,7 V,
• maximum current consumption: 15 A.

⚖ Dimensions and power supply

• Power supply: 230 V,
• network security: 20 A,
• degree of protection: IP21,
• dimensions of the device: 520 x 220 x 400 mm,
• weight of the device: 14 kg.

Nameplate and power consumed

The rating plate of the Mistral MIG 210 SYN model shows the power supply U1 = 230 V and the maximum input current for the MIG method: I1max = 33,6 A.

On this basis, the power consumed is:

• 230 V x 33,6 A = 7728 VA,
• 7,73 kVA.

This is the maximum value calculated from the data from the device nameplate.

🛡 Self-tinting visor APS-510G

The set includes self-tinting visor APS-510G with True Color filter, designed for welding MIG/MAG, TIG, TIG Pulse and MMA and for grinding.

True Color technology helps you see the welded element in more natural colors. This is important for longer work, setting elements and controlling the weld. The visor has a adjustable header, grinding function and an LCD filter in optical class 1/1/1/2.

Key data:

• filter optical class: 1/1/1/2,
• filter dimension: 96 x 39 mm,
• Response time: < 1/30000 s,
• number of sensors: 2,
• UV/IR protection: up to 16 DIN,
• dimming adjustment: 4/9-13 DIN,
• adjustable sensitivity,
• adjustable delay of 0,1-1,0 s,
• power supply: photovoltaic cell + CR2032 battery,
• Weight: 475 g.

✅ Argon/CO2 MIX cylinder

The MIX cylinder contains a mixture of Argon 82% and CO2 18%. It is one of the most popular shielding gases for MIG/MAG welding. In practice, this means that the customer has in the set gas needed to start welding steel using the MIG/MAG method.

The cylinder is factory new, light, full and has legalization. It has a robust metal cap that protects the valve during transport and storage. The cylinder can be refill at the point of filling the gas cylinders.

Parameters of the cylinder:

• capacity: 8 l,
• working pressure: 150 bar,
• amount of gas: 1,5 m3,
• dimensions: 136 x 820 mm,
• Weight: 14,5 kg.

✅ Argon cylinder

The Argon 99,998% cylinder is designed for m.in. to work with the TIG Lift method. This is important because in this offer the customer gets not only a TIG handle, but also the shield gas needed to use this function.

The cylinder is new, full and has a minimum of 9-year legalization. It has a solid metal cap to protect the valve during transport and storage. The cylinder can be refill at the point of filling the gas cylinders.

Parameters of the cylinder:

• capacity: 8 l,
• working pressure: 150 bar,
• amount of gas: 1,5 m3,
• dimensions: 136 x 820 mm,
• Weight: 13,5 kg.

Other Elements That Make a Difference

SG2 Steel Wire

Steel wire SG2 0,8 mm is a universal electrode wire for welding low carbon and structural steels using the MIG/MAG method. It is used for CO2 shielding and Ar/CO2 mixture.

Thanks to the spool 5 kg, the customer does not get the device itself, but also the basic welding material to start working using the MIG/MAG method.

Wire parameters:

• Type: SG2,
• diameter: 0,8 mm,
• packaging: spool,
• Weight: 5 kg,
• application: low carbon steels, structural steels, sheets.

Gas reducer

Single-stage reducer for argon, mixture and carbon dioxide. It allows to reduce the pressure of gas taken from the cylinder to the working pressure and helps to keep it at stable during operation.

Parameters of the reducer:

• nominal inlet pressure: 185 bar,
• exhaust pressure range: 0,5-10 bar,
• nominal throughput: 20 m3/h,
• thread at the inlet: W 21.8x1/14,
• nut thread at outlet: G 1/4,
• outlet connector: 6,3 mm.

Gas hose and bands

The gas hose connects the welding machine to the reducer and gas cylinder. The set includes a hose with an internal diameter fi 6 mm and screw bands to attach the connection.

Included:

• gas hose - 2 m,
• Worm bands - 2 pcs.

Consumable parts for TIG handle

Elements to work with TIG Lift handle and prepare TIG welding kit. The most important distinguishing feature is the tungsten electrode, which is an element needed to use the TIG Lift method. Additional nozzles, bushings, connector and stoppers help prepare the handle for work and have basic parts at hand.

Included:

• tungsten electrode - 1 pc.,
• gas nozzle for TIG Lift handle - 3 pcs.,
• current switch - 1 pc.,
• terminal bushing - 3 pcs.,
• long cork - 1 pc.,
• short cork - 1 pc.

MIG welding gloves

The set includes long MIG welding gloves made of cowhide split leather. It is a practical starting element for welding and handling hot elements.

The gloves are full-body, without an insert, with a sewn-in cuff. This type of gloves works well in the workshop, because it does not restrict excessive movements and helps protect hands from abrasions and chipping.

Included:

• Welding gloves MIG long - 1 pc.

Welding Angles

Welding angles help with positioning of elements during operation. It is a simple addition that can make it very easy to set up profiles, pipes, flat bars or sheets before welding.

They can be used to set elements at 45, 90 and 135 degrees. The maximum lifting capacity of one angle is 12,5 kg.

Included:

• welding angles - 2 pcs.

MMA welding and machining accessories

Elements needed for welding with wrapped electrode and basic cleaning and post-weld processing. Monolith RC electrodes have rutile-cellulose coating and are designed for manual arc welding with direct or alternating current.

The hammer and brush help in cleaning the weld and preparing the elements after welding.

Included:

• wrapped electrodes - pack of 1 kg,
• welding hammer - 1 pc.,
• welding brush - 1 pc.,
• mask/welding disc - 1 pc.

❓ FAQ - most frequently asked questions before purchasing

Does this kit include just the welder or the complete set?

This is an extensive set . The set includes a Weldman Mistral MIG 210 Synergia welding machine , two gas cylinders , handles, reducer, wire, visor, gloves and basic accessories.

Is the kit suitable for MIG/MAG and TIG?

Yes. The device supports MIG/MAG, FLUX, TIG DC Lift, MMA and plasma cutting . The set includes a MIG/MAG torch and a TIG Lift torch .

Are there two bottles in the set?

Yes. The set includes two cylinders: MIX Argon/CO2 8 l and Argon 8 l .

Can I cut with plasma?

Yes, the device has a plasma cutting function and the set includes a PT-31 holder . Cutting parameters in the description: 20-40 A , maximum cutting thickness 12 mm .

Do I need to buy accessories to get started?

The kit contains a lot of starter elements : cylinders, reducer, hose, wire, handles, electrodes, visor, gloves and basic consumables. Before starting work, select the material, settings and any additional consumables for a specific task.

How is this offer different from cheaper offers with this model?

Here you buy the extended version with two cylinders and a wide range of accessories. Cheaper offers may include just the device or a smaller set. When comparing prices, check whether the set includes cylinders, reducer, handles, wire, visor and starting accessories .

Do you also have smaller kits or just the welding machine?

If you are looking for just the device or a smaller kit, check out our other offers with Weldman Mistral MIG 210.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Weldman
Parametry	Power consumption	7.73 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	14 kg
Parametry	Welding range	40–200 A
Parametry	Height	400 mm
Parametry	Length	520 mm
Parametry	Width	220 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	15 kg
Parametry	Manufacturer code	MISTRAL MIG 210 - ZESTAW
Parametry	EAN (GTIN)	5901154712007
Parametry	Packaging status	original
Parametry	Model	Mistral MIG 210 SYNERGIA WELDMAN SPAWARKA I PLAZMA
Parametry	Welding methods	plasma cutting,MIG/MAG,MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,EURO handle,EURO holders,LCD display
