Trumpai apie prekę

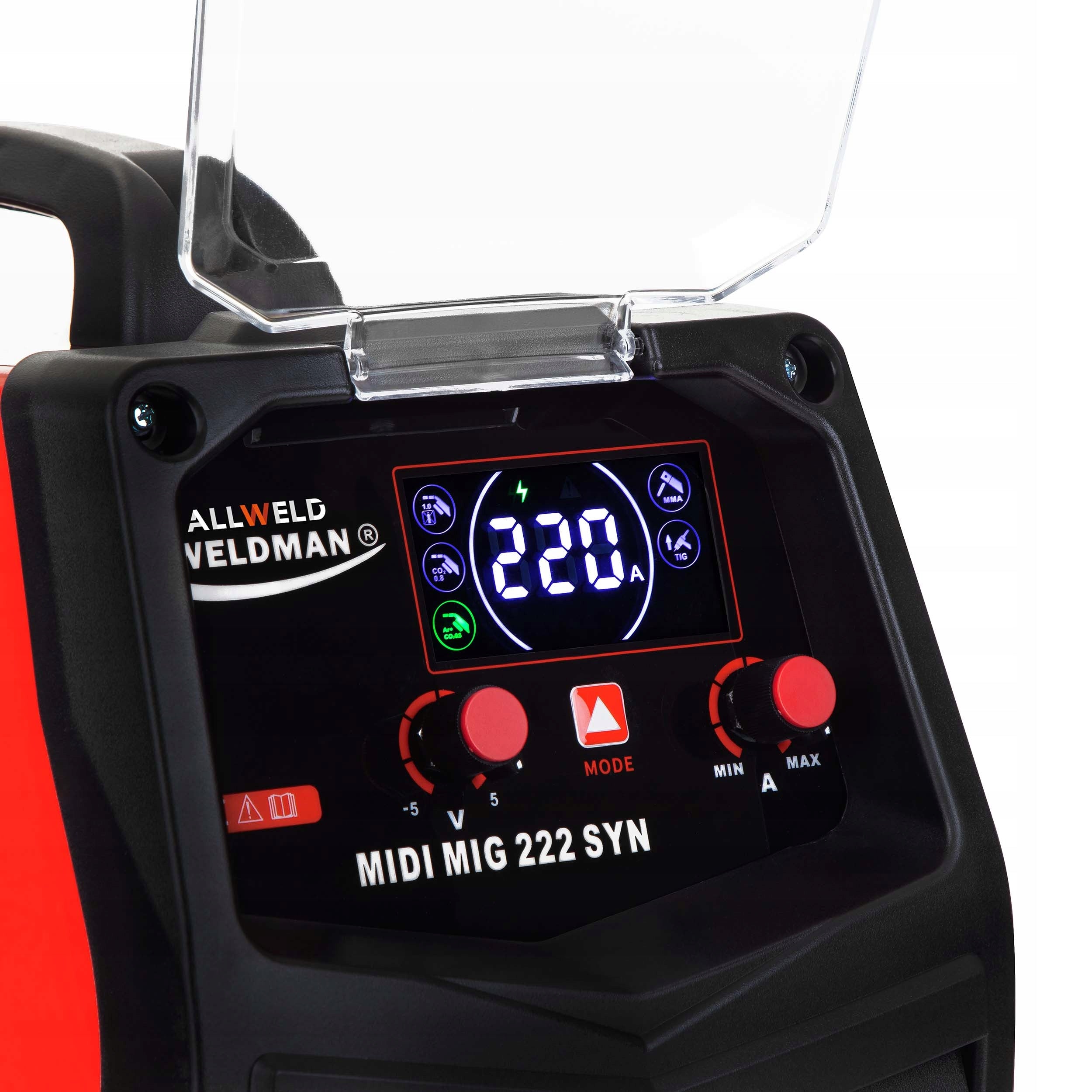

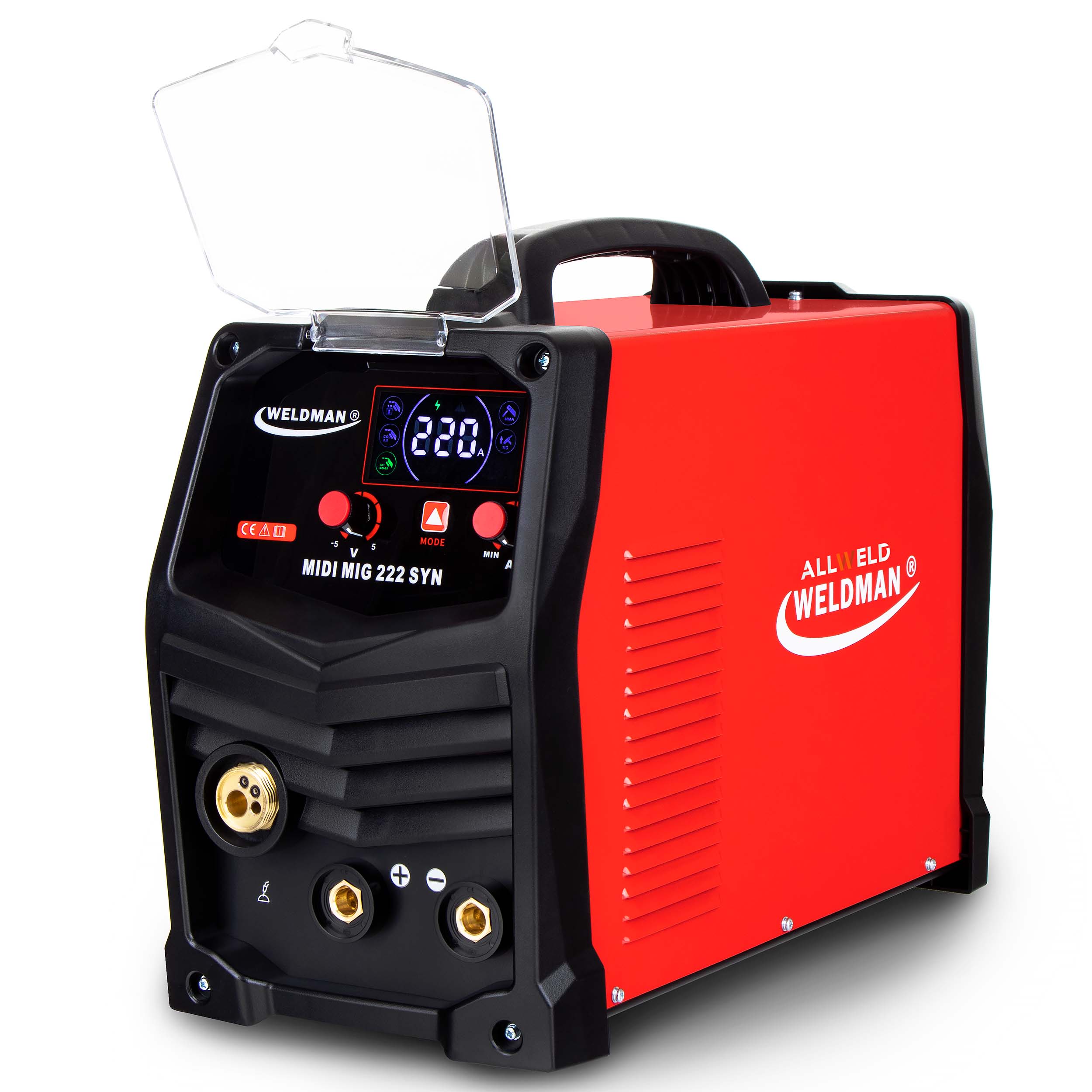

Prekė: Suvirinimo aparatas WELDMAN MIDI MIG 222 SYN MMA TIG LIFT FLUX 230V 220A, rankena, 4 m. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Weldman
- Modelis: MIDI MIG 222 SYN
- Ilgis: 520 mm
- Plotis: 220 mm
- Aukštis: 402 mm
- Welding methods: MIG/MAG, MMA, TIG DC LIFT, SYNERGY, FLUX
- Power supply: 230V
- Operating cycle 60% at maximum welding current 220A
- SYNERGY in MIG/MAG method - automatic selection of parameters
- For welding: carbon steel, stainless, alloy, cast iron and aluminium

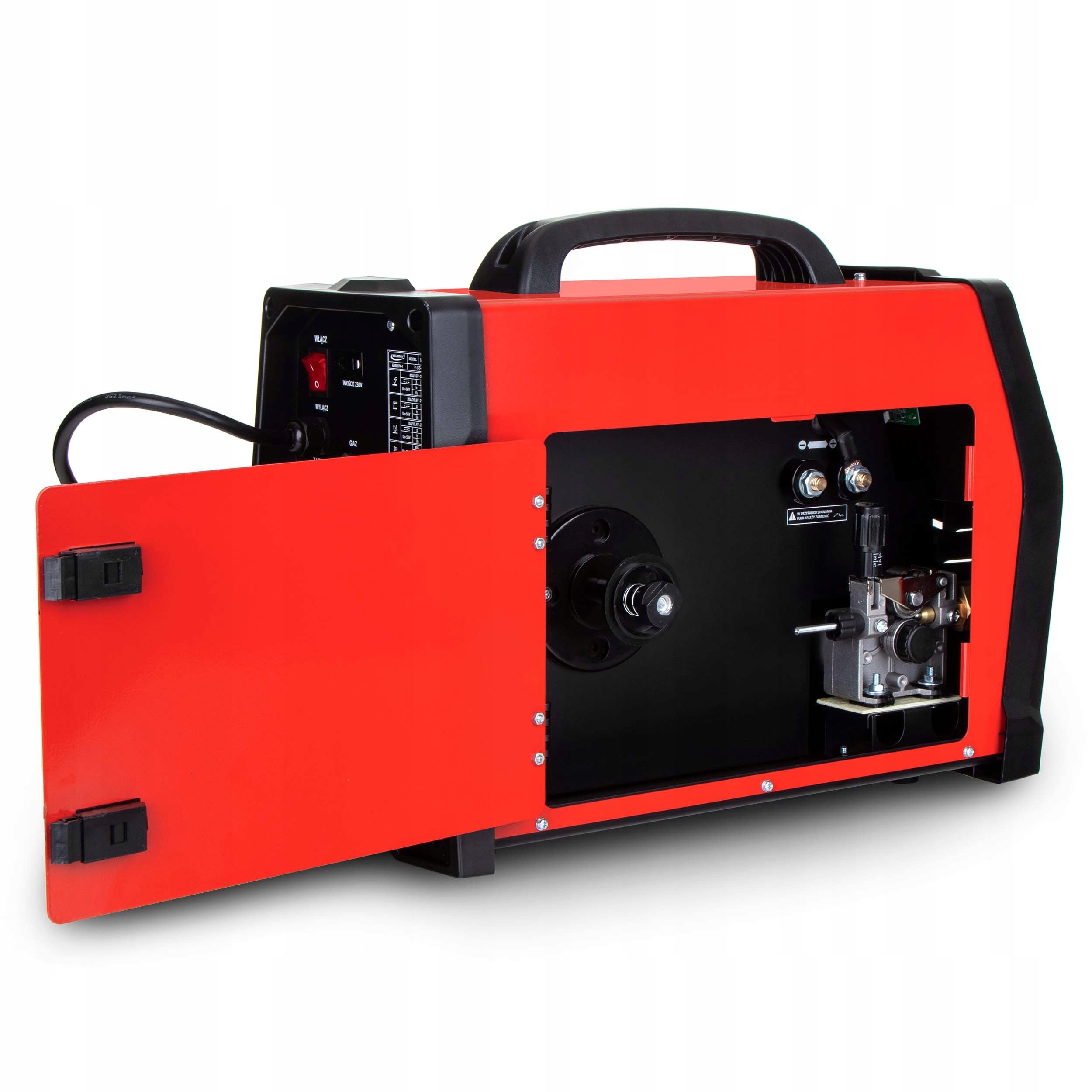

- Professional metal 2-roll wire feeder
- Handle welding TIG with a length of 4m
- Overload switch
- Cooling with fan
- Clean, aesthetic welds
- Made in IGBT technology
AUTOMATIC SELECTION OF PARAMETERS - CONVENIENCE AND PRECISION
The Synergy function is a solution that automatically selects the optimal welding parameters after determining the welding current value. The synergy of facilitates the operation of the welding machine, eliminating the need for manual parameter tuning, which is particularly beneficial for less experienced operators. This feature also allows you to save time and increase precision while ensuring high weld quality.
FEATURES AND ADVANTAGES:
- TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,
- FLUX - arc welding with powder wire, without the use of gas cylinders. The wire is filled with flux or a chemical that generates protective gases,
- OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,
- IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.
TECHNICAL SPECIFICATION:
- Power Supply: 230V 50Hz 1ph
- Network security: 20A
- MIG/MAG, MMA, TIG welding current: 40 - 220A
- MIG/MAG welding voltage: 22,5 - 25V
- Idle voltage: 56V
- Wire diameter: 0.6 / 0.8 / 0.9 / 1.0 mm
- Spool with wire: max. 5kg
- Degree of protection: IP21
- Dimensions: 52 x 22 x 40 cm
- Weight: 13kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Weldman |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,6-1,0 |
| Parametry | Device weight | 13 kg |
| Parametry | Welding range | 40–220 A |
| Parametry | Height | 402 mm |
| Parametry | Length | 520 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 300 cm |
| Parametry | Manufacturer code | 103 109 MAPR-15 |
| Parametry | EAN (GTIN) | 5907195564391 |
| Parametry | Packaging status | original |
| Parametry | Model | MIDI MIG 222 SYN |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | welding mask included,infinitely adjustable welding current,EURO handle,LCD display |
