Trumpai apie prekę
Prekė: Suvirinimo aparatas Torros MIG200 Synergy 3in1 M2003, 4 dalių rinkinys. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Torros
- Modelis: M2003-4
- Ilgis: 450 mm
- Plotis: 175 mm
- Aukštis: 275 mm
Set: MIGOMAT + SPRAY + WIRE + VISOR + REDUCER + HOSE + FULL GAS CYLINDER + NOZZLE + TIPS + INSTRUCTION
Manufacturer: TORROS Ξ Modes: MIG/MAG (GAS/NO GAS) - MMA - TIG LIFT Ξ Functions: SYNERGY / PRECISE CONTROL Ξ Current: 40 - 200A Ξ Power supply: 230V ± 15% Ξ

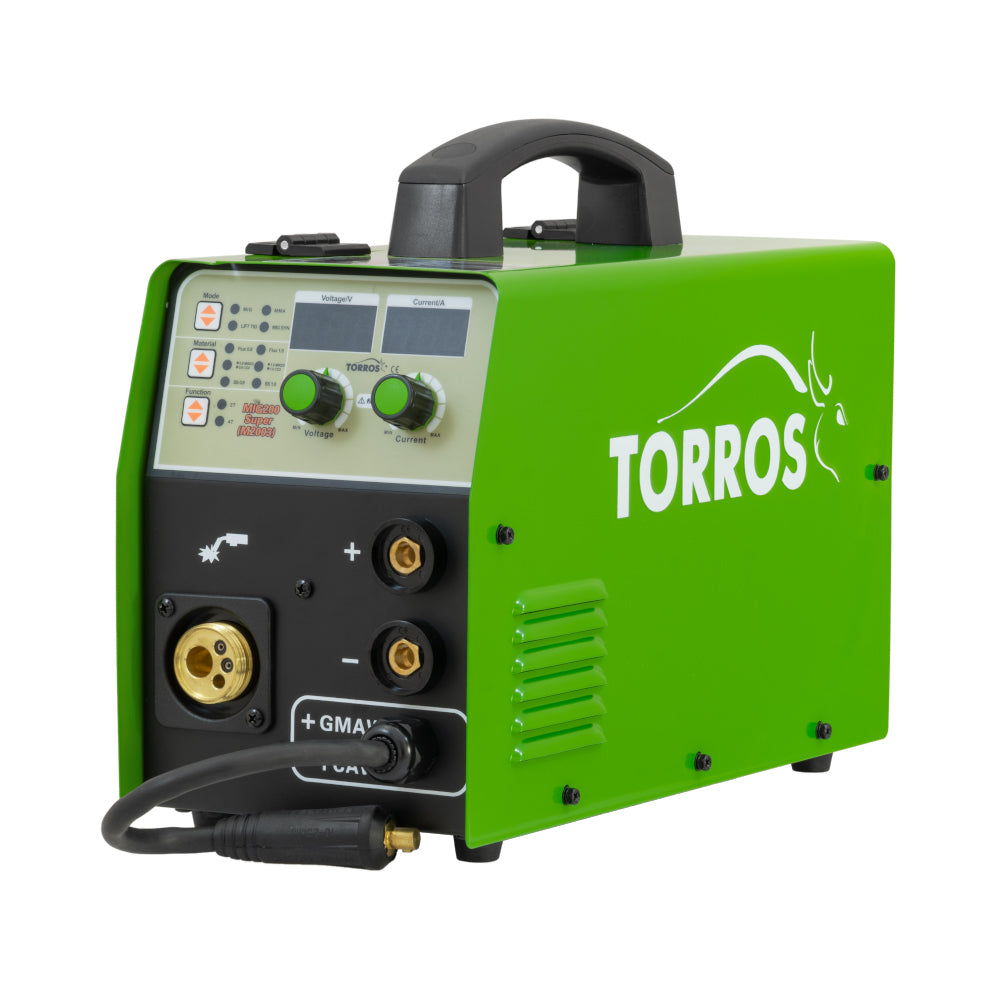

The Migomat Torros Super MIG 200 M2003 welding machine is an inverter semi-automatic welding machine designed for welding steel, stainless steel, aluminum and other metals.

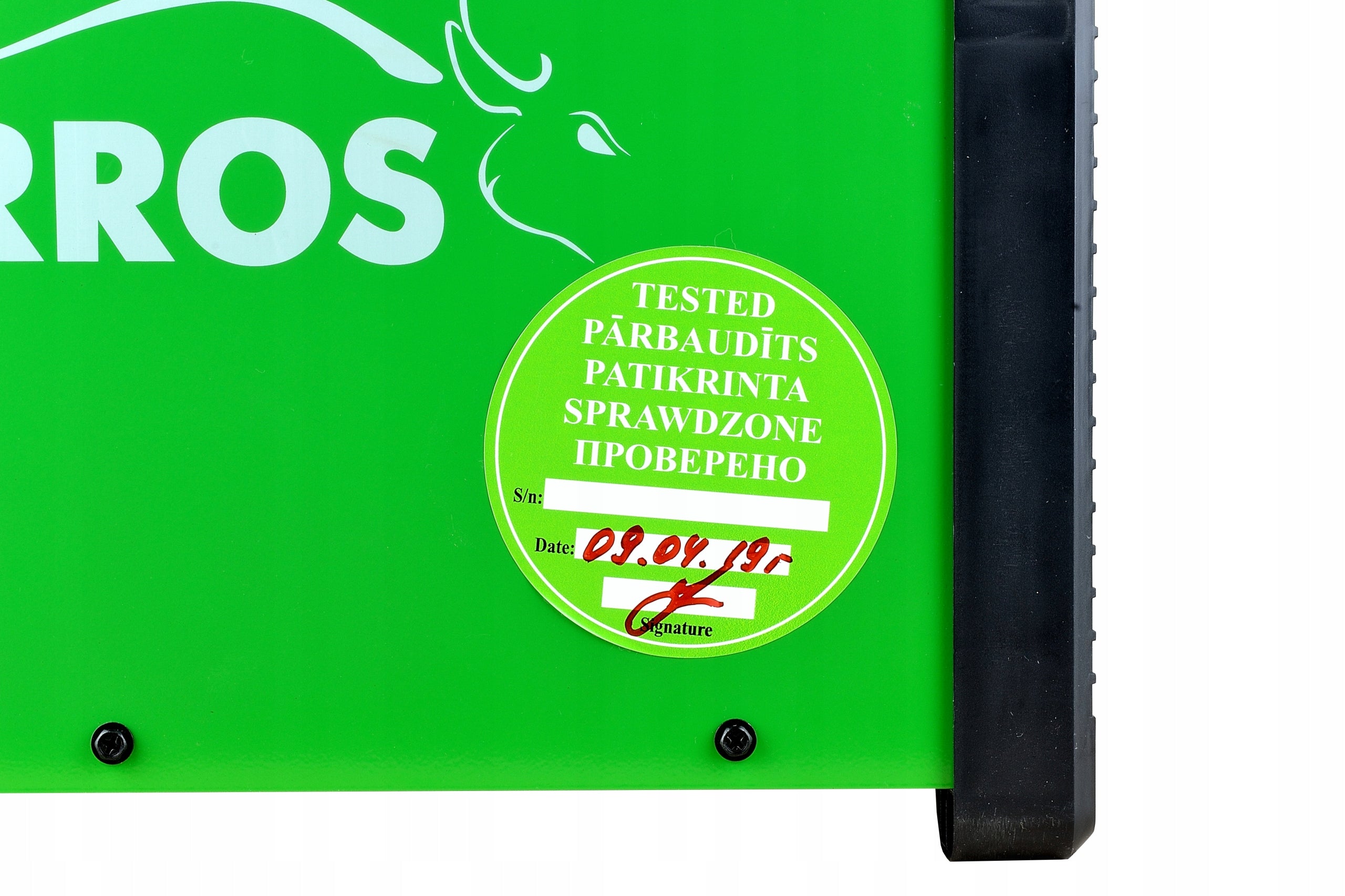

➔ Each Torros device undergoes a mandatory test in the workshop before it goes on sale.
➔ Torros is one of the few brands on the market that always gives only the true parameters of welding equipment.
✅ 3 welding modes: (1) MIG/MAG with and without gas, (2) MMA and (3) TIG
✅ synergic control (allows you to select the program / other parameters selects semi-automatic)
✅ 4 programs in MIG mode
✅ possibility to adjust Ampers and Volts in synergy mode (possibility of using steel wire of different diameters and welding thick and thin metals)
✅ the ability to adjust Volts in the range from -30 to +30% from the values proposed by the device (allows you to shape the weld and set the migomate to work with a specific gas / mixture)
Technical data:
- Manufacturer: Torros
- Modes: MIG/MAG (GAS/NO GAS), MMA, TIG LIFT
- Functions: synergy / precise control
- Current: 40-200 A
- Power supply: 230 V ± 15% / 50/60 Hz
- Maximum power consumption: 37.4 A
- Maximum power consumption: 8,2 kW
- MIG welding current adjustment range: 40 A / 16 V – 200 A / 24 V
- MMA welding current adjustment range: 30 A /21.2 V – 160 A / 26.4 V
- TIG welding current adjustment range: 20 A / 10.4 V – 160 A / 16.4 V
- Type of feeder: metal, 2R
- Diameter of MMA electrode: 1,6-4 mm
- Efficiency, Imax duty cycle: 60%
- Housing protection degree: IP21S
- Isolation class: F
- Weight: 7,4 kg
- Dimensions: 450 mm x 175 mm x 275 mm

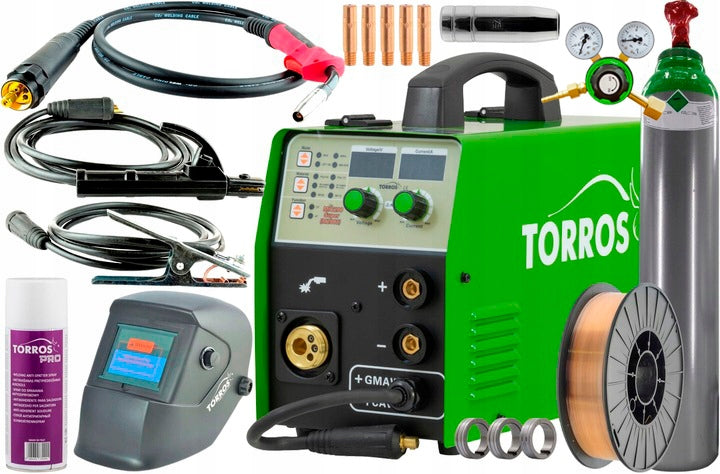

Included in the set:
- Welding machine Torros Super MIG 200 M2003
- New, full gas cylinder Ar/CO2 (a mixture of argon/carbon dioxide gases) – has all the required approvals and can be replaced or filled at points that deal with the sale of gases.
- Reducer Ar/CO2
- Gas hose 3 m
- MIG/MAG holder 3 m
- MMA handle with 2 m cable
- Mass clamp with 2 m cable
- Replacement current tips (5 pcs. )
- Steel wire spool 0,8 mm / 5 kg
- Anti-chipping spray Torros PRO 300 ml / 400 g
- Gas nozzle
- Self-tinting visor Torros H1500S (information below)
- User manual
Note! A full gas cylinder is shipped in a separate package by our business partner.
➡ Programs available in MIG mode:
- Self-shielding wire with a diameter of 1,0 mm for welding without gas
- Self-shielding wire with a diameter of 1,2 mm for welding without gas
- 0,8mm diameter steel wire for gas welding
- 1,0mm diameter steel wire for gas welding
Synergistic control allows you to choose a program, other welding parameters are selected by the machine itself.
The advantage of the Torros Super MIG 200 M2003 is the ability to adjust Amps and Volts in synergy mode. This gives you the opportunity to use steel wire of different diameters or weld thicker or thin metal.
The ability to adjust Volts in the range from -30 to +30 percent from the meaning recommended by the migomat allows you to shape the weld or set the migomat to work with a specific gas or mixture. Both this allows you to adjust the parameters for welding with aluminum wire and stainless steel wire.
Control is very simple. Migomat provides good results even for people who just start their primacy with welding and allows very precise setting of parameters experienced users.
➡ Universal handle for holding spools – advantages:
➔ Allows you to set standard 5 kg (D200) and small 1 kg (D100) wire spools.
➔ Perfect solution for welding with self-shielding wire without gas and stainless steel or aluminum wire.
➡ Control panel – advantages:
➔ All settings are made with two buttons and one controller.
➔ Buttons and regulator are precise.
➔ Control is very simple and convenient.
➔ Two displays of current parameters: welding current (Ampery) and arc voltage (Volts).
➡ Front – construction
In addition to the control panel on the front panel, there are:
- Two sockets for connecting the mass clamp and MMA handle
- Polarity change cable (1. When welding in semi-automatic mode using gas, the plug should be connected to the plus / 2 socket. When welding with self-shielding wire without the use of gas, the plug should be connected to the minus socket)
- Euro socket
➡ Back – construction
- Housing grounding
- Connector for connecting a gas hose
- Two cooling system fans
- Socket for connecting a gas heater
- Network cable
- On/off switch
✅ Self-tinting visor Torros H1500S – INCLUDED!
The offered visor is suitable for MIG/MAG-MMA-TIG otaz modes and can be used without losing the filter response speed.
- Manufacturer: Torros
- Filter type: automatic
- Optical class: 1/1/1/2
- Filter model: 500S
- Field of view: 92 mm x 42 mm
- Number of sensors: 2
- Darkening: DIN 9-13
- Response time: 1/30000 s
- Brightening time: 0,1-1,0 s infinitely adjustable
- UV/IR protection: to DIN 16
- Darkening in bright condition: DIN 4
- Welding MIG/MAG/MMA/TIG: yes
- Working temperature: from -10 to +55°C
- Power supply: photocell + batteries (life from 5 to 7 years)
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Torros |
| Parametry | Power consumption | 3.7 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 11.7 kg |
| Parametry | Welding range | 40–200 A |
| Parametry | Height | 275 mm |
| Parametry | Length | 450 mm |
| Parametry | Width | 175 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 200 cm |
| Parametry | Product weight with unit packaging | 11.7 kg |
| Parametry | Manufacturer code | M2003-4 |
| Parametry | EAN (GTIN) | 5905370772869 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
