Suvirinimo aparatas Synergy Ideal MIG 201 LCD MMA MAG TIG Lift 2T 4T komplektas

Trumpai apie prekę

Prekė: Suvirinimo aparatas Synergy Ideal MIG 201 LCD MMA MAG TIG Lift 2T 4T komplektas. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka Ideal Expert MIG 201 LCD XRS2
• Ilgis: 465 mm
• Plotis: 190 mm
• Aukštis: 360 mm

Welding methods: MIG/MAG, MMA, TIG Lift, FLUX | Important functions: Synergy MIG/MAG, 2T/4T, Spot welding | Welding current: to 200A

MODERN MIG/MAG WELDING MACHINE WITH LCD DISPLAY

EXPERT MIG 201 LCD is the perfect solution for a wide range of applications: from maintenance work to car body repairs. Thanks to its flexibility, it can weld various types of materials: steel, stainless steel, aluminum or solder galvanized and constantly high-strength bodies.

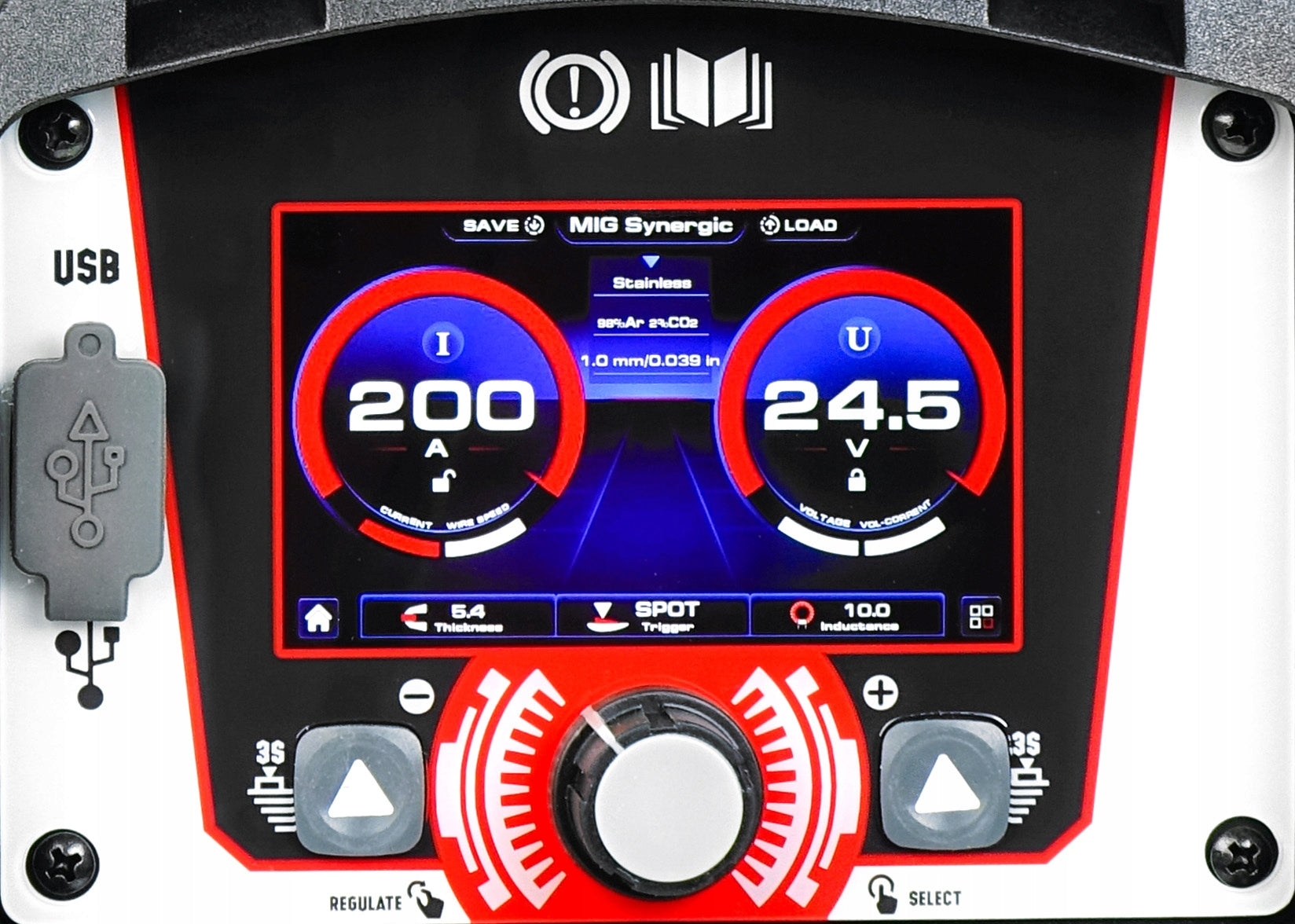

Quick synergistic adjustment of welding parameters via LCD display, makes the device very easy to use. All you need to do is set basic parameters such as the type of material or wire diameter so that the device selects the optimal values before welding. The user can also manually set the length of the welding arc and adjust the appearance of the weld to suit their needs.

In addition to the synergistic mode, the source also has a manual mode. In it, you can set the wire feed speed and arc voltage in full range.

With the MIG/MAG method, we can choose the button function in the handle, between 2T mode (without button lock), 4T (button lock for long welds), S2T (2T mode with current rise/fall setting and time), S4T (4T mode with current rise/fall setting) and SPOT (point welding).

DISCOVER THE ADVANTAGES OF THE TECNO MIG 203 LED WELDING MACHINE

• Smooth adjustment of all welding parameters,
• Synergy - the device has synergistic programs
• Euro socket - the possibility of using any MIG holder equipped with a EURO plug
• Working modes 2T/4T - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position
• Accurate adjustment of welding arc length
• Regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the job you are currently doing by adjusting the MIG/MAG welding inductance
• Readable LCD display, showing all parameters
• The possibility of TIG DC Lift welding with a dedicated handle
• Point welding MIG
• Solid, durable housing

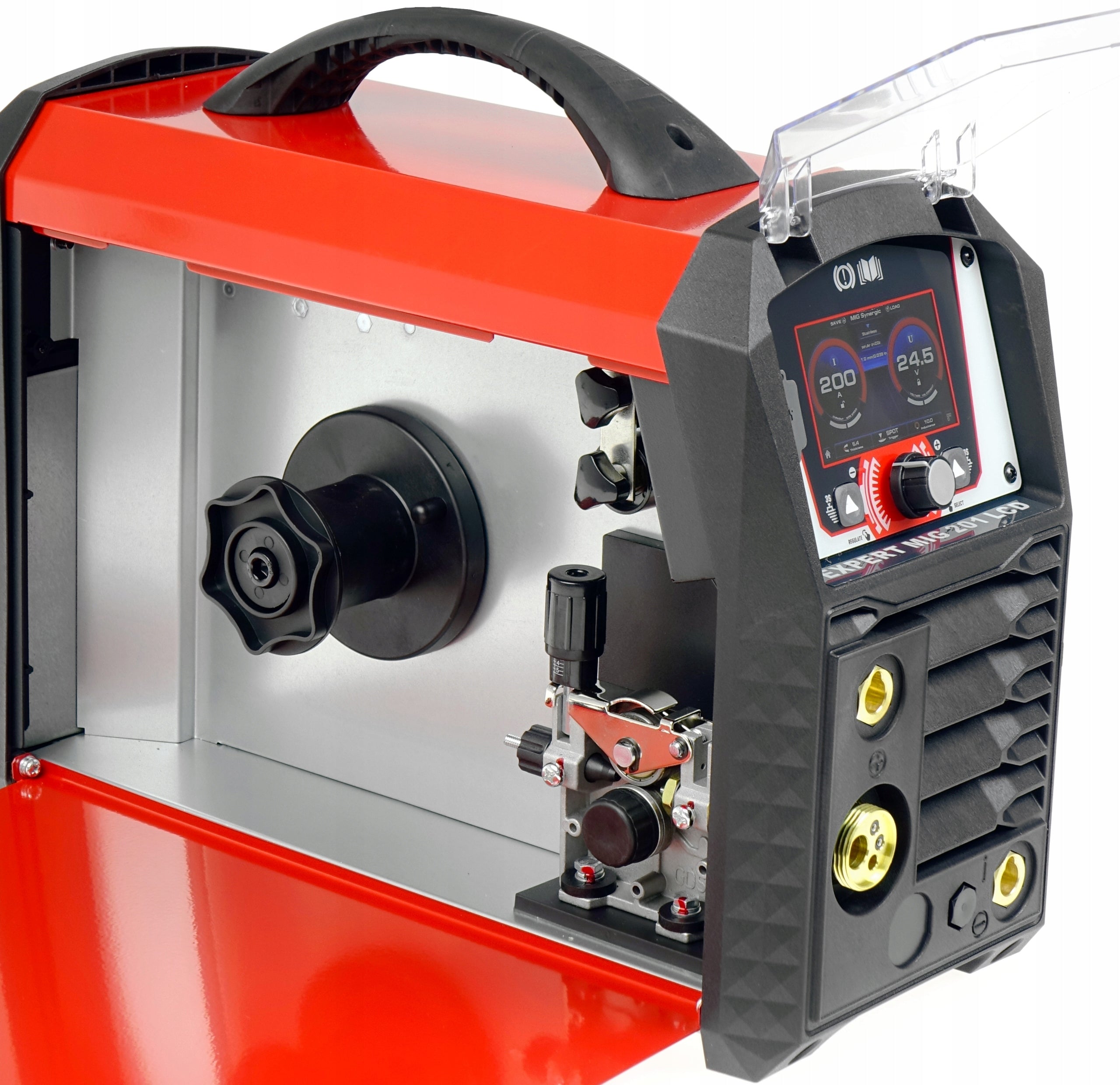

Professional wire feeder 2R

Uneven wire feeding threatens worse weld quality and more welding chipping. The welder is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the MIG welding torch.

Solid workmanship

The device is made of elements that allow for effective operation of the welding machine in demanding conditions.

The power source is based on IGBT transistors that provide a minimum of electromagnetic interference, allowing you to increase the efficiency and reliability of the device.

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 7,5kW
• Degree of protection: IP 21S
• Dimensions: 465x190x360 mm
• Weight: 11kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 25 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 127A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,2 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES

TIG welding parameters:

• TIG welding current: 10 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 200A
• TIG welding current regulation: smooth
• Two operating modes: 2T/4T
• Gas after (post gas): YES from 0,1 to 5,0s

MMA welding parameters:

• MMA welding current: 10 - 200A
• Electrode diameter: 1,6 - 5,0 mm
• MMA Welding Current Adjustment: Smooth

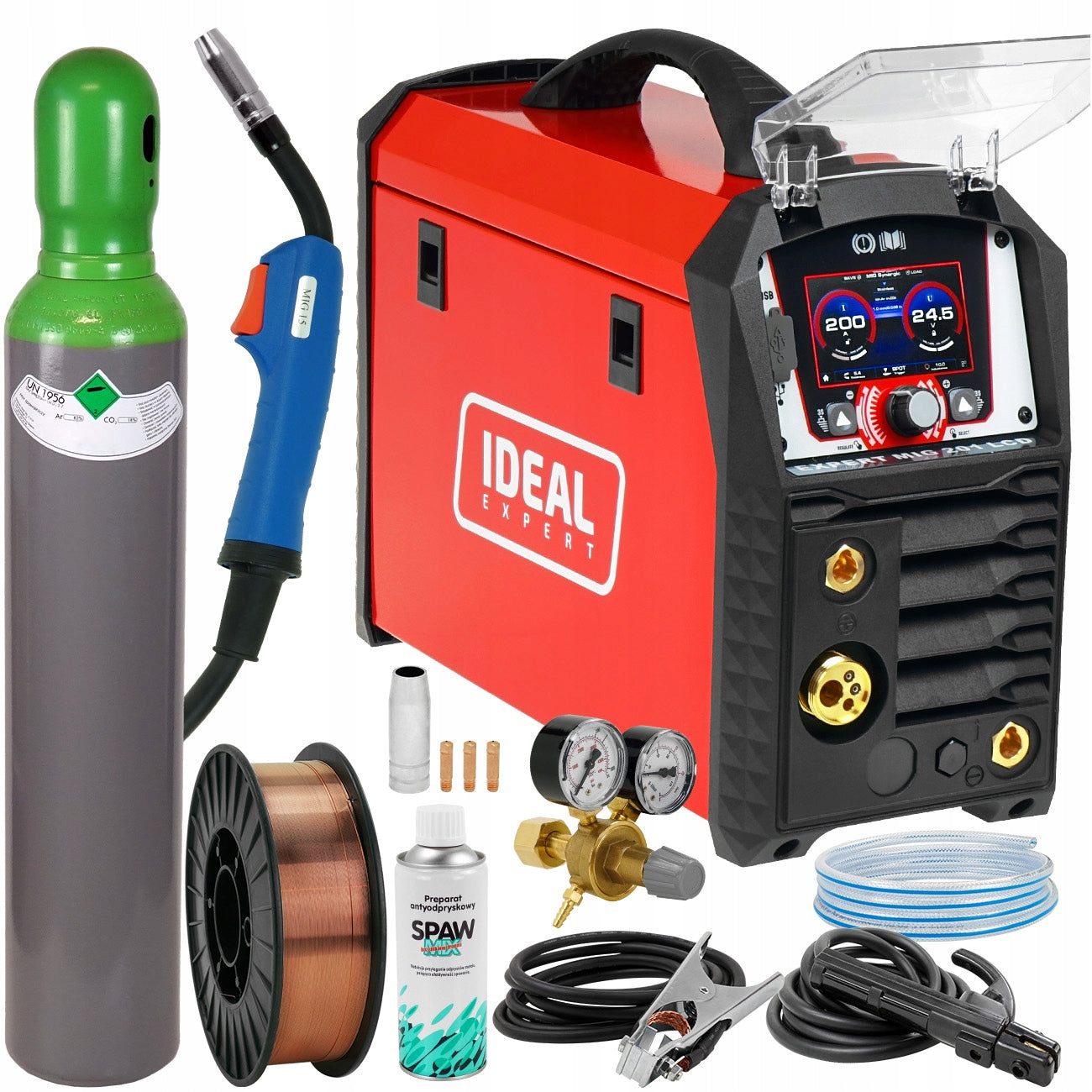

SET COMPOSED BY A PROFESSIONAL WELDER WITH MANY YEARS OF EXPERIENCE

• IDEAL EXPERT MIG 201 LCD
• MIG EURO MB welding torch 15 / 3m
• MMA Electrode Cable
• Bulk cable
• User manual PL

+ MAG WELDING KIT WITH 8L CYLINDER

• factory new cylinder Ar/CO2 8l (so-called. mixture) - has all the necessary certificates - reusable, it can be filled or replaced at gas sales points,
• welding wire steel SG2 5kg 0,8mm (D200),
• reducer Ar/CO2 with two clocks,
• Spaw Mix anti-chipping spray 400ml,
• starter set of burner parts,
• gas line.

Specifications
