Suvirinimo aparatas SPARTUS EASYMIG 217 3in1 MMA TIG MIG, dvigubas impulsas, LCD

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASYMIG 217 3in1 MMA TIG MIG, dvigubas impulsas, LCD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EasyMIG 217DP
• Ilgis: 490 mm
• Plotis: 225 mm
• Aukštis: 340 mm

TECHNICAL PARAMETERS

• Power supply voltage: ~1× 230V ± 10% 50 / 60 Hz
• MIG welding current: 30 - 200A
• MIG duty cycle: 60%
• Output voltage: 15.5 - 24.0
• Type of feeder: built-in, 2 - roller
• Wire spool: ≤ 5kg / ∅200mm
• Wire diameter: 0.8 / 1.0 / 1.2
• Synergy: yes
• Working mode 2T/4T: yes
• Additional MIG functions: DUAL PULSE, inductance, synergistic programs, spool gun, polarity change
• TIG Lift: yes
• TIG welding current: 10 - 200A
• MMA welding current: 10 - 200A
• Arc Force: yes
• Hot Start: yes
• VRD: yes
• Power consumption: MIG 37A / TIG 28A / MMA 43A
• Power factor (cosφ): 0.73
• Efficiency η: 77%

PHYSICAL PARAMETERS

• Isolation class: H
• Degree of protection: IP21S
• Weight: 12kg
• Dimensions: 490 x 230 x 330mm

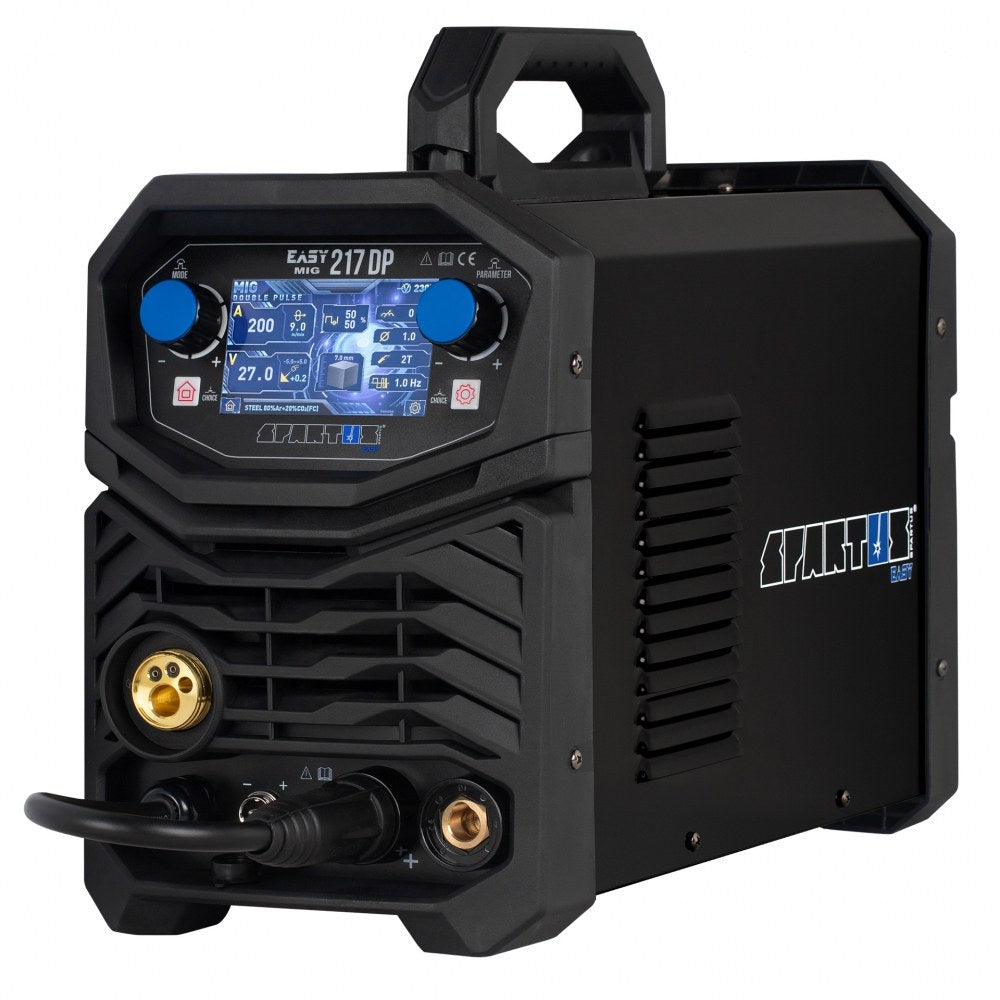

SPARTUS® EasyMIG 217DP is a modern, inverter semi-automatic welding machine based on IGBT transistors. Enables: synergistic MIG/MAG welding with double pulsation, synergistic MIG/MAG welding with pulsation, MIG/MAG welding in synergistic mode, MIG/MAG welding in manual settings mode, TIG Lift welding, MMA wrapped electrode welding. In addition, the device, thanks to the ability to change the polarity of welding, allows welding with self-shielding wire without gas. The maximum welding current for MIG/MAG/TIG/MMA methods is 200A. The device is powered from a single-phase 230V network.

EasyMIG 217DP allows wire work in the diameter range of 0.8 - 1.2mm. The device equipped with synergistic programs also allows you to introduce manual correction of the set parameters. An additional advantage of the device is the option of pulsating current welding. The use of double pulsation in the MIG/MAG method makes it possible to obtain a weld with quality and aesthetics comparable to the TIG method.

Benefits of using dual pulsation in MIG/MAG:

• high aesthetics face (husk effect)
• higher welding efficiency compared to TIG method
• less thermal deformation compared to the TIG method
• when welding aluminum requires less skill from the operator compared to the TIG method

For even easier and more efficient operation, EasyMIG 217DP is equipped with functions supporting the welding process such as:

• 2T/4T – the ability to choose one of two operating modes (MIG/MAG),
• Inductance – regulation of inductance of welding – control of face width and depth of melting (MIG/MAG), limitation of the number of welding chips,
• Spool Gun – lightweight and durable welding torch, with built-in wire feeder and spool in the handle (MIG/MAG),
• Hot Start – easier electrode ignition (MMA),
• Arc Force – easier welding in forced positions (MMA),
• VRD – current voltage reduction (MMA).

SUMMARY OF PRODUCT CHARACTERISTICS

• Intuitive controls - migomat has been designed in such a way that its operation does not cause problems even for people starting their adventure with welding
• Single-phase power supply 230 V - allows you to work with the device practically anywhere with access to the electrical network
• IGBT transistorsThe device uses modern IGBT transistors, which provide a minimum of electromagnetic interference and low power losses in basic systems. The use of IGBT transistors provides an increase in the efficiency and reliability of the power source, reducing the total weight of the welding machine.
• Readable LCD display - fast synergistic adjustment of welding parameters : welding current, welding voltage, wire feed speed
• Device equipped with EURO socket for connecting a welding torch
• Polarity change for FLUX welding without shielding gas
• Synergic control with thickness adjustment of welded material
• Accurate adjustment of welding arc length
• Smooth regulation of welding current - provides the possibility of accurate selection of welding parameters depending on the type and thickness of the material
• Lightweight and very compact, can be easily transported both inside and outside buildings
• The device is equipped with overload protection, which increases its reliability

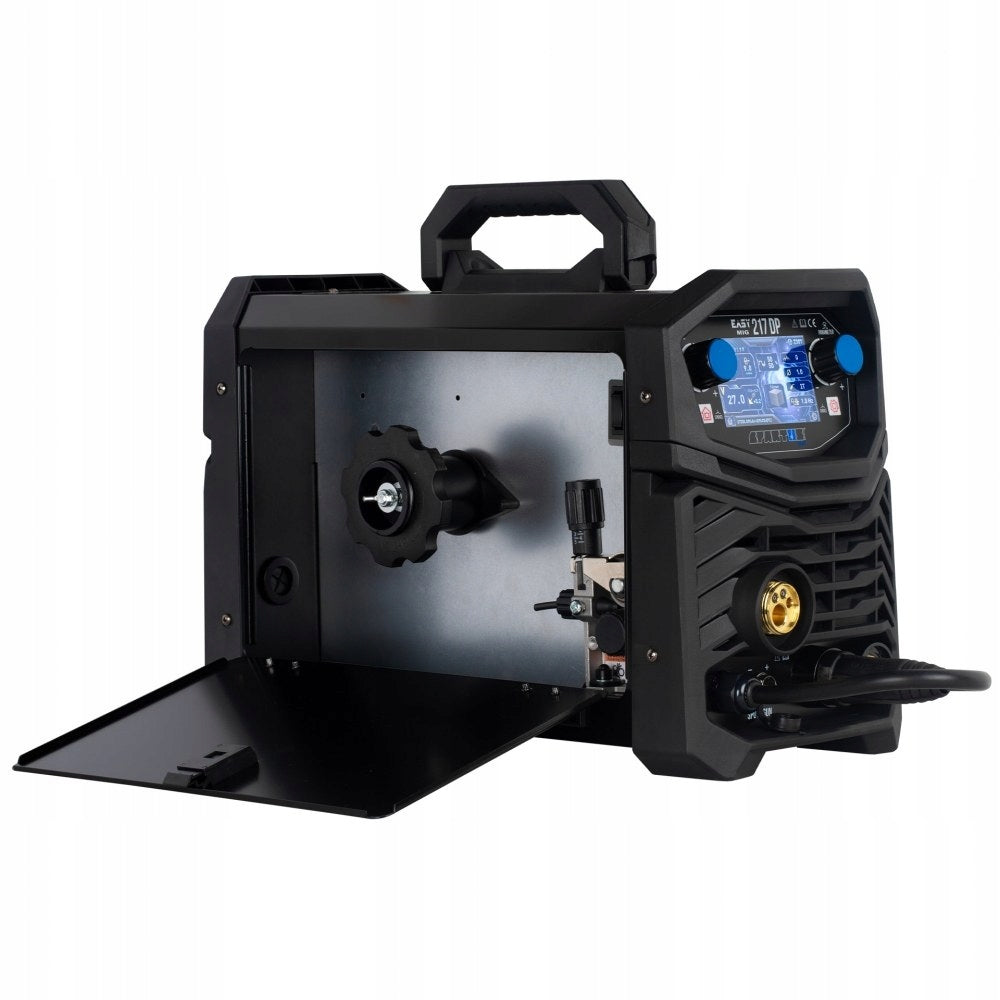

• Professional wire feeder: internal, 2-roll
• The device has a fan cooling system which significantly increases its efficiency
• 2T/4T - With the MIG/MAG method, we can choose the button function in the handle between 2T mode operation (without button lock)/4T (button lock for long welds)
• Maximum spool with wire - 5 kg

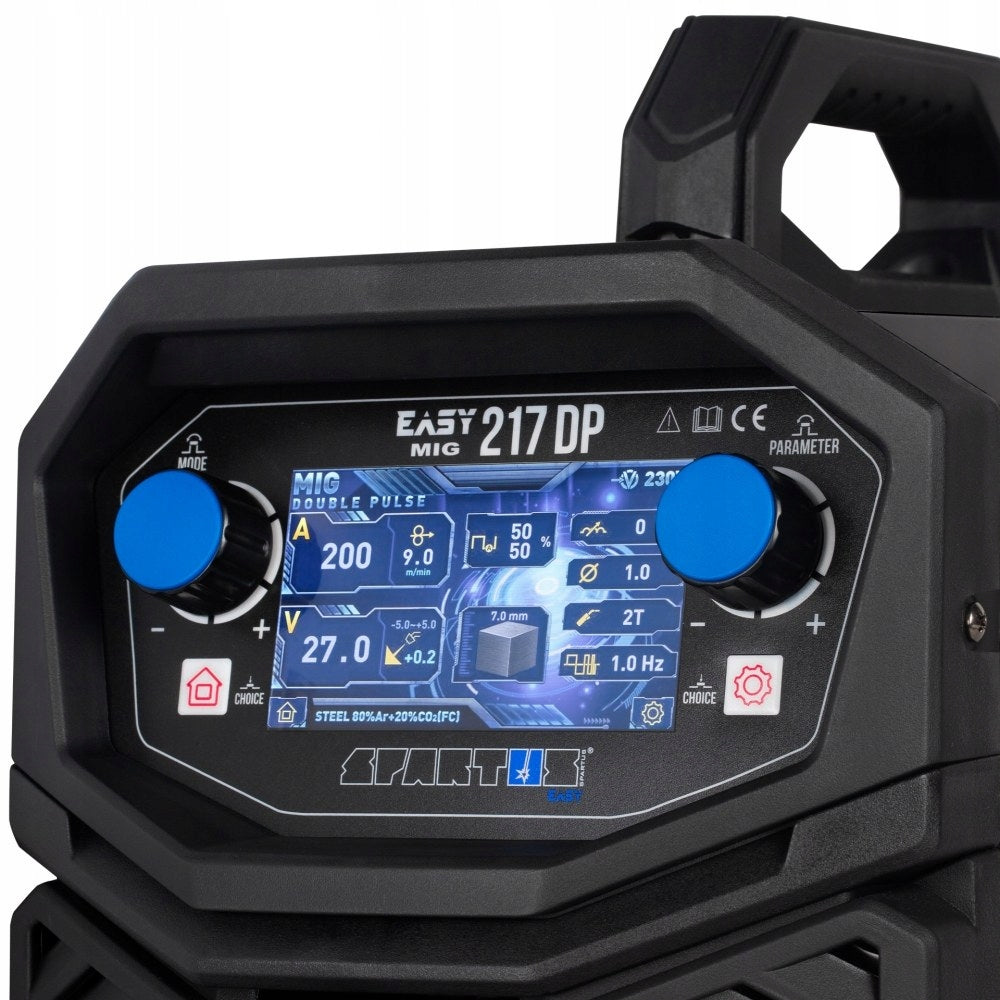

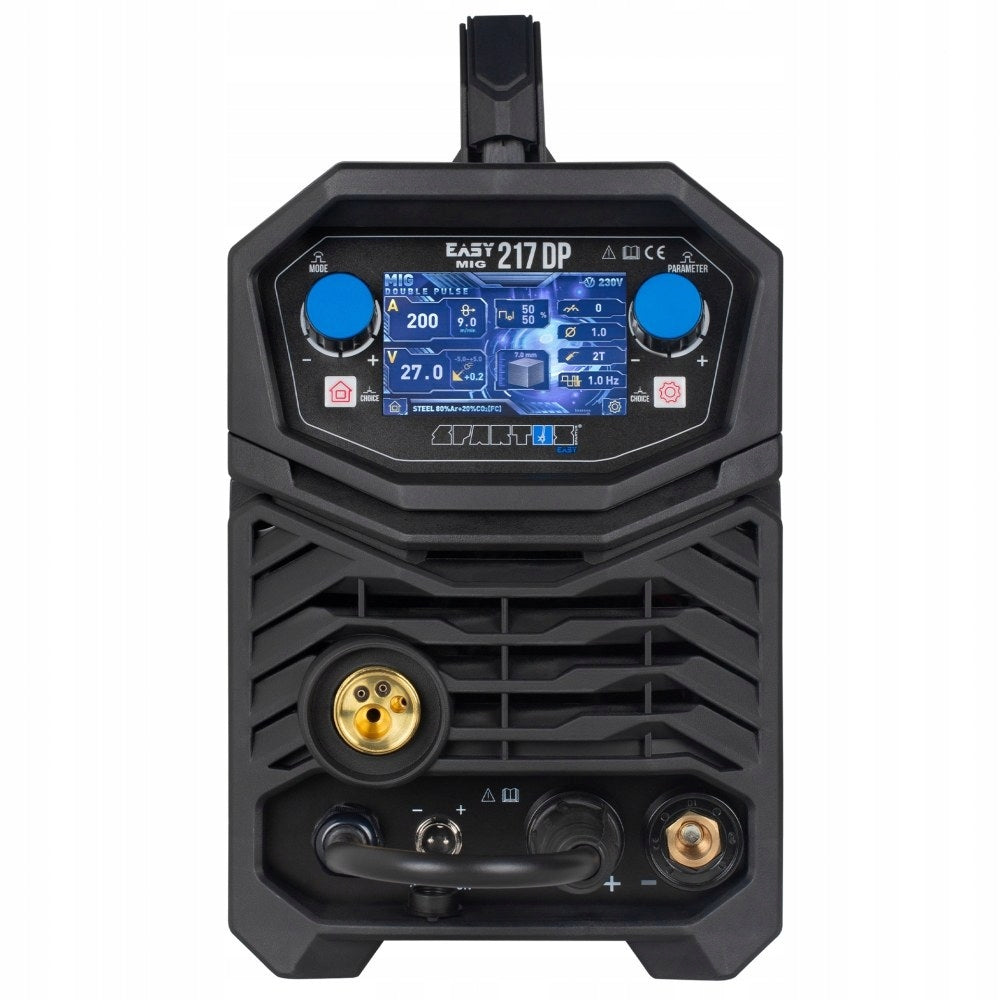

Modern LCD display allows you to easily and quickly set the welding current voltage and manage the functions of the device. During the correction of parameters, the display determines the dependence of the weld shape in relation to the voltage and graphically indicates the recommended material thickness for the selected current.

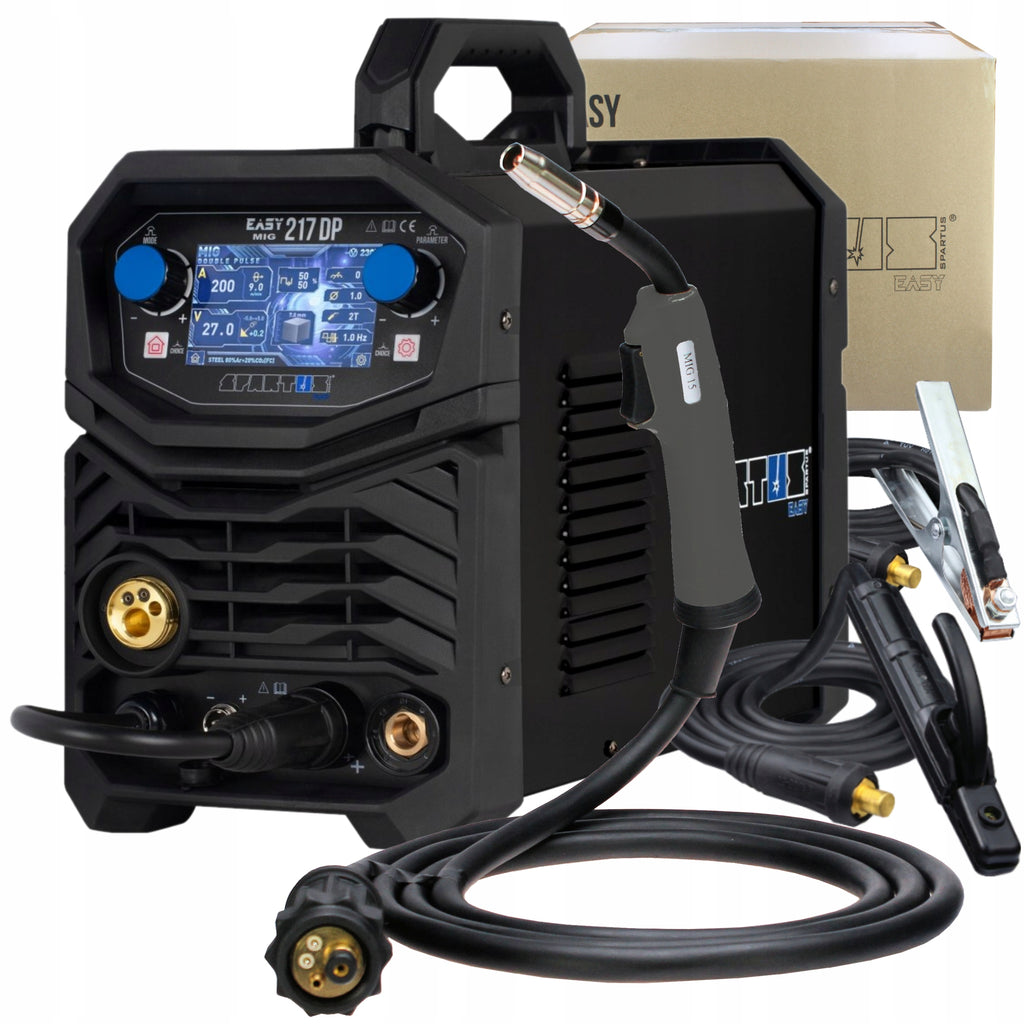

DELIVERY CONTAINS

Semi-automatic welding machine

MIG welding torch 15/3m

Bulk cable 1,5

Electrode cable 2m

Guide roller 1.0-1.2U fi30 + additional 0.8-1.0V fi30

Steel Wire Guide

Gas hose with auger bands

Operating instructions

Warranty card

Specifications
