Suvirinimo aparatas SPARTUS EASY MIG 210 LED 230V 200A SYNERGY TIG LIFT MMA FLUX

Trumpai apie prekę

Prekė: Suvirinimo aparatas SPARTUS EASY MIG 210 LED 230V 200A SYNERGY TIG LIFT MMA FLUX. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Spartus
• Modelis: EASY MIG 210 LED
• Ilgis: 190 mm
• Plotis: 470 mm
• Aukštis: 330 mm

• Welding methods: MIG/MAG, MMA, TIG DC, SYNERGY, FLUX
• Power supply: 230V
• Operating cycle 60% at maximum welding current 200A
• SYNERGY in MIG/MAG method - automatic selection of parameters with the possibility of manual correction
• Tactile arc glow - LIFT
• Smooth adjustment of welding parameters, inductance
• Professional, 2-roll wire feeder
• Modes and functions: 2T/4T, HOT START, ARC FORCE, VRD, wire test
• Overload switch
• Clean, aesthetic welds
• Made in IGBT technology

✔ FEATURES AND ADVANTAGES:

• INDUCTION ADJUSTMENT - the introduction of less heat prevents sheet deformation and damage to the zinc layer,

• 2 TAKT - welding begins after pressing and ends after releasing the button,

• 4 TAKT - welding begins after the first press and release of the button, and ends after pressing again, which is more convenient for longer welds,

• TIG LIFT - arc glow by rubbing the electrode against the material; used in places where there is a risk of interference of electronics by high frequency current; welds are of high quality,

• FLUX - arc welding with powder wire without the use of a gas cylinder. Self-shielding wire is filled with flux or a chemical that generates protective gases,

• HOT START - a temporary increase in welding current during arcing; prevents "sticking of the electrode", facilitates the start of welding,

• ARC FORCE - adjustment of welding arc dynamics, allowing to adjust the depth of melting,

• VRD - reduces the voltage on the electrode to a safe level after welding,

• OVERLOAD SWITCH - protects against overvoltage, cutting off power to protect the network and device from damage,

• IGBT - bipolar transistors increase the efficiency and reliability of the device and ensure lower power consumption.

⚙ TECHNICAL SPECIFICATION:

• Power supply: 230V 50/60Hz (1ph)
• Welding current: MIG: 50 - 200A | TIG: 10 - 200A | MMA: 10 - 160A
• Output voltage: 16.5 - 24V
• Power consumption: MIG: 39A | TIG: 29A | MMA: 34A
• Power factor: 0.73cosφ
• Efficiency η: 77%
• Wire diameter: 0.6 / 0.8 / 1.0 mm
• Wire feed speed: 2 - 12.5m/min
• Spool with wire: 200 mm; up to 5kg
• Protection rating: IP21S H
• Dimensions: 47 x 19 x 33 cm
• Weight: 10kg

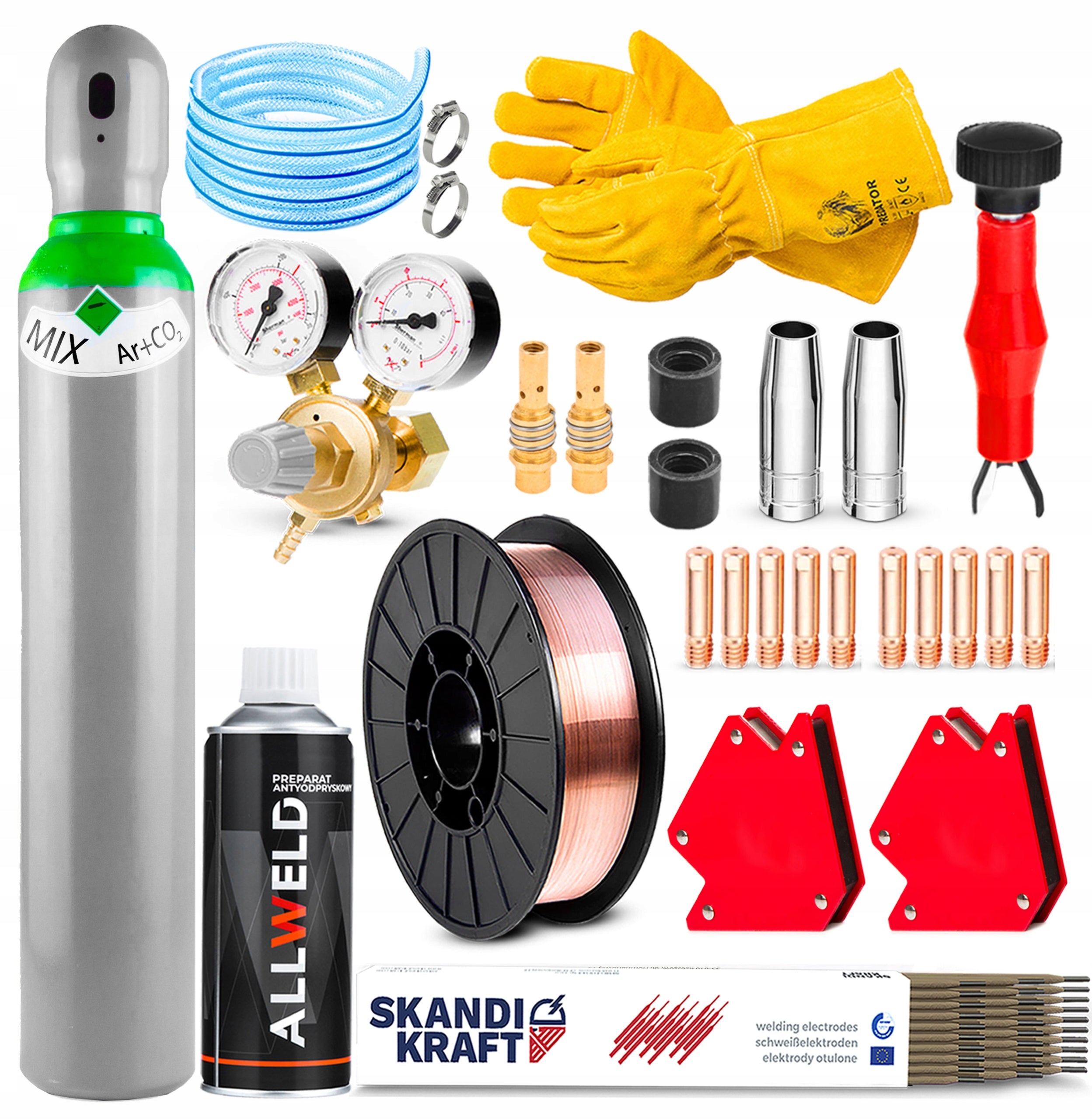

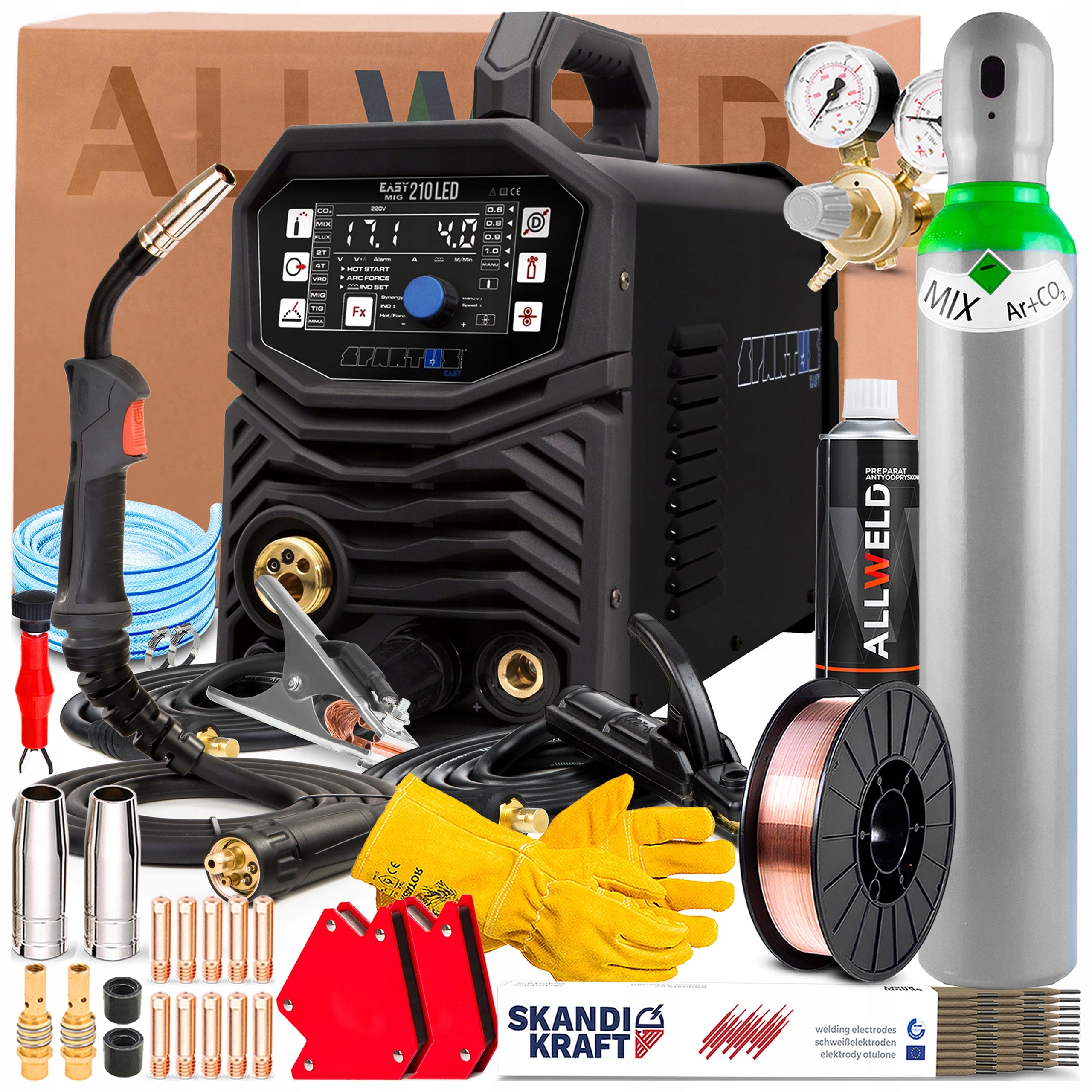

INCLUDED IN THE SET:

• Factory new reusable cylinder with a mixture of Ar (82%) / CO2 (18%) with a capacity of 8l; 10-year legalization, the possibility of filling at any point with technical gases,
• Gas hose with clamps - for connecting the reducer - 1pcs. ,
• Reducer with two pressure gauges - precise reducer with adjustment; for controlling the pressure in the cylinder and the amount of gas flowing out,
• Anti-chipping preparation - protects the nozzle and metal against welding chipping,
• Welding wire SG2 5kg - 1pcs ,
• Gloves welding - 1 pair,
• Scraper for gas nozzles,
• Exploitation parts of MIG/MAG handle (nozzles, connectors, tips, insulators),
• Angles magnetic 11kg - 2 pcs. ,
• Electrodes SkandiKraft 1kg - 1pack.

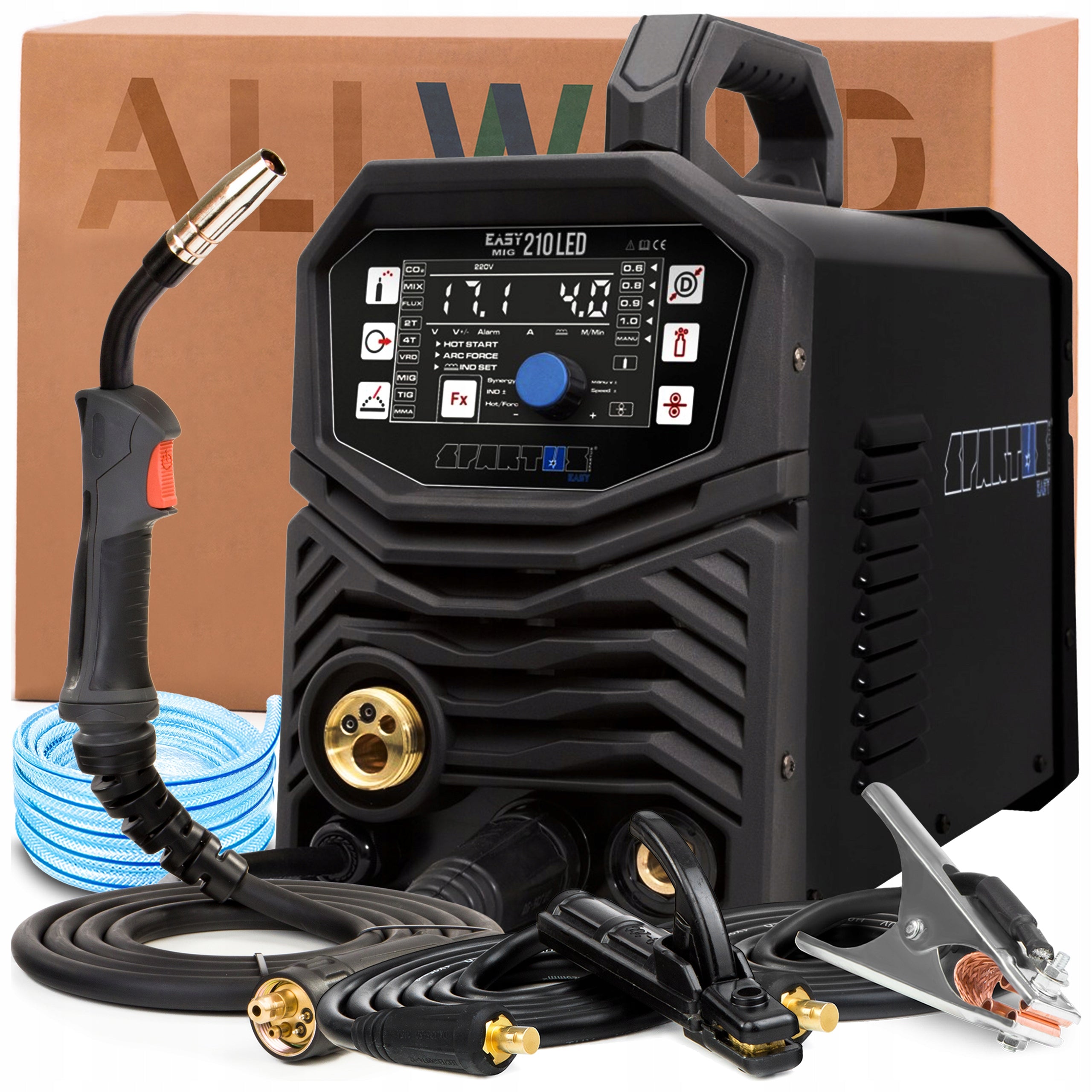

THE SET INCLUDES:

• Welding machine SPARTUS EASYMIG 210LED,
• Welding torch MIG SPE 150 - 3m,
• mass handle,
• electrode handle,
• Roll wire feeder 0.8 - 1.0V fi30 - 1pcs ,
• User manual and warranty card.

ADDITIONAL ACCESSORIES:

• Bottle with gas mixture Argon/CO2,
• Reducer cylinder Ar/CO2 MINI with two pressure gauges,
• Welding wire SG2 0,8mm - 5kg,
• Preparation anti-chipping ALLWELD,
• Angle magnetic 11kg - 2 pcs.,
• Electrodes SkandiKraft - 1kg,
• Flame-retardant gloves for welding,
• Hose for connecting gas with clamps - 2m,
• Scraper for gas nozzles.

+ HANDLE CONSUMABLE PARTS:

• Gas nozzle - 2 pcs.
• Current connector - 2 pcs.
• End current - 10 pcs.
• Gas distributor - 2 pcs.
