Lieferzeit in ganz Litauen: 5-10 Werktage
Lieferpreis an die angegebene Adresse: 3 Euro
Trumpai apie prekę
Prekė: Suvirinimo aparatas SHERMAN TIG 210 AC DC PULSE MMA 200A HF IGBT, aliuminiui. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: Sherman
- Modelis: SINW-TIG210ACDCP ZESTAW#1
- Ilgis: 510 mm
- Aukštis: 510 mm
Manufacturer: SHERMAN ║ Welding methods: TIG AC/DC, PULS, MMA ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%
The SHERMAN 210P TIG AC/DC inverter welder allows you to weld any weldable material , and the potentiometer control ensures easy operation for a novice welder. Welder recommended for DIY enthusiasts and hobbyists.
ADVANTAGES OF THE DEVICE:
- High efficiency of 60% at 200A current
- Easy control over the weld pool and the amount of heat
- High quality and cleanness of the weld

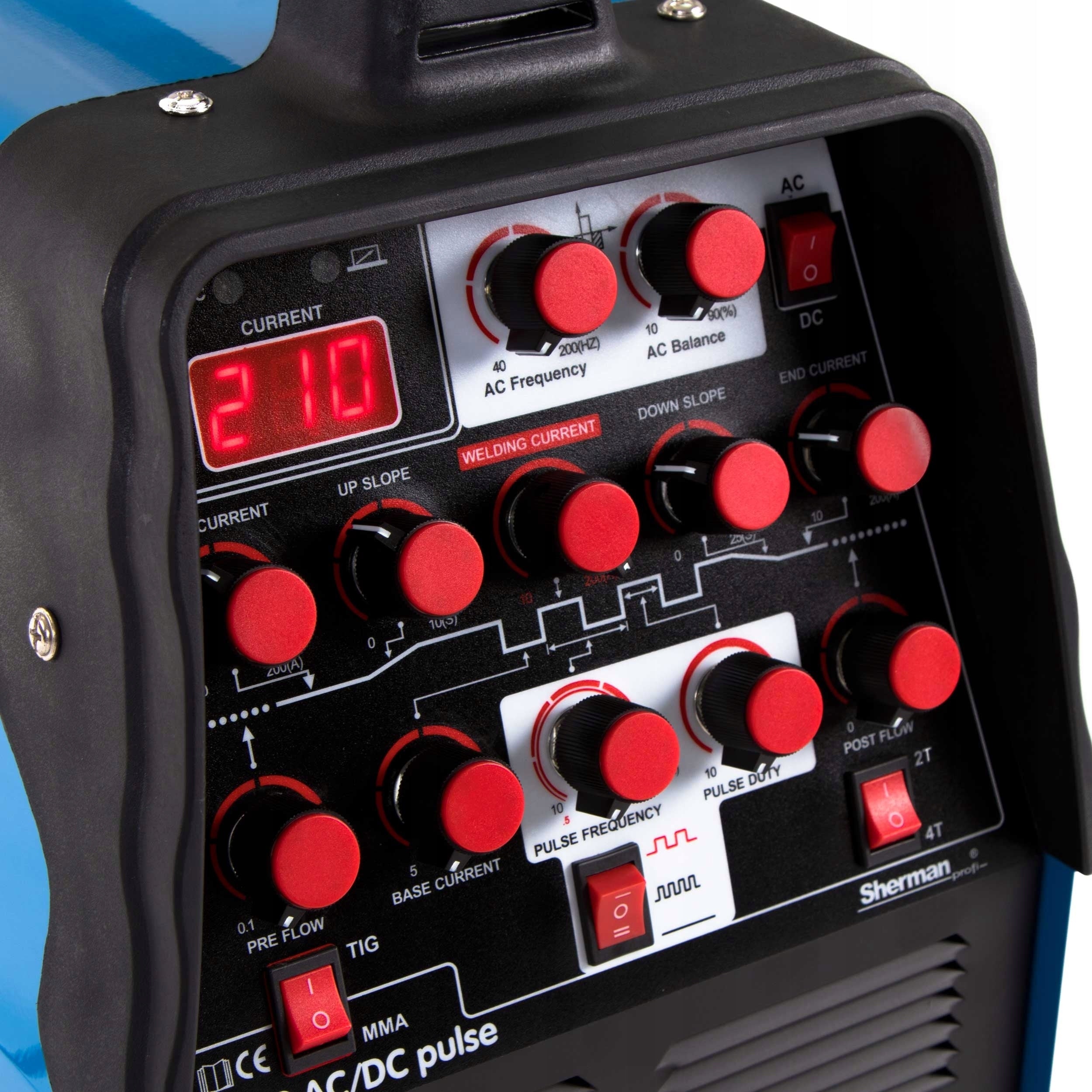

- Easy-to-use control panel
- Non-contact HF arc initiation
- TIG PULS and AC welding with full regulation
- Built-in protection against overheating of the device
- Fully adjustable to adjust every pulse parameter
- AC and DC welding
- Professional 4m welding torch
- MMA coated electrode welding with HOT START and ARC FORCE functions
- Welding current display
BET ON PROVEN EQUIPMENT. LEARN ABOUT OTHER FUNCTIONS AND ADVANTAGES OF TIG 210 AC/DC PULS!
FULL FUNCTIONALITY
The TIG 210P AC/DC welder gives the possibility of welding with pulsed current . Thanks to this function and the ability to fully adjust the parameters, it is possible to change the focus of the arc and the shape of the weld, as well as the possibility of welding thin elements . Arc ignition is contactless , using a built-in HF ionizer. Welding can be done using the 2T method, or the 4T method used for longer welds.
The great advantage of the welder is the possibility of using a remote control pedal . Remote control will work well when you need to change the current intensity often, away from the welding machine. The remote control pedal is not included, but is available on our other auctions.
EASY-TO-USE
Controlling the welder with potentiometers allows you to quickly change the desired parameter, which makes setting the welder very easy even for novice users.
Changing the frequency and balance of the AC current makes it possible to weld any aluminum alloy . In addition, you can set all the necessary parameters to obtain the best quality of the weld (gas outflow, current start, crater filling).
COOLING AT THE HIGHEST LEVEL
TIG AC/DC 210P is a proven model from SHERMAN , so you don't have to worry about the failure rate of the device. The efficient cooling system ensures uninterrupted operation without switching off the welder.
IGBT - the welder uses modern transistors, a solution that ensures minimum electromagnetic interference, low power losses in the basic systems, enabling increased efficiency and reliability of the power source.
2T/4T - with two-stroke, after pressing the start button, the welding process starts, after releasing the button, the welding process is stopped - with four-stroke, after the first pressing and releasing the button, the welding process starts with the second pressing, it is a more convenient solution for longer welds.
PULS - Pulsed welding not only allows for better weld quality , but also allows welding in different positions and welding very thin elements . Reducing the linear energy of the arc, and thus reducing overheating or burnout of the welded materials.
OVERLOAD SWITCH - built-in protection against overheating of the device, extending its life.
FULL ADJUSTMENT OF TIG AC DC PARAMETERS - pulse, frequency and balance, regulation of gas flow time after and before welding, regulation of the time of rising and falling current.
HF - the device is equipped with an ionizer that allows you to look at the welding arc without contact . using high frequencies. Thanks to this technological solution, it is possible to eliminate contamination of the weld with tungsten.
POWER PARAMETERS
- Power supply: 230V
- Frequency: 50Hz
- Number of phases: 1ph
- Maximum current consumption: 36.5A
- Mains protection: 25A
TECHNICAL PARAMETERS
- Rated no-load voltage: 70V
- Rated welding current: 200A
- duty cycle: 60%
- Gas pre-flow: 0.1 - 1s
- After gas flow: 1 - 15s
- Current ramp: 0 - 10s
- Current decay: 0 - 25s
- Initial current: 10 - 200A
- TIG welding current: 10-200A MMA: 10-180A
- Base current: 5 - 95% of the welding current
- Crater current: 10 - 200A
- Pulse frequency: 10 - 200Hz
- PULSE width: 10 - 90%
- AC frequency: 40 - 120Hz
- AC Balance : 10 - 90%
ADDITIONAL FEATURES
- PULSE function: YES
- HF function: YES
- 2T/4T function: YES
- PRE GAS: YES
- POST GAS: YES
- Current Slew: YES
- Current drop: YES
PHYSICAL PARAMETERS
- Degree of protection: IP21
- Weight: 15kg
- Dimensions: 510 x 235 x 510mm

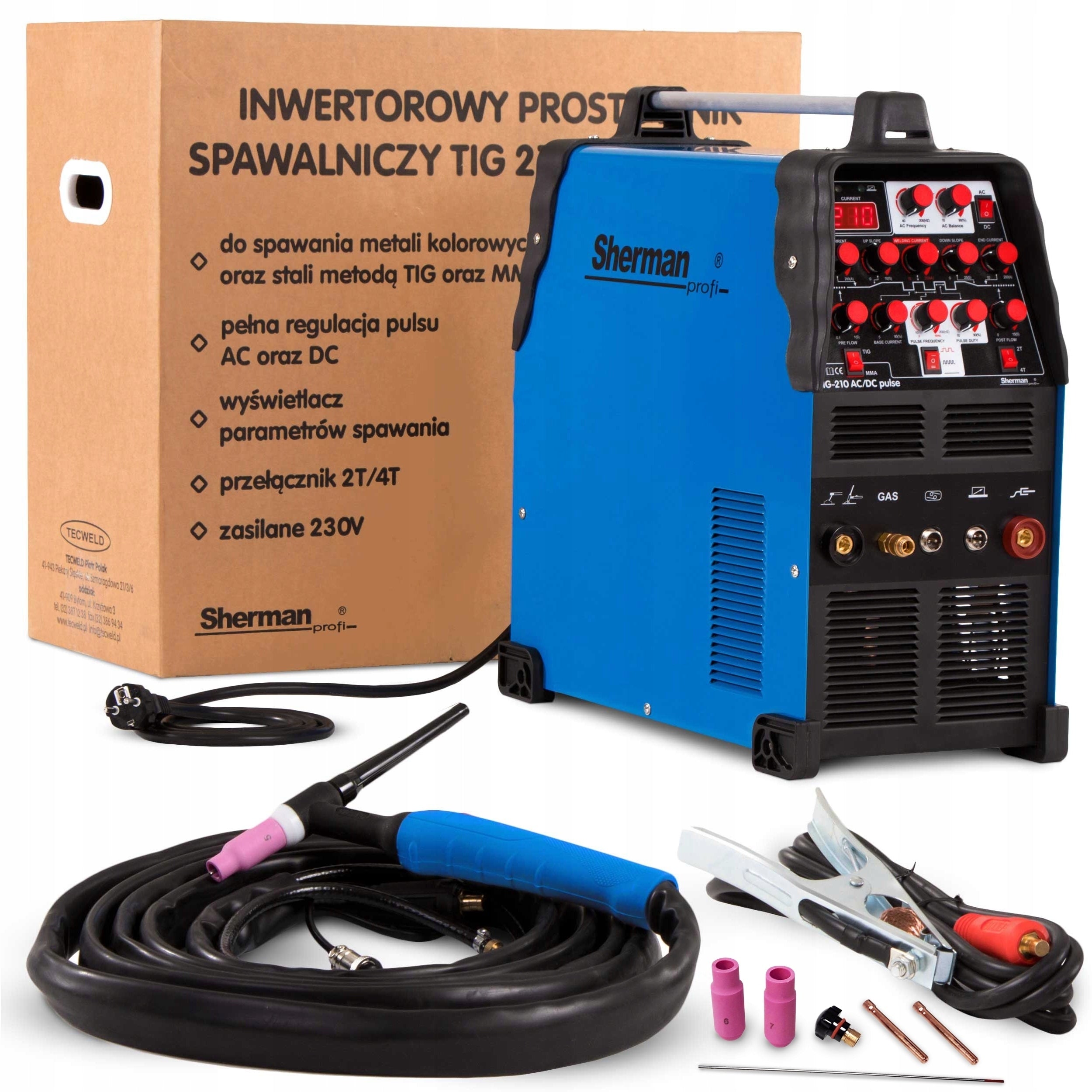

THE POT CONTAINS:
- SHERMAN 210P AC/DC welder

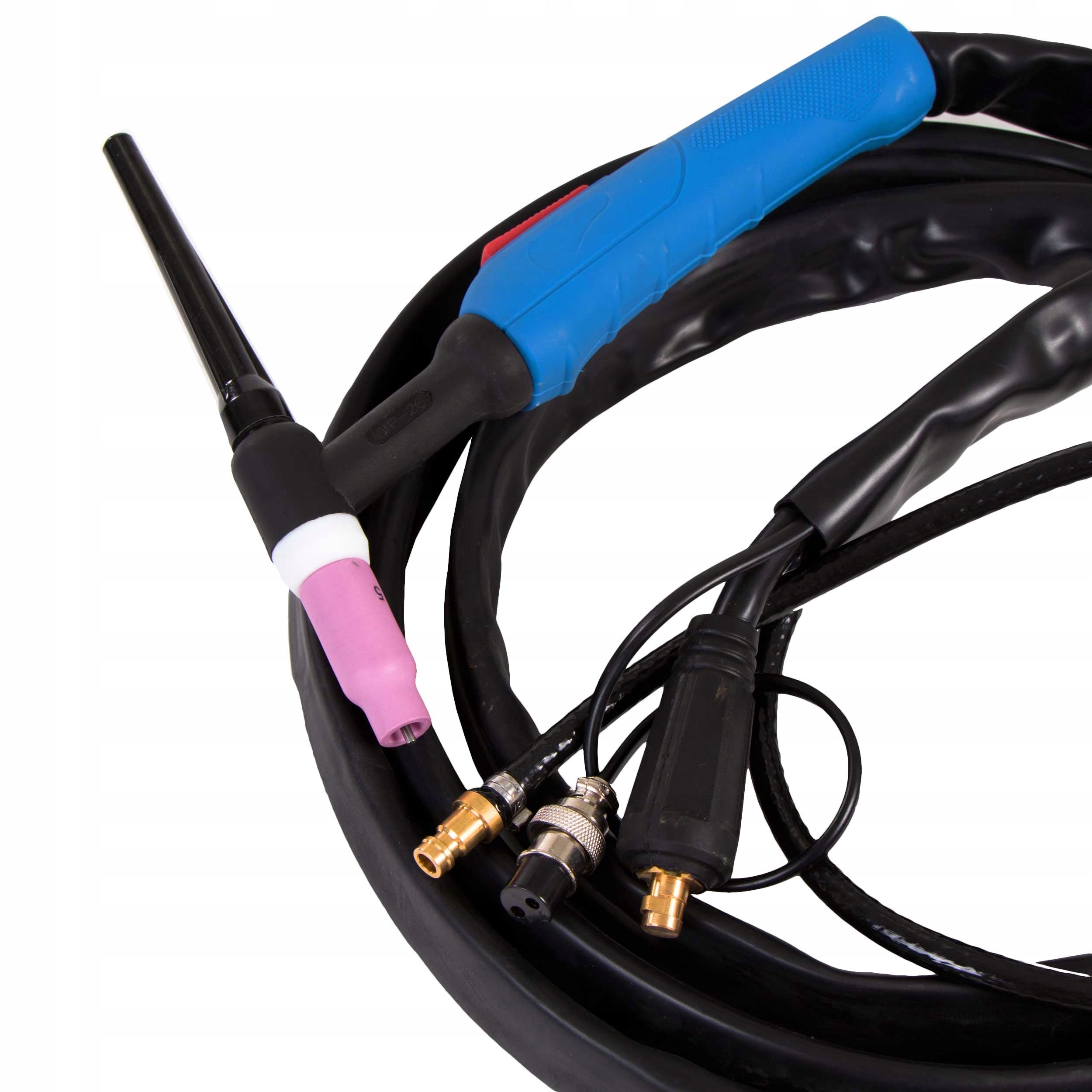

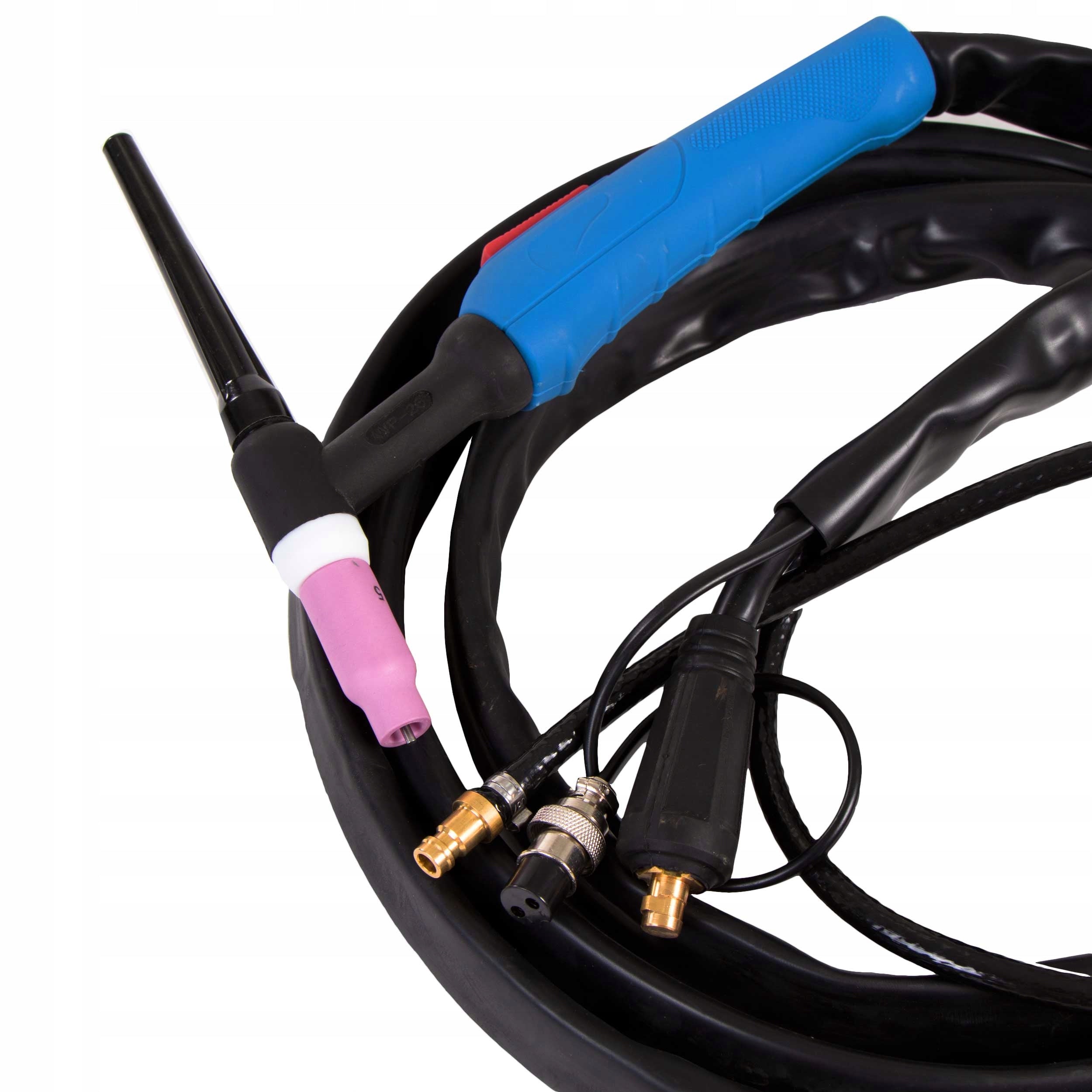

- TIG welding torch type SR26 - 4m
- Mass handle - 3m
- Collet - 2 pcs
- Medium TIG plug SR 17/18/26 - 1 pc
- Ceramic nozzle - 2 pcs
- User manual and warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Sherman |
| Parametry | Power consumption | 4.6 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 10–200 A |
| Parametry | Height | 510 mm |
| Parametry | Length | 510 mm |
| Parametry | Length of ground cable | 300 cm |
| Parametry | Welding cable length | 400 cm |
| Parametry | Product weight with unit packaging | 17 kg |
| Parametry | Manufacturer code | SINW-TIG210ACDCP ZESTAW#1 |
| Parametry | EAN (GTIN) | 5905214998011 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,LCD display |
