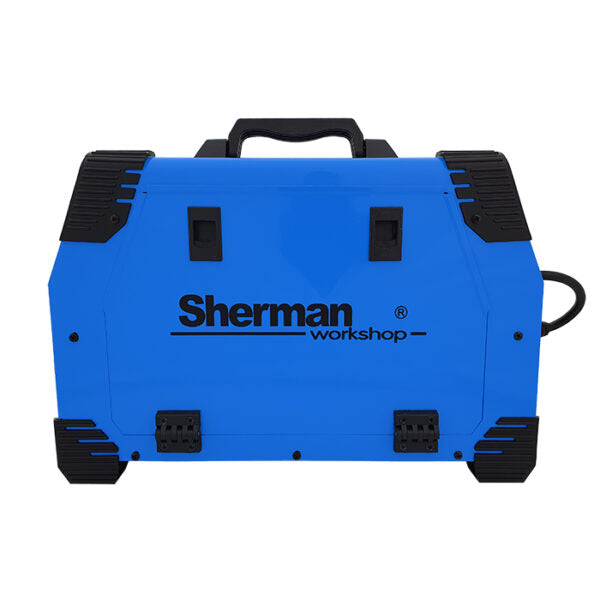

Suvirinimo aparatas Sherman MIGOMAT SYNERGY SHERMAN 200HD rinkinys 3

Trumpai apie prekę

Prekė: Suvirinimo aparatas Sherman MIGOMAT SYNERGY SHERMAN 200HD rinkinys 3. Kategorija: Pusiau automatiniai suvirinimo aparatai.

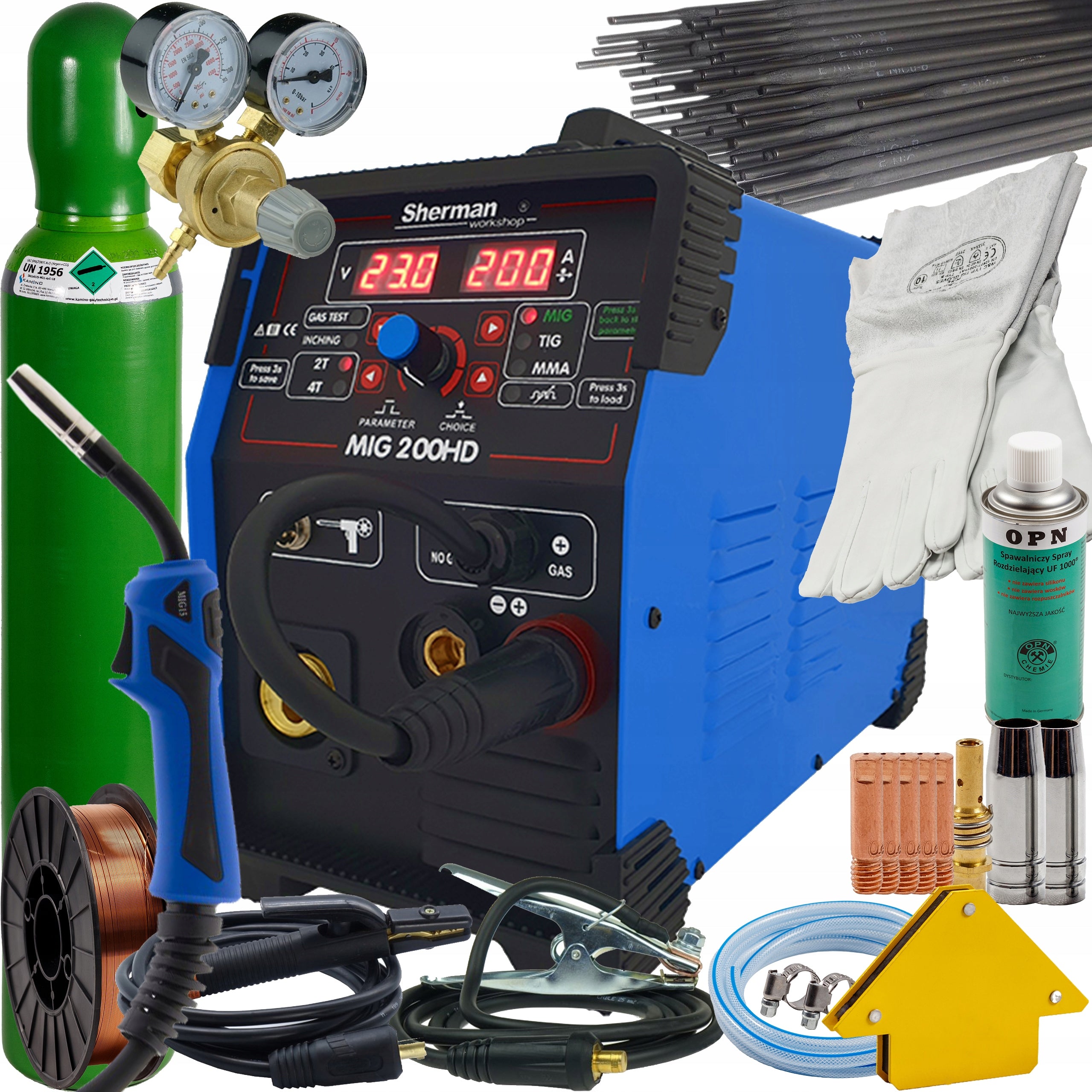

• Gamintojas: Sherman
• Modelis: MIGOMAT SHERMAN MIG 200 HD XRS2

• sherman MIG 200HD
• mig handle
• electrode holder
• mass cable

✔ New 8l MIX ARG/CO2 cylinder with legalization for 10 YEARS and protective cap for its transport (bottles can be filled at any point with technical gases)

✔ Welding wire 0,8/5 kg good quality!!!!

✔ Electrodes pack of 1kg

✔ 2-clock regulator showing the amount of remaining gas and gas flow during welding.

✔ Connection cable for cylinder and reducer.

✔ Flame retardant gloves for MIG welding

✔ Welding angle ESAB

✔ OPN- anti-chipping preparation

✔ 2 MB 15 nozzles for MIG holder

✔ 5 MB 15 tips for MIG holder

✔ 1 gas connector for MIG holder

✔ 2 cable ties

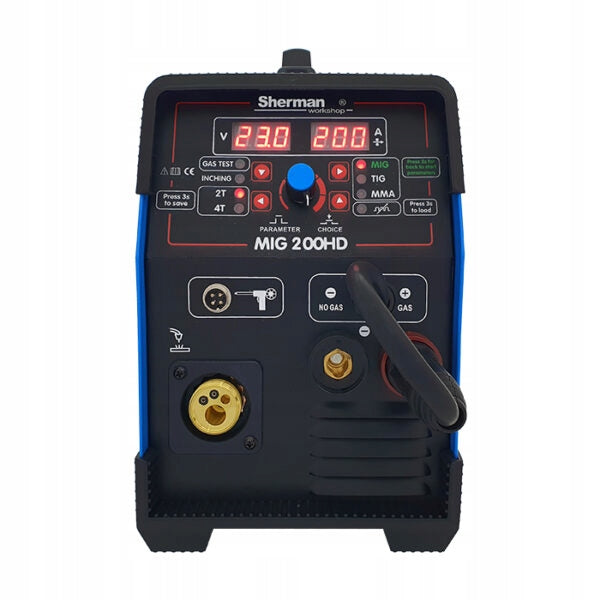

The MIG 200HD synergistic welding machine is used for manual welding of steel and non-ferrous metals. It enables welding using MMA (wrapped electrode), TIG Lift, and MIG/MAG methods in synergistic and manual mode. Thanks to the change of polarity, the device allows MIG/MAG welding using both standard wires in the protective gas shield and self-shielding powder wires. The device allows you to connect a Spool Gun holder with a mini wire feeder mounted in it and a D100 spool of steel or colored wire. Inductance adjustment allows for soldering of thin galvanized elements. The welder can work in synergistic or manual mode with the option to quickly return to the initial synergistic settings. The device has built-in automatic HOT START and ANTI STICK functions, it also allows you to remember 20 sets of parameters for the MIG method.

On the inside of the spool compartment cover there is a short guide for the welder facilitating the current operation of the device with a detailed description of access to adjustable operating parameters. The device is made in IGBT technology allowing for a significant reduction in weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption. The welding machine is used in closed or covered rooms, not exposed to direct atmospheric influences.

• Catalog number: 7812393
• Power supply voltage [V]: AC 230 50Hz
• Welding methods: MIG, MMA, TIG Lift
• Execution technology: IGBT
• Welding current [A]: MIG: 200; MMA: 180; TIG: 180
• Working cycle [%]: MIG: 45%; MMA: 60%; TIG: 60%
• Max. power consumption [A]: 33
• Max. power consumption [kVA]: 6,6
• Welding Current Adjustment: Liquid
• Wed. wire spades [mm]: 100, 200
• speed wire feeding [m/min]: 2 - 15
• Mass [kg]: 10,5
• Dimensions (D x SZ x W) [mm]: 450 x 210 x 330
• Functions: Digital Control, Hot Start, TIG Lift, Inductance Adjustment, Gas Free Welding, 2-Roll Feeder, Spool Gun Option, Setting Memory, Anti-Stick, TIG Lift, Gas Free Welding

Specifications
