Trumpai apie prekę
Prekė: Suvirinimo aparatas Sherman DIGIMIG 200 HIT, viela, savaime apsaugančios elektrodai. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: no brand
- Modelis: MIG 200 HIT
- Ilgis: 490 mm
- Plotis: 220 mm
- Aukštis: 375 mm
Manufacturer: SHERMAN║ Welding methods: MIG/MAG, MMA, TIG LIFT ║SYNERGY,SPOT, 2T/4T,ARC ║ Power supply: 230V ║ Welding current: 200A ║ Efficiency: 60%

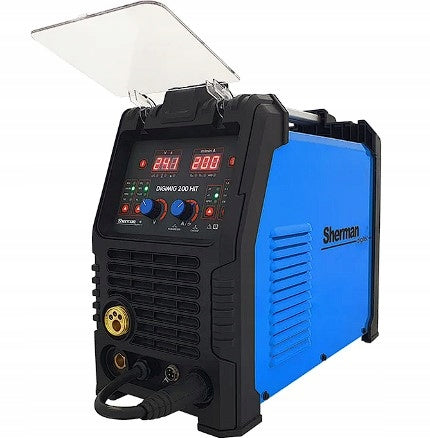

✅ SHERMAN DIGIMIG 200 HIT welder
It is a modern semi-automatic welding machine that is ideal for arc welding using the following methods:
- MIG SYN - MIG-MAG welding with automatic synergistic programs
- MIG MAG - MIG-MAG welding with manual settings
- MMA - MMA welding
- TIG Lift - TIG welding (by rubbing)
- FLUX - self-shielding wire welding without gas shield (without the need to buy cylinders and reducer)
❇ Ideal for use in:
✅Car workshops
✅Locksmiths
✅Factory
✅Agricultural holdings
✅Home
⚡ Key features:
➡ SYNERGY - PREMIUM class function, automatically adjusting welding parameters to the set output values
➡ SPOT- Spot welding gives you the ability to set the welding time at a given point. Thus, you will get a weld, always with the same parameters every time you press the key in the welding torch. The weld is always the same. The function is particularly applicable when combining thin plates. The material does not burn out, there are no holes in it.
➡ LUTOSPELING- The function is useful during MIG/MAG welding of thin elements, preventing them from burning out and allows soldering of galvanized elements.
➡ MIG/MAG - Welding with gas shield
➡ MMA - Traditional welding with wrapped electrode
➡ TIG - Precision Tungsten Welding
➡ FLUX - Welding without gas, self-shielding wire
⚡ Synergistic programmes:
- Fe CO2 - welding of carbon steels in CO2 shield.
- Fe MIX - welding of carbon steels in Ar/ CO2 mixture cover. The recommended proportion of the mixture is 82% Ar18% CO2.
- FLUX - self-shielding wire welding.
- ALU - welding aluminum alloys with AlMg5 wire.
✅Other functions:
⚙ HOT START - Easier arc inflammation
⚙ ARC FORCE - Easier electrode droplet transfer
⚙ VRD - Protection against high voltage after completion of operation
⚙ 2T/4T - Different operating modes for longer welding cycles
⚙ Technical data:
POWER SUPPLY PARAMETERS
- Power supply voltage: AC 230V 50Hz
- Maximum power consumption: 4.9 kVA
- Number of phases: 1ph
- Network security: A 25
- Power supply frequency: 50 [Hz]
TECHNICAL PARAMETERS
- MIG duty cycle: 200A / 45%
- MMA duty cycle: 180A / 60%
- TIG duty cycle: 200A / 60%
- Welding current MIG: 30 ÷ 200A
- MMA welding current: 25 ÷ 180A
- TIG welding current : 15 ÷ 200A
- MAXIMUM CURRENT CONSUMPTION MIG: 33 A
- MAXIMUM CURRENT CONSUMPTION MMA:35 A
- MAXIMUM CURRENT CONSUMPTION TIG: 25 A
- WELDING VOLTAGE MIG: 15,5 – 24 V
- Idle voltage: 65V
- Efficiency: 60%
- Feeder: 2R
- Spool diameters with wire: up to 100 mm, 200 mm
- Max. Spool size: 5kg
- Wire diameter: 0.8/1.0/1.2 mm
- Degree of protection: IP21
ADDITIONAL FUNCTIONS
- SPOT function: YES
- SYNERGY function: YES
- HOT START function: YES
- ARC FORCE function: YES
- 2T/4T function: YES
- SOLDERING function: YES
- TIG LIFT function: YES
- VRD function: YES
PHYSICAL PARAMETERS
- Housing protection: IP21
- Cooling: fan
- Dimensions: 440x210x370
- Weight: 10kg
Has a solid metal wire feeder.
- 1kg self-shielding wire
- 1KG wrapped electrodes
WELDING TORCH
- TW-15 - 3mb - the most universal holder on the market. Compatible with standard parts available in any welding shop.

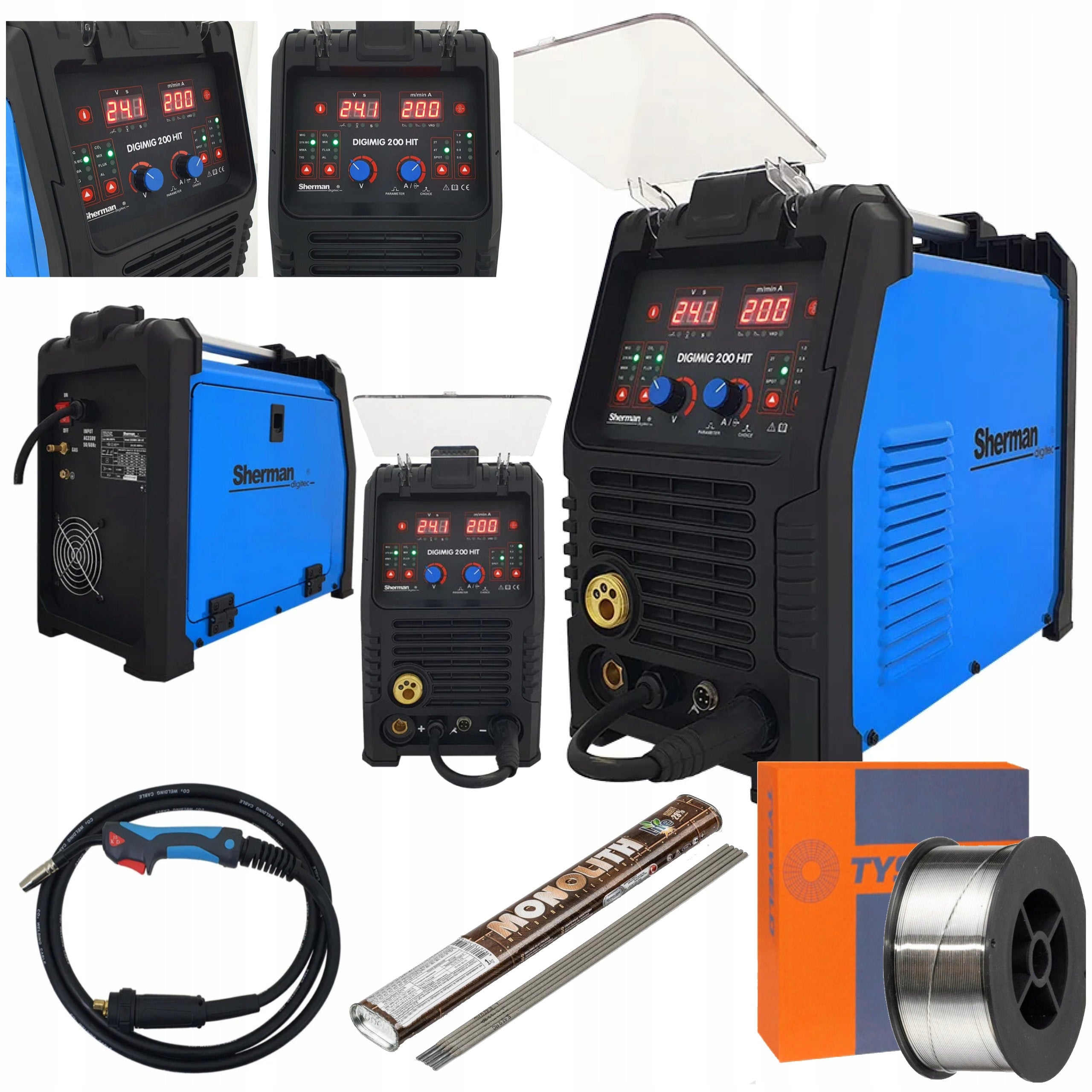

✅BUYING FROM US YOU WILL RECEIVE:
- Welder SHERMAN DIGIMIG 200 HIT - 1pc
- Welding torch MB15/3m - 1pc
- Electrode holder - 2 m - 1 pcs.
- Bulk cable - 2 m - 1 pcs.
- Instruction manual in Polish
- Guarantee card
- + wrapped electrodes + self-shielding wire FREE!
❇ Why is it worth buying in our store?
- Quality Guarantee: We work exclusively with reputable manufacturers to provide the highest quality products.
- Instant execution: All orders are processed expressly, usually on the same day, which allows for quick delivery to the customer.
- Customer service: Our team is here to help you at every stage of your purchase – from consulting to after-sales support.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Power consumption | 0 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 45% |
| Parametry | Maximum electrode diameter | 4 mm |
| Parametry | Wire diameter (mm) | 0,8-1,0 |
| Parametry | Device weight | 15 kg |
| Parametry | Welding range | 30–180 A |
| Parametry | Height | 375 mm |
| Parametry | Length | 490 mm |
| Parametry | Width | 220 mm |
| Parametry | Length of ground cable | 2 cm |
| Parametry | Welding cable length | 3 cm |
| Parametry | Product weight with unit packaging | 10 kg |
| Parametry | Manufacturer code | 570804209 |
| Parametry | EAN (GTIN) | 5903686618079 |
| Parametry | Packaging status | original |
| Parametry | Model | MIG 200 HIT |
| Parametry | Welding methods | MIG/MAG,MMA,TIG |
| Parametry | Additional features | infinitely adjustable welding current,EURO handle |
