Suvirinimo aparatas SHERMAN 205 LCD SYNERGIC MIG MAG MMA TIG FLUX 200A 230V, rinkinys 4 vnt.

Trumpai apie prekę

Prekė: Suvirinimo aparatas SHERMAN 205 LCD SYNERGIC MIG MAG MMA TIG FLUX 200A 230V, rinkinys 4 vnt.. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: SPAWARKA INWERTOROWA MIG MAG MMA TIG 3W1 SHERMAN
• Ilgis: 495 mm
• Plotis: 210 mm
• Aukštis: 330 mm

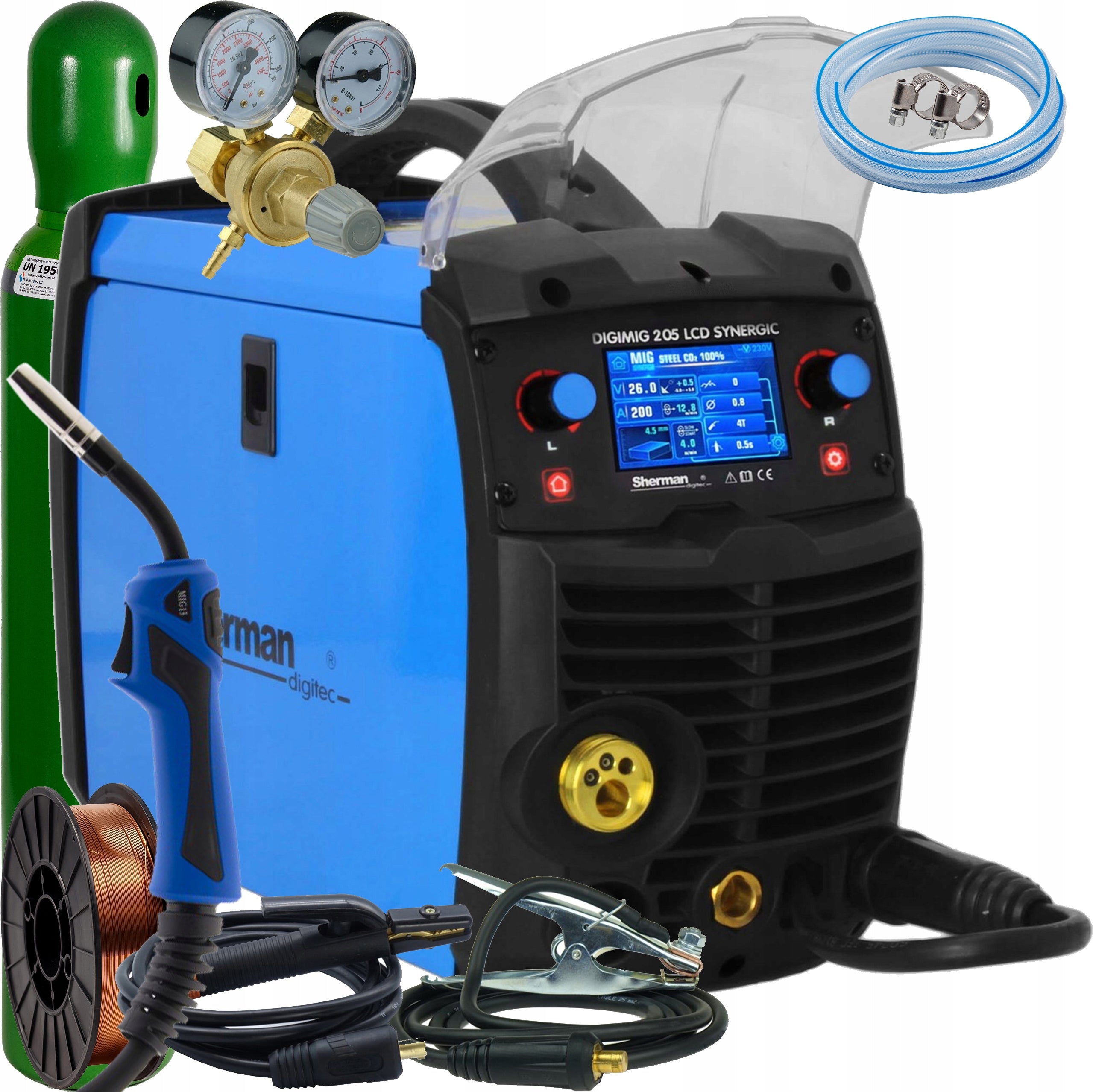

• Welder DIGIMIG 205 LCD SYNERGIC
• Welding torch TW-15/3m
• Electrode cable
• Bulk cable

✅Bottle new 8l MIX ARG/CO2 with legalization for 10 YEARS and cap protective for its transport (bottles can be filled at any point with technical gases) cylinders 150BAR

✅Welding wire 0,8/5 kg good quality!!!!

✅ 2-clock reducer showing the amount of remaining gas and gas outflow during welding.

✅Connection cable for cylinder and reducer.

✅2 cable ties

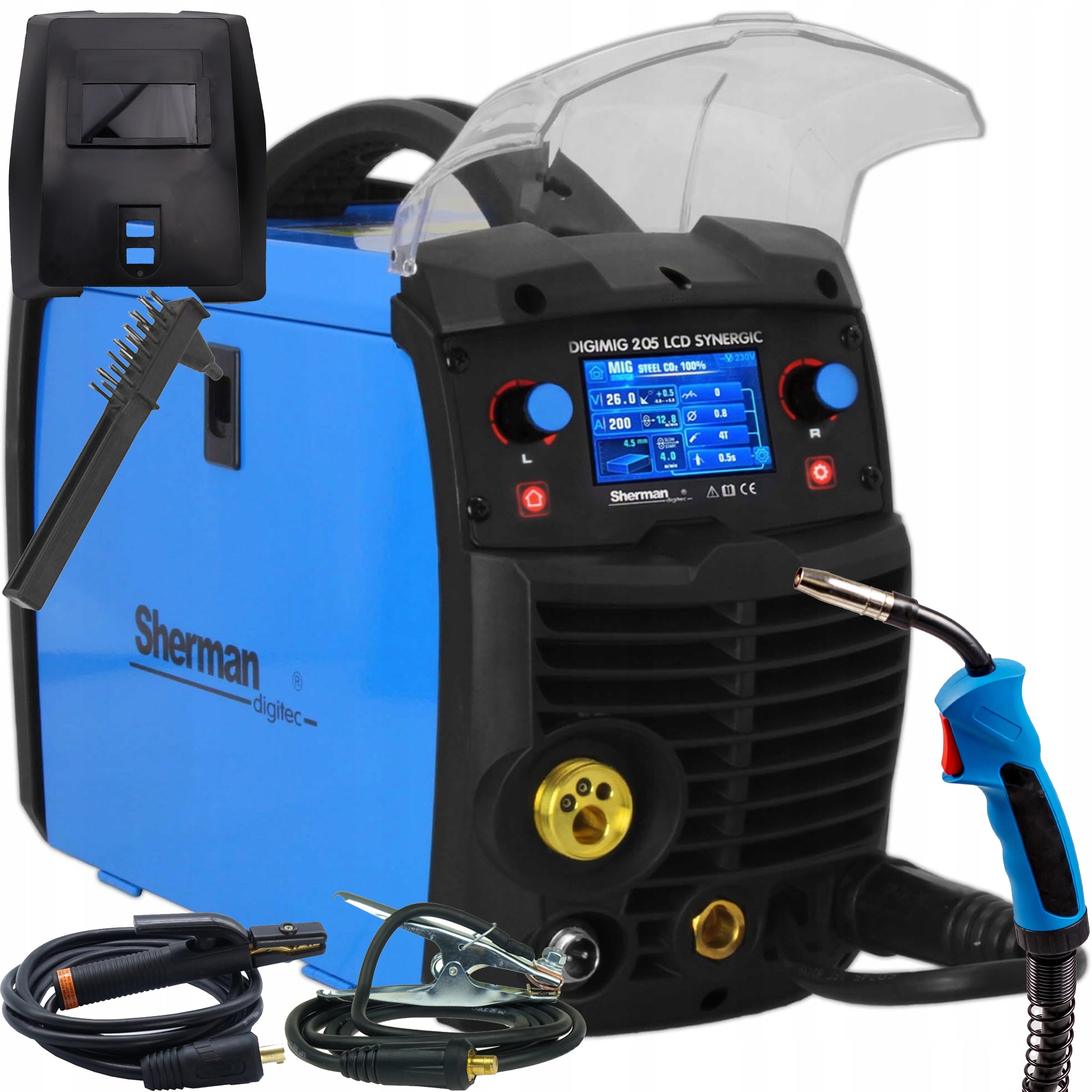

SHERMAN DIGIMIG 205 LCD SYNERGIC is a modern, compact semi-automatic welding machine on 230V, designed for work in the workshop, garage and home studio. It is a versatile welding machine that allows welding using MIG/MAG, MMA, TIG Lift and lutowelding methods, making it perfect for steel, colored metals and thin galvanized sheets. 🔧

A big advantage of this model is the readable LCD display and the ability to work in manual and synergistic mode. The synergy function makes it much easier to set parameters, so the device will be a good choice for both more experienced users and people starting to work with welding. 🤖

Modern IGBT technology is responsible for stable and efficient operation, which improves the operating culture of the device, arc stability and reliability during everyday use. ⚙

Thanks to the polarity change, the welding machine allows you to work with both wire in the gas shield and self-shielded wire FLUX, which increases its versatility and allows you to adjust the device to different working conditions. 🛡

✅ welding with MIG/MAG, MMA, TIG Lift DC methods

✅ lutowelding of thin galvanized sheets up to 3 mm

✅ manual and synergistic MIG mode

✅ synergistic programs for carbon steel and aluminium

✅ possibility of welding with self-shielded wire FLUX

✅ change of polarity

✅ readable LCD display

✅ functions HOT START, ARC FORCE, VRD

✅ memory of the last settings

✅ Fan Stop function – quieter operation at low load

✅ compact design and convenient operation

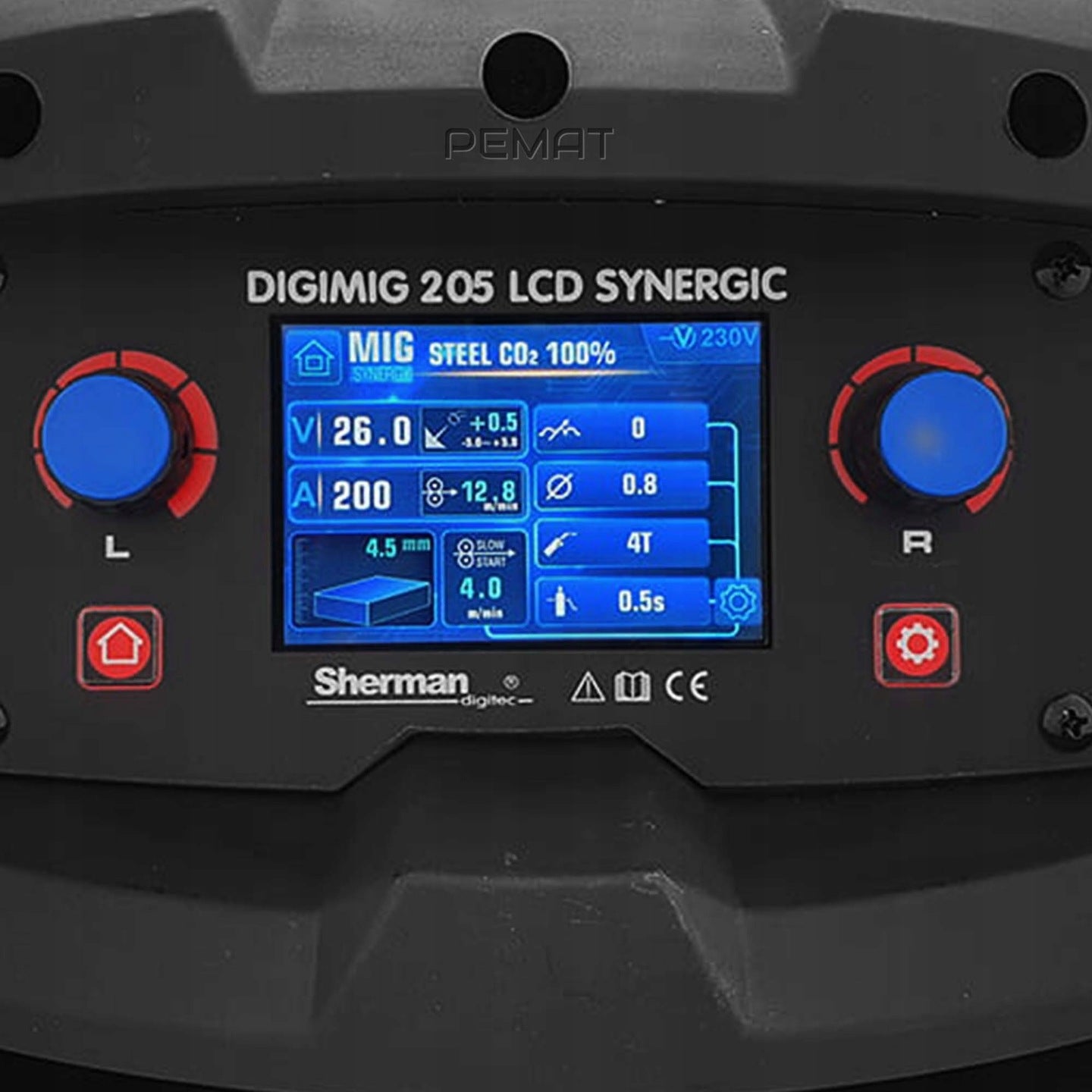

The SHERMAN DIGIMIG 205 LCD SYNERGIC welder offers convenient digital adjustment of operating parameters. The control panel allows you to easily adjust the settings to suit the type of material and welding method.

🔥The most important features:

✅ MIG manual and synergistic mode

✅regulation of arch dynamics

✅regulation of welding characteristics

✅welding voltage correction

✅ adjustable wire feed speed

✅Synergic settings for steel and aluminium

✅memory of the last setting

✅HOT START

✅ARC FORCE

✅can be disabled VRD

✅ Fan Stop function to reduce noise 🌬

✅Catalog number: 7812697

✅ EAN code: 5903686617706

✅Welding methods / other: soldering, MIG/MAG, MMA DC, TIG Lift DC

✅Power supply voltage: AC 230 V

✅Execution technology: IGBT

✅Maximum MMA welding current: 180 A

✅Maximum TIG DC welding current: 200 A

✅Maximum MIG/MAG welding current: 200 A

✅ MMA work cycle: 30%

✅TIG duty cycle: 30%

✅ MIG/MAG duty cycle: 30%

✅Voltage without load: 54 V

✅Wire feed speed: 2 – 12,8 m/min

✅Opening speed of the feeder: 3 – 6

✅ MIG welding voltage: 16,5 – 24 V

✅Welding voltage correction: -5 to +5

✅ MIG gas flow: 0,1 – 2 s

✅Maximum MMA power consumption: 8,5 kVA

✅Maximum TIG power consumption: 8,5 kVA

✅Maximum MIG/MAG power consumption: 8,5 kVA

✅Maximum MMA current consumption: 40 A

✅Maximum TIG current consumption: 29 A

✅Maximum MIG/MAG current consumption: 39 A

✅ Wire spool diameter: 100 / 200 mm

✅Roller dimensions: 30 × 10 × 10 mm

✅Main method: MIG/MAG

✅Network security: 25 A

✅Weight: 13 kg

✅Dimensions (D × SZ × W): 495 × 210 × 330 mm

✅car and locksmith workshops

✅home users and hobbyists

✅people looking for a welding machine with synergy function

✅users welding steel and colored metals

✅persons performing soldering of thin sheets

✅users who want simpler operation and quick selection of parameters

🔧 workshop and repair work

🚗 flashing repairs and galvanized elements

🛠 welding of steel and non-ferrous metals

✨ soldering of thin sheets up to 3 mm

🏠 garage, home workshop and hobby work

⚡ welding with gas shielded wire and self-shielded wire

✅Does the welding machine have synergy function?

Yes – the device allows you to work in synergistic MIG mode, which facilitates the selection of parameters.

✅Can self-shielding wire be welded without gas?

Yes – thanks to the change of polarity, the welding machine also supports FLUX powder wire.

✅Is the device suitable for soldering?

Yes – the model allows soldering of thin galvanized sheets up to 3 mm.

✅Does the welding machine have MMA assist functions?

Yes — HOT START, ARC FORCE and the ability to disable VRD are available.

✅What wire spools does it support?

The device supports spools with a diameter of 100 mm and 200 mm.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Sherman
Parametry	Power consumption	8.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	30%
Parametry	Maximum electrode diameter	3.2 mm
Parametry	Wire diameter (mm)	0,8-1,0
Parametry	Device weight	13 kg
Parametry	Welding range	50–200 A
Parametry	Height	330 mm
Parametry	Length	495 mm
Parametry	Width	210 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	14 kg
Parametry	Manufacturer code	Spawarka Synergiczna DIGIMIG LCD 205 RSH2
Parametry	EAN (GTIN)	5904624040099
Parametry	Packaging status	original
Parametry	Model	SPAWARKA INWERTOROWA MIG MAG MMA TIG 3W1 SHERMAN
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	infinitely adjustable welding current,EURO handle,LCD display
