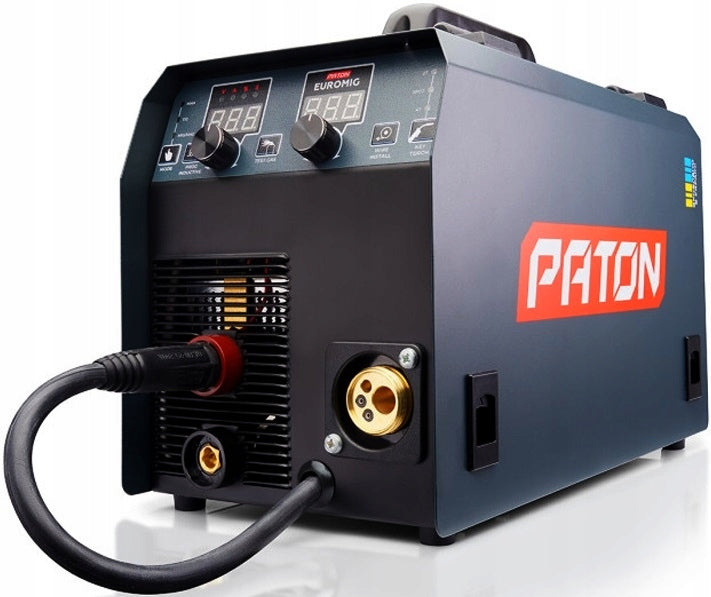

Suvirinimo aparatas PATON EUROMIG 150A 230V PULSE MMA TIG LIFT DC

Trumpai apie prekę

Prekė: Suvirinimo aparatas PATON EUROMIG 150A 230V PULSE MMA TIG LIFT DC. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Paton
• Modelis: EuroMIG
• Ilgis: 194 mm
• Plotis: 390 mm
• Aukštis: 295 mm

➡ THE DEVICE FROM EUROPEAN PRODUCTION IS DISTINGUISHED BY HIGH QUALITY AND MODERN TECHNOLOGICAL SOLUTIONS ⬅

***********************************************

WELDING MACHINE PATON EUROMIG

it is a professional, technologically advanced semi-automatic welding machine designed for welding using the following methods:

➡ MIG/MAG:

Arc welding in gas shields (CO2 or Argon+CO2) is one of the most commonly used processes for the production of welded structures. The semi-automatic welding process involves melting the edges of the welded object and the welding material (welding wire on a roll) with an electric arc produced between the welding wire fed by the handle and the welded material.

Available Modes:

• MIG MAN - MIG-MAG welding in manual (traditional) mode,
• FLUX / FCAW - self-shielding wire welding. This is a similar welding process as MIG/MAG but does not require a gas cylinder. On the wire there is a thin layer of powder, which at the time of arc formation produces gas covering the working area.

➡ TIG LIFT DC - welding with a non-melting electrode (tungsten) in an inert gas shield (Argon) using an additional handle. In the TIG DC Lift mode, the arc glow occurs when the electrode with the welded element is contacted (the button in the handle does not arc, the gas is connected directly from the reducer to the handle). In TIG Lift DC mode, the current is constant.

• PULS - gives the welder full control of the heat introduced into the material - a great feature for welding stainless steel and acid-resistant steel.

➡ MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

• PULS - this makes it easier to transfer the material from the electrode to the welding lake, better quality of the welded joint.

The PATON EUROMIG welding machine is used for welding:

✔ low alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ low carbon steel (MMA, MIG/MAG, TIG Lift DC),

✔ alloy steels (MMA, MIG/MAG, TIG Lift DC),

✔ acid-resistant steels (MMA, MIG/MAG, TIG Lift DC),

✔ aluminium and its alloys (MIG),

✔ other weldable metals and alloys.

The device has been designed for all kinds of welding work in automotive, locksmith, repair, industrial workshops etc.

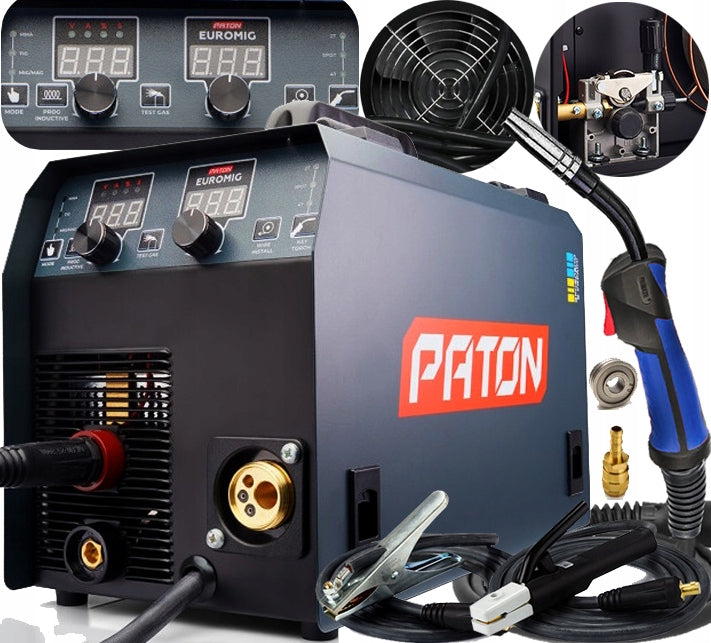

PATON EUROMIG has a readable and easy to use function panel, which has m.in.:

• Power source controller knob for selecting the functions/parameters of the current welding mode and setting their value. Default: MMA – welding current, TIG – welding current, MIG/MAG – welding voltage. Rotate the knob to select a function/parameter, press it to go to the value setting of the selected function/parameter. The values are set by turning the controller knob. Press the knob again to return to the function/parameter selection menu,
• Seven-segment power source indicator,
• The "PROG INDUCTIVE" button for selecting the welding program (a set of parameters previously set by the user). Additional function in MIG/MAG mode: press and hold more than 1 second to set the inductance level,
• MODE button of the choice of welding method: manual arc welding with wrapped electrode (MMA), argon welding with tungsten electrode (TIG), semi-automatic welding in protective gases (MIG/MAG),
• Indicator of the selected welding mode,
• GAS TEST button for checking the supply of protective gas (after pressing the wire is not fed),
• Wire feeder setting controller knob,
• Seven-segment wire feeder indicator,
• The "WIRE INSTALL" button for feeding the wire (after pressing the gas is fed),
• KEY TORCH button to change the button mode in the welding torch.

• ✔ REPAIR WORKSHOPS,
• ✔ AUTOMOTIVE INDUSTRY,
• ✔ LOCKSMITH WORKSHOPS,
• ✔ OF ALL BODYWORK REPAIRS,
• ✔ FACTORIES,
• ✔ FARMS,
• ✔ HOMEWORK,

AND WHEREVER RELIABILITY MATTERS!

✔ INDUCTANCE ADJUSTMENT - function is useful during welding using the MIG/MAG method of thin elements, preventing them from burning out and soldering galvanized elements. Changing the inductance value also reduces the amount of welding chips during CO2 shielded welding. Thanks to the inductance adjustment, the welding machine is suitable for lutowelding. Depending on the model of the welding machine, the adjustment is automatic or can be adjusted manually.

✔ SOLDERING - is a method that resembles MIG/MAG welding to a fairly large extent, but the energy supplied in this case is much less. This means that soldering is used to join thin sheets covered with a layer of zinc. The described method is a bonding process during which solder melts, not the material we work with.

✔ PULS - pulsed current welding, in which high and low current are alternately used. This reduces overall heat supply and splatter while providing greater resistance to non-melting. This method can be used to weld both metals with high thermal conductivity and thinner metals without burning them. Additionally, you can get narrower and more penetrating welds on thicker metals.

✔ HOT START - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - is a function that facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from being extinguished when the drop of electrode contacts the welding lake.

✔ VRD - (Voltage Reduction Device) - reduces the idle voltage on the electrode to a safe value. Provides shock safety when working in humid environments.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EUROCONNECTOR - allows you to quickly change the handle and allows you to change the polarity for welding with self-shielding wire.

✔ TWO-BAR 2T - pressing the button initiates gas outflow and welding current, releasing the button turns off welding current and gas outflow.

✔ FOUR-BAR 4T - pressing and releasing the handle button initiates gas outflow and welding current, re-pressing and releasing the button turns off the welding current and gas outflow.

✔ CONTROL PANEL - The welding machine is equipped with an easy-to-use control panel and display, so it can be used even by amateurs.

✔ EASY TO USE - The welding machine is equipped with an easy-to-use control panel, so it can be used even by amateurs.

EFFICIENT OPERATION THANKS TO PROFESSIONAL WIRE FEEDER

The welder is equipped with a solid wire feeder, which guarantees stability and continuity of operation of the device.

PATON EurodMIG is equipped with a 2-roll metal wire feeder, and the universal KZ-2 connector type "EURO" allows you to connect a welding torch from a wide range of manufacturers.

The feeder has a quick wire change knob as well as a wire feed roller. EuroMIG, combined with high power and efficiency, is characterized by low weight and dimensions.

➡ The device is equipped with overload protection, which increases its reliability.

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Cooling: Adaptive
• Power supply: 220/230 V
• Rated current consumption: 17 - 20 A
• Rated welding current: 150 A
• Maximum operating current: 200 A
• Working load factor: 80%
• Power supply voltage range: 160 - 260 V
• Welding current adjustment range: 8 - 150 A
• Wire feed speed range: 1,5 - 10 m/min
• Diameter of electrode: 1,6 - 4 mm
• Wire diameter: 0,6 - 1 mm
• Maximum weight of wire spool: 5 kg

⏩ FUNCTIONS:

• Pulsation welding methods: MMA, TIG
• Hot-Start function: Adjustable
• Arc-Force function: Adjustable
• Anti-Stick function: Automatic
• Idle reduction: On/Off

⏩ ELECTRICAL PARAMETERS:

• Idle voltage: 12 / 75 V
• Arc current voltage: 110 V
• Rated power consumption: 3,8 - 4,4 kVA
• Maximum power consumption: 5,5 kVA

⏩ OTHER:

• Dimensions (W. x Length x H. ): 390 x 194 x 295 mm
• Gross weight: 12,7 kg
• Weight of the device: 9,2 kg
• Protection factor: IP33

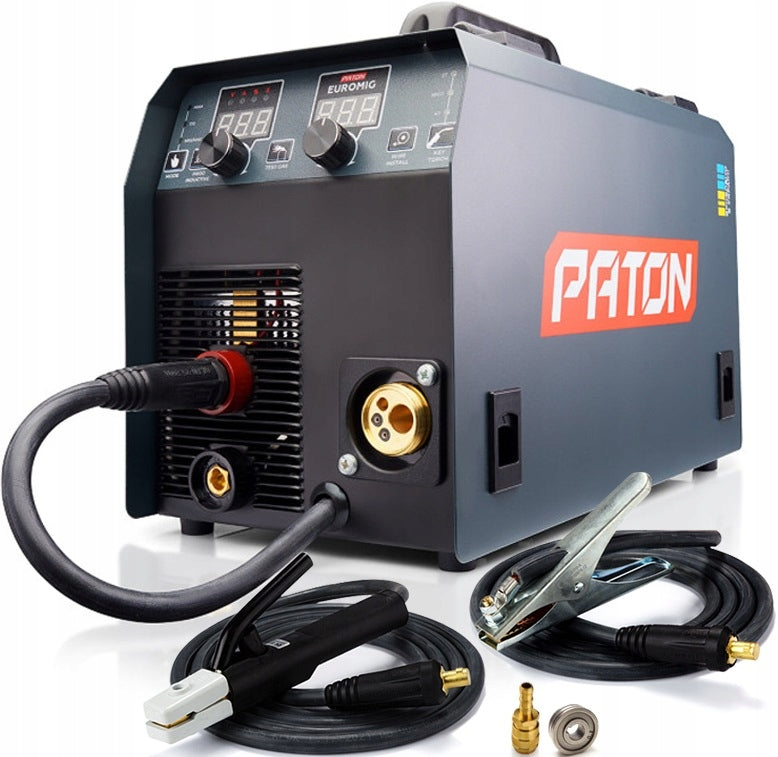

WHEN YOU BUY FROM US, YOU GET:

• Welder PATON EUROMIG - 1 pc.
• MMA electrode cable - 1 pc.
• mass cable - 1 pc.
• Quick coupler for gas - 1 pc.
• Carton packaging - 1 pc.
• Instruction for operating in Polish
• Guarantee card

+ MIG MB15 welding cable - 1 pc.

SET 1 LARGE MIG INDUCTANCE MB15.
