Suvirinimo aparatas MMA TRAFILUX MMA 235 PRO 230V 200A VRD

Trumpai apie prekę

Prekė: Suvirinimo aparatas MMA TRAFILUX MMA 235 PRO 230V 200A VRD. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Trafilux
• Modelis: SPAWARKA INWERTOROWA TRAFILUX 200A
• Ilgis: 420 mm
• Plotis: 170 mm
• Aukštis: 265 mm

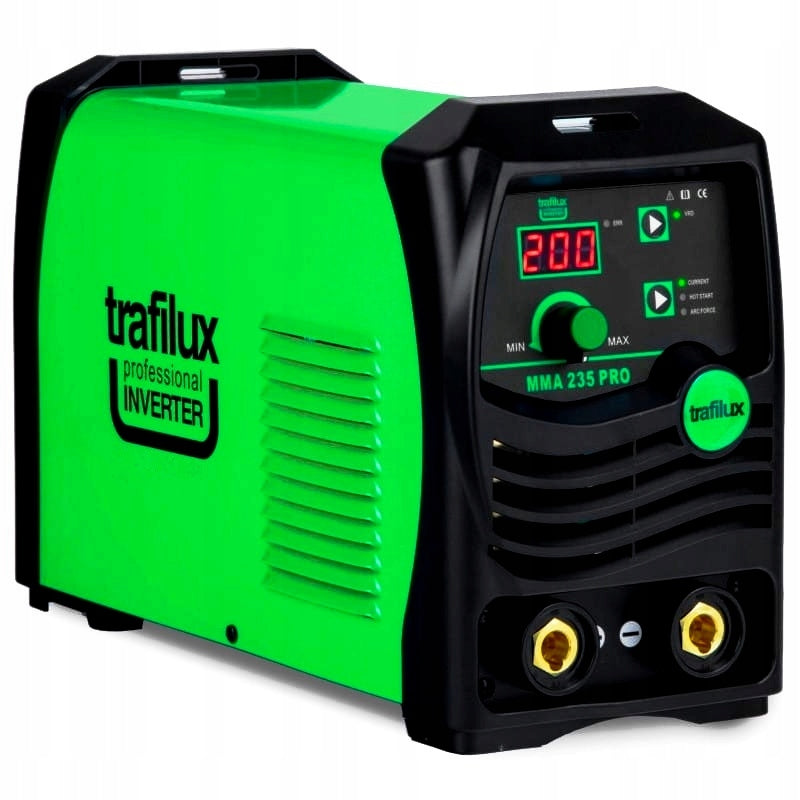

TRAFILUX MMA 235 PRO WELDING MACHINE

TRAFILUX MMA 235 PRO - This portable welding machine uses the most advanced IGBT inverter technology. The device has a power supply 230V. The welder is not equipped with a power plug.

➡ MMA

• MMA - classic welding with wrapped electrodes (rutile, alkaline, acidic).

➡ TIG LIFT DC

• TIG LIFT DC - welding with a non-melting electrode in an inert gas shield.

The device has a high maximum welding current 200A, with a duty cycle of 60%.

TRAFILUX MMA 235 PRO is used for welding:

✔ low alloy steels,

✔ low carbon steel,

✔ stainless steel,

✔ cast iron steels.

The device is perfect for both workshop work and field work.

TRAFILUX MMA 235 PRO has a readable and easy to use function panel, which has m.in.:

• Display,
• Service control - indicating overheating of the device or error,
• VRD - button to start the function,
• VRD - LED indicating the operation of the function,
• Welding current - diode indicating the possibility of adjusting the parameter,
• Hot start - LED indicating the possibility of adjusting the parameter,
• Arc dynamics - LED indicating the possibility of adjusting the parameter,
• Functional button - used to select parameters,
• Knob used to set the welding current range, arc dynamics, hot start.

✔ REPAIR WORKSHOPS,

✔ CARPENTRY WORKSHOPS,

✔ ASSEMBLY SERVICES,

✔ FARMS,

✔ REPAIR/HOMEWORK.

AND WHEREVER RELIABILITY MATTERS!

✔ ANTI STICK - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc.

✔ HOT START - regulation of hot start - facilitates the ignition of the electrode by providing more welding current with each arc.

✔ ARC FORCE - makes it easy to transfer a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake.

✔ VRD - is a voltage reduction system whose task is to turn off the power supply within a few milliseconds after welding. This function is also responsible for reducing the voltage on the wrapped electrode to a safe level.

✔ INVERTER TECHNOLOGY IGBT - is a modern technology based on bipolar transistors with an isolated gate. It combines the ease of control of field transistors with high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology has the effect of significantly extending the reliable operation of welding equipment.

✔ EASE OF USE - The welding machine is equipped with an easy-to-use control panel so that it can be used even by amateurs.

✔ WORK IN INDUSTRY - thanks to its high quality and multifunctionality, the device can be used in professional and hobby work.

✔ MOBILITY OF THE DEVICE - inverter welding machines are incomparably lighter and smaller than outdated transformer welding machines, which makes it much easier to move them between workplaces.

➡ The device is equipped with overload protection, which increases its reliability.

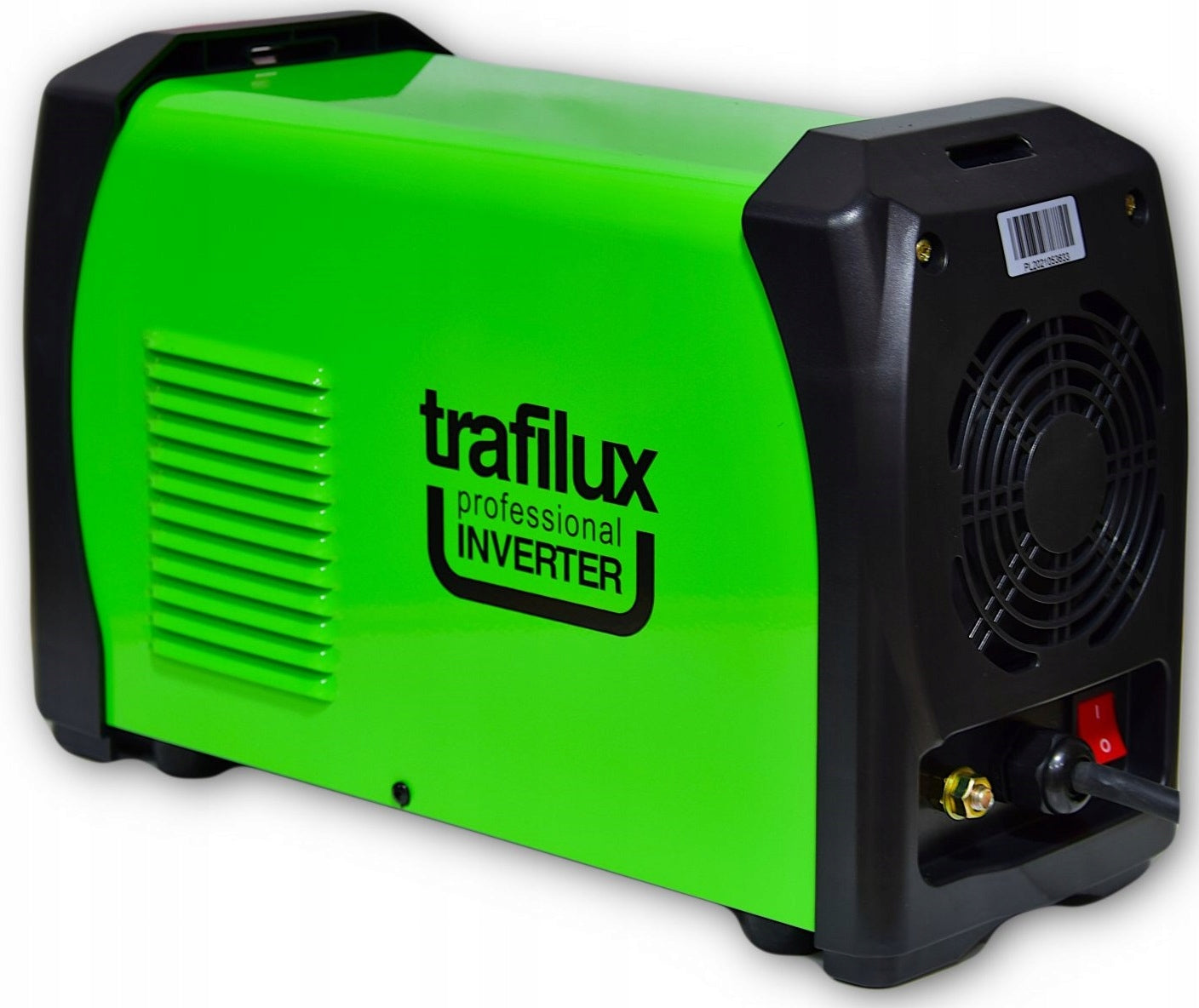

❄ The device has a fan cooling system which significantly increases its efficiency.

⏩ TECHNICAL DATA:

• Power supply voltage: 230v ±15%
• Frequency [Hz]: 50/60
• Power protection: 20A
• Working cycle: 60 %

⏩ MMA and TIG PARAMETERS:

• Welding current at 60% operation: 200 A
• Welding current at work 100%: 154 A
• Working current: 10-200 A
• Idle voltage: 80 V
• Arc dynamic range: 0-100 A
• Hot start range: 0-100 A
• Diameter of welding electrode: 1,6 - 5,0 mm
• Welding TIG: Tig Lift

⏩ OTHER:

• Dimensions: 420x170x265 mm
• Weight: 7,8 kg
• Degree of protection: IP23

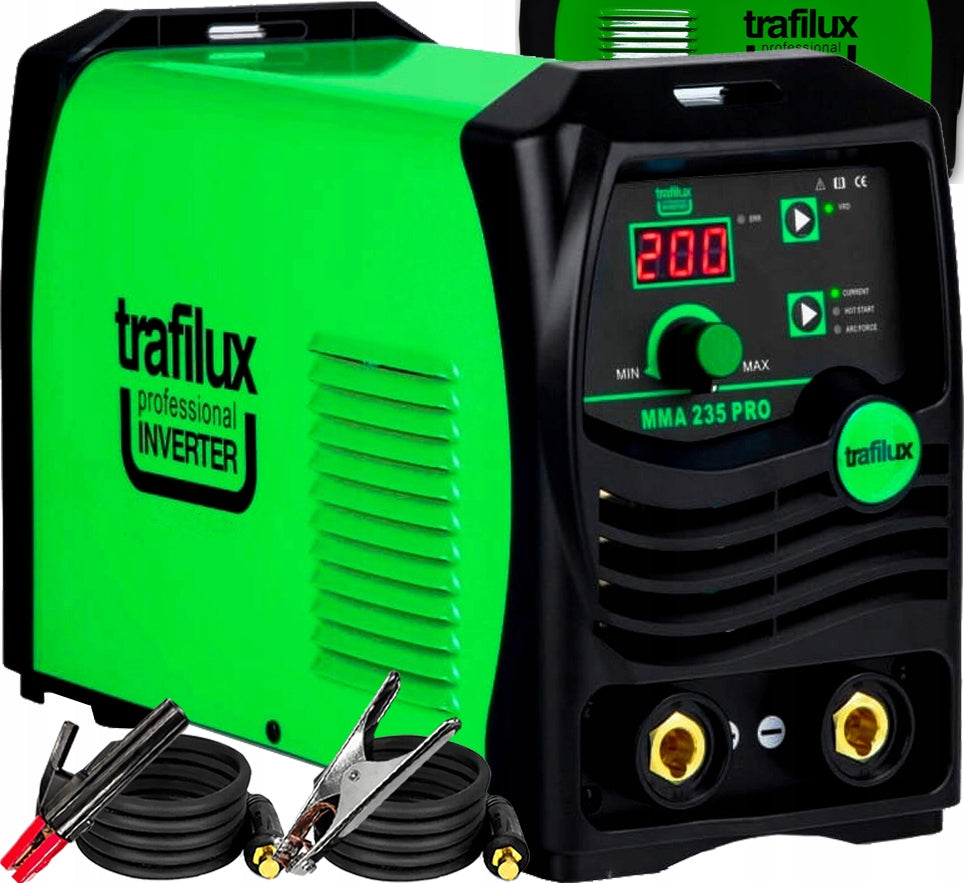

WHEN YOU BUY FROM US, YOU WILL RECEIVE:

• Inverter welder TRAFILUX MMA 235 PRO - 1 pc.
• Electrode holder - 1 pc.
• Bulk cable - 1 pc.
• User manual in Polish

SET OF 1 MMA.

M.
