Suvirinimo aparatas MIGOMAT PRAKTIK MIG 200 SYNERGY LED su balionu

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT PRAKTIK MIG 200 SYNERGY LED su balionu. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka PRAKTIK MIG 211 SYNERGIC LED Ideal
• Ilgis: 470 mm
• Plotis: 225 mm
• Aukštis: 335 mm

Welding machine MIGOMAT MIG\MMA\TIG PRAKTIK MIG 200 SYNERGY LED IDEAL SET CYLINDER

IDEAL

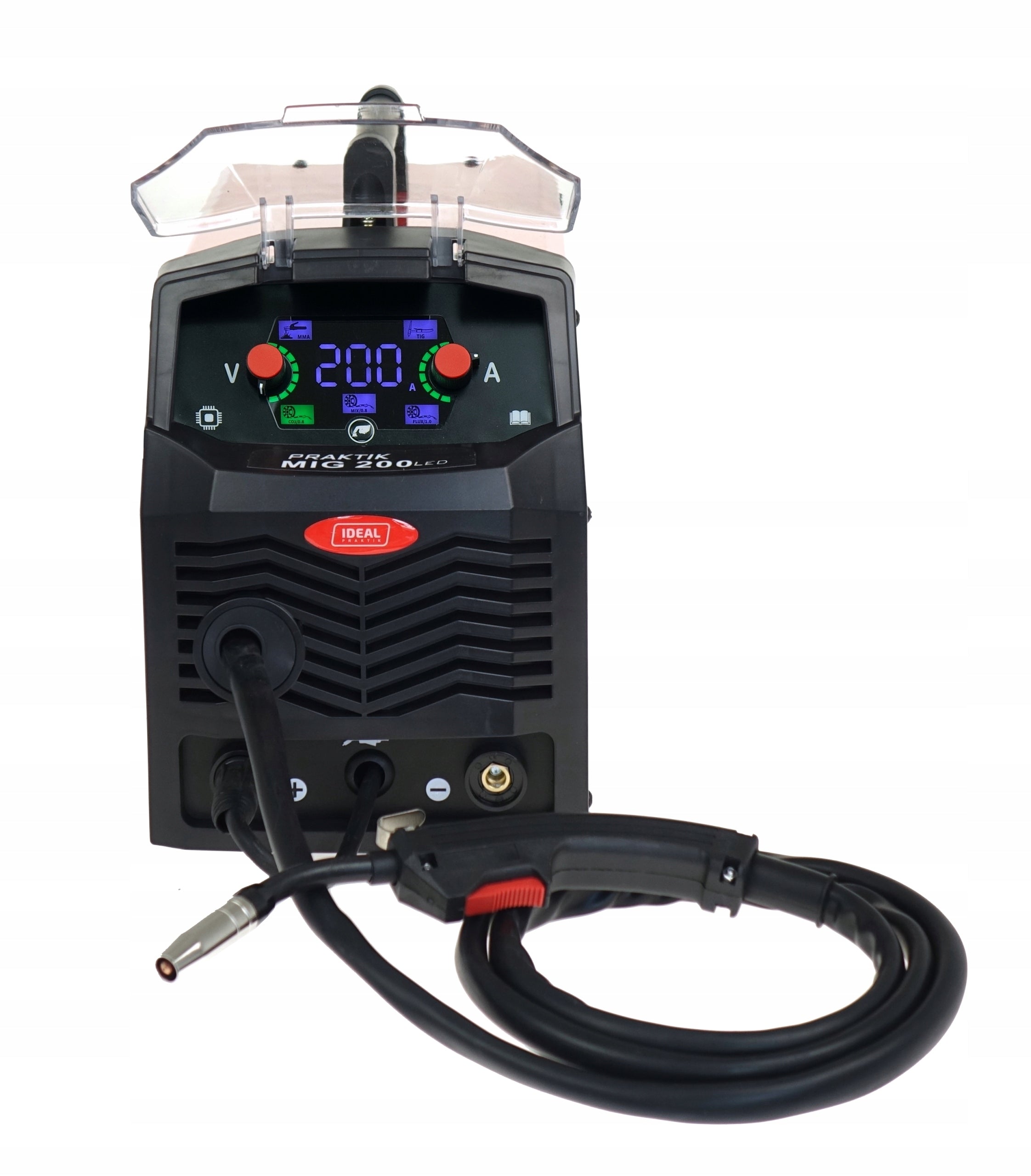

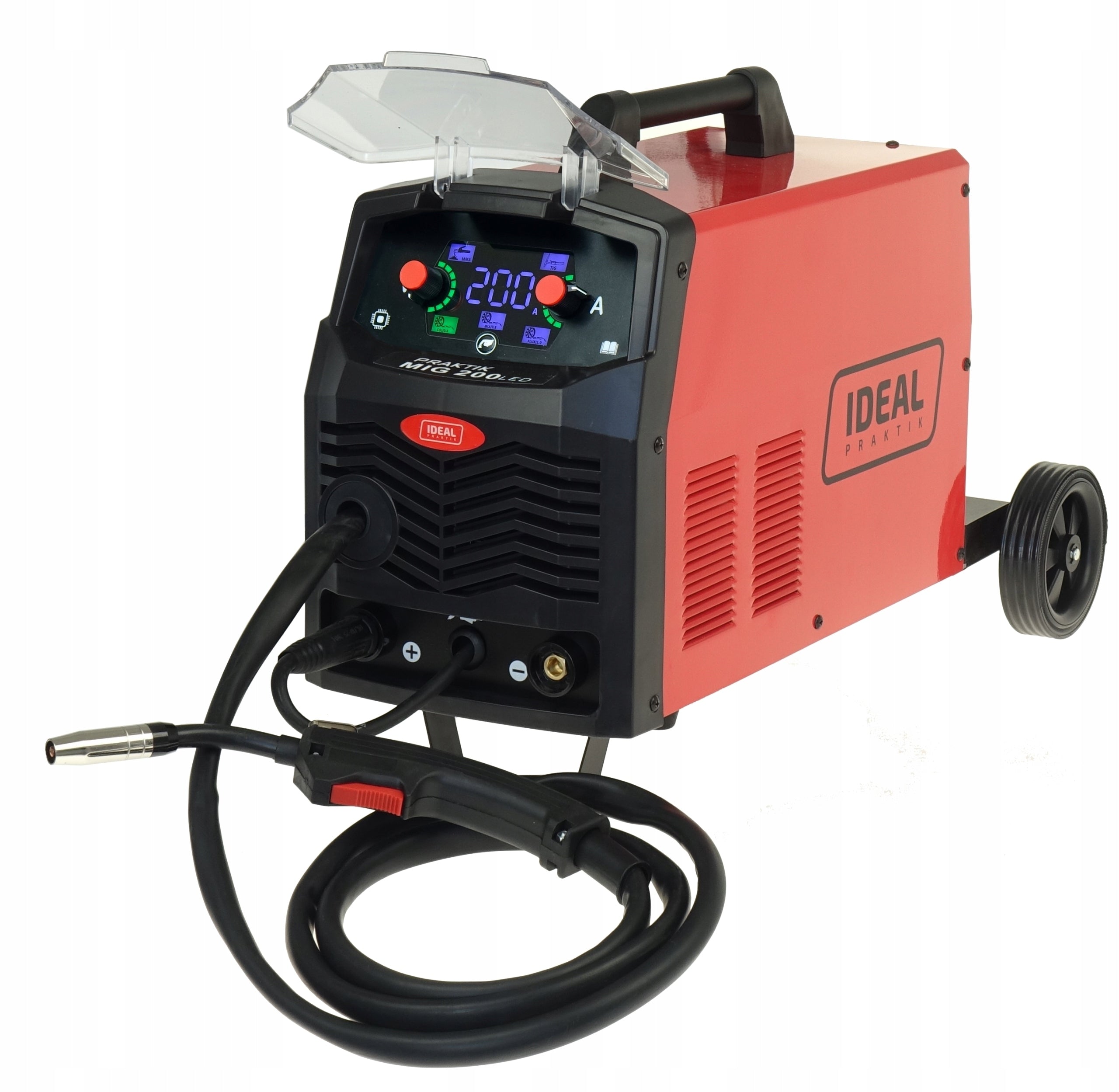

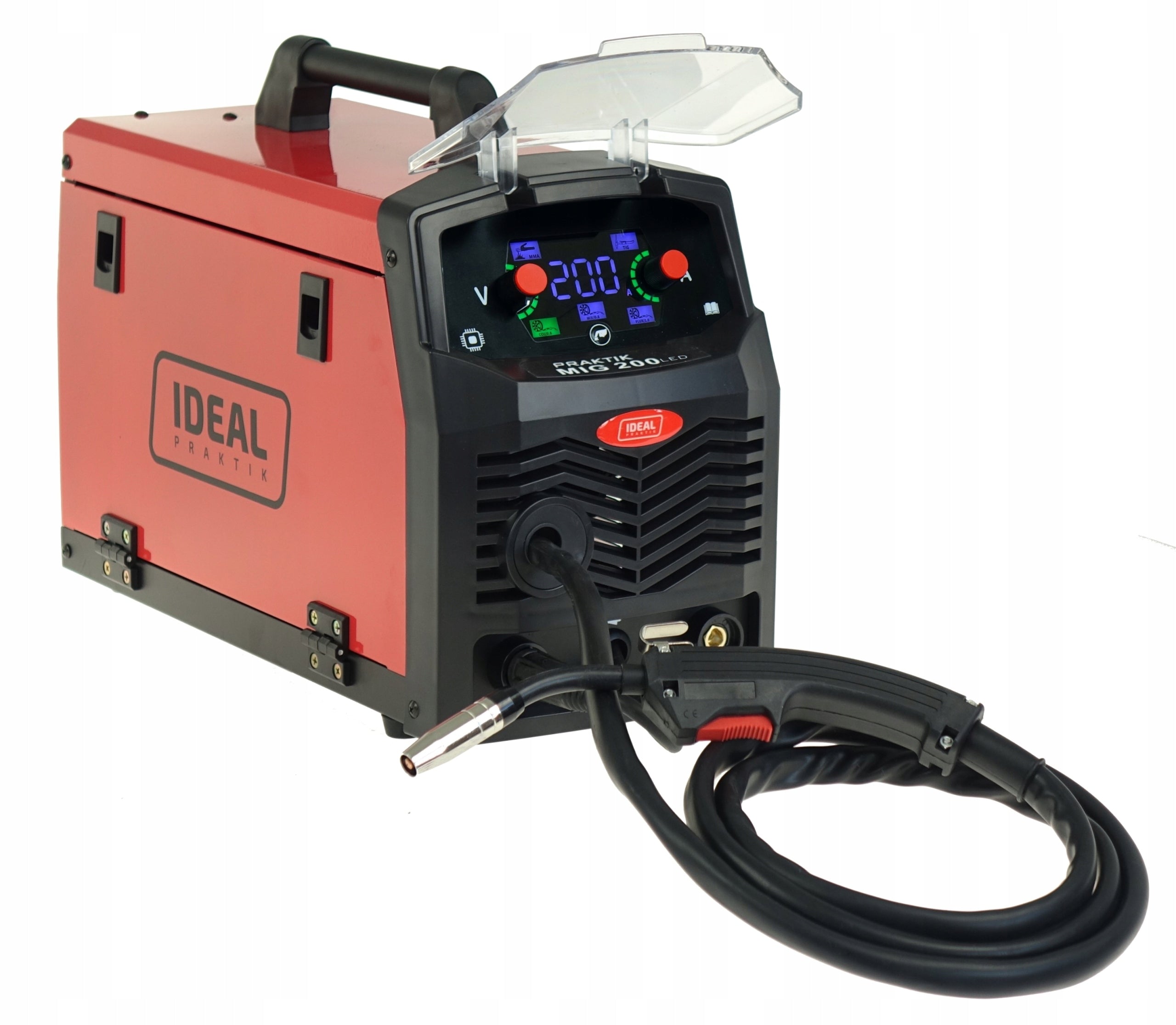

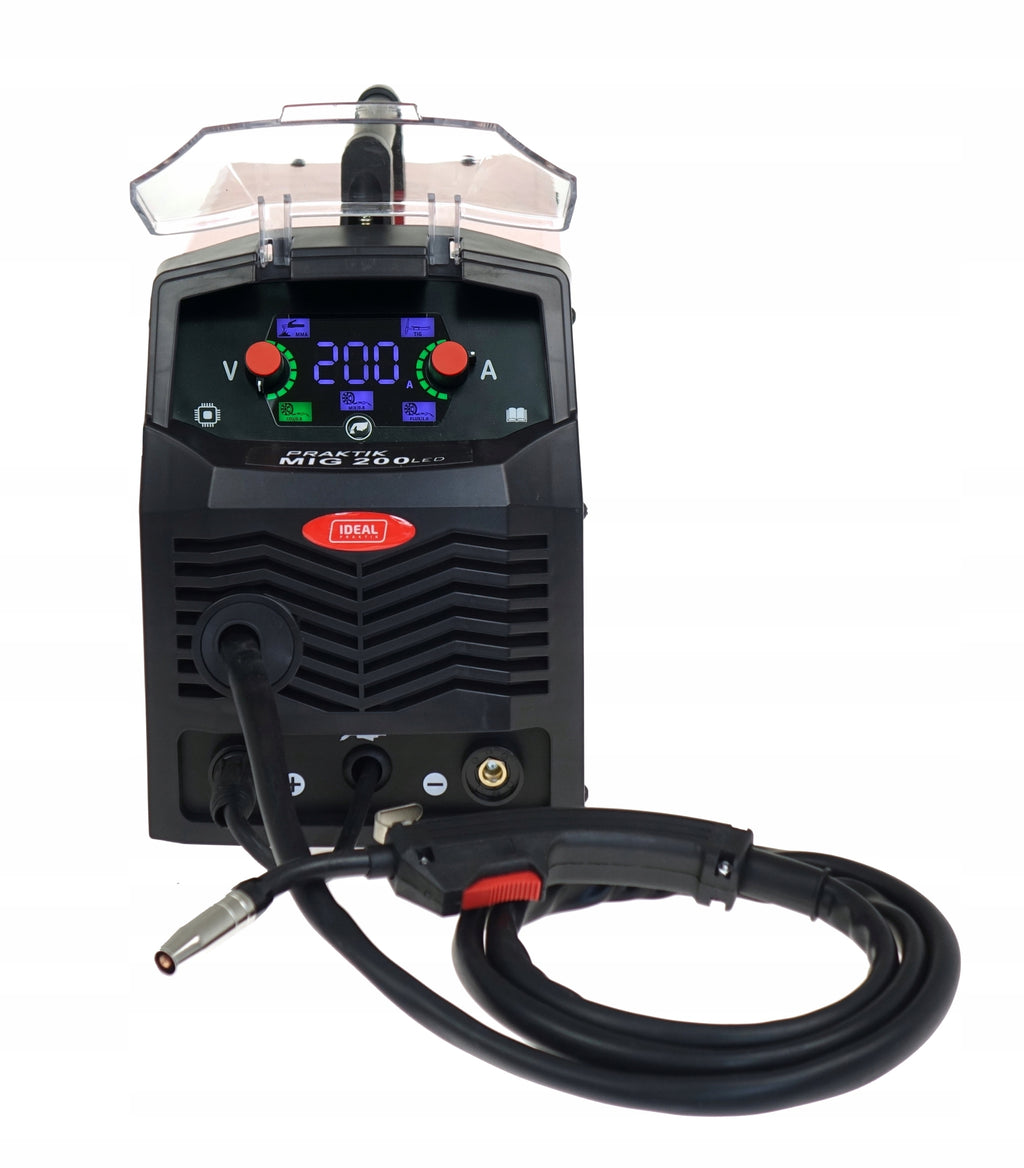

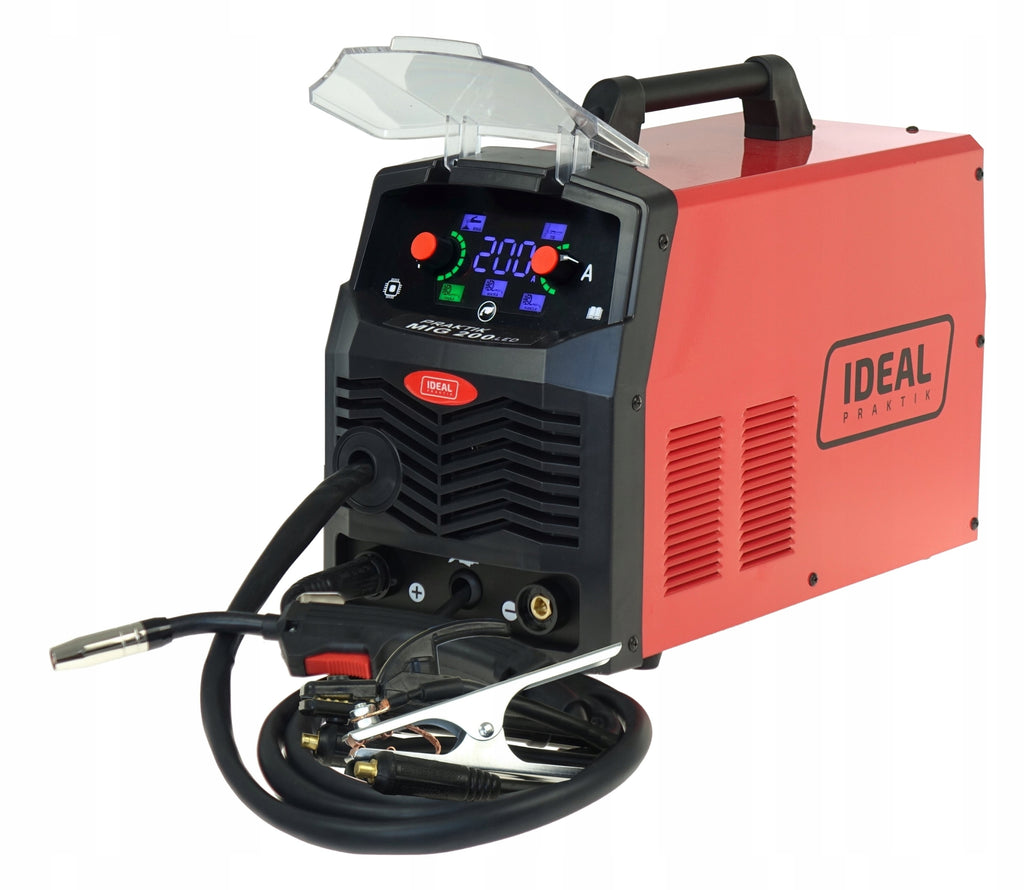

PRAKTIK MIG 200 SYNERGIC LED is a synergistic inverter semi-automatic welding machine designed for arc welding using the MIG/MAG, TIG LIFT, FLUX and MMA methods. The device has been designed for a wide range of applications: from maintenance work to car body repairs.

PRAKTIK MIG 200 SYNERGIC LED is used for welding carbon and low alloy steels. Welding takes place in the shield of inert, active or mixture gas, and with reverse polarity without gas.

Designed for welding with welding wires with a diameter of 0,6-1,0 mm, self-shielding wires of 0,9 mm and wrapped electrodes with a diameter of up to 4 mm of low carbon steel, low alloy (MAG), alloy (MIG), aluminium and cast iron.

Max spool 5 kg D200.

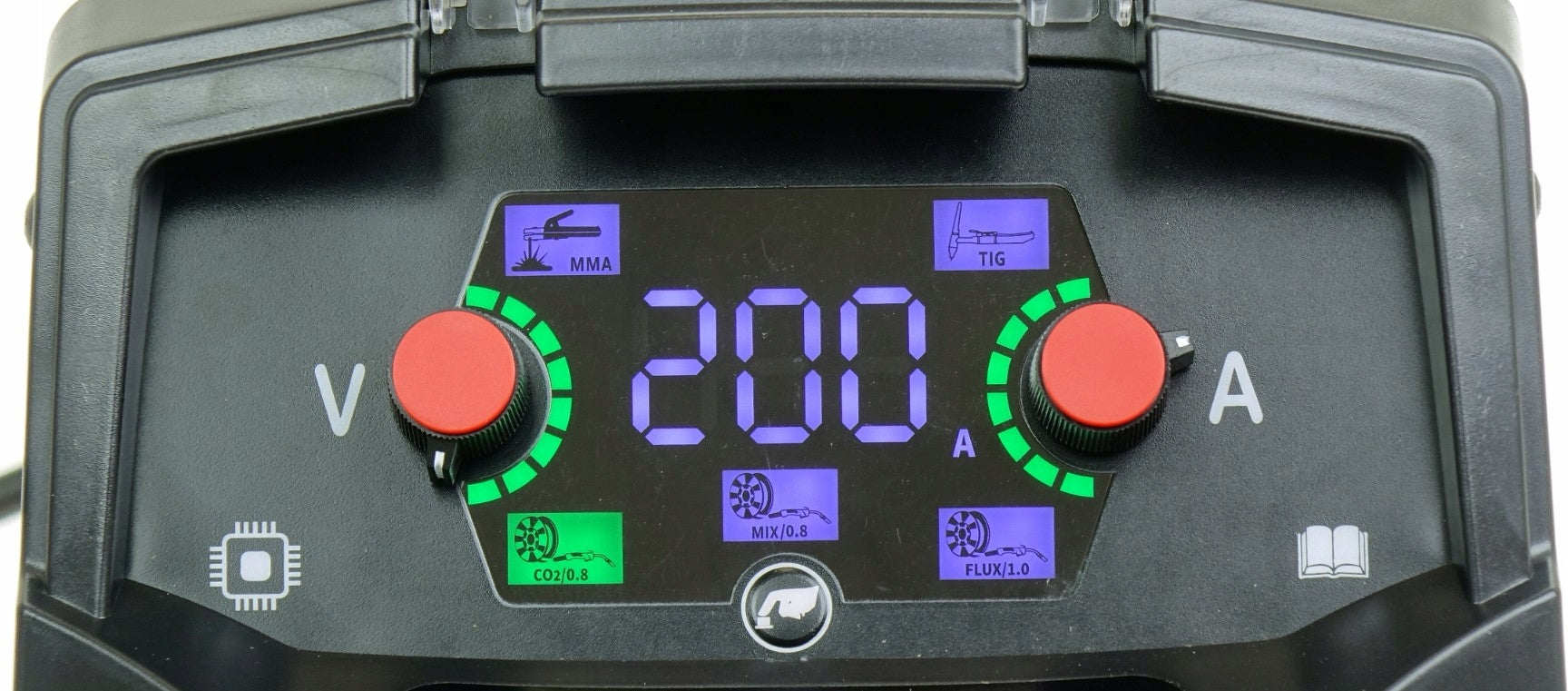

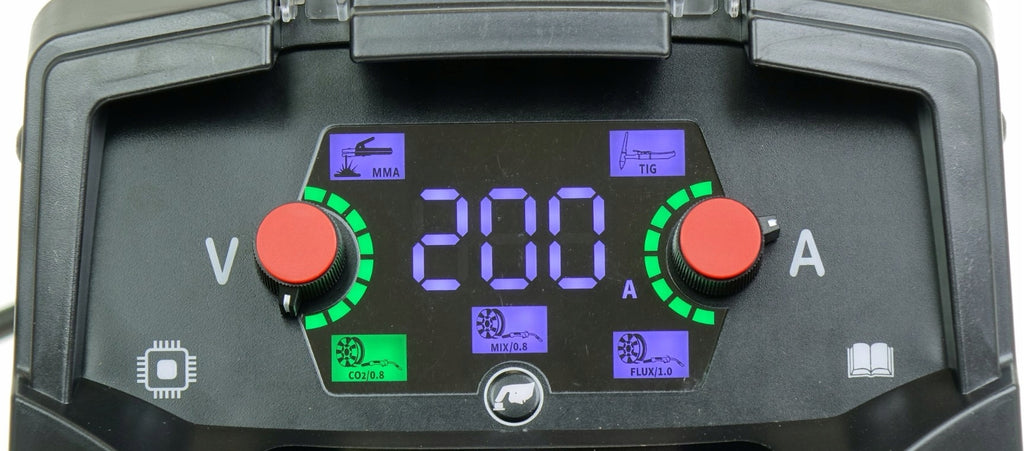

The clear and easy-to-use control panel allows you to choose one of three synergistic programs:

• CO2 / 0.8
• Ar+CO2 / 0,8
• FLUX
• MMA
• TIG LIFT

✅ display of welding current parameters

✅ electronically controlled smooth regulation of welding current

✅ overload protection.

✅ Designed for workshop and field work.

✅ Direct welding torch 2M

✅ WELDING CURRENT 35-200 A

✅ Work Cycle 200A /60%

✅ Synergistic parameter adjustment

✅ Low weight and mobility of the device

✅Aluminum and stainless steel welding capability

✅ Place for gas cylinder

✅Weldable without gas FLUX

✅ WEIGHT ONLY 16 KG

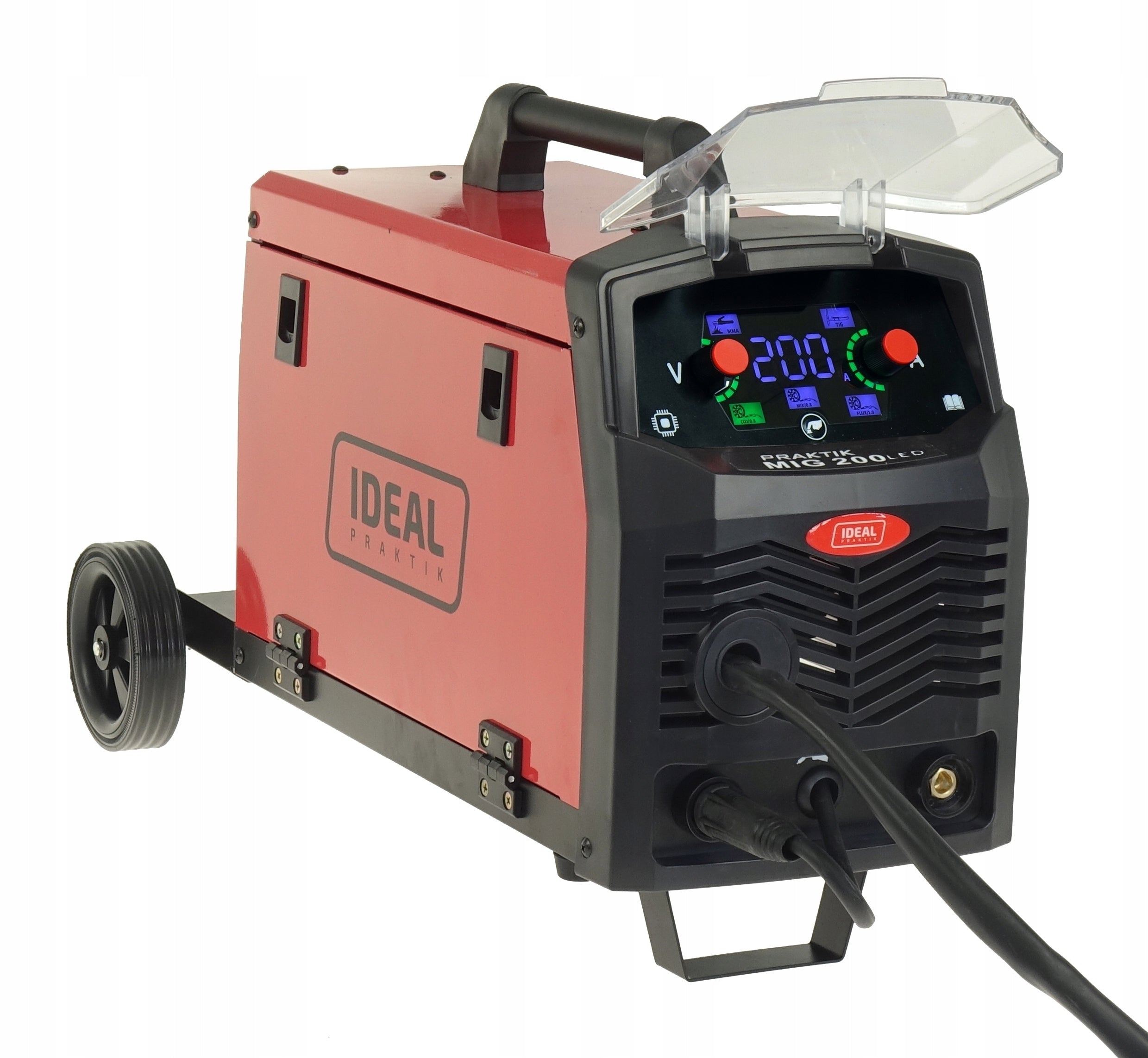

✅ Version with chassis on wheels

Enables MIG-MAG welding with gas shielded welding wire, FLUX with self-shielded welding wire and MMA method

It has the ability to change the polarity of the handle for welding with self-shielding wire.

Single-phase power supply.

When welding using the MIG-MAG method, the possibility of regulation: welding current.

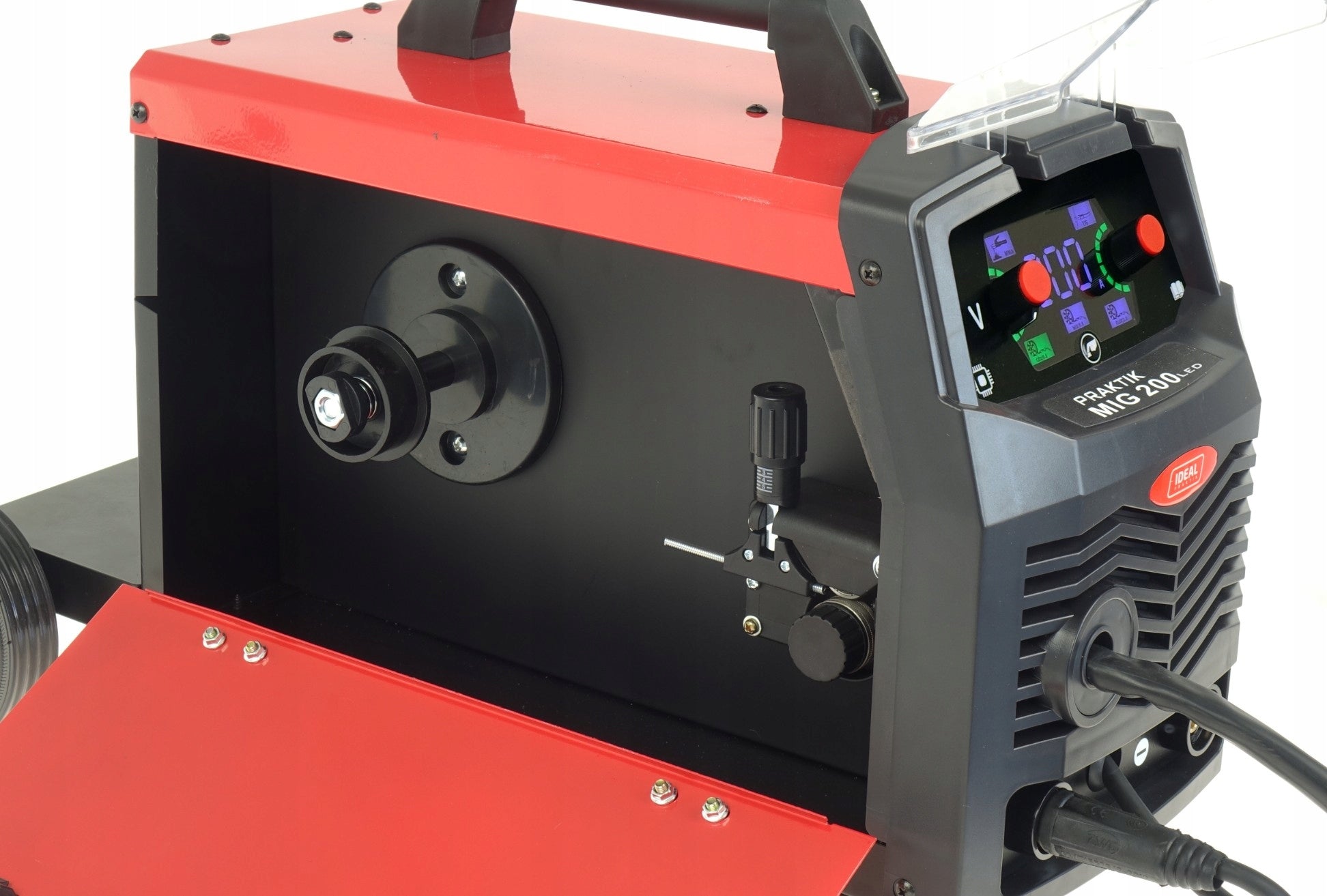

Wire feeder: 2-roll, with roll 0,6-0,8 for steel wire.

Cooled by a fan.

Protection against overload.

IGBT - The welding machine uses modern transistors, a solution that provides a minimum of electromagnetic interference small power losses in basic systems, allowing to increase the efficiency and reliability of the power source.

FCAW - the possibility of welding with core wire without the use of a gas cylinder. The wire itself (FLUX) is filled with a substance that produces gases during welding.

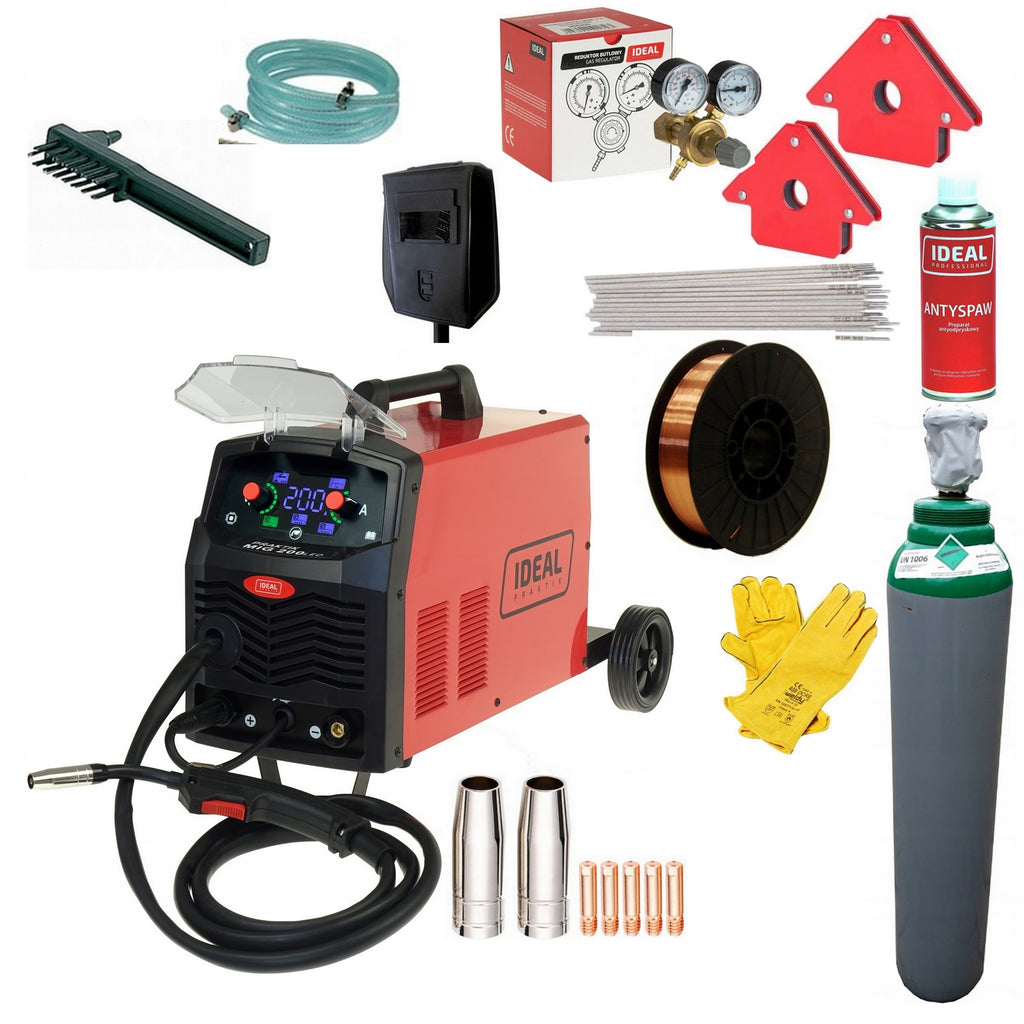

• welding torch MB15/2
• mass cable with clamp 200A 2 m
• power cord with 230V plug
• 8 mm hose connector for connecting a gas pipe
• electrode holder 200A - 2 M
• Hammerbrush
• Welding disc
• Welding gloves
• New 8l cylinder filled with CO2/AR Painted according to Polish Standard. Bottles filled. Very light and efficient. Cylinders and valves meet EN 1964-1. Legalization 10 years
• Welding wire Sg2 0,8/5 K G
• Anti-chipping SPRAY
• consumables of the welding torch
• Mini reducer
• 2 welding angles 12 Kg
• 1KG rutile electrodes

• Power supply network protection:C25A
• Rated supply voltage: 230 V; 50Hz (1ph)
• Power: 5,5 kW
• Idle voltage: 62 V
• Maximum current: 200 A (MIG) / 170 A (MMA)
• Power at work 100%: 155 A (MIG) / 133 A (MMA)
• Power at work 60%: 200 A (MIG) / 170 A (MMA)
• Aluminum wire diameter: 0,8
• Diameter of self-shielding wire: 0,8 - 1,0
• Steel wire diameter: 0,6 - 0,8
• Stainless steel wire diameter:0,8
• Diameter of welding electrode: 1,6 - 4,0
• Welding current adjustment range: 35 - 200 A (MIG) / 15 - 200 A (TIG) / 20 - 170 A (MMA)
• Wire spool size: D100 (0,45kg and 1kg), D200 (2kg and 5kg)
• Degree of protection: IP21S
• Weight: 16 kg
• Overall dimensions L x W x H: 470x225x335 mm
• Package dimensions L x W x H: 570x245x355 mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	IDEAL
Parametry	Power consumption	5.5 kVA
Parametry	Supply voltage (V)	230
Parametry	Duty cycle time	60%
Parametry	Maximum electrode diameter	4 mm
Parametry	Wire diameter (mm)	0,6-1,0
Parametry	Device weight	16 kg
Parametry	Welding range	15–200 A
Parametry	Height	335 mm
Parametry	Length	470 mm
Parametry	Width	225 mm
Parametry	Length of ground cable	200 cm
Parametry	Welding cable length	300 cm
Parametry	Product weight with unit packaging	18 kg
Parametry	Manufacturer code	PMIG211SLED #ZESTAW1AK
Parametry	EAN (GTIN)	5907195567002
Parametry	Model	Spawarka PRAKTIK MIG 211 SYNERGIC LED Ideal
Parametry	Welding methods	MIG/MAG,MMA,TIG
Parametry	Additional features	transport wheels,infinitely adjustable welding current,EURO handle
