Suvirinimo aparatas MIGOMAT MIG MMA FLUX TIG LIFT 160A SYNERGY 2XDRUT

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MIG MMA FLUX TIG LIFT 160A SYNERGY 2XDRUT. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Powermat
• Modelis: PM-IMGTS-160L
• Ilgis: 290 mm
• Plotis: 150 mm
• Aukštis: 200 mm

Model: PM-IMGTS-160L

The Powermat inverter migomat is a powerful welding machine with IGBT technology, providing stable current and energy savings. Synergistic function, HOT START, ANTI STICK and ARC FORCE guarantee the highest quality of welds. The device enables welding using FCAW, MMA and TIG methods, offering mobility, precision and effective cooling with a turbo fan.

• power supply: 230 V / 50 Hz
• Power consumption: 7,7 kVA
• welding methods: FCAW (FLUX) / MMA / TIG LIFT
• FCAW welding current range: 30 – 160 [A]
• MMA welding current range: 20 – 160 [A]
• TIG LIFT welding current range: 15 – 160 [A]
• welding current duty cycle 60%: 160 A (for all methods)
• welding current duty cycle 100%: 123 A (for all methods)
• FCAW welding voltage: 15,5 – 22 [V]
• MMA welding voltage: 20,8 – 26,4 [V]
• TIG LIFT welding voltage: 10,6 – 18,4 [V]
• idle voltage: 62 [V]
• supported wire diameters: 0,8 / 0,9 [mm]
• supported electrode diameters: 1,6 – 4 [mm]
• FCAW network security: 21,7 A
• MMA network security: 26,2 A
• TIG LIFT network protection: 26,2 A
• degree of protection: IP21S
• Power cord length: 210 cm
• Product weight: 3,7 kg
• Product weight with packaging: 7,2 kg
• Product Dimensions (L. / W. / h. ): 29 cm x 15 cm x 20 cm

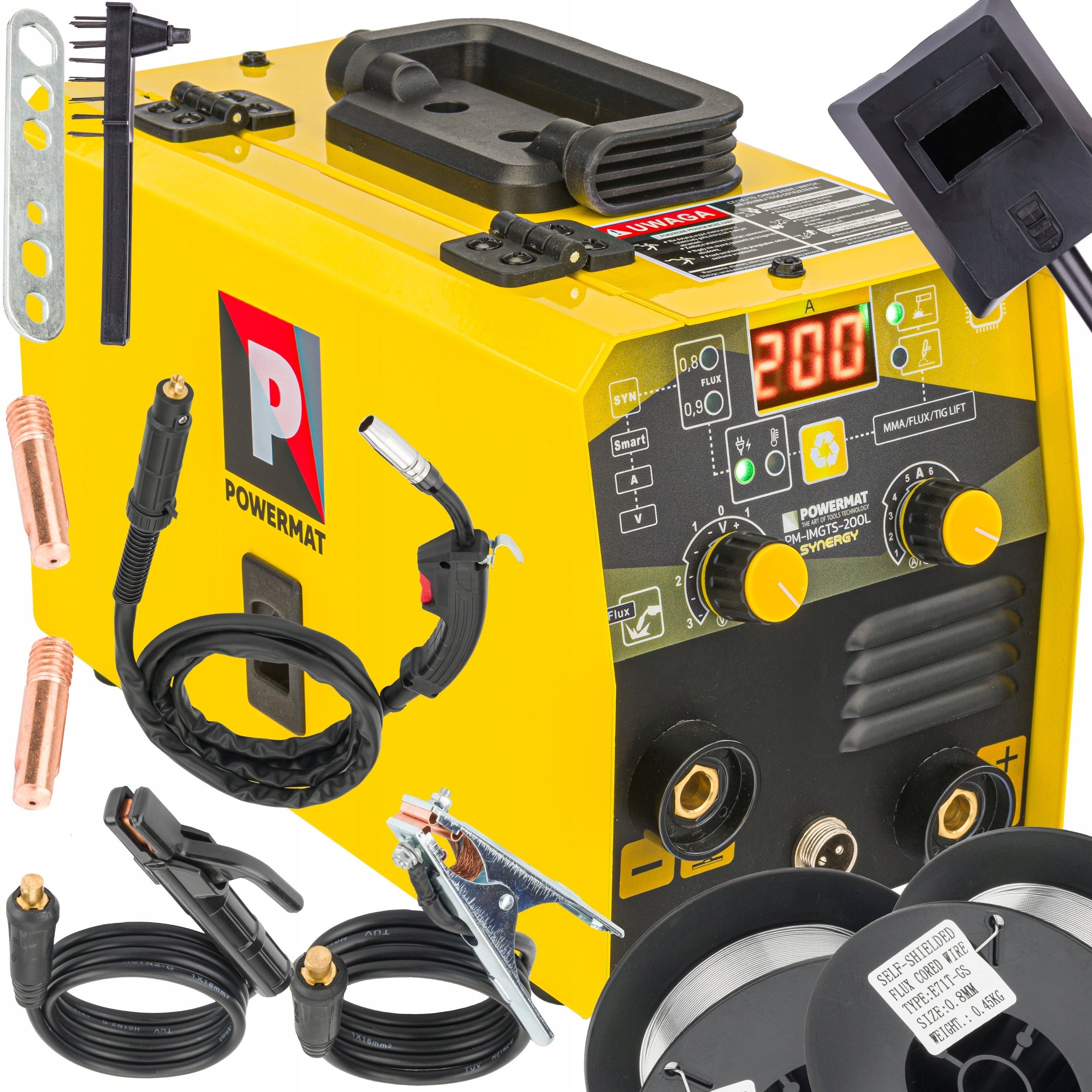

CONTENTS OF THE SET

• Bulk holder (-): 200 cm
• MMA electrode holder (+): 205 cm / plug diameter 9 mm 12-25
• Welding torch: 250 cm
• Current terminals: 2x 0,9; 1x 0,8 [mm]
• Wire-operating roller (double-sided): 0,8 mm and 1,0 mm; type U
• 2x self-shielding wire (flux) type E71T-GS 0,8 mm - 0,45 kg
• Welding mask
• Brush with hammer
• Universal key
• User manual in Polish and English
• Original packaging

IGBT TECHNOLOGY

The inverter design with IGBT transistors ensures stable welding current, high resistance to interference and low power consumption while maintaining a lightweight, mobile design.

CONTROL AND DISPLAY LCD

The easy-to-read LCD panel allows quick access to functions and precise setting of the current with knobs, increasing ergonomics and work efficiency.

ARCH SYNERGY AND STABILITY

Synergistic mode automatically selects parameters for the highest quality welds, especially on stainless steel and aluminum, guaranteeing a smooth and repeatable arc.

ASSISTIVE FUNCTIONS

HOT START facilitates glowing, ANTI STICK prevents the electrode from sticking, and ARC FORCE stabilizes the arc and controls the depth of melt in the full range of arc length.
