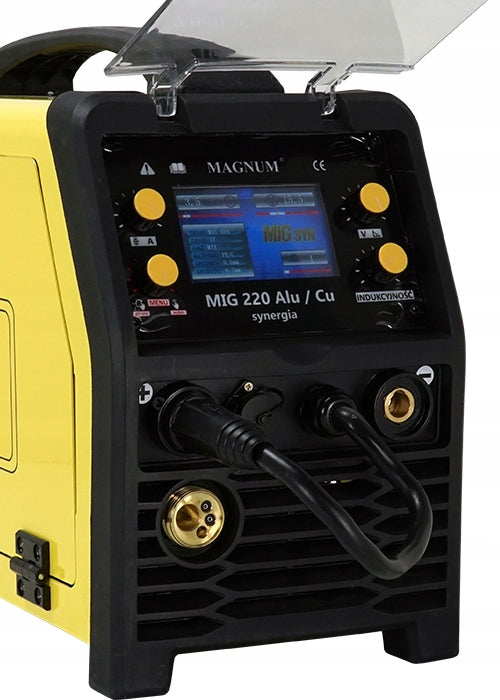

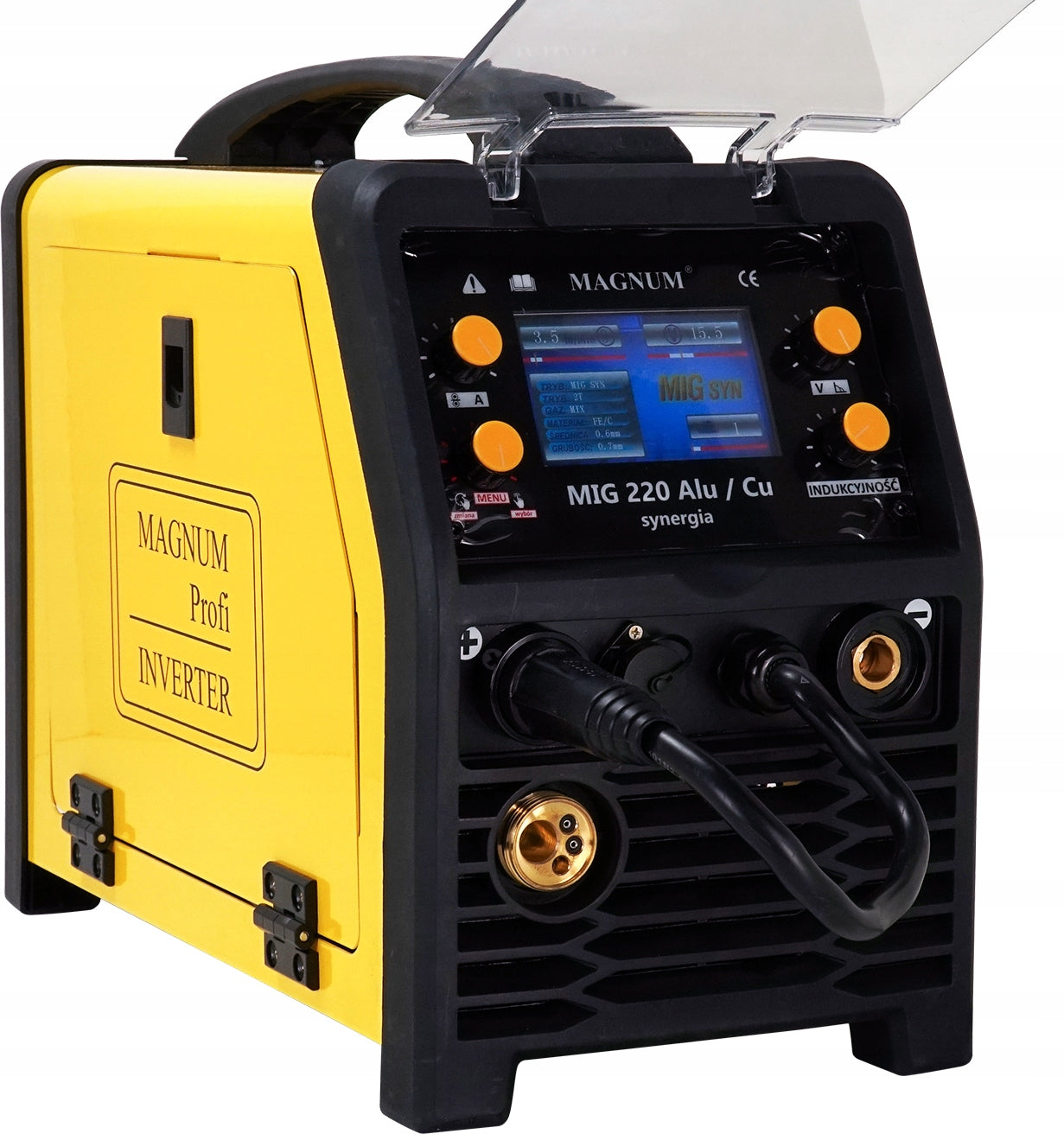

Suvirinimo aparatas MIGOMAT MAGNUM MIG MAG Alu SYNERGY 220 3W1 200A

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT MAGNUM MIG MAG Alu SYNERGY 220 3W1 200A. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MAGNUM PÓŁAUTOMAT DO ALUMINIUM 220 CU SYNERGIA

MIG/MAG, TIG DC Lift, MMA, FLUX| Power supply: 230V | LCD display, CuSi3 soldering | Manufacturer: Magnum

⏭Why choose this model?

✅constructed on the basis of modern electronics,

✅friendly user interface,

✅color LCD display with excellent contrast,

✅powered from a single-phase 230V network,

✅3in1 device - MIG/MAG, MMA and TIG welding,

✅Magnum - proven brand for years,

✅revolutionary price/quality ratio.

⏭Full Synergy with the possibility of manual correction

✅has synergistic programs for welding: black steel, stainless steel, aluminum alloys, self-shielding wire and CuSi3 soldering,

✅full synergy - choice of material thickness, all parameters are set automatically,

✅possibility of manual correction to programs,

✅possibility to disable synergy and welding in manual mode - parameter adjustment according to. own recognition and experience.

⏭Regulation of MIG/MAG welding inductance

✅setting of welding arc characteristics - control of face width, depth of melting and number of welding chips.

⏭Hint system for the user

✅after selecting Synergy - the system suggests how to connect welding wires,

✅The interface displays suggested ranges of optimal voltage values, wire feed and welding inductance.

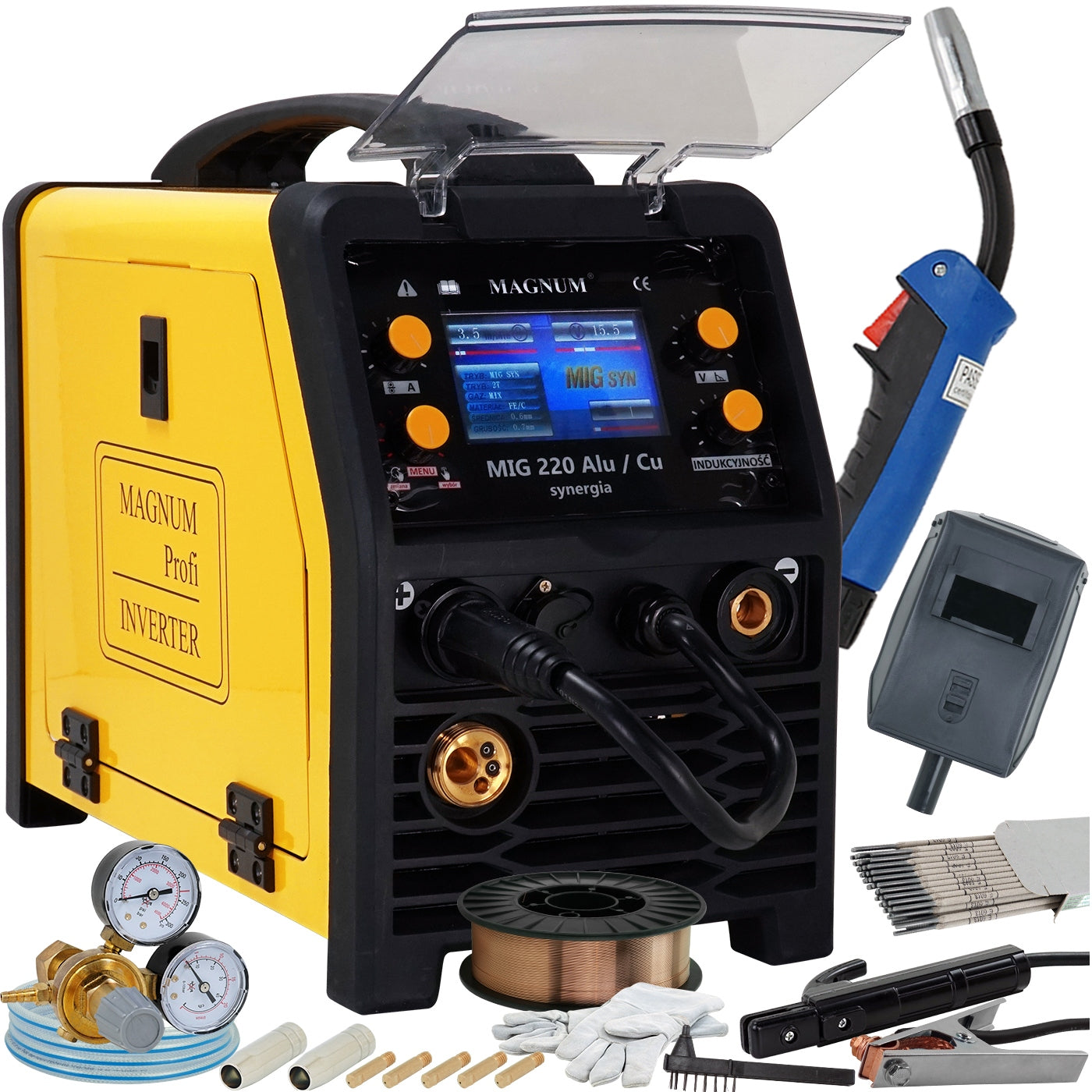

• Device Magnum MIG 220 Alu/Cu Synergy LCD
• Welding torch MIG MB 15 3m
• MMA electrode holder
• Mass cable
• User manual in Polish

WELDING KIT

• Ar/CO2 reducer with two clocks + gas line,
• SG2 steel welding wire D200 0,8mm x 5kg,
• welding gloves,
• burner part starter kit.

PACK OF 1KG ELECTRODES FOR WELDING MMA

⏭Magnum MIG 220 LCD Alu/Cu Synergy - better welding with synergistic flash

Due to the functionality and welding parameters, this device is addressed to professionals. With full synergy and ease of use - perfect for DIYers and DIY enthusiasts.

MIG 220 LCD Alu/Cu is a multifunctional semi-automatic welding machine made in inverter technology, using IGBT power trazinstor. It has great welding characteristics and color LCD display. Access to advanced features of the device is extremely simple. The welding machine allows welding with current up to 200A and operates with a high duty cycle.

⏭LCD display with excellent contrast

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

⏭PROFESSIONAL WIRE FEEDER

Professional wire feeder profi 2R - is a reliable and precise wire feeding, so that the output parameters are stable, allowing you to achieve a high-quality welded joint.

⏭Possibility of welding with SPOOLGUN handle

The SPOOLGUN type holder has a built-in wire feeder and is adapted to use wires on the D100 spool (diameter 100mm). This is a great solution e.g. when it is necessary to increase the working range of the device - SPOOLGUN handles are generally available in 3m, 5m or even 8m versions.

• Power Supply: 230V 1ph
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG) 170A (MMA/TIG)
• Color LCD Display: YES
• Rated duty cycle: 60%
• Maximum power consumption: 6,4 kVA
• Network Security: 20A
• Degree of protection: IP21S
• Net weight: 10,4kg

MIG/MAG welding parameters

• Welding Current: 40-200A
• Welding voltage: smooth adjustment,
• Wire feed - smooth adjustment,
• Wire diameter: 0,6 / 0,8 / 1,0 mm
• Wire spool weight: max. 5kg D100, D200
• Wire feeder: profi 2R

Synergistic MIG/MAG programs:

• Full synergy: YES
• Available programs: Fe, Ss, Al/MG5 Al/Si, FCAW-S, CuSi CuAl
• Wire Diameter Selection: YES
• Selection of shielding gas: YES
• Selection of thickness of welded material: YES
• Correction to Synergistic Programs: YES

Additional MIG/MAG functions

• Welding inductance adjustment: YES, smooth
• Operating Modes: 2bar, 4bar - 2T/4T
• Burn Back - wire burn time adjustment: YES
• MIG/MAG polarity change: YES
• Working with SPOOL GUN handle - YES

TIG welding parameters*

• Welding Current: 10-200A
• Adjustment: smooth
• Arch Initiation: TIG Lift
• Output current DC

*requires purchase of handle with valve

MMA welding parameters

• Welding Current: 10-170A
• Adjustment: smooth
• MMA Synergy: YES

PHOTO GALLERY:

Choose a brand whose history dates back to the beginning of the twenty-first century. Magnum is the leading brand of welding equipment in Poland.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

Customers choose the Magnum brand most often due to its high quality, affordable price and reliability.
