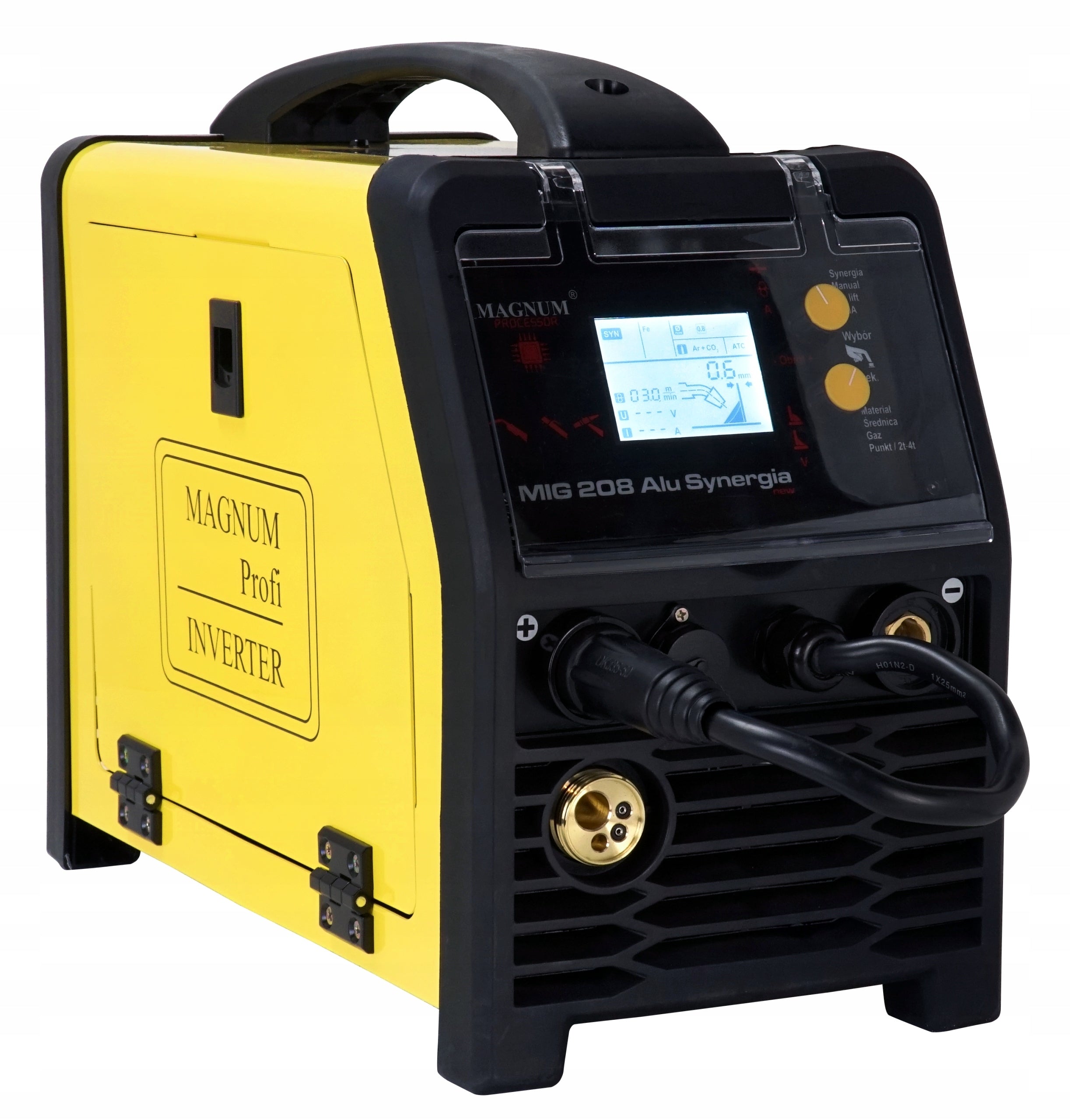

Suvirinimo aparatas MIGOMAT Magnum MIG 200A Synergy Alu MMA 3in1 INVERTER IGBT 208

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT Magnum MIG 200A Synergy Alu MMA 3in1 INVERTER IGBT 208. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: magnum mig 208 alu synergia inwertorowa półautomat
• Ilgis: 560 mm
• Plotis: 265 mm
• Aukštis: 410 mm

Welcome to our shop and see what we have prepared for you,

Great migomat with synergy! It has built-in programs for welding solid steels, stainless and acid-resistant steels, aluminum alloys, soldering (CuSi, CuAl) and Flux (welding "without gas"). A clear LCD display with excellent contrast will allow you to easily adjust this small flash with great possibilities. A new, improved version of the model with a protective flap, which protects the display from accidental damage during operation.

Nothing makes it easier to manage synergistic functions flashes like a good contrast LCD display. On one screen you will see all the currently selected and set parameters.

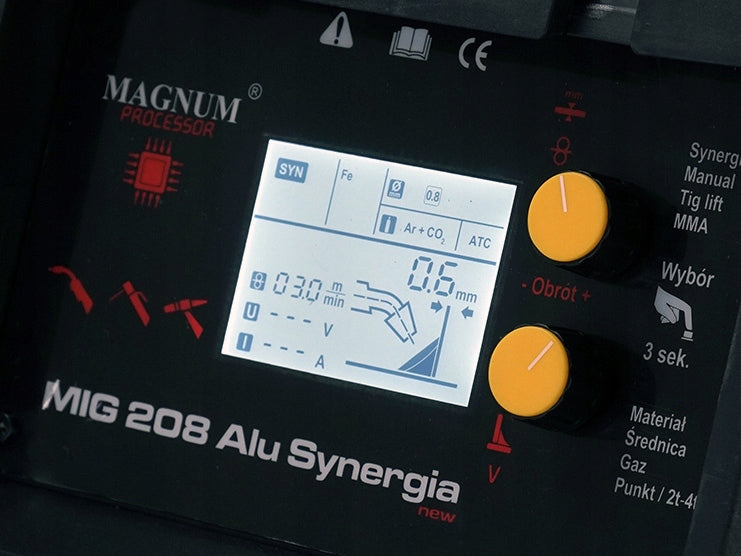

Example display view for synergistic settings:

• type of material selected,
• wire diameter,
• type of shielding gas selected,
• ATC (if material thickness less than 1,5mm),
• thickness of the material,
• wire feed speed,
• graphical indicator of the shape of the weld,
• welding voltage and current (during welding),
• 4T enabled information (4-bar)

MIG 208 LCD also has the function of controlling the shape of the weld face - concave face / convex face - the impact of the function value on the shape of the face is visible on the display. Value adjustable with one knob.

GREAT PRICE, SOLID WORKMANSHIP, GREAT FEATURES

MIG 208 Alu Synergy is a machine that introduced a revolution on the Polish welding equipment market. Never before has a synergistic device with such features been available at such a good price.

Satisfied users confirm that MIG 208 ALU Synergy was a good choice. It is one of the best rated devices today.

SENSATIONAL MIG FOR WELDING THIN SHEETS

MIG 208 Alu Synergy as one of the few devices has an ATC function, which is activated when welding thin sheets. In addition, the machine is equipped with a spot welding function, for making point, repetitive strains.

Why choose this model?

• easy-to-read LCD display,
• MIG/MAG welding: manual parameter settings or synergistic programs,
• MIG/MAG spot welding,
• MIG/MAG welding 2T/4T,
• ATC function - support for MIG/MAG welding of materials with a thickness of less than 1,5mm,
• TIG DC Lift welding (optional),
• MMA wrapped electrode welding.

MAGNUM MIG 208 ALU - improved version in new housing. The welder is equipped with more precise knobs, better parameters and a new housing with a protective flap.

PROFESSIONAL WIRE FEEDER 2R

Uneven wire feeding threatens worse weld quality and more welding chipping. MIG 208 ALU Synergy is equipped with a professional wire feeder with a two-roll mechanism that ensures its smooth and reliable feeding to the MIG welding torch.

SPOOLGUN MIG WELDING

The device allows welding with a SPOOLGUN MIG handle, which in many applications significantly increases the efficiency and comfort of welding work.

INVEST IN PROVEN EQUIPMENT FROM A LEADING BRAND

Magnum is a brand whose founder has been operating on the welding market since the early 90s of the twentieth century. Over the years, Magnum devices have managed to develop an appropriate reputation among satisfied customers.

A wide range of Magnum devices meets the needs of not only novice users, but also more advanced ones. Depending on the selected model, it can be dedicated to workshop applications as well as for heavy industry.

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG Lift, FLUX
• Maximum welding current: 200A (MIG/MAG)
• Working cycle: 40%
• Network Security: 20A
• LCD display
• Net weight: 10,7kg

MIG/MAG welding parameters:

• Welding current: 40 - 200A
• Welding Voltage: 16 - 23V
• Wire diameter: 0,6 / 0,8 / 0,9 / 1,0 mm
• Wire spool weight: max. 5kg (max.D200)
• MIG/MAG spot welding
• ATC function - easier welding of thin materials,
• Other additional features listed in the description

Synergic MIG/MAG programs:

• Fe - plain steel | Gas: CO2 or Ar/CO2
• SS - stainless steel | Gas: Ar+O2 or Ar+CO2 (1-2%)
• Al - welding aluminium | Gas: Ar
• CuSi, CuAl -lutowelding | Gas: Ar
• Flux - self-shielding wire welding

MMA welding parameters:

• Welding Current: 40-150A
• Idle Voltage: 78V

TIG welding parameters (optional):

• Welding Current: 40-150A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift

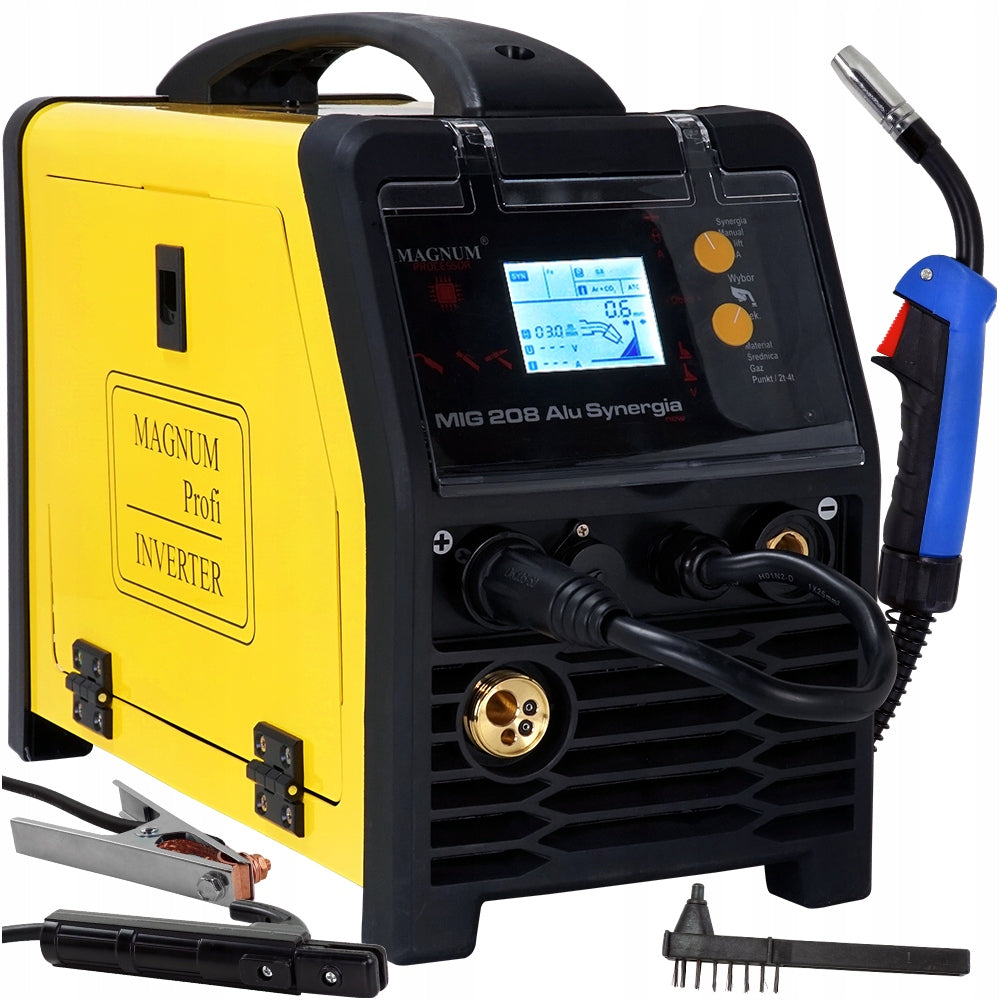

• Welding machine MAGNUM MIG 208 ALU SYNERGY
• MIG MB-15/3m welding torch
• MMA Electrode Cable
• Bulk cable
• User manual PL

+ ADDITIONAL ACCESSORIES FOR FREE

• Welding disc
• Brush-hammer
