Suvirinimo aparatas MIGOMAT Ideal TECNO MIG 200 PULS LCD MMA TIG DC Alu Synergy 2T 4T

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT Ideal TECNO MIG 200 PULS LCD MMA TIG DC Alu Synergy 2T 4T. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: Spawarka Ideal TECNO MIG 200 PULSE LCD HRS2
• Ilgis: 510 mm
• Plotis: 230 mm
• Aukštis: 370 mm

MANUFACTURER: IDEAL || WELDING METHODS: MIG/MAG, MMA, FLUX, TIG DC || SELECTED ADVANTAGES: Pulse, Dual pulse, Synergy, 2T/4T, Arc Force || POWER SUPPLY: 230V 1ph

Power supply parameters:

• Supply Voltage: Single Phase 230V
• Technology: IGBT Inverter
• Current taken from the mains: 25A
• Power: 6,5kW
• Degree of protection: IP 23S
• Dimensions: 510x230x370 mm
• Weight: 12,5kg

MIG/MAG welding parameters:

• MIG/MAG welding current: 28 - 200A
• MIG/MAG duty cycle: 60% 200A, 100% 160A
• MIG/MAG welding voltage: smooth adjustment
• Wire feed speed: smooth adjustment
• Spool with wire: max 5kg (D200)

• Diameter of aluminum wire: 0,8 - 1,2 mm
• Wire diameter for soldering: 0,8 mm
• Diameter of self-shielding wire: 0,8 - 1,0 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 06 - 1,0 mm

• MIG/MAG welding polarity change: YES
• Welding Inductance Adjustment: YES
• Synergistic MIG/MAG programs: YES - 52 programs
• Operating mode in manual settings MANUAL: YES
• MIG/MAG pulse mode: YES

TIG welding parameters:

• TIG welding current: 5 - 200A
• Output Current: DC Constant
• Arch ignition: contact - Lift
• TIG duty cycle: 60% 180A
• TIG welding current regulation: smooth

MMA welding parameters:

• MMA welding current: 5 - 180A
• Electrode diameter: 1,6 - 4,0 mm
• MMA Welding Current Adjustment: Smooth
• MMA Pulse Mode: YES
• Arc Force Function: YES
• Hot Start Function: YES
• Anti-Stick Function: YES
• VRD Function: YES

▶ MIGOMAT WELDING MACHINE WITH FUNCTIONS THAT MAKE A DIFFERENCE

TECNOMIG 200P PULSE is an inverter synergic semi-automatic welding machine designed for arc welding using MIG/MAG, MMA, TIG Lift, and soldering galvanized sheets. The device is designed for use in professional use.

The device has three synergistic MIG/MAG welding modes: MIG, MIG PULS, MIG DOUBLE PULS.

TECNOMIG 200P PULSE is used for welding aluminum and its alloys, stainless steel, carbon and low alloy steels and soldering galvanized sheets. Welding is carried out in an inert gas, active gas or mixture, depending on the program selected on the control panel.

Set parameters manually or choose one of the 52 synergistic MIG/MAG programs for welding: AlMg, AlSi, Al99,5, CuSi3, CuAl9, 308LSi, 316LSi and FE.

ADVANTAGES OF THE DEVICE:

• smooth adjustment of all welding parameters,
• synergy - the device has synergistic programs,
• pulse and double pulse mode,
• operating modes 2T/4T - weld as standard in 2T mode or switch to 4T mode when you have a lot of work and long welds to position,
• accurate adjustment of the length of the welding arc,
• regulation of welding inductance - wider face and smaller melt or narrow face and deep melt? Choose the optimal settings for the work you are currently doing, thanks to the MIG/MAG welding inductance adjustment,
• regulation of wire burning and access,
• regulation of voltage at pulsation (peak),
• regulation of gas outflow time before and after welding,

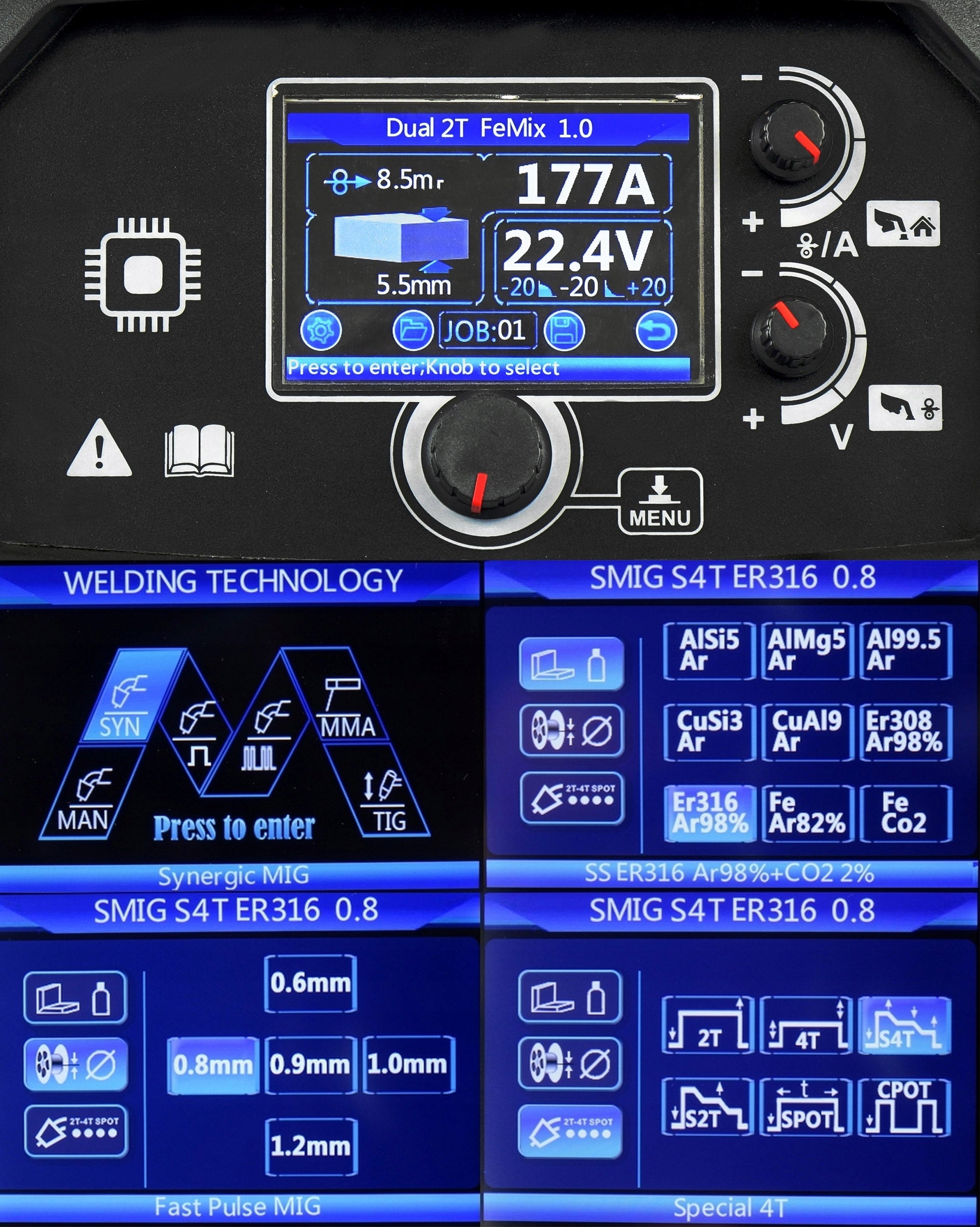

• readable LCD display, showing all parameters,
• possibility of TIG DC Lift welding,
• regulation of frequency, cycle and pulse current in TIG Lift,
• MIG spot welding.

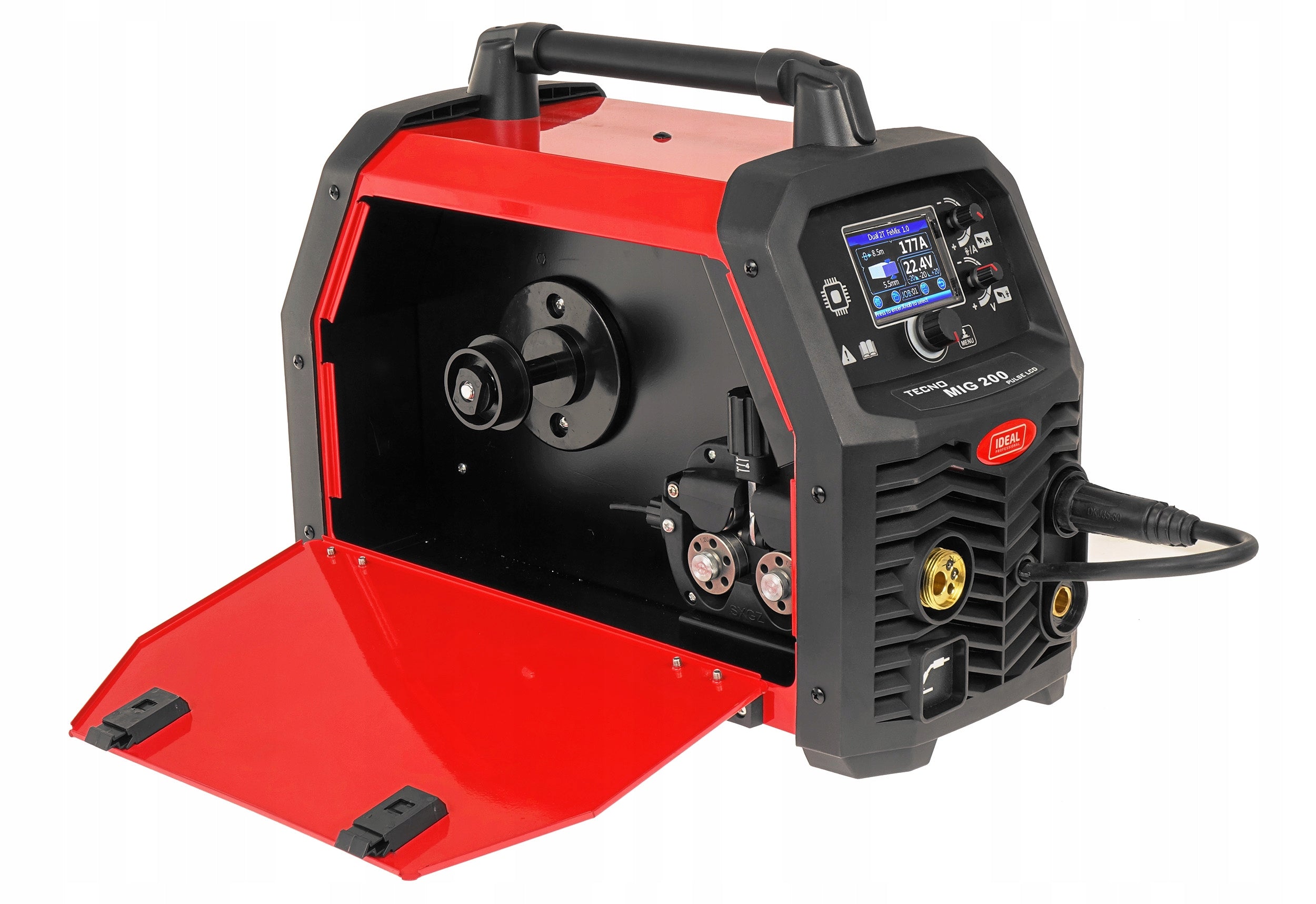

Professional wire feeder 4R

Professional wire feeder 4R (4x4) - this is a reliable wire feeding regardless of the spool weight and type of welding wire. The proven feeder mechanism has a big impact on the smoothness of wire feeding, and this already translates directly into the welding parameters of the device.

Additional features to improve MMA welding

• MMA PULSE: pulsation adjustment allows for higher weld quality and less chipping and welding dust by controlling the temperature and density of the welding current.
• ARC FORCE: short-circuit current adjustment (manual) - facilitates the transfer of a drop of molten electrode to the welded material, preventing the arc from extinguishing when the drop of electrode contacts the welding lake
• HOT START: hot start adjustment (manual) - facilitates the ignition of the electrode by providing more welding current with each arc.
• ANTI STICK: anti-short-circuit - automatically turns off the welding voltage if the electrode sticks to the welded material, which facilitates its detachment and prevents the accidental formation of a welding arc
• VRD (Voltage Reduction Device) function - reduces the resting voltage of the idle state on the electrode to a safe value. Provides shock safety when working in humid environments.

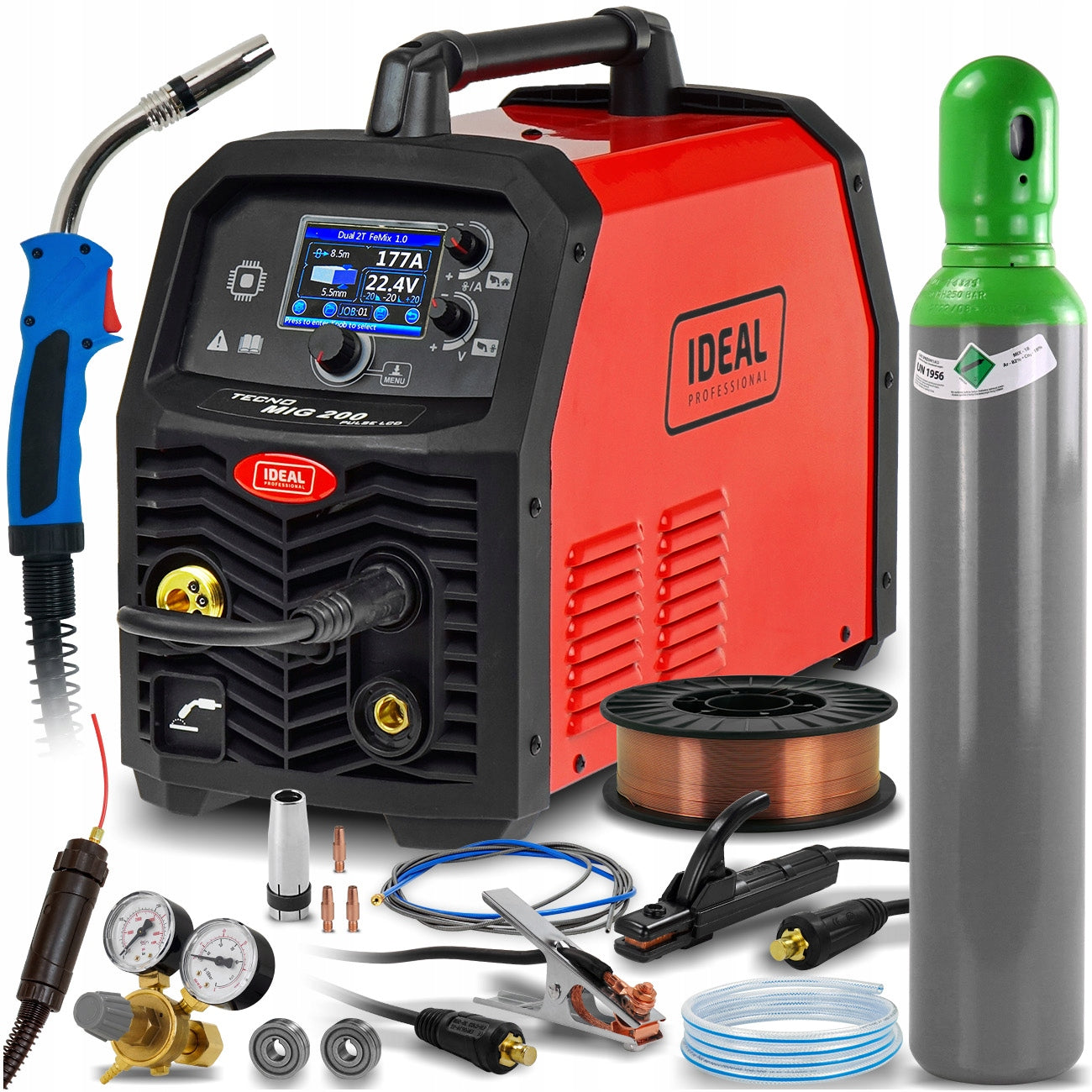

• Ideal TECNO MIG 200 PULSE LCD
• MIG MB-24/3m welding torch
• MMA Electrode Cable
• Bulk cable
• User manual in Polish

+ WELDING ACCESSORIES

• Teflon insert for aluminum wire (mounted in the holder).
• Roll for aluminium feeder - 1,0 / 1,2
• Roll for feeder - 0,8 / 1,0

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• factory new, certified cylinder for Ar/CO2 with a capacity of 8l - has the approvals required by gas sales points,
• gas reducer Ar/CO2 with two clocks,
• gas line,
• steel welding wire SG2 5kg 0,8mm (D200),
• spiral insert for steel wire,
• starter set of burner parts.
