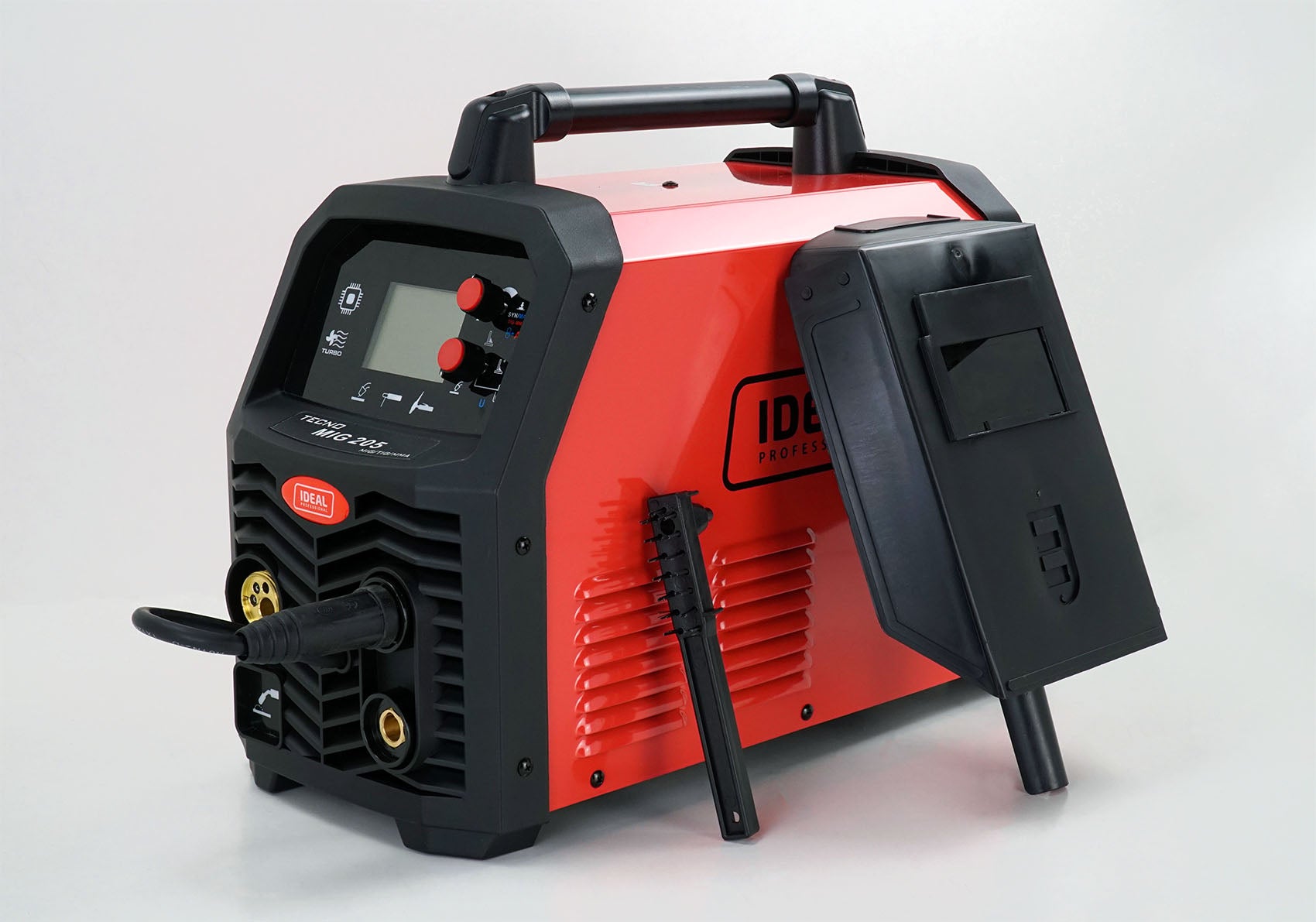

Suvirinimo aparatas MIGOMAT IDEAL MIG 200 Synergy Aluminium

Trumpai apie prekę

Prekė: Suvirinimo aparatas MIGOMAT IDEAL MIG 200 Synergy Aluminium. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: IDEAL
• Modelis: MIGOMAT IDEAL TECNOMIG 205 XRS7

Manufacturer: IDEAL ||| Welding methods: MIG/MAG, FCAW, TIG DC Lift, MMA ||| Maximum welding current: 200A ||| Power supply: 230V 1ph

MIG welding kit with Ar/CO2 8l cylinder + self-tinting visor

Ideal TECNOMIG 205 LCD Synergy is a technologically advanced welding device for MIG/MAG, MMA, TIG DC Lift, self-shielding wire and CuSi3 soldering. The device is powered from a single-phase 230V network and allows maximum current welding in the MIG/MAG method up to 200A.

TECNOMIG 205 Synergy LCD has been designed for a wide range of applications: from maintenance work to car body repairs.

It is used for soldering galvanized sheets, welding stainless steel, carbon and low alloy steels and aluminum. Welding is carried out in an inert gas shield, active or mixture and with reverse polarity without gas.

➡ LCD DISPLAY WITH EXCELLENT CONTRAST

The easy-to-read LCD display provides full control of welding parameters. The user interface is simple to use and intuitive. Parameters are adjusted via two knobs.

The user can choose whether to use synergistic programs or weld in manual settings mode. When using Synergy, it is enough to choose the type and thickness of the welded material. Of course, it is possible to make adjustments to the selected program.

LEARN THE FEATURES THAT MAKE A DIFFERENCE:

• ATC - optimization of arc characteristics when welding thin elements,
• regulation of welding inductance - control of face width and depth of melting,
• regulation of the feeder access speed,
• Burn Back - regulation of wire burning time,
• regulation of gas outflow after welding,
• MIG/MAG spot welding.

NOTE: The display also shows the influence of parameter values on the shape of the weld face.

PROFESSIONAL WIRE FEEDER 2R

Ideal TECNOMIG 205 LCD is equipped with a professional welding wire feeder 2R. It ensures stable feeding, which translates directly into good welding parameters. The drive transmission mechanism is resistant to various types of dirt that occur in workshop conditions.

ADVANTAGES OF THE DEVICE:

• maximum welding current up to 200A,
• MIG/MAG welding in manual setting mode or using synergistic lines,
• synergistic MIG/MAG programs for different material groups: steel, non-stained steel, aluminum, soldering, self-shielding wire welding,
• additional MIG/MAG welding functions that improve welding quality,
• EURO socket,
• possibility of MMA and TIG DC Lift welding.

IDEAL - A GOOD CHOICE FOR TODAY AND TOMORROW

The IDEAL brand is the result of many years of activity of specialists in the welding industry. IDEAL devices are distinguished by attention to quality and diligence. Representatives of the IDEAL brand are constantly looking for inspiration, among others, through regular participation in national and international welding fairs. More than 30 years experience in the design and manufacture of devices is noticeable in IDEAL products.

BASIC:

• Power Supply: 230V
• Welding methods: MIG, MAG, MMA, TIG DC Lift, FLUX
• Working cycle: 60%
• Current taken from the mains: 20,3A
• LCD display
• Degree of protection: IP23S
• Dimensions: 540x240x385 mm
• Net weight: 16kg

MIG/MAG welding parameters:

• Welding Current: 50 - 200A
• Current at 60% duty cycle: 200A
• Current at 100% duty cycle: 160A
• Welding Voltage: Smooth Adjustment
• Wire feed speed: smooth adjustment
• Synergistic programmes: YES
• MIG/MAG spot welding: YES
• Function of ATC

• Diameter of aluminum wire: 0,8 - 1,0 mm
• Wire diameter for soldering: 0,8 - 1,0 mm
• Self-shielding wire diameter: 0,8-0,9 mm
• Steel wire diameter: 0,6 - 1,0 mm
• Stainless steel wire diameter: 0,8 - 1,0 mm

MMA welding parameters:

• Welding Current: 20-150A
• Idle Voltage: 64V
• Electrode diameter 1,6-3,2mm

TIG welding parameters (optional):

• Welding Current: 20-150A
• Output Current: DC Constant
• Arch ignition: rubbing - TIG Lift

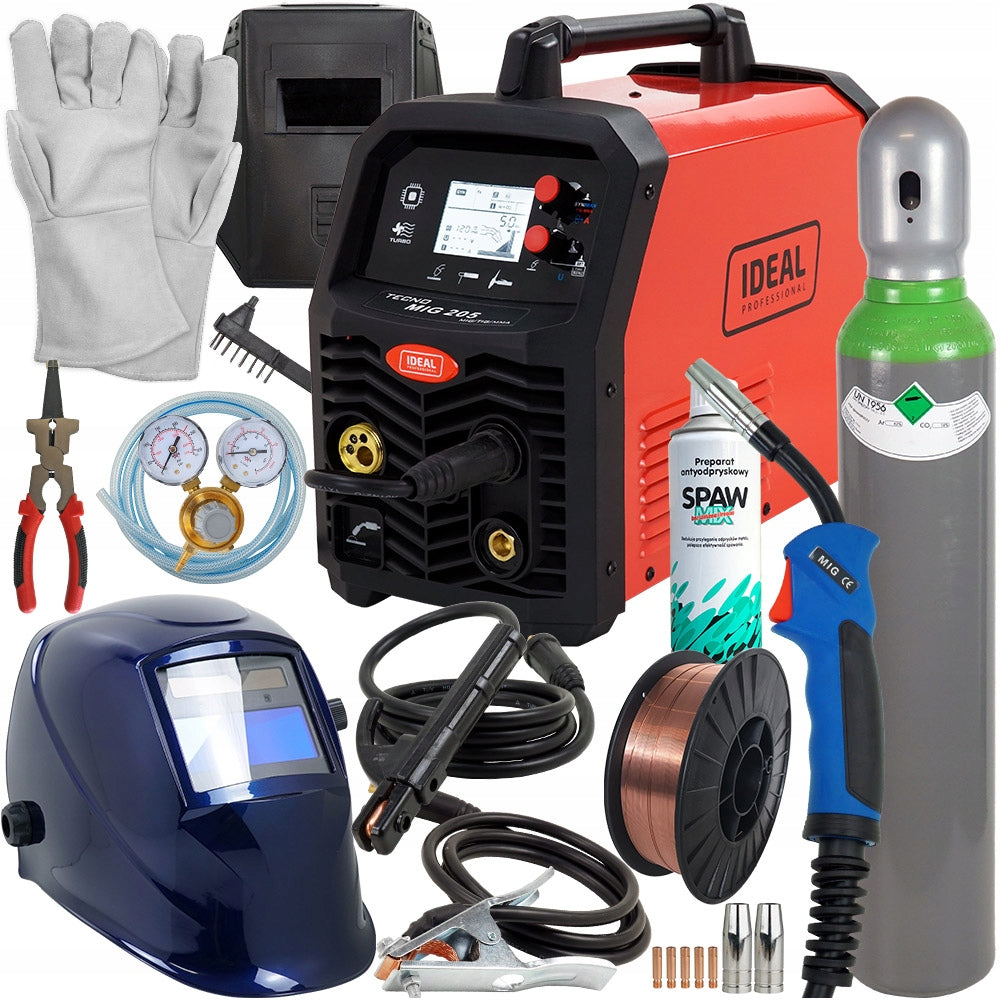

• Welding machine Ideal TECNOMIG 205 LCD Synergy
• MIG EURO MB 15 3m welding torch
• MMA Electrode Holder
• Bulk cable
• User manual

+ WELDING ACCESSORIES FOR FREE

• welding disc,
• hammerbrush,
• multifunctional welding pliers.

+ MAG WELDING KIT WITH CYLINDER Ar/CO2

• Ar/CO2 8l cylinder - brand new cylinder ready for filling - has approvals and approvals required by cylinder filling points,
• cylinder reducer Ar/CO2 with two clocks,
• steel welding wire SG2 0,8mm x 5kg,
• anti-chipping spray 400ml,
• set of spare parts of the burner,
• gas line.

+ WELDING GLOVES

+ PROFESSIONAL, SAFE SELF-TINTING VISOR WITH 510G FILTER

• Filter Type: Automatic (Self-Darkening)
• Filter model: 510G
• Field of view: 96x39 mm
• Number of sensors: 2
• Darkening: DIN 9-13
• Response time: 1/30 000s
• Optical class: 1/1/1/2
• Brightening time adjustment: 0,1 - 1,0 [s] smooth
• UV/IR protection: up to DIN 16
• Darkening in bright condition: DIN 4
• MIG/MAG/MMA welding: YES
• TIG welding: Yes, above 10A
• Photovoltaic cell + battery 1xCR2032
• Weight: 475g
