Trumpai apie prekę
Prekė: Suvirinimo aparatas MIGOMAT 200 MAG MMA Flux IGBT. Kategorija: Pusiau automatiniai suvirinimo aparatai.
- Gamintojas: IDEAL
- Modelis: spawarka migomat PMIG200V2_pakiet2
- Ilgis: 480 mm
- Plotis: 225 mm
- Aukštis: 335 mm
Ideal | MIG / MAG | MMA | FLUX | 200 A | D100 / D200 | 230 V | IGBT
Standard equipment
- semi-automatic welding machine
- MIG holder MB-14 / 2,2 m (fixed)
- mass cable / plug 16-25 mm2 / 2 m
- electrode cable / plug 16-25 mm2 / 200 A / 2 m
- set of feeder rollers (type D) fi 0,6 mm / 0,8 mm V-shaped (mounted)
- instruction manual in Polish

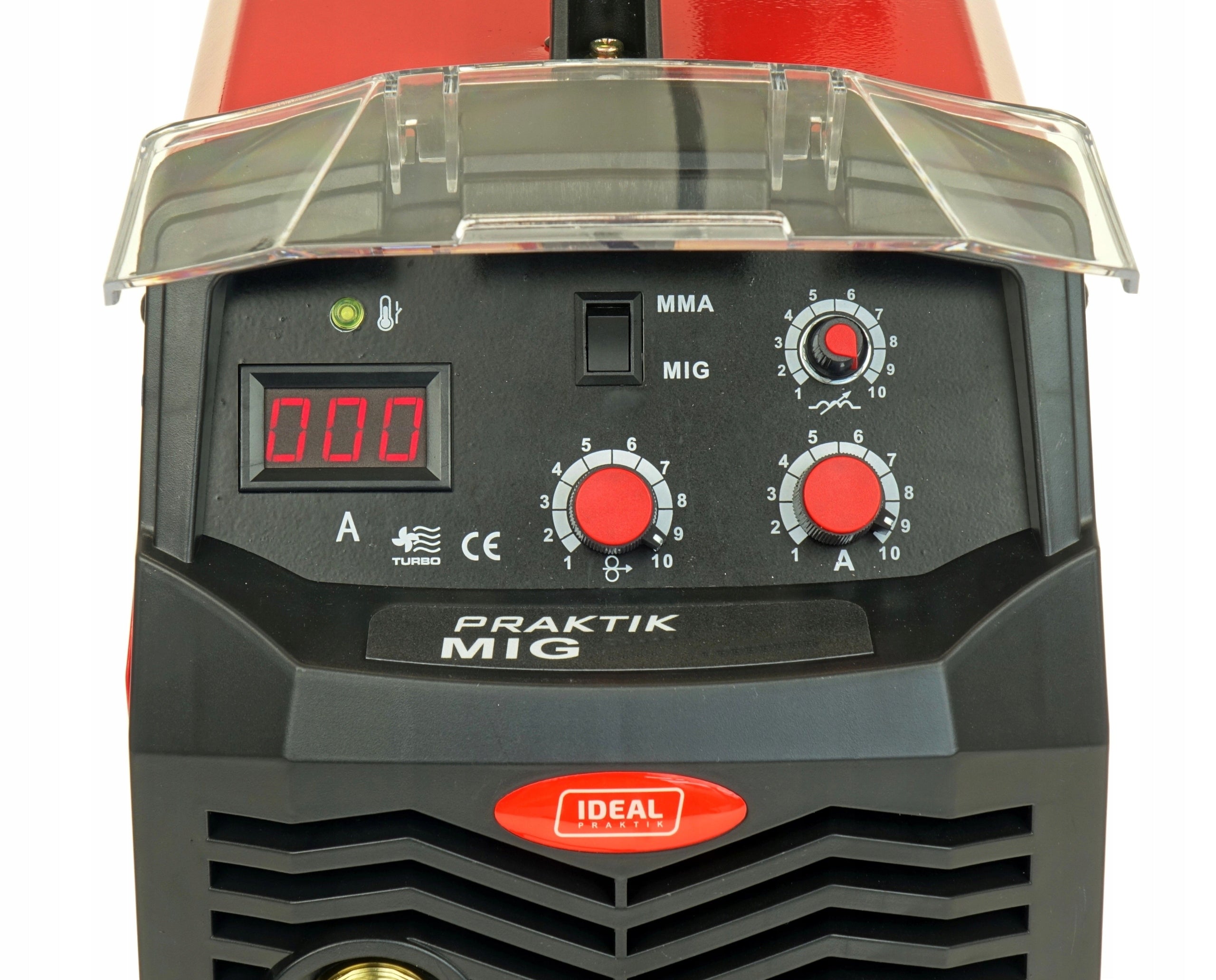

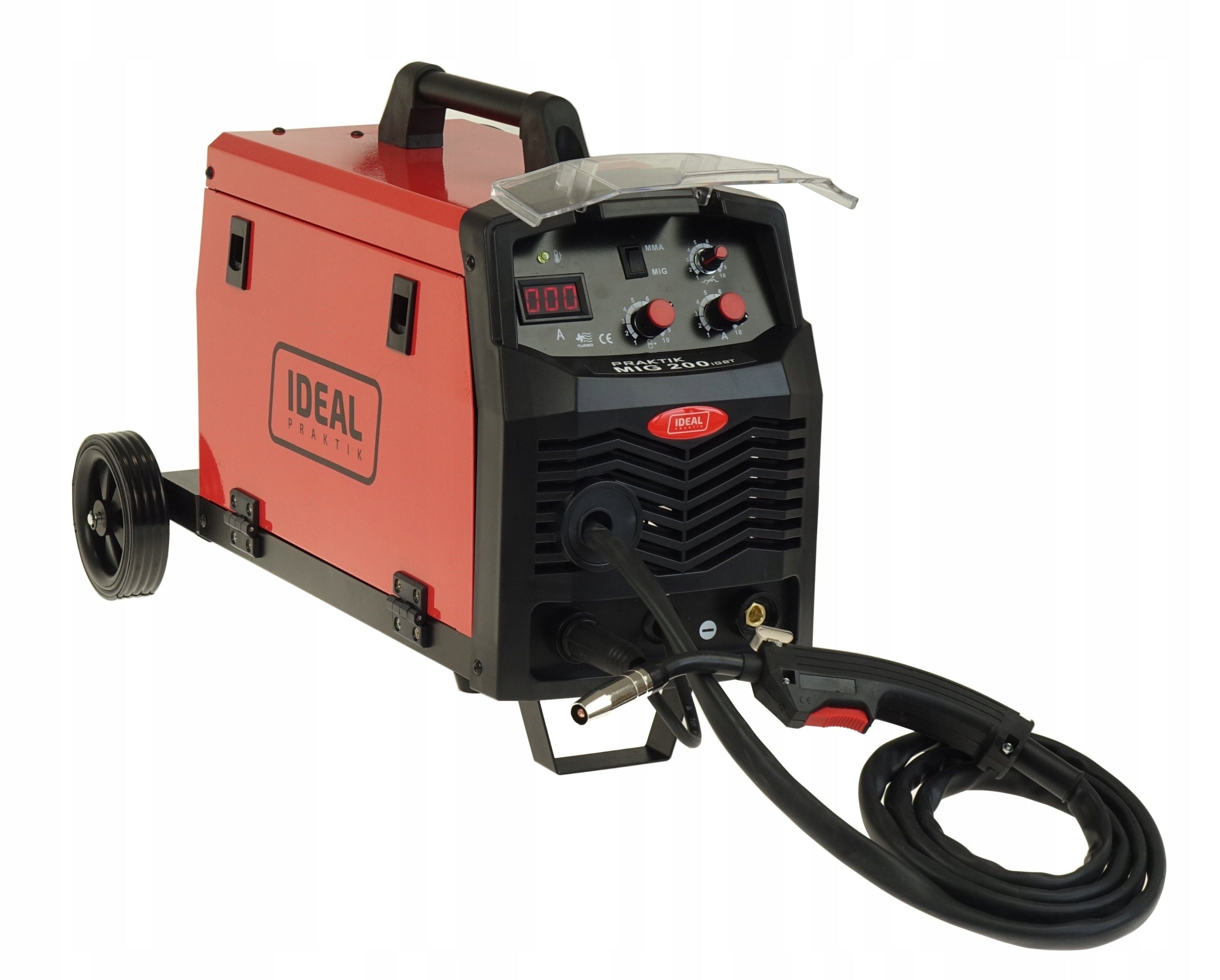

The Ideal Praktik MIG 200 MMA IGBT is an inverter semi-automatic welding machine for MIG/MAG, MMA and FLUX welding (self-shielded wire welding).
MMA version with the possibility of welding with a wrapped electrode!
Recommended for flashing and workshop applications.
It has the ability to change the polarity of the handle for welding with self-shielding wire.
Features:
- single-phase power supply 230 V
- maximum spool with wire: 5 kg
- welding current 200 A
- 2-roll wire feeder, with 0,6-0,8 roll for steel wire
- diameter of welding wire 0,6-0,8 mm
- permanently mounted welding torch
- smooth regulation of welding current
- fan-cooled
- overload protection
- regulation of inductance
For MIG/MAG welding adjustable:
- welding current
- Wire feed rates
Technical parameters
- Max. welding current [A]: 200
- Welding current range [A]: MIG: 30 - 200 A, MMA: max. 140 A
- Current [A] / duty cycle [%]: MIG: 180 A / 60%, MMA: 140 A / 60%
- Security [A]: 20
- Power at work 60%: 180 [A]
- Power consumption: 5,2 [kW]
- Power supply [V]: 230
- Degree of protection: IP21S
- Idle voltage [V]: 56
Functions

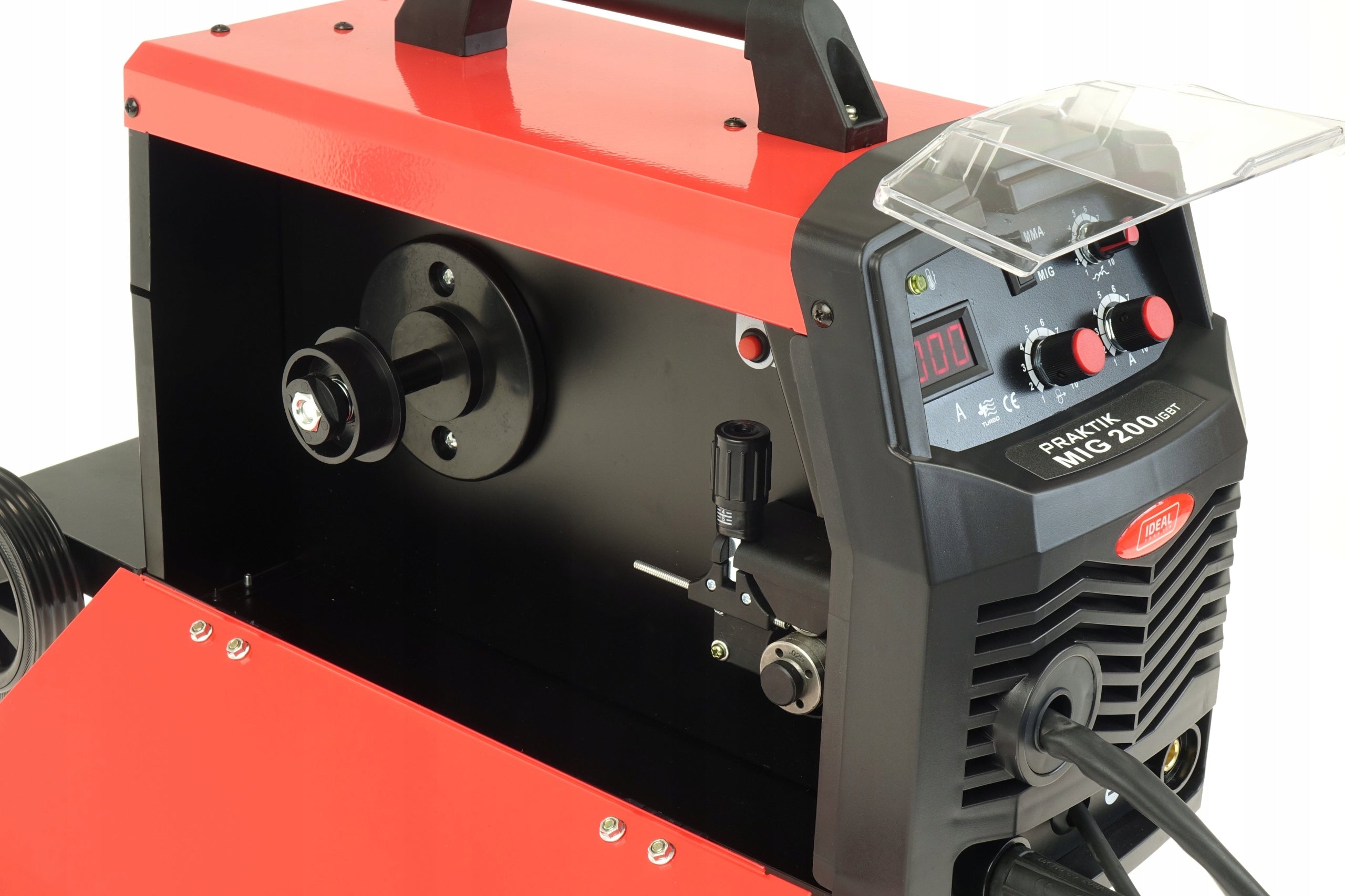

- Type of wire feeder: internal 2 roller
- Wire spool: 5,00 kg / D200 and 1 kg / D100
- Cooling: with gas
- Current adjustment: Smooth
- Inductance adjustment: Yes
- Change of polarity: YES
- Processes: MIG / MMA
Physical parameters
- Weight: 14,7 [kg]
- Overall dimensions [L. x width x H ]: 470 x 225 x 335 [mm]
- self-shielding wire: 0,8 - 0,9 mm
- steel wire: 0,6 - 0,8 mm
- stainless steel wire: 0,6 - 0,8 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | IDEAL |
| Parametry | Power consumption | 6.5 kVA |
| Parametry | Supply voltage (V) | 230 |
| Parametry | Duty cycle time | 60% |
| Parametry | Maximum electrode diameter | 3.2 mm |
| Parametry | Wire diameter (mm) | 0,6-0,8 |
| Parametry | Device weight | 14.7 kg |
| Parametry | Welding range | 30–200 A |
| Parametry | Height | 335 mm |
| Parametry | Length | 480 mm |
| Parametry | Width | 225 mm |
| Parametry | Length of ground cable | 200 cm |
| Parametry | Welding cable length | 220 cm |
| Parametry | Product weight with unit packaging | 29.8 kg |
| Parametry | Manufacturer code | spawarka migomat PMIG200V2_pakiet2 |
| Parametry | EAN (GTIN) | 5905031031663 |
| Parametry | Packaging status | original |
| Parametry | Welding methods | MIG/MAG,MMA |
| Parametry | Additional features | transport wheels,infinitely adjustable welding current |
